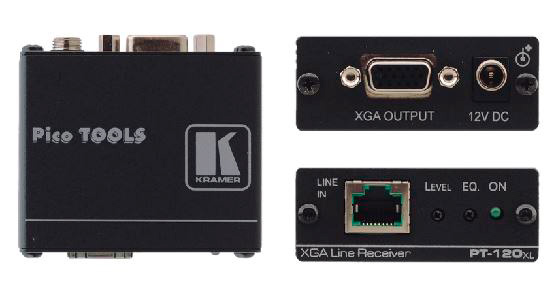

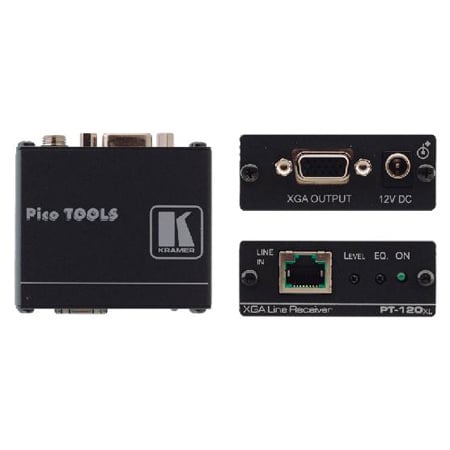

Kramer PT-120XL Computer Graphics Video Over Twisted Pair Receiver

ITEM #: KR-PT120XL MFG #: PT-120XL

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$315.00

Our Price:

$252.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    PT-120XL - Overview

    HDTV Compatible

    The Kramer PT-120XL is an extended range twisted pair receiver for computer graphics video signals. It converts a twisted pair signal from a PT-110xl transmitter (or other compatible Kramer transmitter, all sold separately) to a computer graphics signal.

    Perfect for:
    Presentation and multimedia applications
    Long-range graphics distribution for schools, hospitals, security

    • Features:

      • HDTV Compatible.
      • Max. Resolution - WUXGA & 1080p.
      • Level (Gain) & EQ (Peaking) Controls.
      • System Range - Up to 250m (820ft). Greater distances possible depending on signal resolution and cable.
      • Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) cable such as CAT 5.
      • Power Connect™ System - A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other

    • Specifications:

      • INPUT
      • 1 RJ-45 connector

      • OUTPUT
      • 1 VGA/UXGA on a 15-pin HD connector

      • MAX. OUTPUT LEVEL
      • 1.3Vpp

      • RESOLUTION
      • Up to WUXGA, 1080p

      • RANGE
      • Up to 250m (820ft)

      • S/N RATIO
      • Paired with PT-110xl, better than 70dB (worst case)

      • CONTROLS
      • Level: 0.7v to 1.3v, 300m
      • EQ: 300m @120MHz

      • COUPLING
      • DC

      • POWER CONSUMPTION
      • 12V DC, 350mA max

      • OPERATING TEMPERATURE
      • 0° to +40°C (32° to 104°F)

      • STORAGE TEMPERATURE
      • -40° to +70°C (-40° to 158°F)

      • HUMIDITY
      • 10% to 90%, RHL non-condensing

    • Item Includes:

      • PT-120xl Receiver
      • Power Supply

    • Warranty:

      • Limited 7 Year Warranty

    • GTIN:

      7291063953386
