Kramer TP-581T HDMI Bidirectional RS-232 Ethernet & IR over Cat5 Transmitter
  • Kramer TP-581T HDMI Bidirectional RS-232 Ethernet & IR over Cat5 Transmitter
  • Kramer TP-581T HDMI Bidirectional RS-232 Ethernet & IR over Cat5 Transmitter
Questions? Ask a Markertek Expert:
800-522-2025 Email

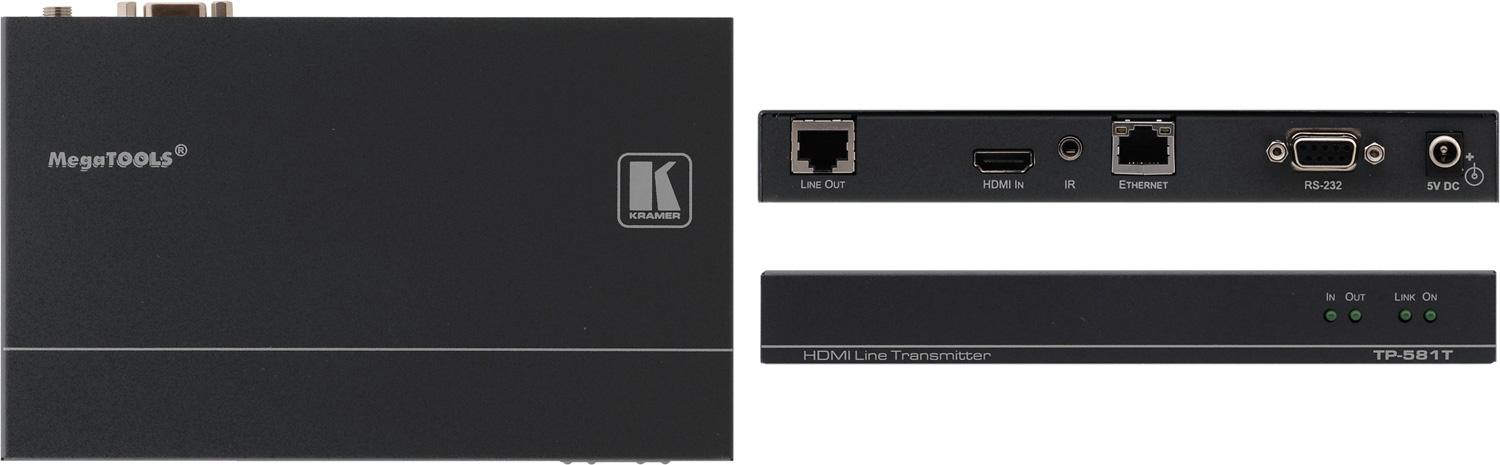

Kramer TP-581T HDMI Bidirectional RS-232 Ethernet & IR over Cat5 Transmitter

Manufacturer: Kramer

Item #: KR-TP-581T   •   MFG #: TP-581T


List Price:$595.00
Our Price:$476.00

free ship
Availability: Direct Ship From Manufacturer
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.

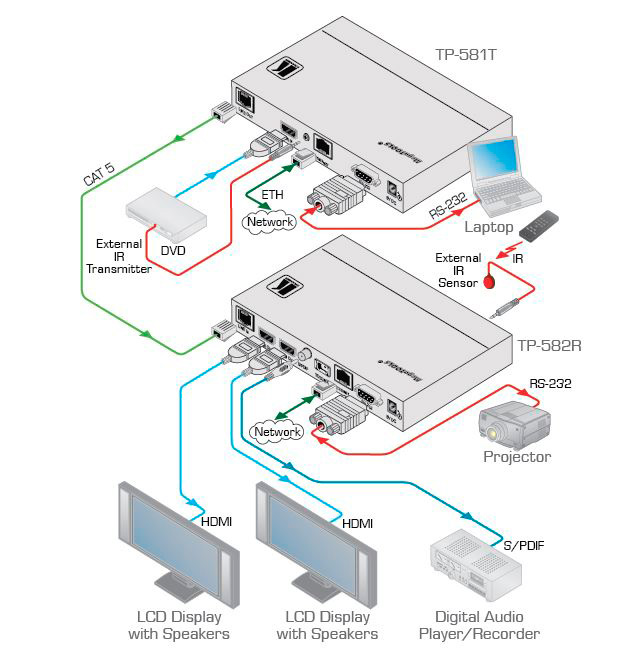

The TP-581T is a high-quality twisted pair transmitter for HDMI, Ethernet 100BaseT, bidirectional RS-232 and IR signals. The TP-581T takes the HDMI input, and converts it with the Ethernet 100BaseT, RS-232 and IR input signals to a twisted pair signal. The TP-582R converts the twisted pair signal back to Ethernet 100BaseT, RS-232, IR and two HDMI outputs, and de-embeds the audio to S/PDIF and TOSLINK audio outputs.

  • Features

    • Max. Data Rate - 2.25Gbps.
    • HDBaseT Technology. HDTV Compatible. HDCP Compliance. HDMI Support - HDMI (V.1.4 with Deep Color, x.v.Color, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC).
    • 3D Pass-Through. EDID PassThru - Passes EDID signals between the source and display.
    • Bidirectional RS-232 Interface - Commands and data can flow in both directions via the RS-232 interface, allowing status requests and control of the destination unit.
    • Ethernet Interface - Passes 100BaseT.
    • System Range - Up to 100m (330ft).
    • Cable - Requires shielded twisted pair (STP) cable. For optimum range and performance use, use Kramer's BC-DGKat524, BC-DGKat623 and BC-DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
    • Control - Front panel.
    • Indicators - Status LEDs for input selection, output, link and power.
    • Compact MegaTOOLS - 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B universal rack adapter.
  • Specifications

    • INPUTS: 1 HDMI connector, 1 IR on a 3.5mm mini jack, 1 Ethernet 100BaseT on an RJ-45 connector, 1 RS-232 on a 9-pin D-sub connector.
    • OUTPUTS: 1 RJ-45 connector.
    • BANDWIDTH: Supports up to 2.25Gbps bandwidth per graphic channel.
    • POWER SOURCE: 5V DC, 800mA.
    • DIMENSIONS: 18.8cm x 11.4cm x 2.4cm (7.4" x 4.5" x 1.0") W, D, H.
    • WEIGHT: 0.6kg (1.4lbs).
    • ACCESSORIES: Power supply.
    • OPTIONS: RK-T2B 19" rack mount.
