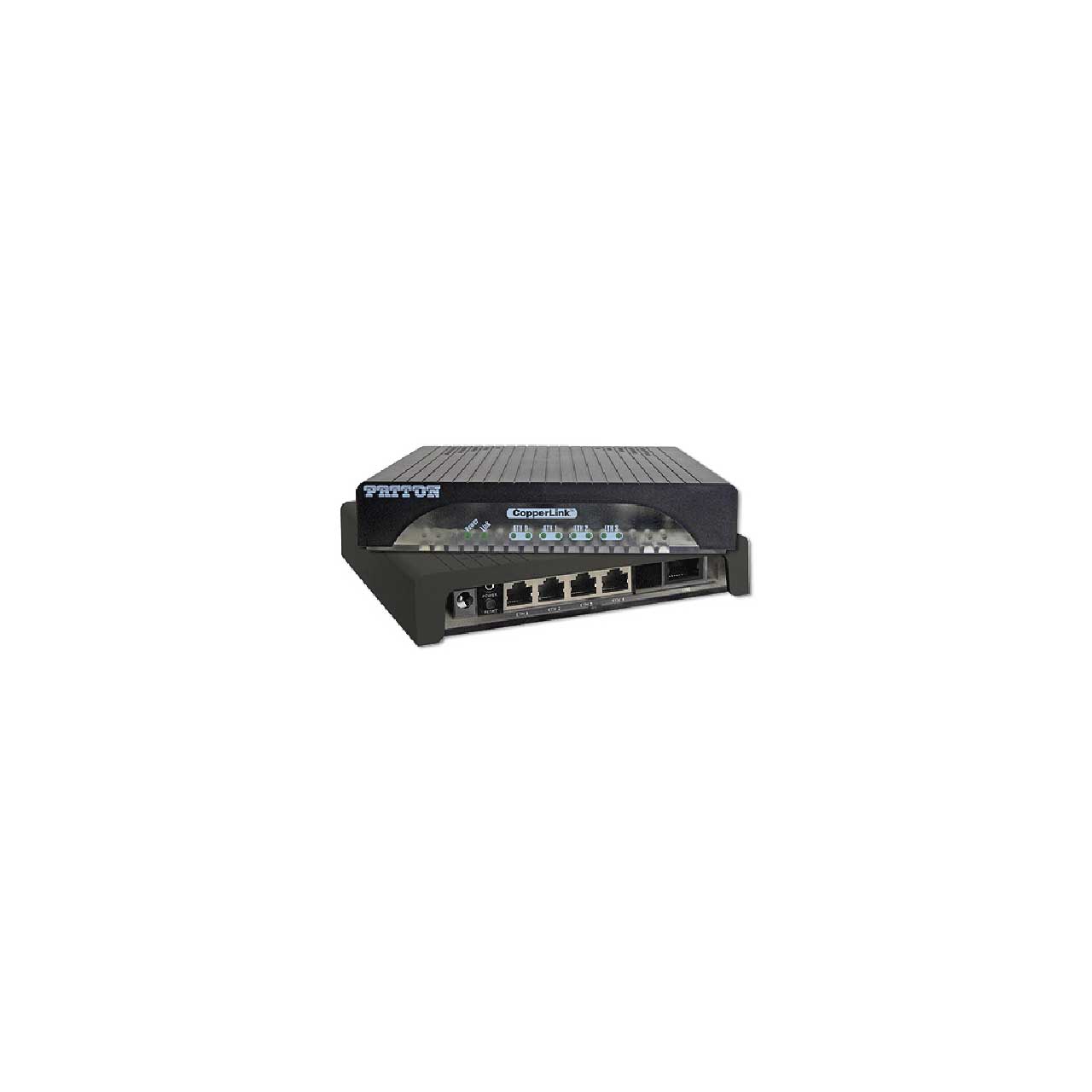

Patton CL1314/EUI-2PK Long Range CopperLink Ethernet Extender Kit - 2 Pack

ITEM #: CL1314-EUI-2PK MFG #: CL1314/EUI-2PK

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:

$1,200.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    CL1314/EUI-2PK - Overview

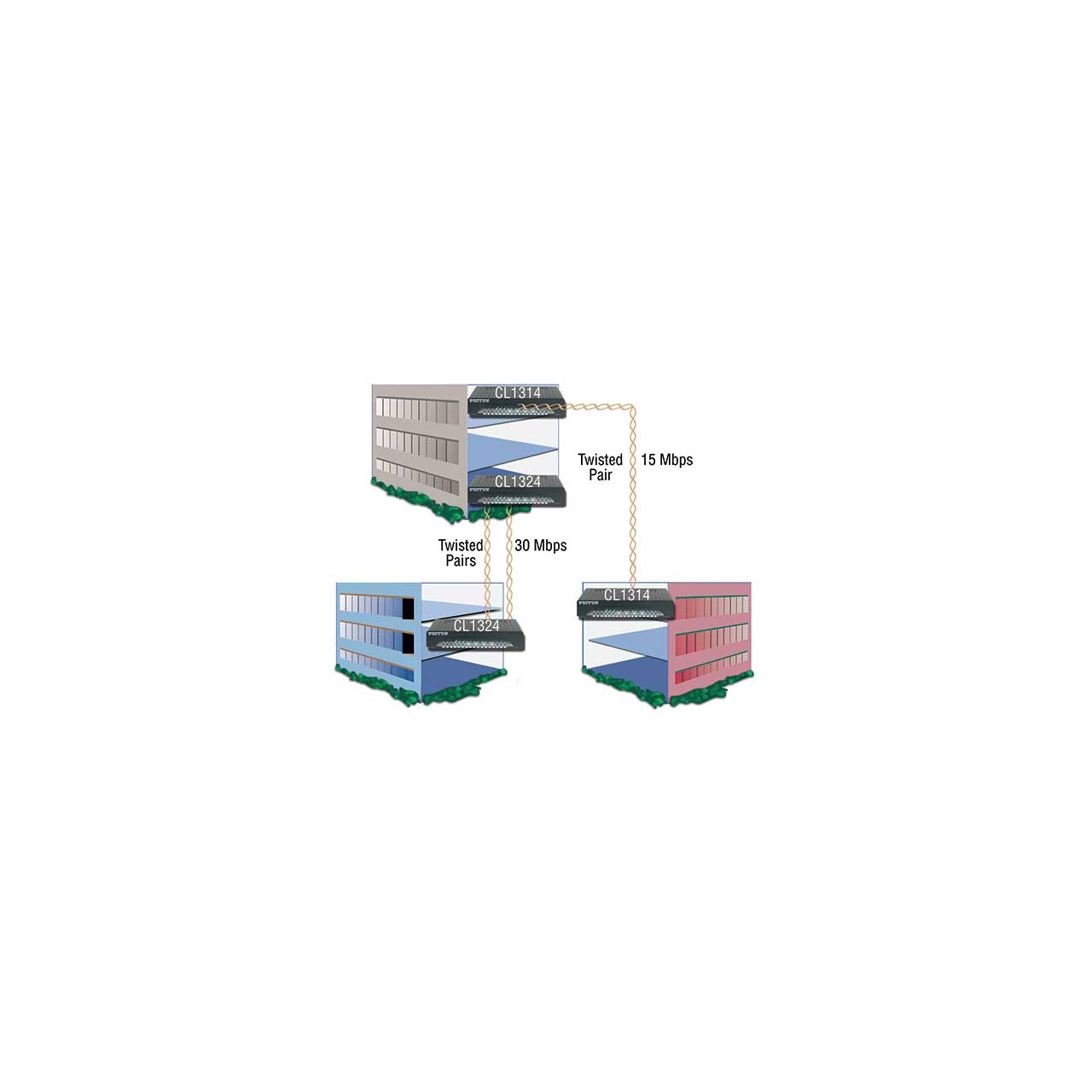

    Ethernet extension doesn't have to be expensive or difficult. The Patton CL1314 long range Ethernet Extenders open the door to cost-effective Ethernet extension that is easy to set up. Featuring plug-and-play installation, the CL1314 CopperLink Ethernet Extenders leverage existing copper twisted-pair infrastructure to interconnect Ethernet devices and networks at high speeds over long distances.

    Patton's CopperLink Ethernet Extenders ensure hassle-free set-up and operation, while achieving the highest possible line rate for the required distance and electromagnetic environment. Users can let the modems select the best acheivable rate or they can hard-set the desired line rate via DIP switches, console Telnet or HTTP.

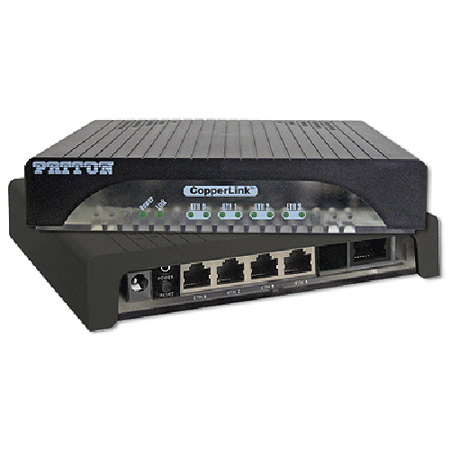

    The CL1314 comes with a built-in four-port, auto-sensing, 10/100Base-TX Ethernet switch that provides automatic medium-dependent interface crossover capability (auto-MDIX). That means you can use cross-over or straight-through cables (whichever is handy) to connect up to four Ethernet devices. The auto-MDIX feature detects the polarity of the cabling on each port, and automatically configures the signaling to match. Absolutely no user-configuration is required.

    The CL1314 transparently passes all higher-layer protocols including VLAN tagging, multicast addressing, VPN pass-through for IPsec, and all IP-video compression schemes. All common industrial protocols are also transparently supported, including MODBUS/TCP and PROFINET IO.

    Set-up is easy! Simply connect up to four LAN devices to the Ethernet switch, plug the copper twisted-pair into each extender, and apply power! For simple, cost-effective and efficient Ethernet extension, Patton's CopperLink Ethernet Extenders are the ideal solution!

    • Features:

      • High Speed Extension
      • Multi-rate Selection
      • Ethernet over 2 or 4 Wires
      • Built-in 4-port Ethernet Switch
      • Transparent LAN Bridging
      • Automatic Learning, Aging, and Filtering
      • Made in the USA

    • Specifications:

      • Protocol: Transparent to higher layer protocols
      • Transmission Line:
        CL1314 Single Twisted Pair (2 wire)
        CL1324 Two Twisted Pair (4 wire)
      • Line Rates: Rates from 192 kbps to 15.3 Mbps, selectable in all 64 kbps increments starting at 192 kbps
      • Front Panel LED Status Indicators: WAN - Link, LAN (Ethernet) - Link/Act, Power
      • Line Coding:
        TC-PAM 16 rates up to 2.3 Mbps
        TC-PAM 32 rates up to 5.7 Mbps
        TC-PAM 64 rates up to 11.4 Mbps
        TC-PAM 128 rates up to 15.3 Mbps
      • Connectors: RJ-45 on copper line side and 4 x 10/100 Ethernet, shrouded male IEC320 power connector
      • Line Interface: Transformer coupled, 1500 VAC isolation
      • Management: DIP switch, CLI (Telnet, SSH, Console Port), TFTP firmware upgrade, Import/export config, HTTP, Patton Cloud, restAPI
      • MTBF: 4.7 years
      • Power: External 90 260 VAC, 50G€“60 Hz (Universal Input)
      • Power Consumption: [email protected]
      • Operating Temperature: 32 to 122°F
      • Humidity: 5 to 95%, non-condensing
      • Altitude: 0 to 15,000 ft (0 to 4,600 m)
      • Dimensions: 4.7 x 1.52 x 5.00 Inches
      • Weight: 2.0 lbs
      • Compliance: FCC Part 15A, CE Mark per EMC directive 89/336/EEC and Low Voltage Directive 73/23/EEC

    • Item Includes:

      • 2x Patton CL1314/EUI-2PK Long Range CopperLink Ethernet Extenders
