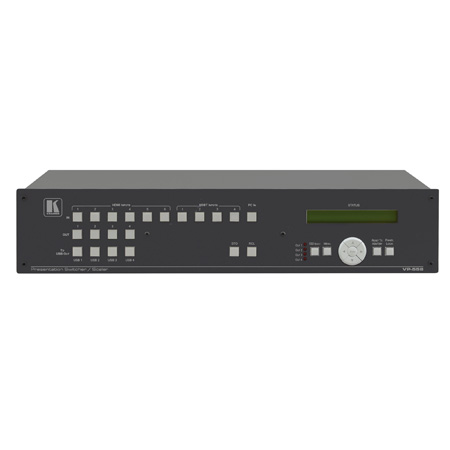

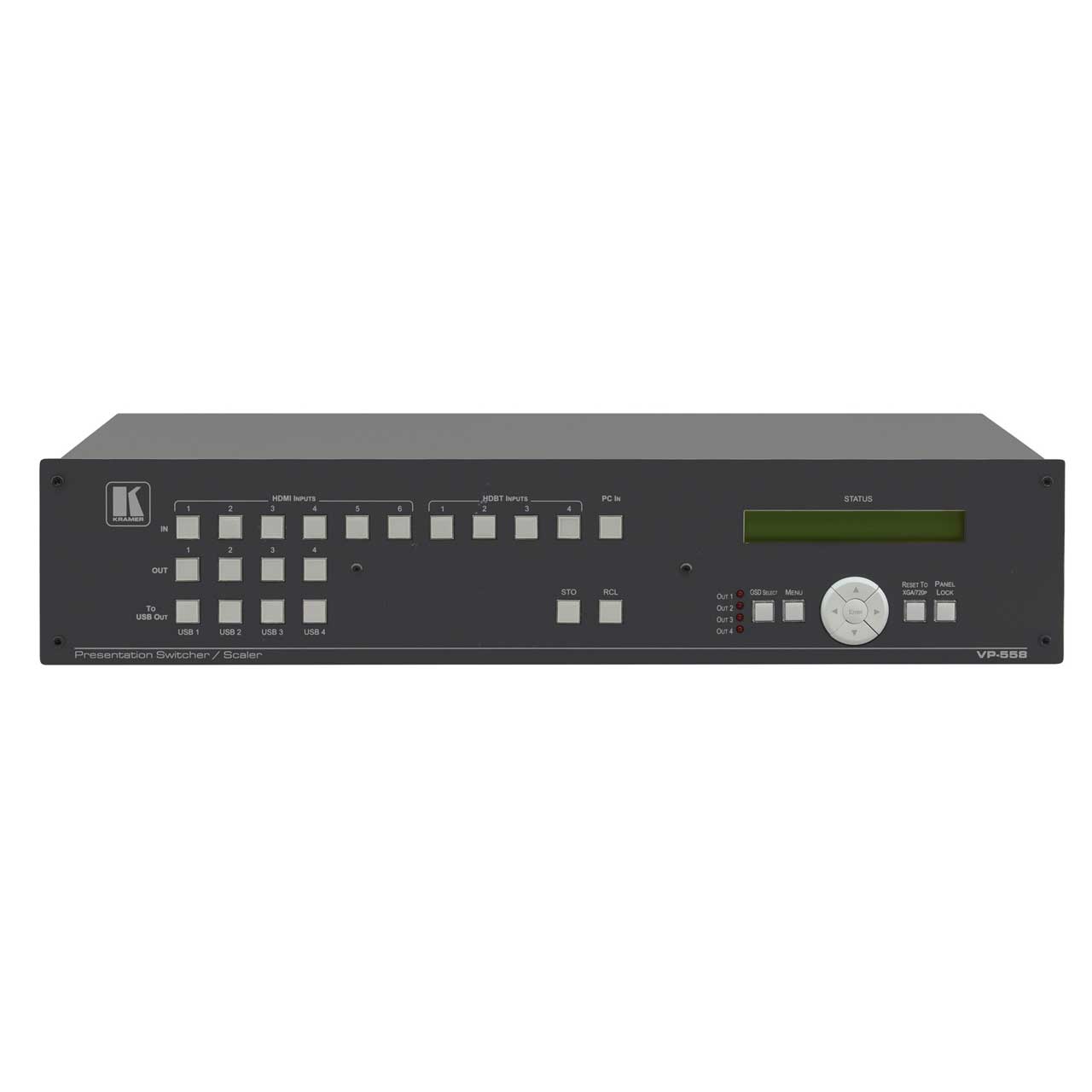

Kramer VP-558 11x4:2 Presentation Boardroom Router / Scaler System HDMI/HDBaseT

ITEM #: KR-VP-558 MFG #: VP-558

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KR-VP-558

VP-558 - Overview

HDTV Compatible & HDCP Compliant

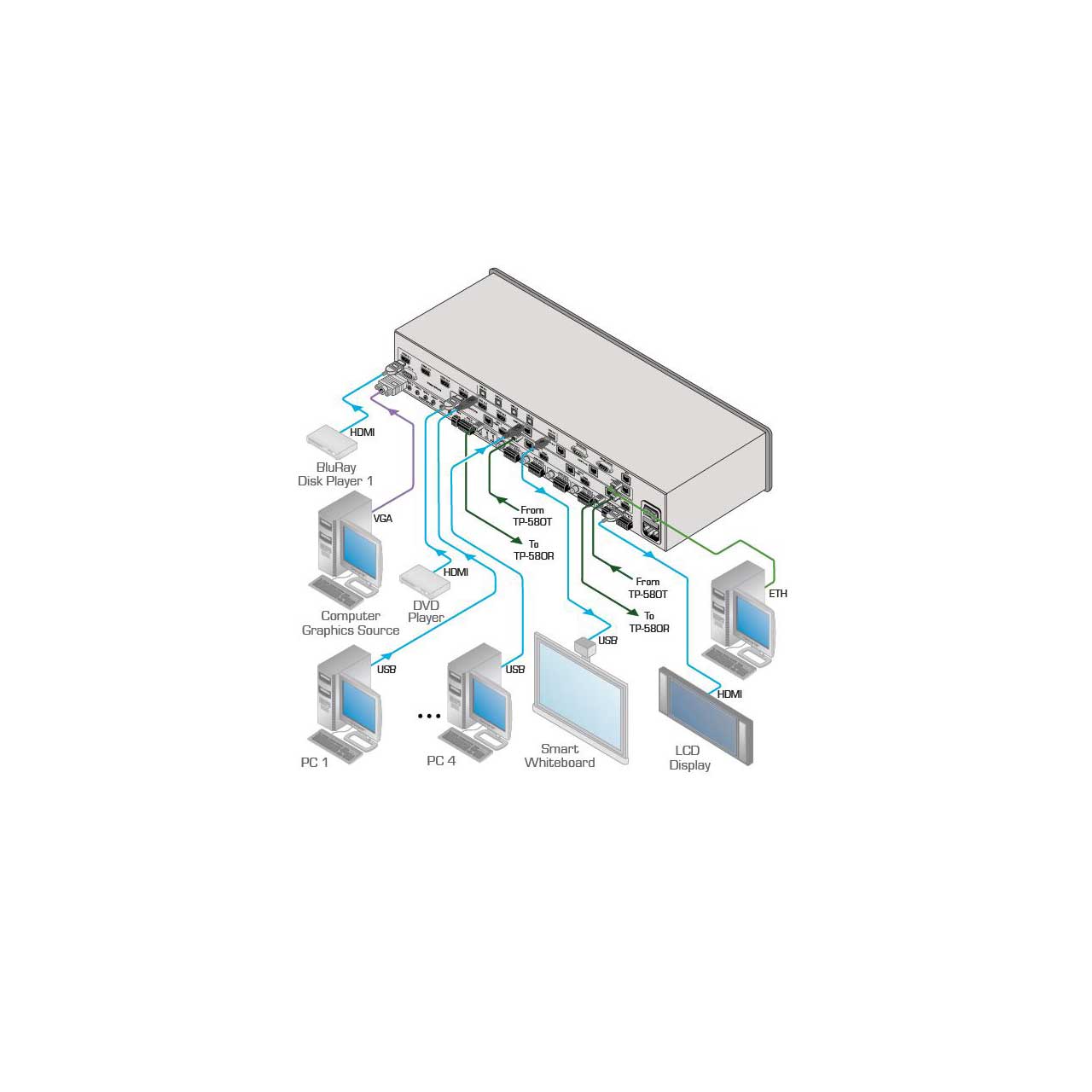

The Kramer VP-558 is a high-performance 11x4 ProScale presentation scaler/matrix switcher that can output four independent scaled images. Each output includes an HDMI and HDBaseT connector. The product supports analog, digital and embedded audio. VP-558 features six HDMI inputs, four HDBaseT inputs, an analog VGA input, and a 4x1 USB switcher. VP-558 also includes a microphone input, independent stereo audio outputs, a monitor output, an amplified speaker output, and audio DSP features.

Perfect for:
Projection systems in conference rooms, boardrooms, hotels and churches.
Meeting rooms with video conferencing systems.
Applications that require multiple screens with various sizes and resolutions at different distances from the cabinet or rack.

  • Features:

    • Pix-Perfect™ Scaling Technology - Kramer's precision pixel mapping and high-quality full up - and down-scaling technology.
    • HDTV Compatible.
    • HDCP Compliance - The HDCP (High Definition Content Protection) license agreement allows copy-protected data on the HDMI input to pass to HDCP compliant outputs.
    • Output Resolutions - Up to 1080p/WUXGA.
    • System Range - For the HDBT inputs and outputs - up to 70m (230ft).
    • Cables - For optimum range and performance using HDBaseT™, use Kramer's BC-HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non-Kramer CAT 6 cable may not reach these ranges.
    • 4x1 USB Switcher - Can be set to follow the switching of the video layer or as an independent switcher.
    • OSD (On Screen Display) - For easy setup and adjustment, accessible via the front panel buttons.
    • Audio DSP Features.
    • Input/Output Audio Level Adjustment.
    • Selectable Microphone Talkover or Mix Modes.
    • Analog & Embedded Audio Support - For inputs and outputs.
    • Built-in Power Amplifier - 2x10W power amplifier with speaker outputs on a 4-pin terminal block connector.
    • Multiple Aspect Ratio Selections.
    • Built-in ProcAmp - Color, hue, sharpness, noise, contrast and brightness.
    • Built-in Web Pages - For easy setup and remote control.
    • Firmware Upgrade via the Ethernet
    • Multiple Control Options - Front panel buttons with OSD, RS-232, Ethernet and built-in Web pages.
  • Specifications:

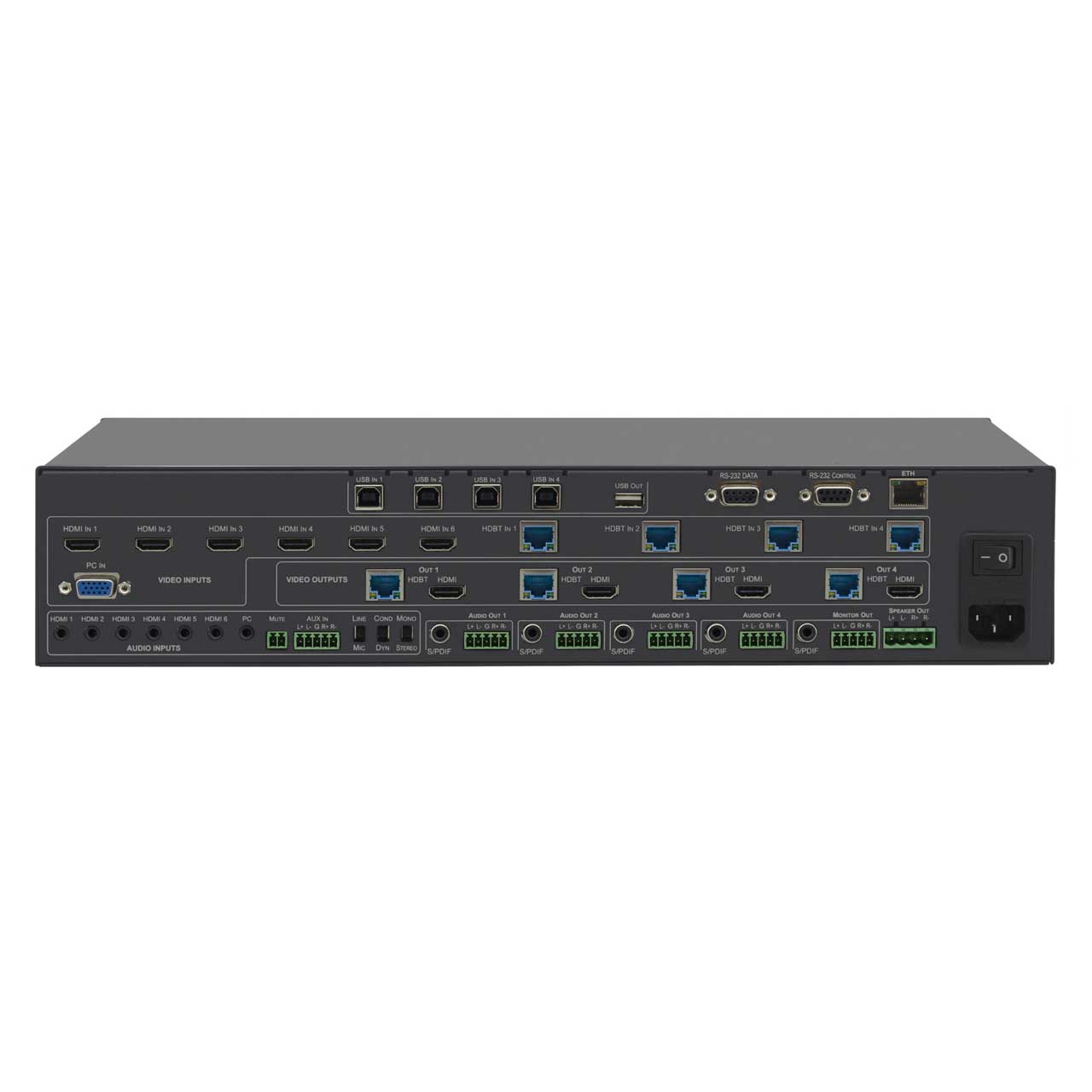

    • INPUTS
    • 6 HDMI connectors
    • 1 VGA on a 15-pin HD connector
    • 4 HDBT on RJ-45 connectors
    • 4 USB ports
    • 6 unbalanced analog audio on 3.5mm mini jacks for HDMI
    • 1 unbalanced analog audio on a 3.5mm mini jack for PC
    • 1 aux in/mic balanced stereo audio on a 5-pin terminal block connector

    • 4 HDBT on RJ-45 connectors
    • 4 HDMI connectors
    • 1 USB port
    • 4 audio out balanced stereo on 5-pin terminal block connectors
    • 4 audio out S/PDIF on RCA connectors
    • Monitor out balanced stereo on a 5-pin terminal block connector
    • Monitor out S/PDIF on an RCA connector.
    • 1 stereo speaker output, 2x10W into 4Ω, on a 4-pin terminal block connector

    • NATIVE, 640x480@60, 800x600@60, 1024x768@60, 1280x768@60, 1360x768@60, 1280x720@60, 1280x800@60, 1280x1024@60, 1440x900@60, 1400x1050@60, 1680x1050@60, 1600x1200@60, 1920x1080@60, 1920x1200@60, 720x480p@60, 1280x720p@60, 1920x1080i@60, 1920x1080p@60, 720x576p@60, 1280x720p@50, 1920x1080i@50, 1920x1080p@50

    • HDMI 1, HDMI 2, HDMI 3, HDMI 4, HDMI 5, HDMI 6, HDBT 1, HDBT 2, HDBT 3, HDBT 4, PC, USB 1, USB 2, USB 3, USB 4 input selector buttons
    • menu, enter, menu arrows, reset to XGA/720p, OSD SELECT, 2 RS-232, Ethernet, line/mic selector switch, cond/dyn (48V) selector switch, mono/stereo selector switch, REM for muting audio

    • 100-240V AC, 70VA max

    • 0° to +40°C (32° to 104°F)

    • -40° to +70°C (-40° to 158°F)

    • 10% to 90%, RHL non-condensing
  • Item Includes:

    • VP-558 Router/Scaler
    • Power Cord
    • Rack Ears (1 set)
    • Rubber Feet (4)
  • Warranty:

    • Limited 7 Year Warranty
  • GTIN:
