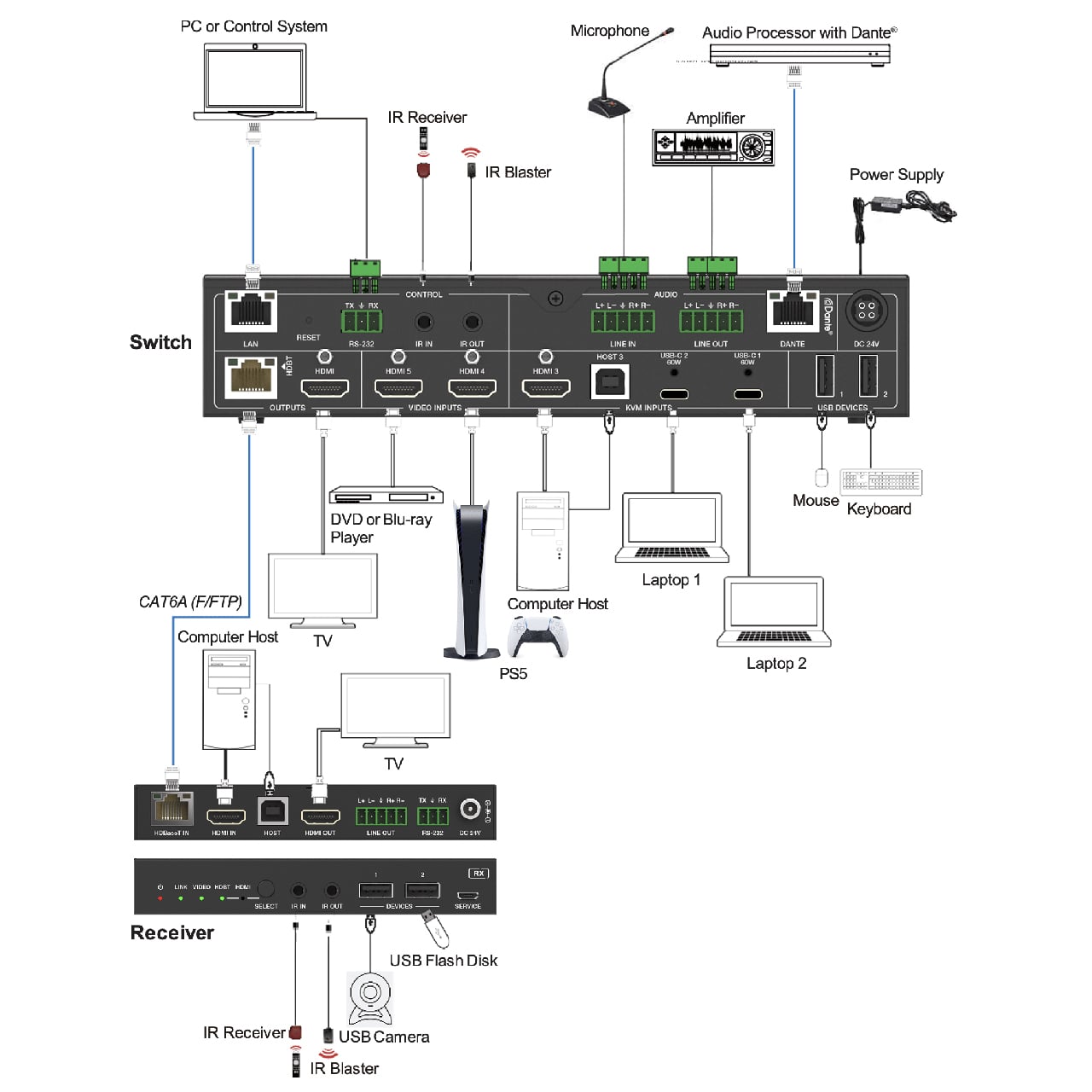

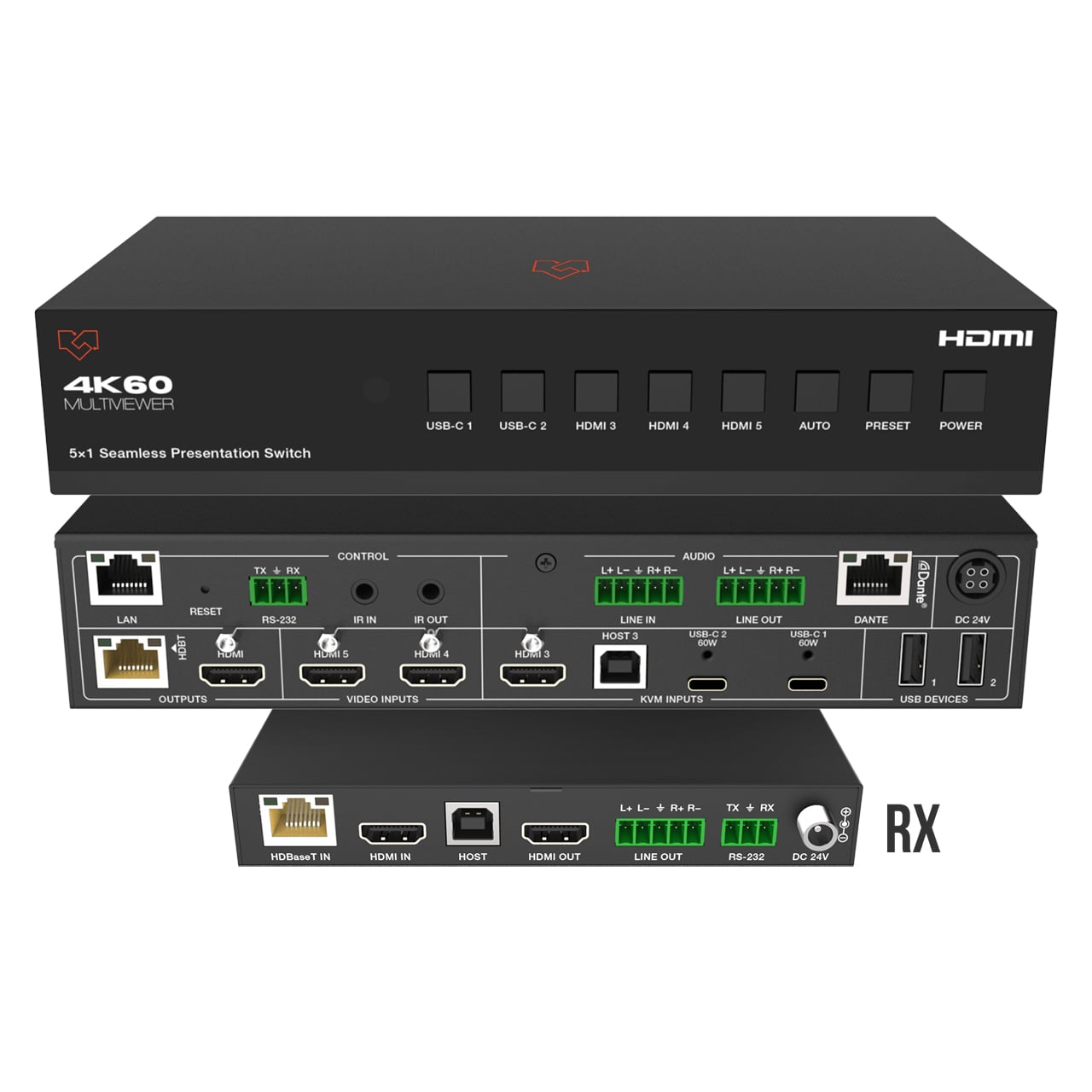

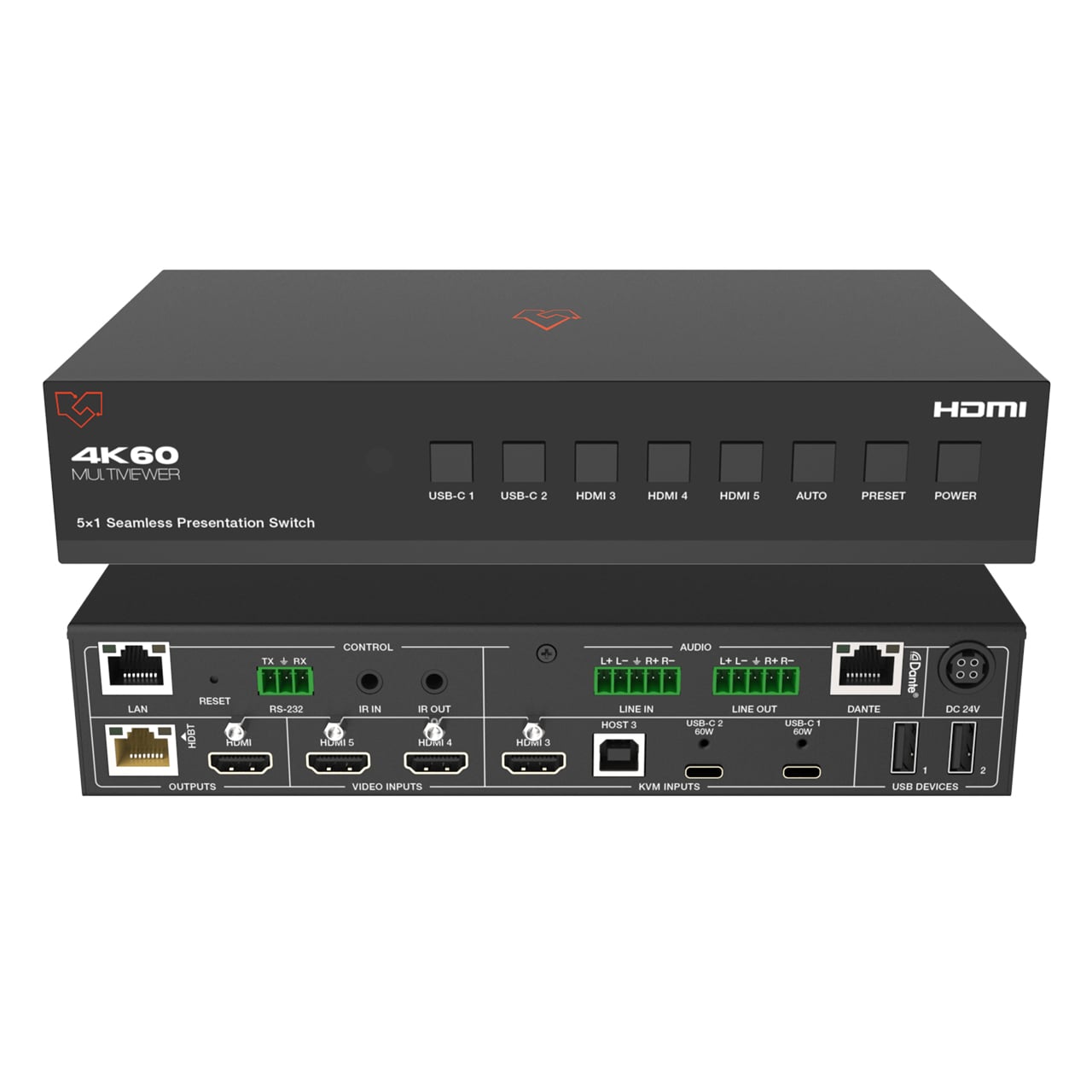

The VigilLink VLPT-51HT70 is a 5x1 seamless presentation switcher. It consolidates 3x HDMI sources and 2x USB-C sources into a single display output. There is a mirrored HDBaseT 3.0 output that extends the signal up to 230ft (70m) over a single CAT6A cable. The HDBaseT 3.0 receiver is included. The 2x USB-C inputs support DisplayPort Alt mode for 4K/18Gbps video and USB 2.0 data pass-through. They also offer 328ft (100m) Ethernet pass-through to a connected laptop and 60W charging. This makes them purpose-built for BYOD meeting rooms with a single-cable connection experience. HDCP 2.2 compliance and advanced EDID management ensure compatibility with modern display devices. Automatic and manual input switching modes accommodate both room-automation and walk-up presentation workflows.
The VLPT-51HT70 is equally capable as an audio hub. A built-in 3x3 audio matrix with independent EQ, volume, and delay adjustments per channel handles both analog audio input/output (via a phoenix connector) and Dante 2x2 networked audio input/output - enabling routing of program audio, microphone feeds, or room-reinforcement audio over the same infrastructure as the video.
Local USB 2.0 KVM switching lets users control a host PC directly from the display end of the room. Bidirectional RS-232 and IR pass-through allow control of external devices at both the transmitter and receiver ends. Flexible control is available via front-panel buttons, IR remote, RS-232, TCP/IP, and a web GUI.
