    VP2120 - Overview

    The ATEN VP2120 is a Seamless Presentation Switch that integrates video matrix switch, quad-view multistreaming, audio DSP, and idea-sharing platform into one compact device. With the seamless switching between streamed-in sources, the online idea exchanging features, and the network capability that enables the wireless connection for mobile devices, the VP2120 and ATEN Video Presentation Control App empower wireless BYOD collaboration anytime when a short catch-up, quick meeting, instant brainstorm, stand-up, or ad hoc call is needed.

    Designed for flexible and spontaneous team collaboration, the VP2120 along with ATEN Video Presentation Control App facilitates BYOD meetings with the straightforward user interface that give users quick and easy access to any on-the-fly meetings. Joining an online meeting is easy and secure. Participants can just bring their own devices and use the private QR code or room code, or auto scan the local network to get available room list to log in, even when they're not physically in the same area. The VP2120 allows bi-directional content streaming of up to 4 participants simultaneously. With the built-in multi-view mode, the streamed sources can be displayed on the same screen, which the layout dynamically adjusts to suit the number of sources available. Participants can also focus a streaming input to display full screen or view the go-live screen together for synchronization. Moreover, the built-in audio DSP allows remote participants to broadcast to meeting members using their own devices, with the sound mixed with the program audio.

    The VP2120 along with ATEN Video Presentation Control App also features more advanced online idea-sharing functions: Whiteboard allows real-time annotation for idea exchange and synchronization; Chat Room feature enhances interaction between participants; File Sharing enables further data sharing and follow-up; while Video Capture records the meeting p

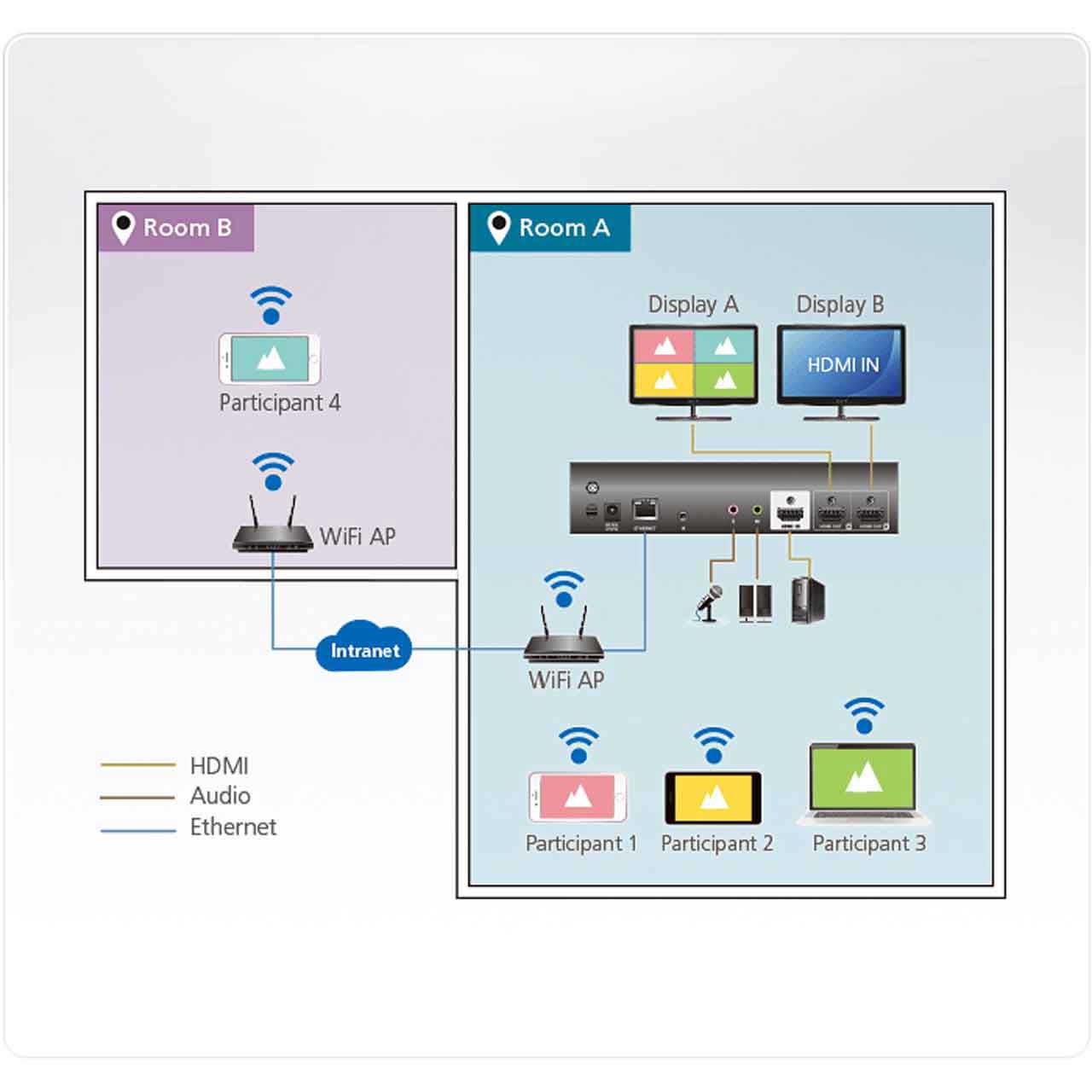

    Simultaneous Bi-directional Multistreaming
    Expedite collaboration with bi-directional content streaming among 4 participants simultaneously. Click the "Start Sharing" button to stream-in presentation content from your laptop or mobile device, or "Go Live" to stream-out presentation content in real-time to participants located in different rooms or separate floors.

    Quad View Flexibility with Auto Layout
    The built-in multi-view mode allows up to 4 streamed-in sources to be displayed in quad view on a single screen, and can dynamically adjust its layout according to the number of sources available. Participants can select a streaming-in source to enlarge and make full-screen, enhancing the flexibility of spontaneous presentation adjustments to meet the needs of fast-moving discussions.

    Real-time Whiteboard Annotation
    The Whiteboard facilitates discussions by enabling multiple participants to take notes and make annotations on any file in real-time. It provides an intuitive experience by featuring text input, pencil, and image uploads, as well as drag-and-drop and enlarge functions. Whiteboard contents can be saved and shared for efficient post-meeting follow-up.

    • Features:

      • Supports ATEN Video Presentation Control App for convenient collaboration and meeting presentations control using your mobile device
      • Bi-directional wireless content streaming of up to 4 participants simultaneously with quad-view support
      • Built-in Audio DSP - mixes Mic input, HDMI input, and the last streaming input for HDMI or audio output
      • Advanced online idea-sharing functions - Whiteboard, Chat Room, File Sharing, Group Broadcasting, and Video Capture

    • Specifications:

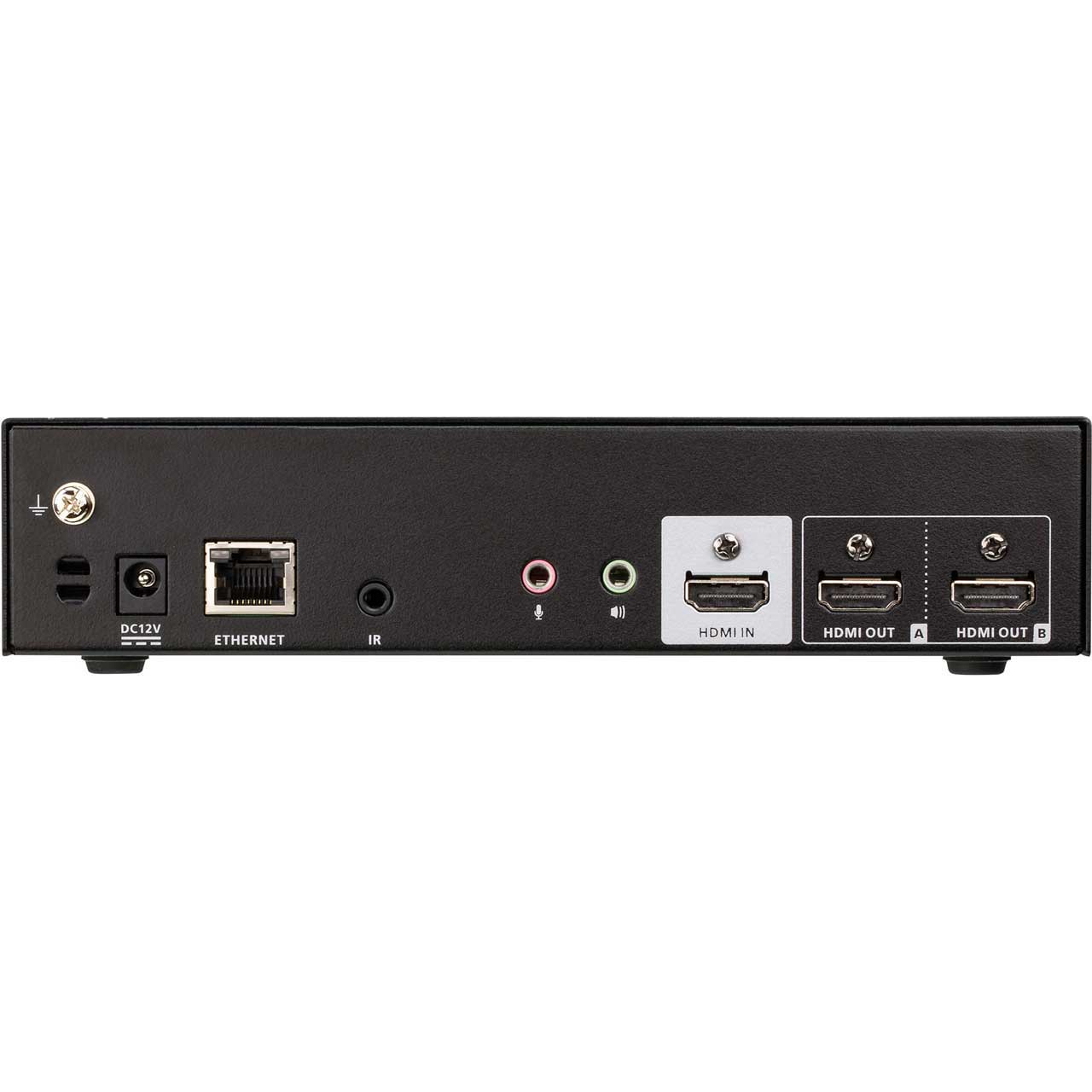

      • Video Input
      • Interfaces: 1 x HDMI Type A female (Black)

        Video Output
      • Interfaces: 2 x HDMI Type A female (Black)
      • Max. Distance: HDMI: Up to 15m

        Video
      • Max. Resolution: HDMI: Up to 1080p@60Hz
      • Compliance: HDMI: HDCP 1.4 Compatible; Consumer Electronics Control (CEC)

        Audio
      • Input: Microphone: 1 x mini stereo Jack female (Pink)
      • Output: Stereo Audio: 1 x mini stereo Jack female (Green)

        Connectors
      • Console Ports: USB 3.0: 1 x USB Type A Female (Blue)
      • Power: 1 x DC Jack (Black)

        Control
      • IR: 1 x Mini Stereo Jack Female (Black)
      • Ethernet: 1 x RJ-45 Female (Silver)

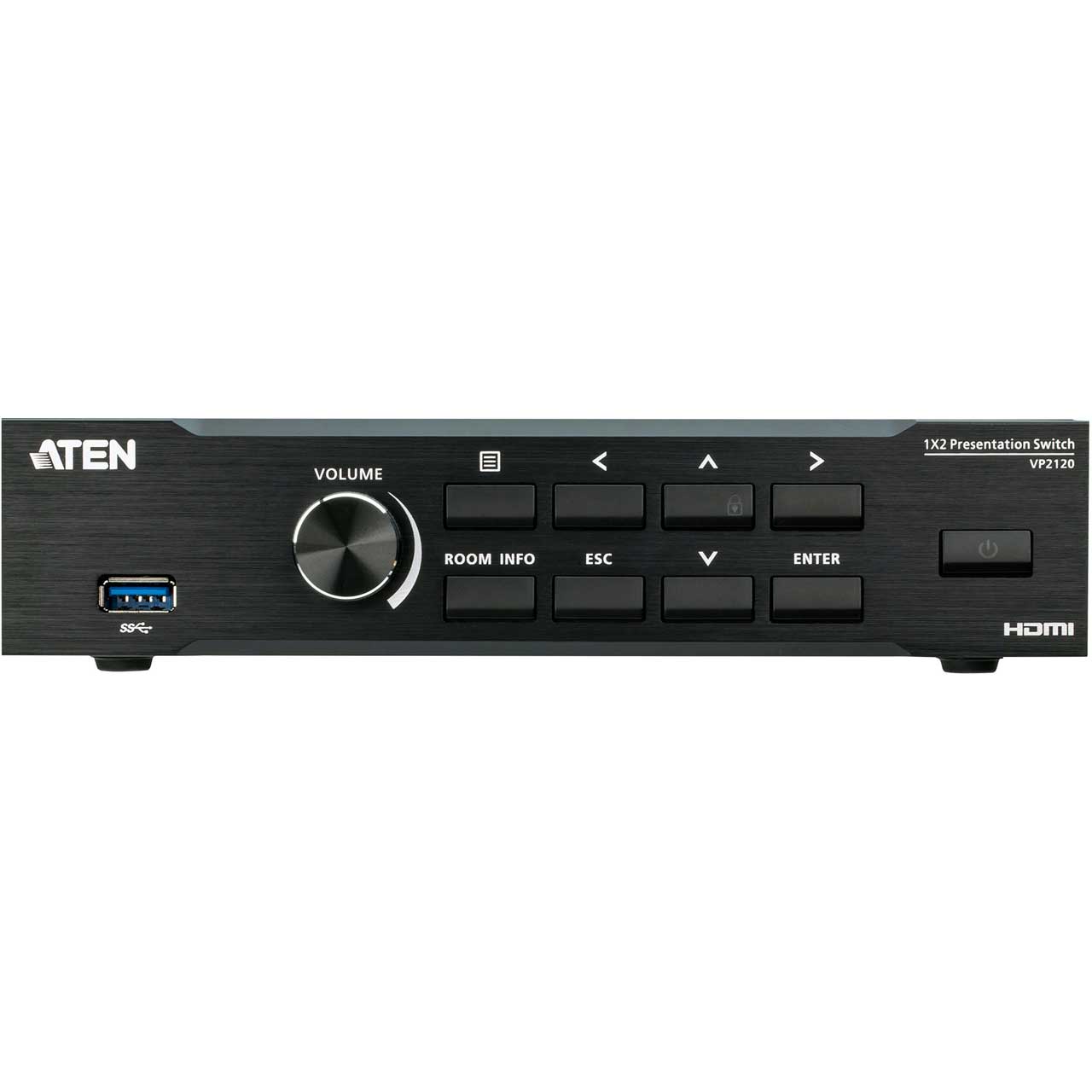

        Switches
      • Power: 1 x Pushbutton (LED: Green)
      • Selection: Room Info: 1 x Pushbutton
      • Menu: 1 x Pushbutton
      • Left: 1 x Pushbutton
      • Right: 1 x Pushbutton
      • Down: 1 x Pushbutton
      • Up/Unlock: 1 x Pushbutton
      • Volume: 1 x Knob
      • Enter: 1 x Pushbutton
      • ESC: 1 x Pushbutton
      • EDID Settings: EDID Mode: ATEN Default / Display A
      • Power Consumption: DC12V:14.46W:87BTU

        Environmental
      • Operating Temperature: 0-40°C
      • Storage Temperature: -20 - 60°C
      • Humidity: 0 - 80% RH, Non-Condensing

        Physical Properties
      • Housing: Metal
      • Weight: 1.14 kg ( 2.51 lb )
      • Dimensions (L x W x H): 20.00 x 16.92 x 4.40 cm
      • (7.87 x 6.66 x 1.73 in.)

    • Item Includes:

      • 1x VP2120 Seamless Presentation Switch
      • 1x IR Receiver
      • 1x IR Remote Control
      • 1x Power Adapter
      • 1x User Instructions

    • GTIN:

      0672792010897
