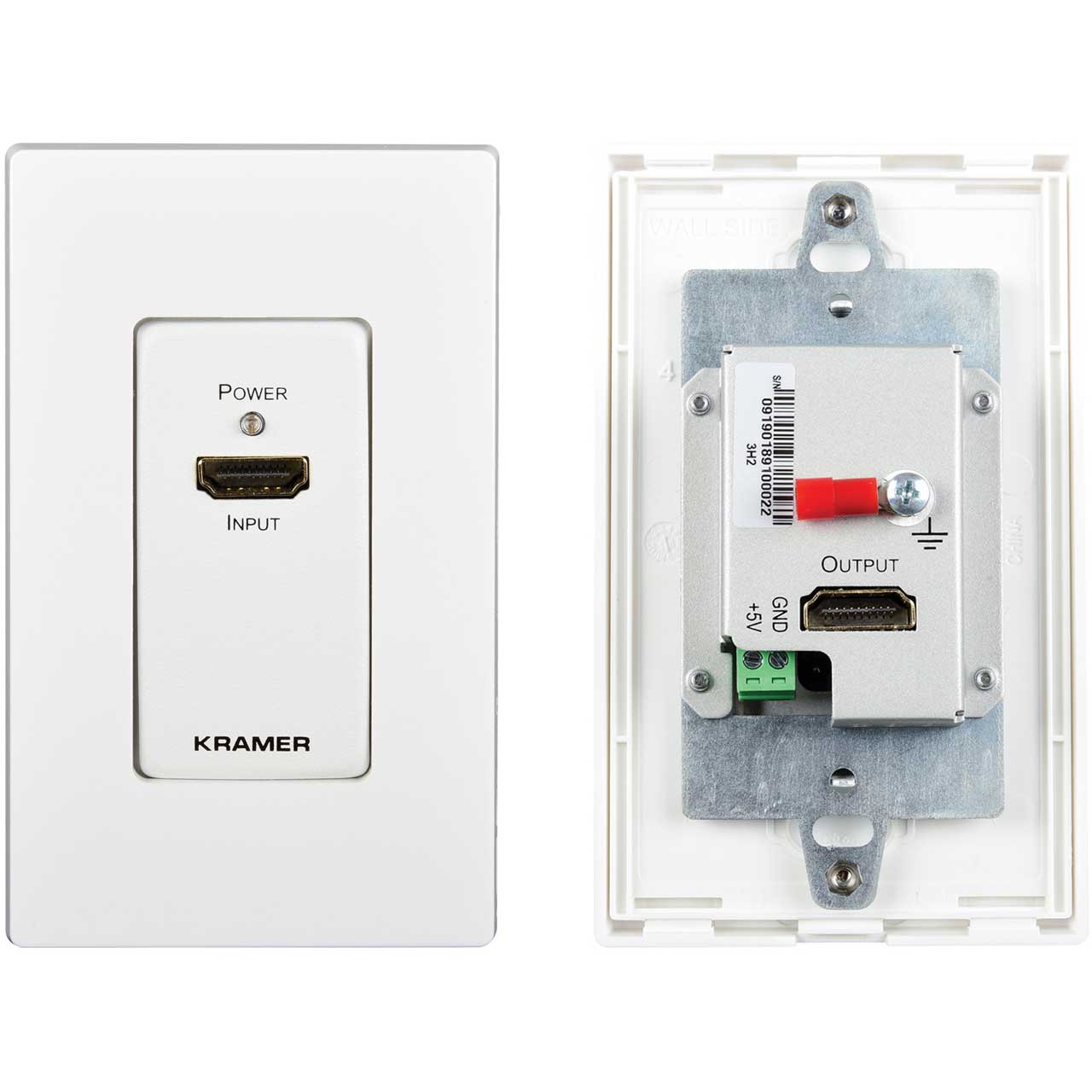

Kramer WP-3H2-US-W 4K HDR HDMI Wall-Plate Extender - White

WP-3H2-US-W - Overview

Content Protection - HDCP 1.4 and HDCP 2.2 compliant

• Features:

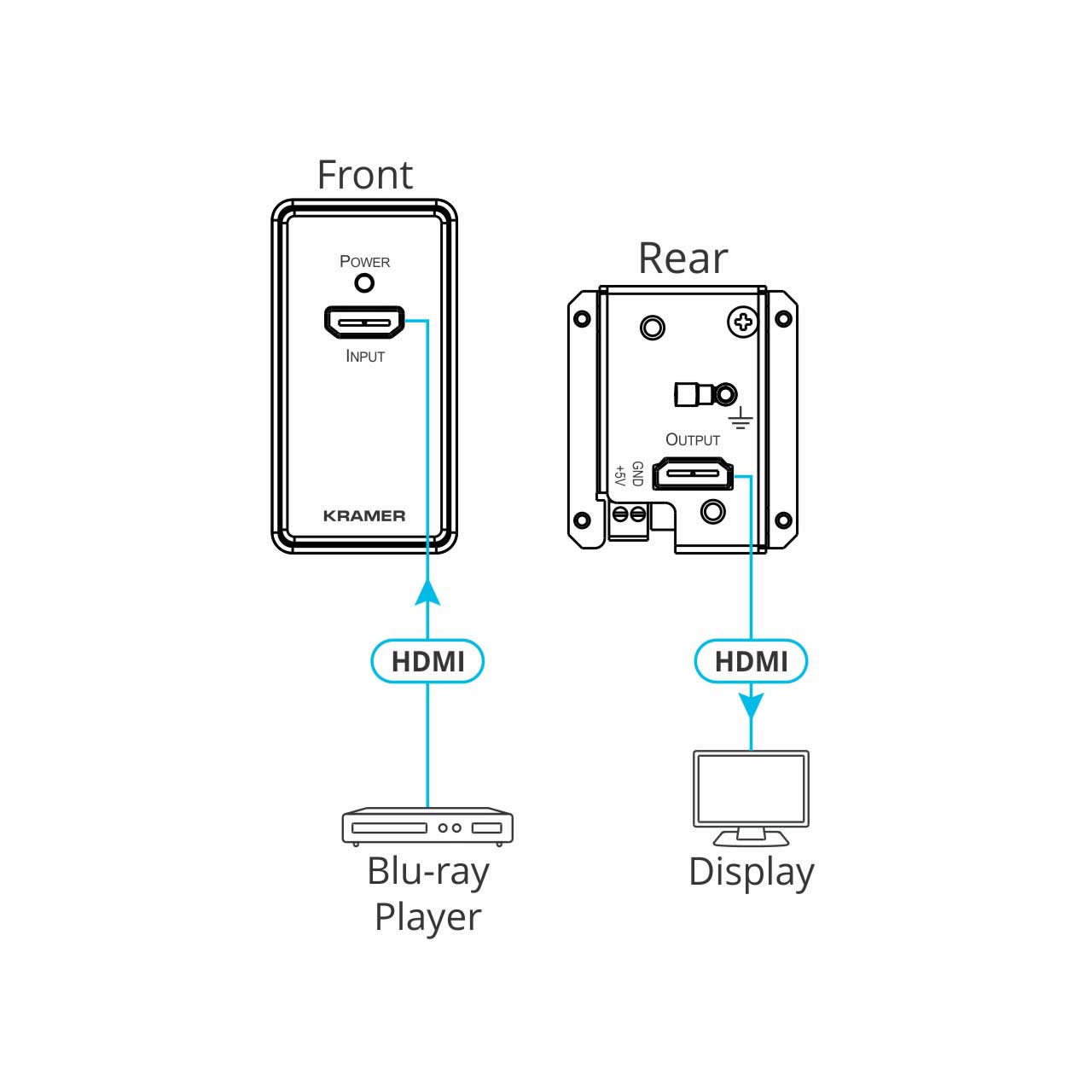

  • Extends HDMI Transmission Distance - Extends 4K@60Hz (4:4:4) signals up to 20m from the source (10m from the source to the HDMI Extender, and 10m from the HDMI extender to the display)
  • Supports the DDWG standard for HDMI compliant displays
  • HDMI Support - Supports HDR10, ARC, CEC, deep color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, Dolby atmos DTS-HD, 2K, 4K, and 3D Dolby Vision as specified in HDMI 2.0
  • Supports the DDWG standard for HDMI compliant displays
  • Content Protection - HDCP 1.4 and HDCP 2.2 compliant


• Specifications:

  • INPUTS
  • 1 HDMI: On a female HDMI connector

    OUTPUTS
  • 1 HDMI: On a female HDMI connector

    VIDEO
  • Max Resolution: 4K@60Hz (4:4:4)
  • Max Range 4K@60 4:4:4 Resolution: 20m/65ft (10m/33ft from source to extender, 10m/33ft from extender to display)
  • Max Range 4K@60 4:2:0 / 4K@30: 40m/130ft (25m/82ft from source to extender, 15m/49ft from extender to display)
  • Max Range 1080p@60: 45m/150ft (30m/98ft from source to extender, 15m/49ft from extender to display)
  • Compliance: HDCP 2.2
  • HDMI Support: HDR10, ARC, CEC, deep color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, Dolby atmos DTS-HD, 2K, 4K, and 3D Dolby Vision as specified in HDMI 2.0

    USER INTERFACE
  • Indicators: Power LED

    POWERr
  • Consumption: 5V DC, 150mA

    ENVIORNMENTAL CONDITIONS
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Storage Temperature: -40° to 158°F (-40° to 70°C)
  • Operating Humidity (RHL): 10 to 90% (non-condensing)


• Item Includes:

  • WP-3H2-US-W 4K HDR HDMI Wall-Plate Extender
  • DECORA® design frames


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063090098
