Kramer YARDEN 4-C (W) 4 Inch Closed-Back 2-Way Ceiling Speaker with Kevlar Woofers - Pair

ITEM #: KR-YARDEN4-CW MFG #: YARDEN 4-C (W)

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KR-YARDEN4-CW

YARDEN 4-C (W) - Overview

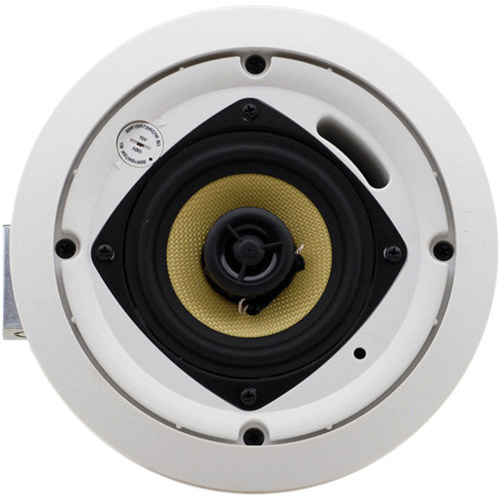

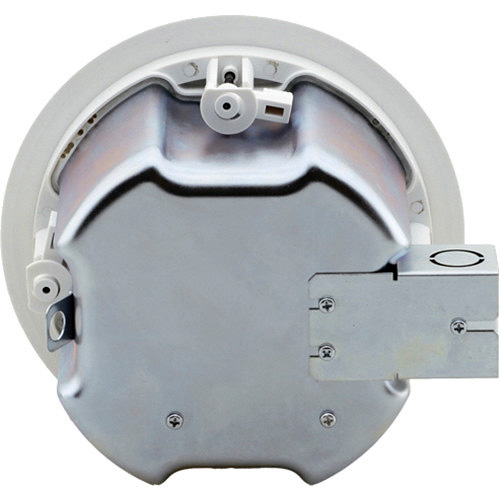

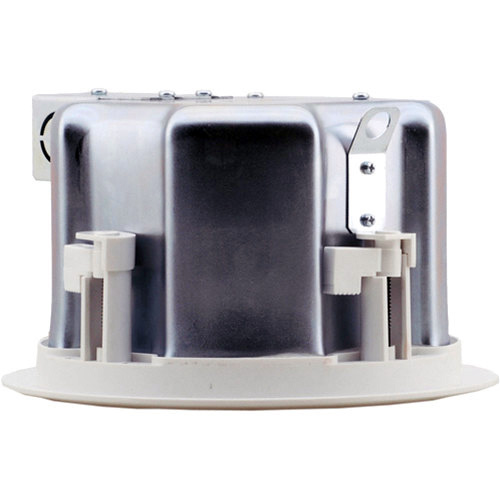

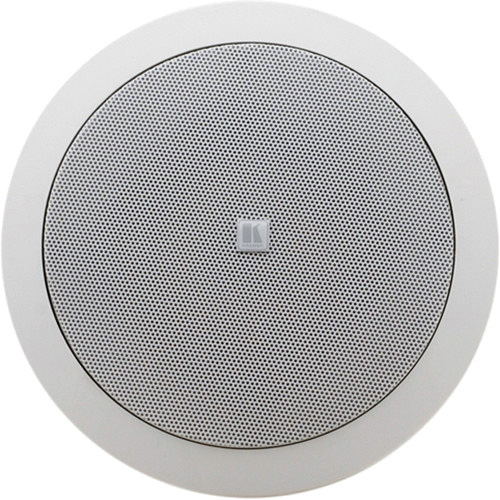

The Yarden 4-C Closed-back Compact High Performance Ceiling Speaker features a Kevlar(R) woofer, 2nd level cross-over design and multi-tap power transformer for selecting 8Ω (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation.

  • Features:

    • Type - 2-way coaxial speaker.
    • Woofer - 4” Kevlar(R) cone.
    • Tweeter - 0.5” Mylar dome.
    • Impedance - 8Ω.
    • Power Handling - 30W RMS, 80W continuous program.
    • Transformer Taps - 70V: 30W/15W/7.5W/3.7W/Off (Lo-Z); 100V: 30W/15W/7.5W/Off (Lo-Z).
    • UL 1480 & 2043 Approved


  • Specifications:

    • DESCRIPTION: 2-way closed-back ceiling speakers.
    • FREQUENCY RESPONSE: 85Hz to 20kHz @-10dB, 100Hz to 20kHz @±3dB.
    • WOOFER: 4” (103mm) Kevlar(R) with rubber surround.
    • TWEETER: 0.5” (13mm) Mylar.
    • IMPEDANCE: 8Ω (transformer tap in off position).
    • TRANSFORMER TAPS: 70V - 30W/15W/7.5W/3.7W/Off (Lo-Z), 100V - 30W/15W/7.5W/Off (Lo-Z).
    • SENSITIVITY: 85dB SPL, 1W@1m.
    • MAX SPL: Continuous: 95dB, peak: 97dB.
    • POWER HANDLING: 30W RMS, 80W continuous program.
    • CROSSOVER FREQUENCY: 6kHz.
    • COVERAGE ANGLE: 90°.
    • DIRECTIVITY FACTOR (Q): 4.2 averaged 1kHz to 10kHz.
    • DIRECTIVITY INDEX (DI): 6.2dB averaged 1kHz to 10kHz.
    • INPUT CONNECTOR: Terminal block.
    • MATERIALS: ABS bezel, aluminum grill, metal back can.
    • OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F).
    • STORAGE TEMPERATURE: -40° to +70°C (-40° to 158°F).
    • HUMIDITY: 10% to 90%, RHL non-condensing.
    • WEIGHT PER SINGLE SPEAKER: 1.75kg (3.9lbs) approx.
    • SHIPPING WEIGHT (FOR PAIR): 6.1kg (13.5lbs) approx.
    • DIMENSIONS: External diameter: 19.5cm (7.68"); cutout diameter: 16.7cm (6.57").
    • INSTALLATION CLEARANCE: Mounting depth: 10.7cm (4.2”).
    • ACCESSORIES: Installation bracket, safety cord attached to grill, ceiling mounting kit, cutout template.
    • COLORS: Available in white.


  • Item Includes:

    • 2 speakers (1 pair), ceiling mounting kit, template and user manual.


  • GTIN:

    7291063065225
