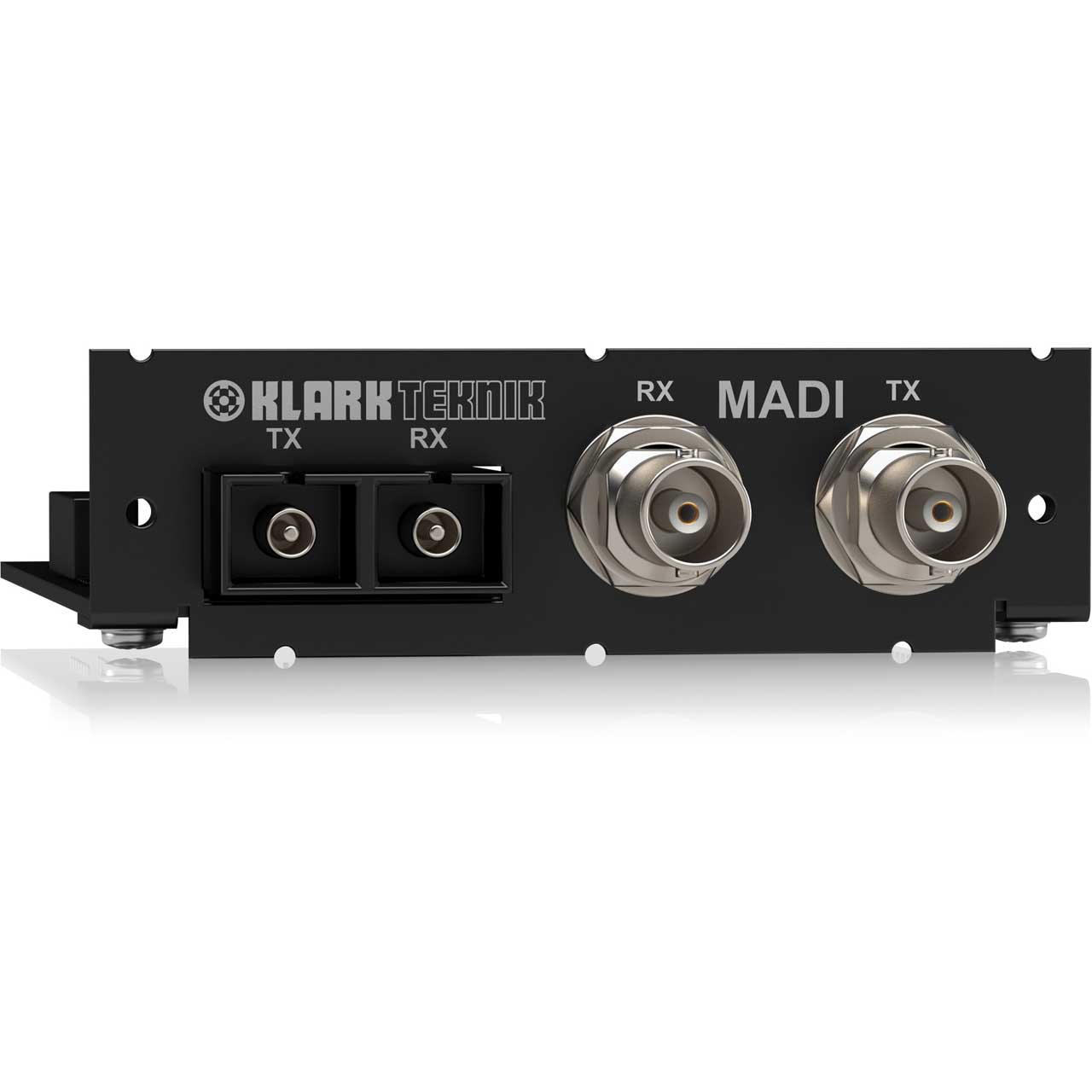

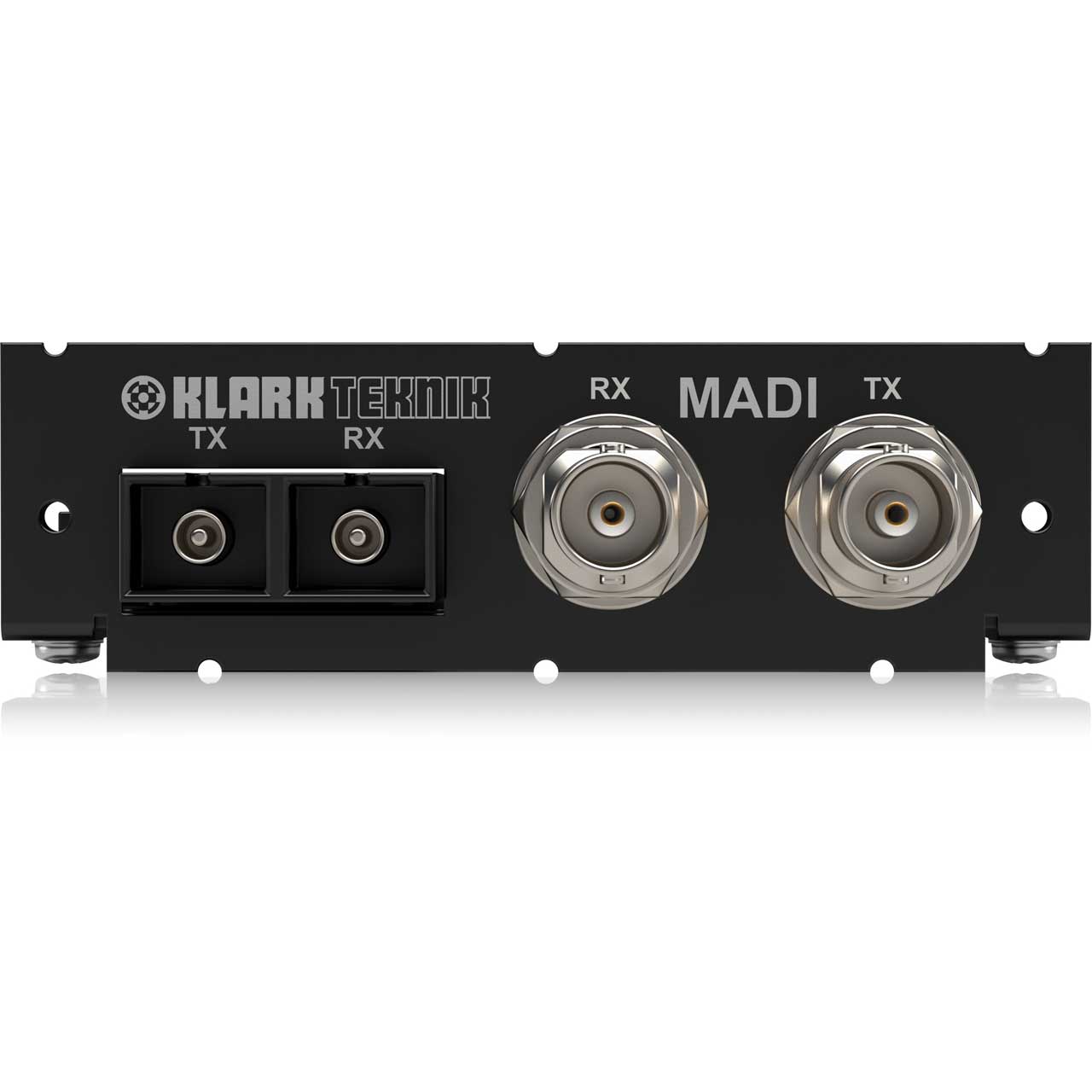

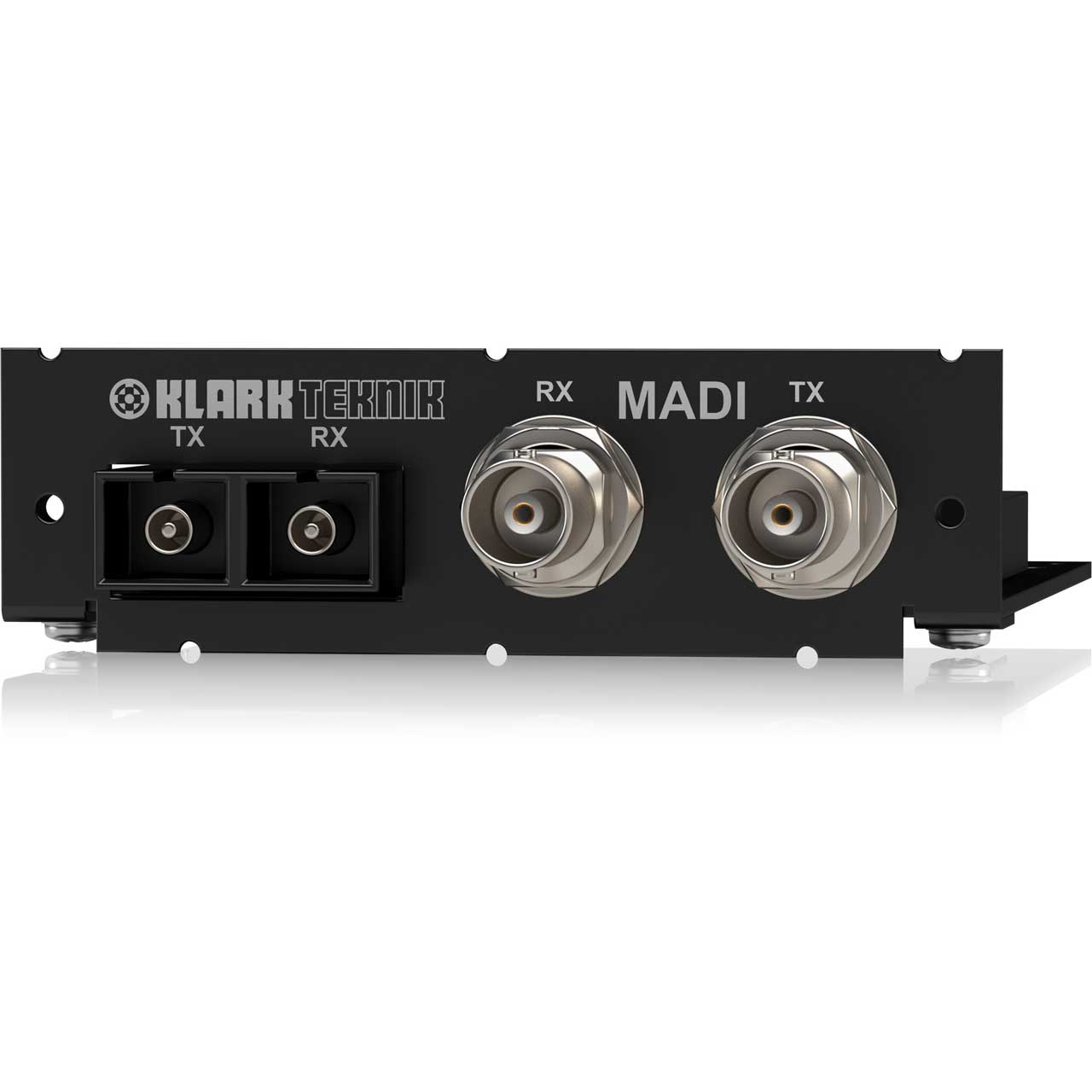

Klark Teknik KTMADI - MADI Network Module with up to 64 Bidirectional Channels

Manufacturer: Klark Teknik

Item #: KT-MADI   •   MFG #: KTMADI




Our Price:$310.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Required Accessories

        Show More

    The KT-MADI network module provides MADI compatibility for the KLARK TEKNIK DN9650 and DN9652 Network Bridges, and features up to 64 or 32 bidirectional channels at 48 kHz or 96 kHz respectively. KT-MADI offers high performance point-to-point links over both industry standard optical fibre and coaxial copper connections, and is ideally suited to interface with third party recording and playback equipment.


    • Features

      • MADI (AES10-compliant) network module with up to 64 bidirectional channels @ 48 kHz and 32 bidirectional channels @ 96 kHz
      • Compatible with Klark Teknik DN9650 and DN9652 network bridges and Midas NEUTRON-NB expansion module
      • Operates up to 500 m over optical fibre link and 200 m over coaxial copper link
      • Optical transmission on SC-Duplex connector
      • Copper transmission on 75 ohm coaxial BNC connectors
      • Dual-redundant operation with failover from optical to copper connections
      • Operates as either MADI clock master, MADI clock slave or from external clock via host unit
      • 10-Year Warranty Program
      • Designed and engineered in the U.K.

    • Specifications

      • System
      • Module format: Cirrus CM-1 compatible
      • Sample rates: 48 kHz, 96 kHz
      • Audio channels (48kHz): Up to 64 bidirectional channels
      • Audio channels (96kHz): Up to 32 bidirectional channels
      • Clock source: MADI Clock Master, MADI Clock Slave or External Word Clock

        Dimensions
      • Height: 1.2inch
      • Width: 4.3inch
      • Depth: 3.5inch
