Powerful Decoding - Flexible Multiview - Full Protocol Support

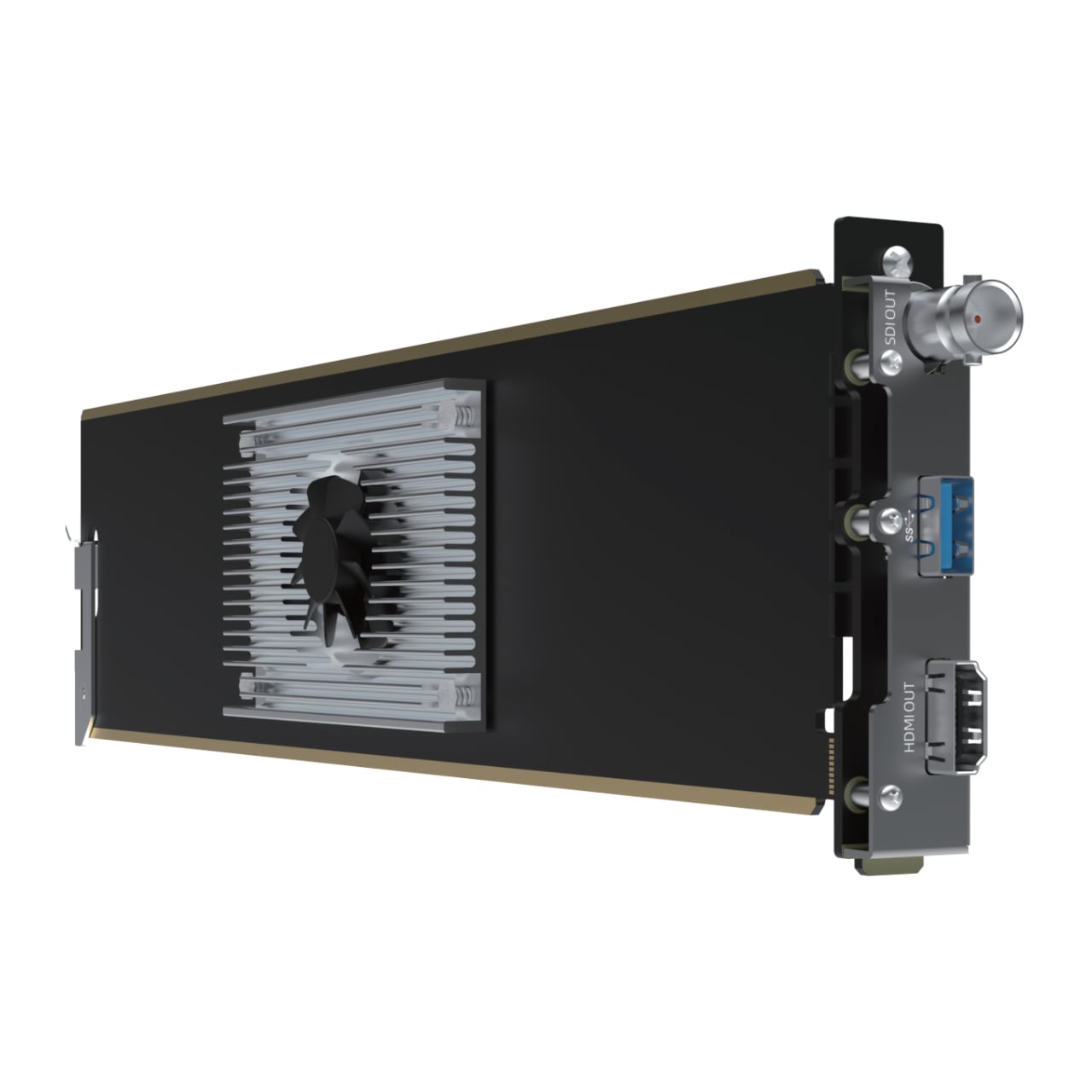

Kiloview FD-360 Multi-functional Decoding Card is an all-in-one video processing solution that integrates decoding, previewing, processing, and output capabilities. It supports a wide range of network video streaming formats, including NDI High Bandwidth, NDI HX2/HX3, SRT, RTMP, RTSP, HLS, UDP, and RTP, delivering synchronized audio and video output via 3G-SDI and HDMI interfaces. The FD-360 can decode up to 12 channels of 1080p60 video simultaneously, supporting flexible multi-screen layout with real-time preview, switching, and output.
Outstanding AV Decoding Performance
• Advanced Video Decoding: The FD-360 delivers exceptional decoding capabilities for IP video streams, supporting mainstream encoding formats such as HEVC (H.265), AVC (H.264), and SpeedHQ (NDI High Bandwidth). It seamlessly handles 4K Ultra HD video decoding and enables multi-stream simultaneous decoding and output, ensuring smooth and efficient processing of high-resolution content .
• Versatile Audio Decoding: FD-360 offers a wide range of audio output options, supporting embedded SDI/HDMI or Type-A expanded analog audio interface output. It is also compatible with various mainstream audio formats, including AAC, MPEG-4, MPEG-2, G.711, Opus, and LPC.
With powerful multi-channel audio mixing and gain adjustment, users can easily switch between sources, mix multiple audio channels, and fine-tune output gain levels - ensuring accurate, high-quality audio for any production environment.
Comprehensive Streaming Protocol Support
FD-360 is fully compatible with a wide range of streaming protocols, such as NDI High Bandwidth/NDI HX/NDI HX3/SRT/RTMP/RTMPS/HLS/TS over UDP/RTP/RTSP, ensuring seamless integration into any video production environment. This extensive protocol support provides maximum flexibility for live streaming, broadcasting, and IP-based video workflows.
Flexible Layout and Overlay Features for Easy Custom Output

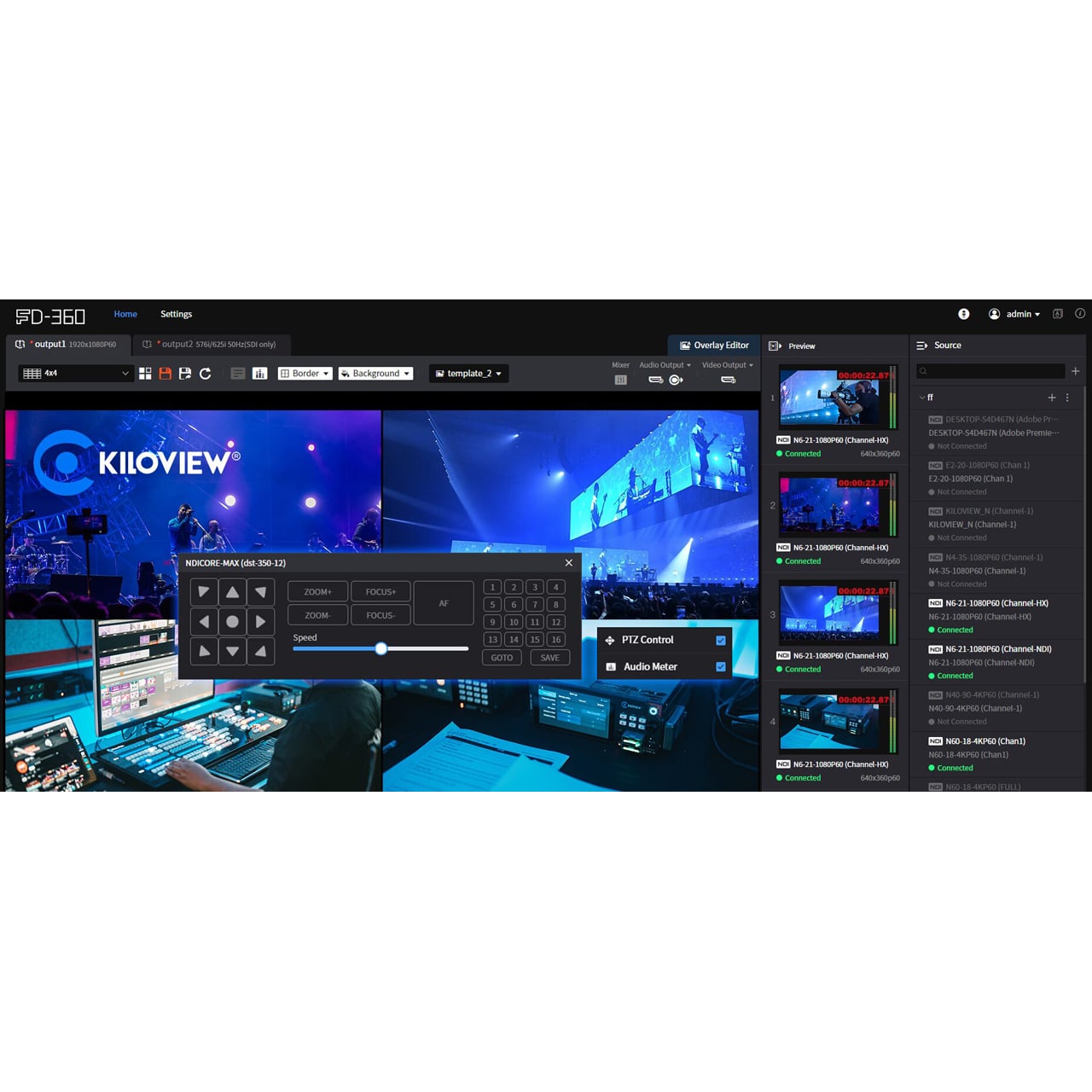

• Fully Customizable Display Layouts: FD-360 offers complete flexibility in output screen configurations. Users can choose from single-screen, split-screen, or picture-in-picture modes and customize layouts with anywhere from 1 to 16 video windows with fully adjustable parameters - including position, size, and dimensions. Custom layouts can be saved as templates, allowing you to easily recall and reuse specific multi-screen configurations for future sessions.
• Personalized Overlay Templates for Unique Visuals: With the overlay editor, FD-360 lets you create rich, personalized output screens. Design custom overlays using images, text, colors, and graphical elements such as logos, borders, or combined image-text layers. These templates can be applied directly to your video output, delivering a more dynamic, branded, and engaging visual experience.
Multiple Interfaces For Flexible AV Outputs
FD-360 supports synchronous decoding and output of identical or distinct video feeds via both 3G-SDI and HDMI interfaces. The HDMI output delivers resolutions up to 3840x2160@60Hz, while the SDI output reaches up to 1920x1080@60Hz. Parameters such as output resolution, progressive/interlaced scanning, and frame rate are fully adjustable to accommodate your specific requirements.
Moreover, the FD-360 is equipped with a TYPE-A interface, enabling expandable analog audio interfaces for audio de-embedding output.
