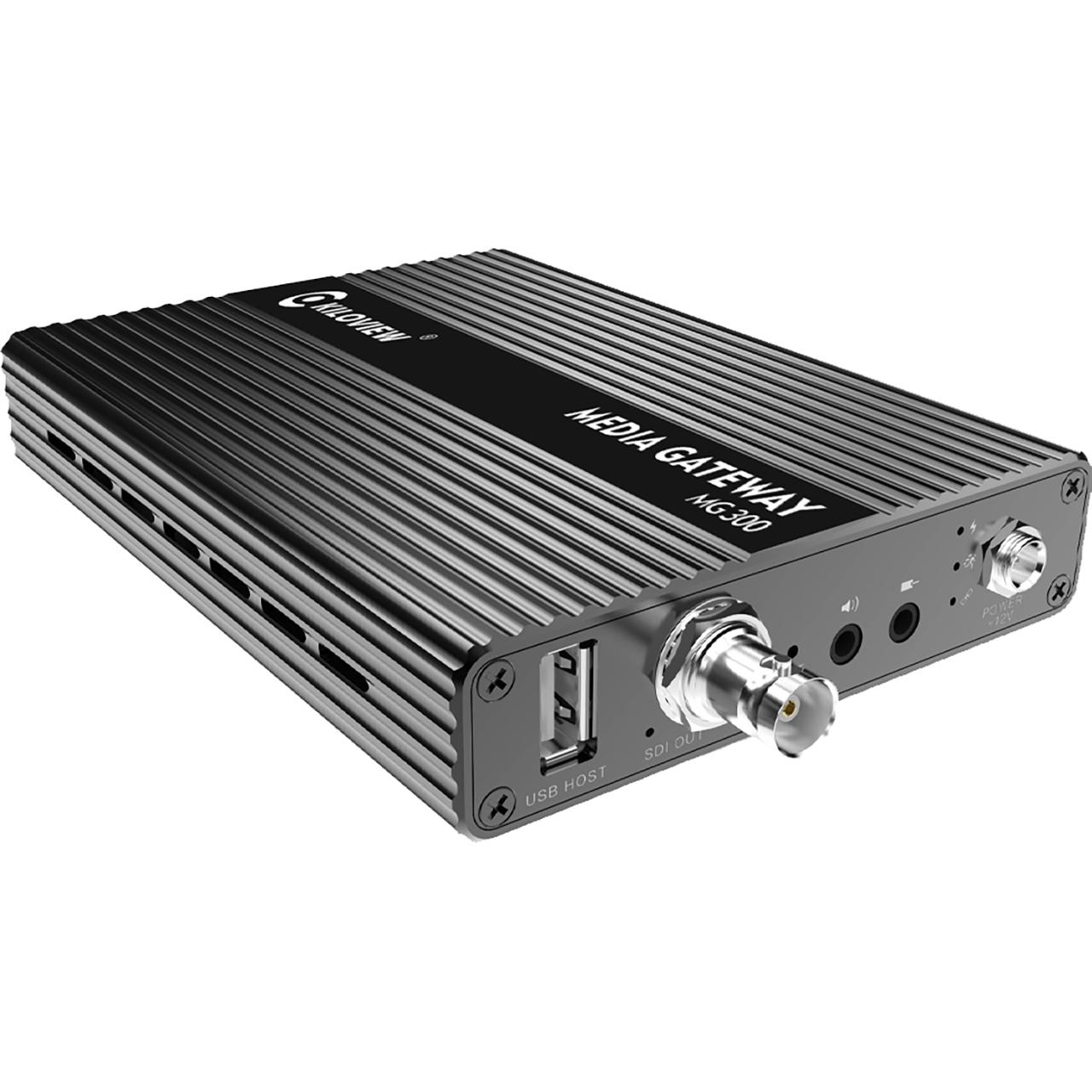

Kiloview MG300 v2 media gateway is a high-performance embedded multi-functional device. It integrates functions such as multi-channel video decoding between NDIHX, SRT, RTMP, RTSP, TS-UDP, and HLS to SDI and HDMI. It can do so with the same or different content, multi-view output and streaming, video image segmentation, protocol cross conversion, stream media and distribution services.
It's a Protocol Converter
MG300 v2 is compatible with NDI®HX (2.0), SRT, RTMP, RTMPS, RTSP, TS-UDP, and HLS, etc.It supports the decoding with all those different protocols, at the same time supports up to 9 protocols cross conversion.
Each input stream is converted into 4 same or different protocols output.
Powerful IP Stream Function
Multi-channel video streams can be re-published as a Multiview video source with free layout; Up to 9 channels of IP streaming distribution (including the Multiview video source) and each stream can be pushed to up to 4 same or different targets simultaneously.
It's a Media Server
It supports up to 50 concurrent access for streams distribution/live streaming;
Note: The actual concurrent access capability depends on the specific network bandwidth, video format and other factors. The device transmission limit is 600Mbps.
It's a Transcoder
Kiloview MG300 v2 highlights video transcoding between H.264 and H.265. It can also combine multiple video streams into a merged video and push it to the live broadcast platforms.
It's Also a Decoder
It supports decoding up to 4K H.264/H.265 IP streams and decode the streams to output 3G-SDI and 4k HDMI. It supports decoding up to 9 channels of videos simultaneous.
Note: 9 channels with 1080p30, or 8 channels of 1080p60, or 4 channels of 4Kp30.
Low Latency and High Quality
Intelligent delay control technology to achieve a less than 200ms decoding delay in network environment
Image enhancement and fault-tolerant technology for low code-encoded video, 10% of network packet loss video, etc., clear and distortion-free decoding output.
RTMP Server Supported
With RMTP server, the encoder can directly transmit the video to Kiloview decoder using RTMP protocol for decoding without a RTMP platform, to make it easy and convenient.

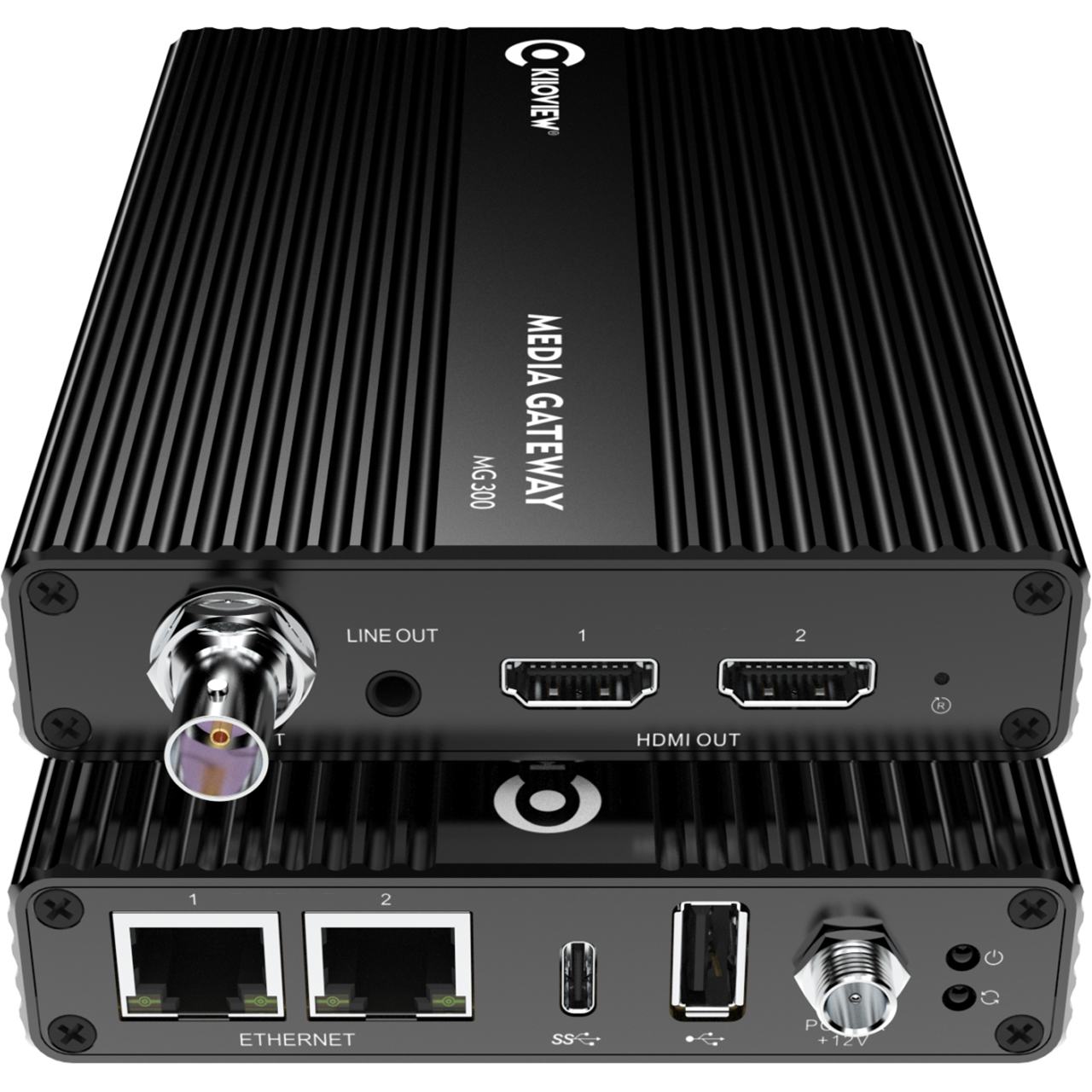

Dual Output, Same or Different
3G-SDI and 4K HDMI dual interface for outputting, output content can be either the same or different.
Note: HDMI output up to 3840x2160@60Hz, SDI up to 1920x1080@60Hz.
Customize Your Output Display:
• Free Layout: The output display can be either in grids or a free layout with customized de-sign, PIP, PBP, POP, all as you wish
• Free Resolution: The output resolution is adjustable, de-interlace, frame rate adjustable
• Free output background and OSD
Other Functions:
• Support SDI/HDMI embedded audio or 3.5mm analog audio output
• Support audio mixing
• Dual network ports for multi-purpose management
