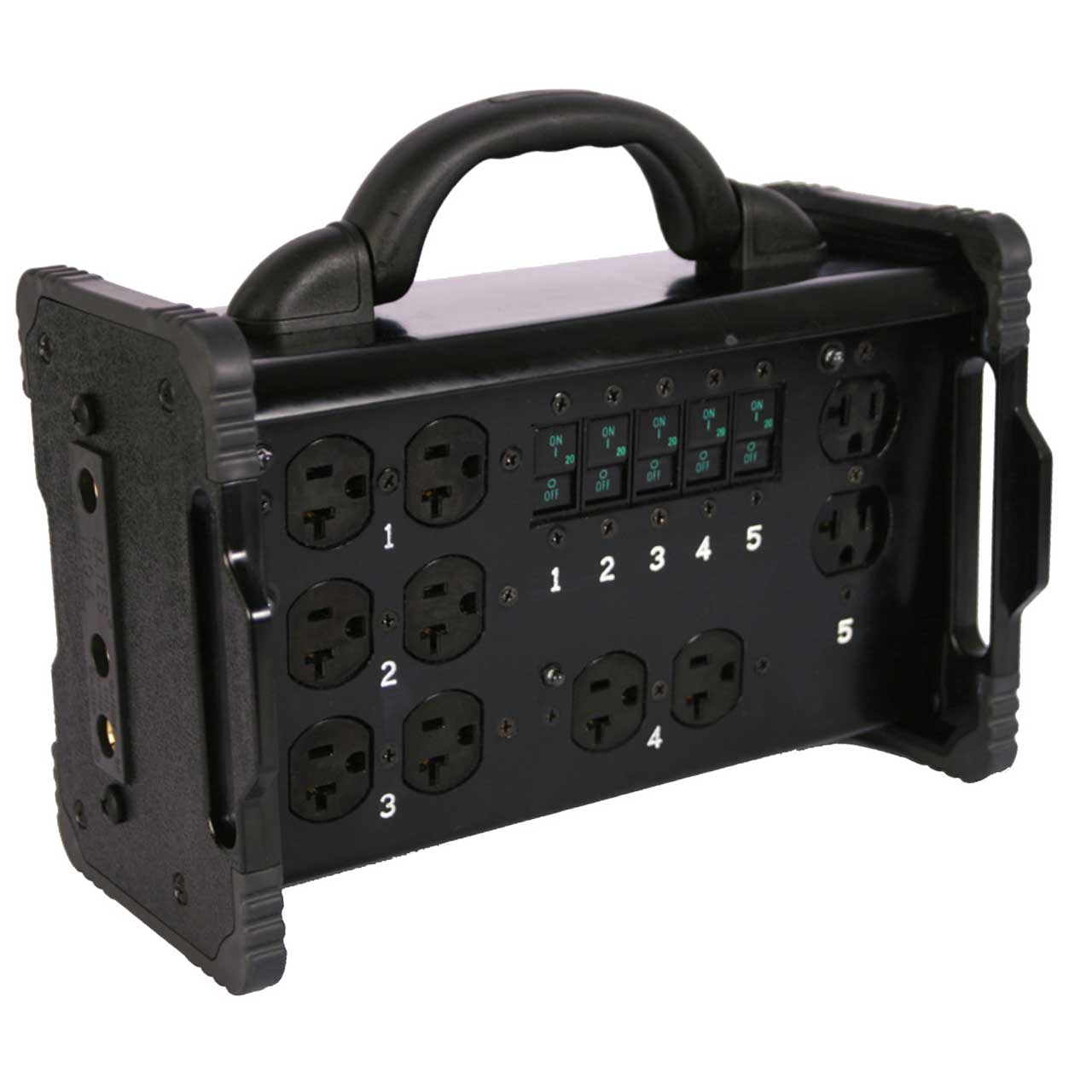

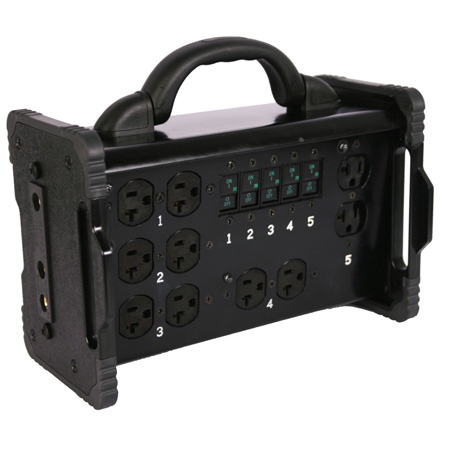

Lex BNF2-5A Bento Enclosure - 100A 120 VAC Panel Mount Stage Pin Inlet with Feed Thru

BNF2-5A - Overview

• Features:

  • Stackable and compact for easy storage
  • Easily fit six in a standard six-gallon milk crate for portability
  • Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated and resistant to shock, impact and corrosion
  • Breakers are mounted flush for easy access and circuit identification
  • Collapsible handle and end plate grips for easy handling in tight spaces
  • Hydraulic magnetic breakers will not nuisance trip at higher temperatures


• Specifications:

  • Rating: 100 Amp, Single Phase, 2 Pole, 3 Wire (H,N,G), 120 VAC, 60 Hz
  • Environmental Rating: NEMA 1 Indoor
  • Input: (1) 100 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC, stage pin inlet
  • Output: (5) NEMA 5-20, 20 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC, duplex receptacles
  • Feed Thru (1) 100 Amp, Single Phase, 2 Pole, 3 Wire, 120
  • VAC, stage pin receptacle
  • Overcurrent Protection: (5) 20 Amp hydraulic magnetic branch-rated circuit breakers
  • Dimensions: 11.5"L x 5.9"W x 7.6"H
  • Weight: 7.5 lbs
