Lex BNZJ2-6M-CLP Bento Enclosure LSC19 Panel Mount Inlet with Feed Thru (6) 20A Neutrik PowerCon C-Clamp Mountable Type1

ITEM #: LEX-BNZJ2-6M-CLP MFG #: BNZJ2-6M-CLP

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

List Price:

$1,451.70

Our Price:

$1,095.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    BNZJ2-6M-CLP - Overview

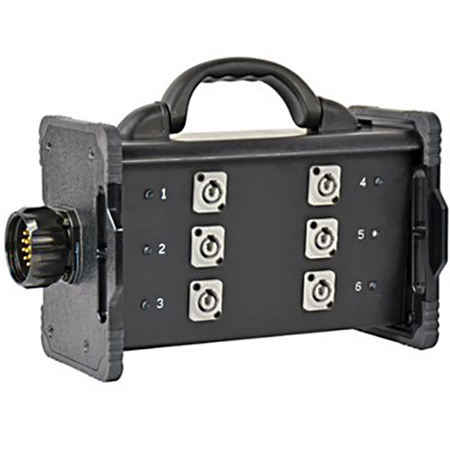

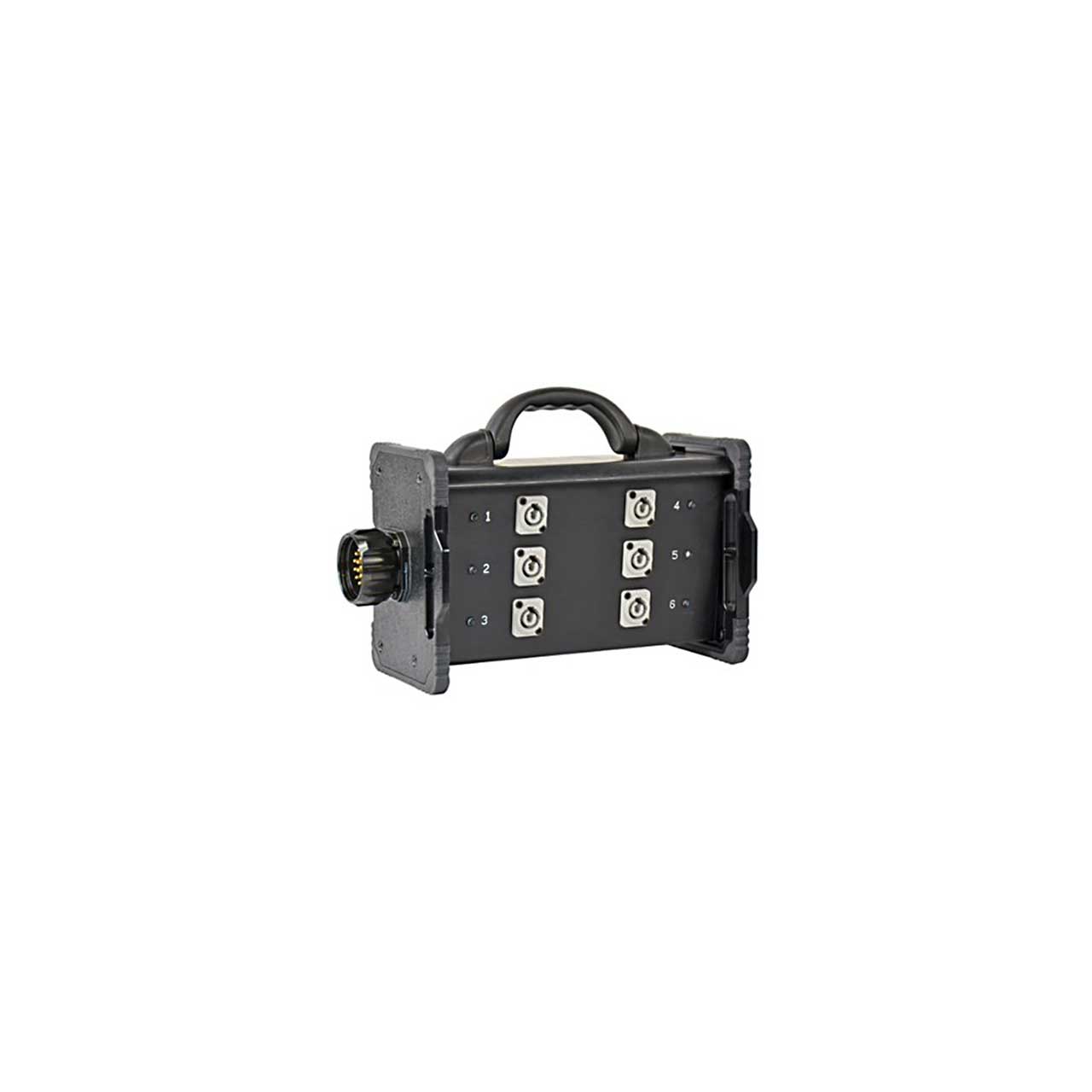

    The LEX Products BNZJ2-6M-CLP is a mountable Break Out Box featuring mounting holes on the metal handle and on the back. The box breaks an industry standard 6-circuit lighting cable into 20A powerCON connections for powering LED lights. The feed thru option allows multiple boxes to be placed along the same feed.

    • Features:

      • Provides power for LED lights using powerCON outlets

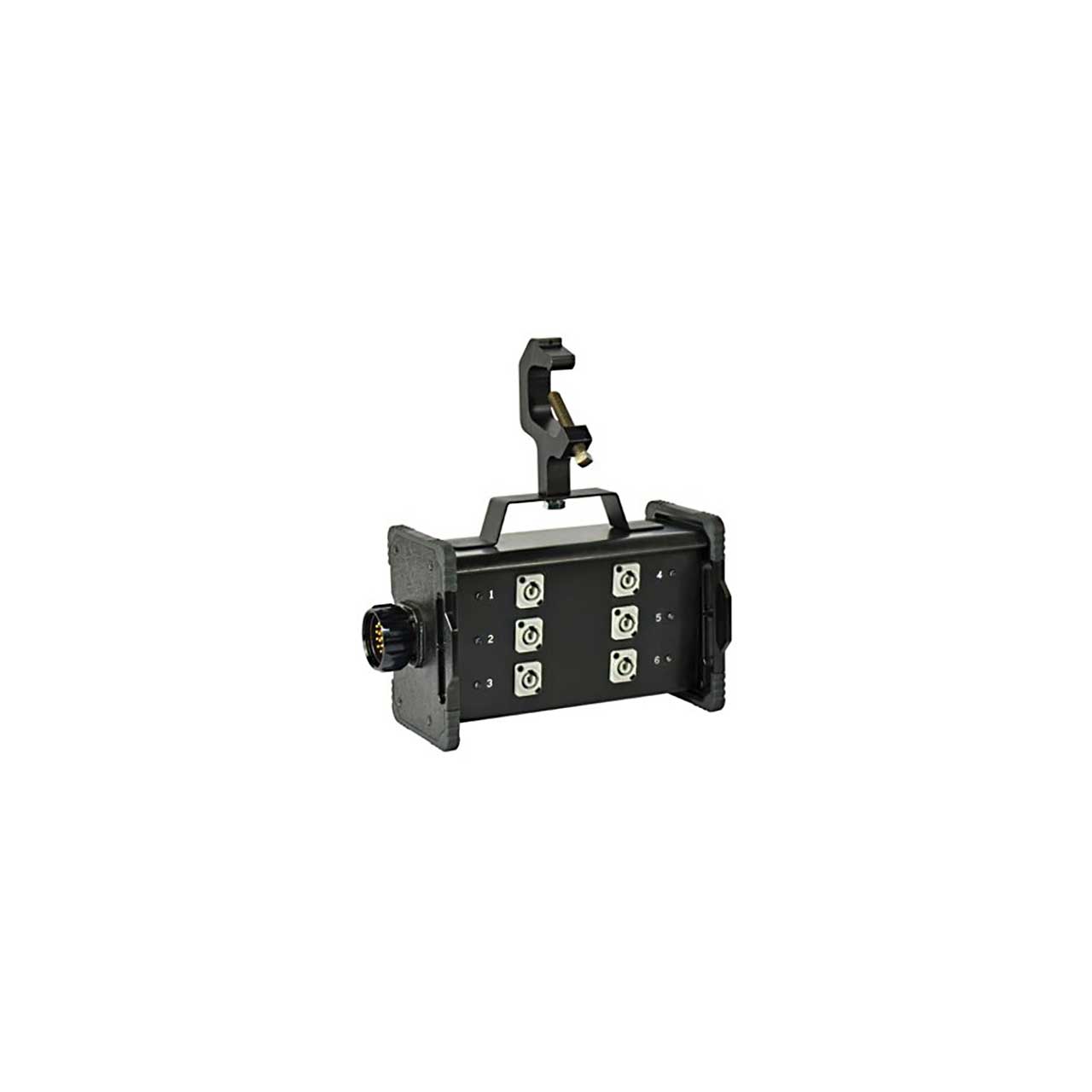

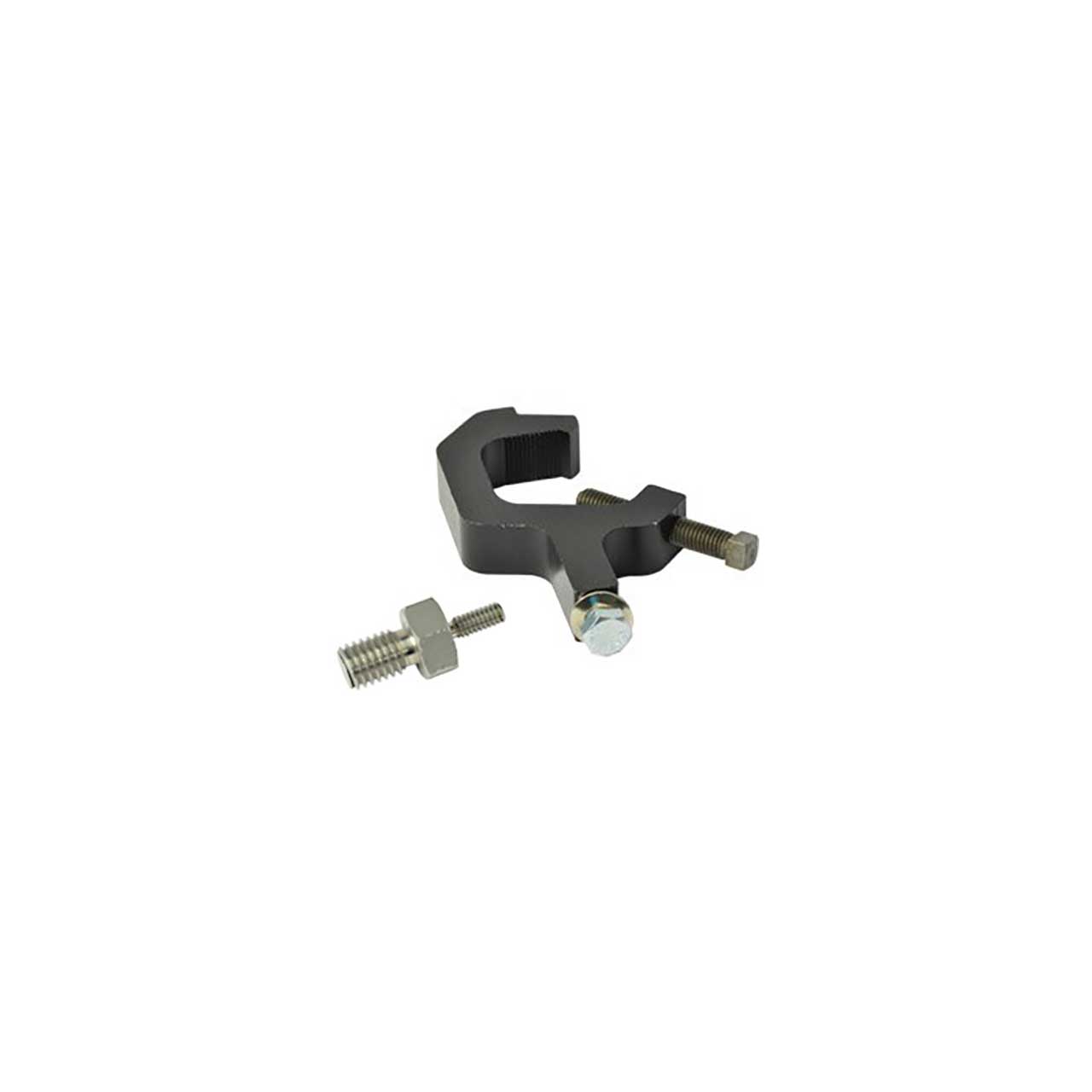

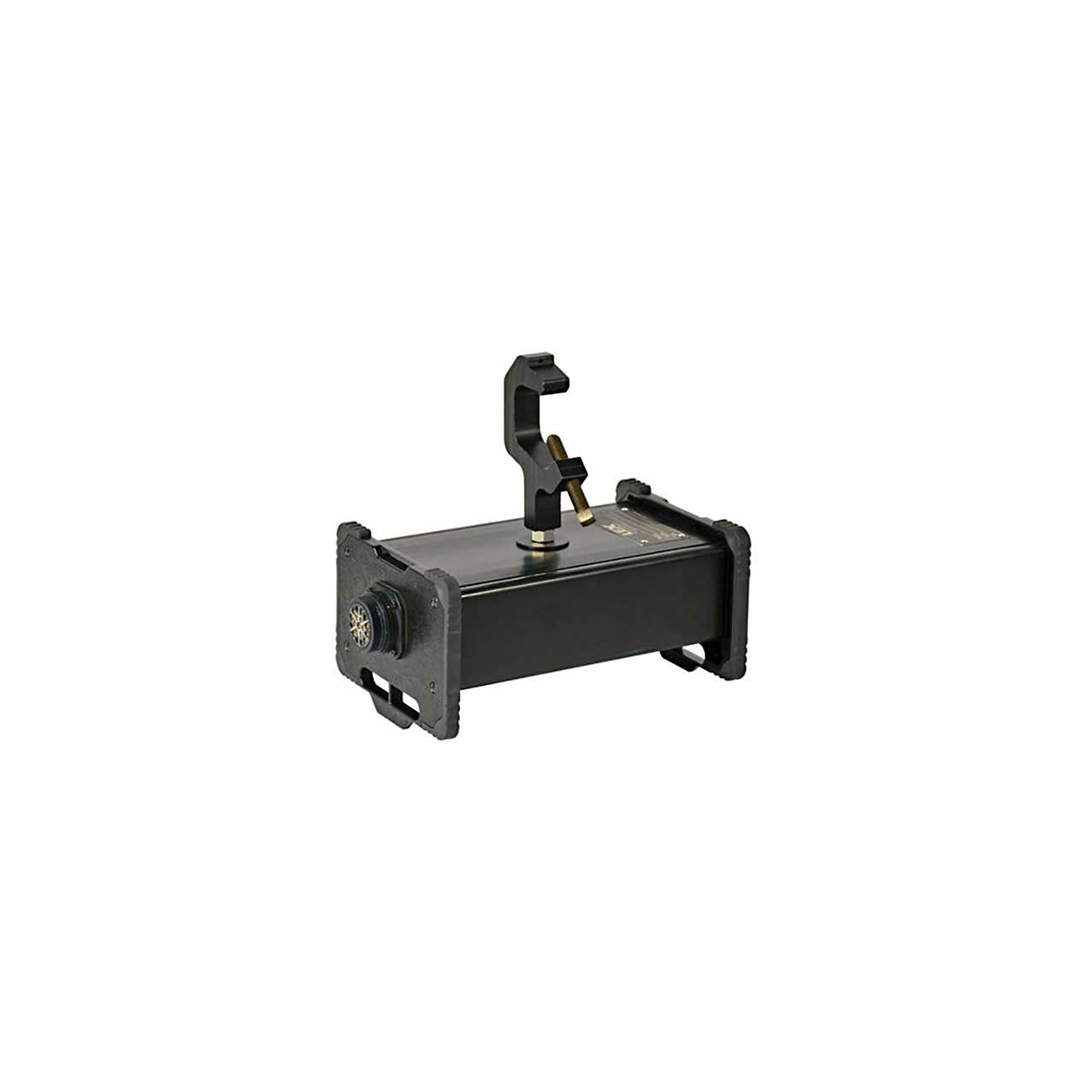

      • Optional bracket and threaded insert available that enables easy mounting vertically or horizontally with C-clamp (sold separately)Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated and resistant to shock, impact and corrosion
      • Feed-thru option allows multiple boxes to be placed along the same feed
      • End plate grips for easy handling in tight spaces
      • Stackable and compact for easy storage

    • Specifications:

      • Rating: 20 Amp, 6-circuit, 120 VAC
      • Environmental Rating: NEMA 1 Indoor
      • Input: (1) 20 Amps per circuit, 6-circuit, 120 VAC, LSC19 panel mount male
      • Output: (6) 20 Amp PowerCON receptacles
      • Feed Thru: (1) 20 Amps per circuit, 6-circuit, 120VAC, LSC19 panel mount female
      • Overcurrent Protection: None
      • Dimensions(L x W x H): 11.5 inch x 5.9 inch x 7.6 inch
      • Approximate Weight: 6.7 lbs
