Lightronics SR516W Unity Architectural Controller
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

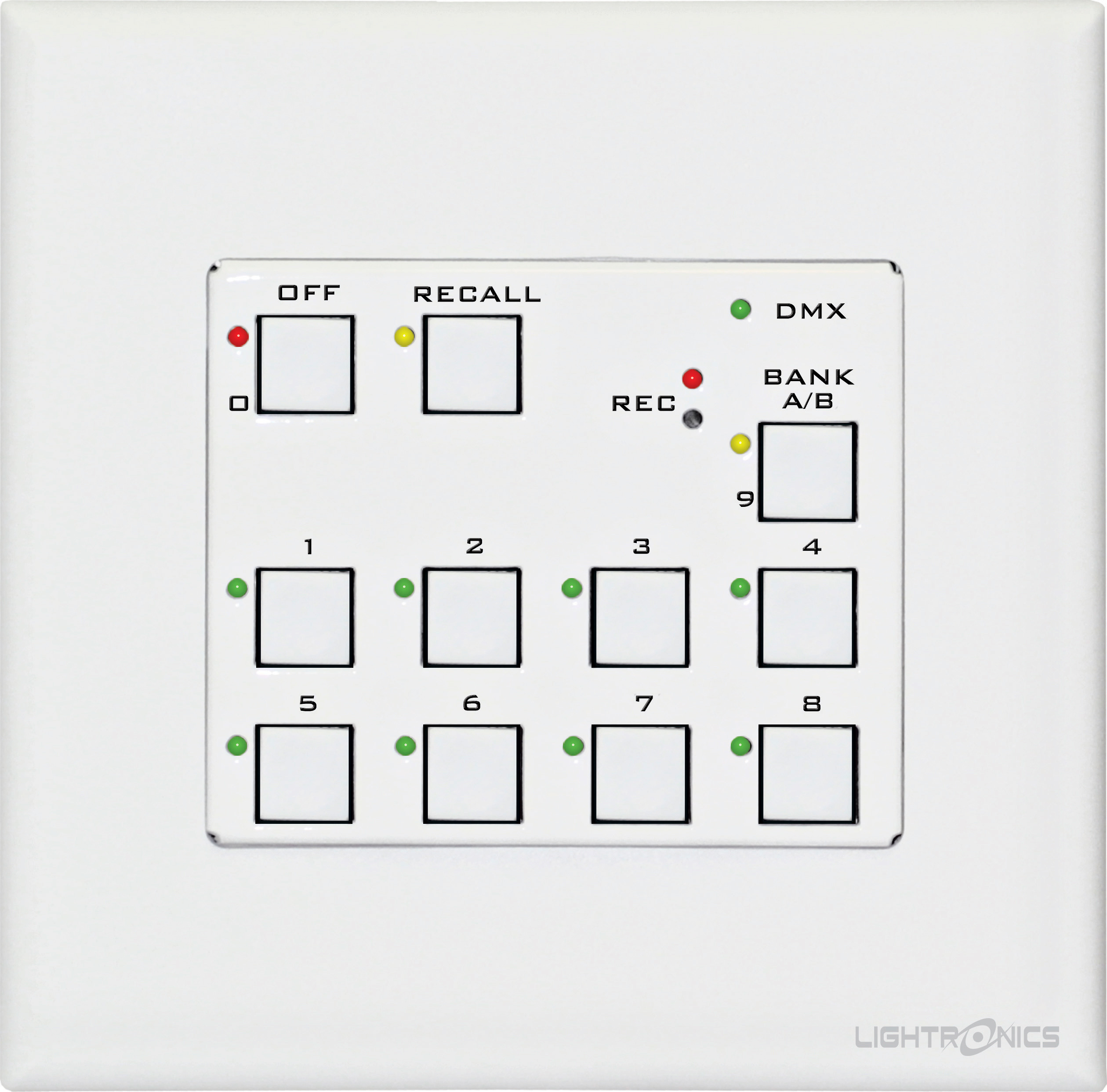

    Lightronics SR516W Unity Architectural Controller

    Manufacturer: Lightronics

    Item #: LGT-SR516W   •   MFG #: SR516W


    List Price:$925.00
    Our Price:$693.75

    free ship
    Availability: Direct Ship From Manufacturer
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.



    With our NEW inexpensive SR516 Unity Architectural Controller, adding Remote Wall Station Control to your existing DMX Dimming System has never been easier. The SR516 provides control of your house and stage lights from multiple locations. Additional SR516 features include: Show Mode Station Lockout via DMX, Emergency Bypass Relay, Retain previous Scenes from Power Off, Non-volatile Scene Memory, Mutually Exclusive Scene Grouping, Last Scene Recall, Record from Live DMX, 3 Configurable Contact Closures, 2 Gang Wall Box Installation.

    • Features

      • DMX-512 Pile-On Operation
      • 16 Scenes w/ Fade Times to 99 Minutes
      • Multiple Remote Station Control
      • Show Mode Station Lockout via DMX
      • SCENE GROUPING - mutually exclusive
      • Last Scene Recall
      • 3 Configurable Contact Closures
      • 2 Gang Wall Box Installation
    • Specifications

      • Protocol: USITT DMX-512
      • Dimmer Channels: 512
      • Total Number of scenes: 16 (2 banks of 8 scenes each)
      • Scene fade times: Up to 99 min. User settable per scene
      • Controls and Indicators: 8 Scene Select, Bank Select, Blackout, Record, Recall. LED indicator for all functions and DMX status.
      • Recording: “Snapshot” from live console input
      • Record Lockout: Global Recording Lockout
      • Memory: Non volatile with a minimum 10 year data retention.
      • Memory Type: Flash
      • Power: 12 - 16 VDC
      • Connectors: Plug in screw terminal
      • Remotes Cable Type: 2 pair, low capacitance, shielded data cable (RS-485).
      • Remotes Communication: RS-485, 62.5 Kbaud, bidirectional, 8 bit, micro controller network.
      • Power Supply: 12 VDC supplied by wall adapter
      • Dimensions: 3.7” W X 1.5“ D X 4” H
      • Weight: 1 Pound
