Lilliput AD15 15.6-Inch 30-1000 Nits FHD Industrial Touch Monitor with Auto-Dimming / Camera + Glove & Wet-Hand Touch

ITEM #: LIL-AD15 MFG #: AD15

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$559.00

Our Price:

$499.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


AD15 - Overview

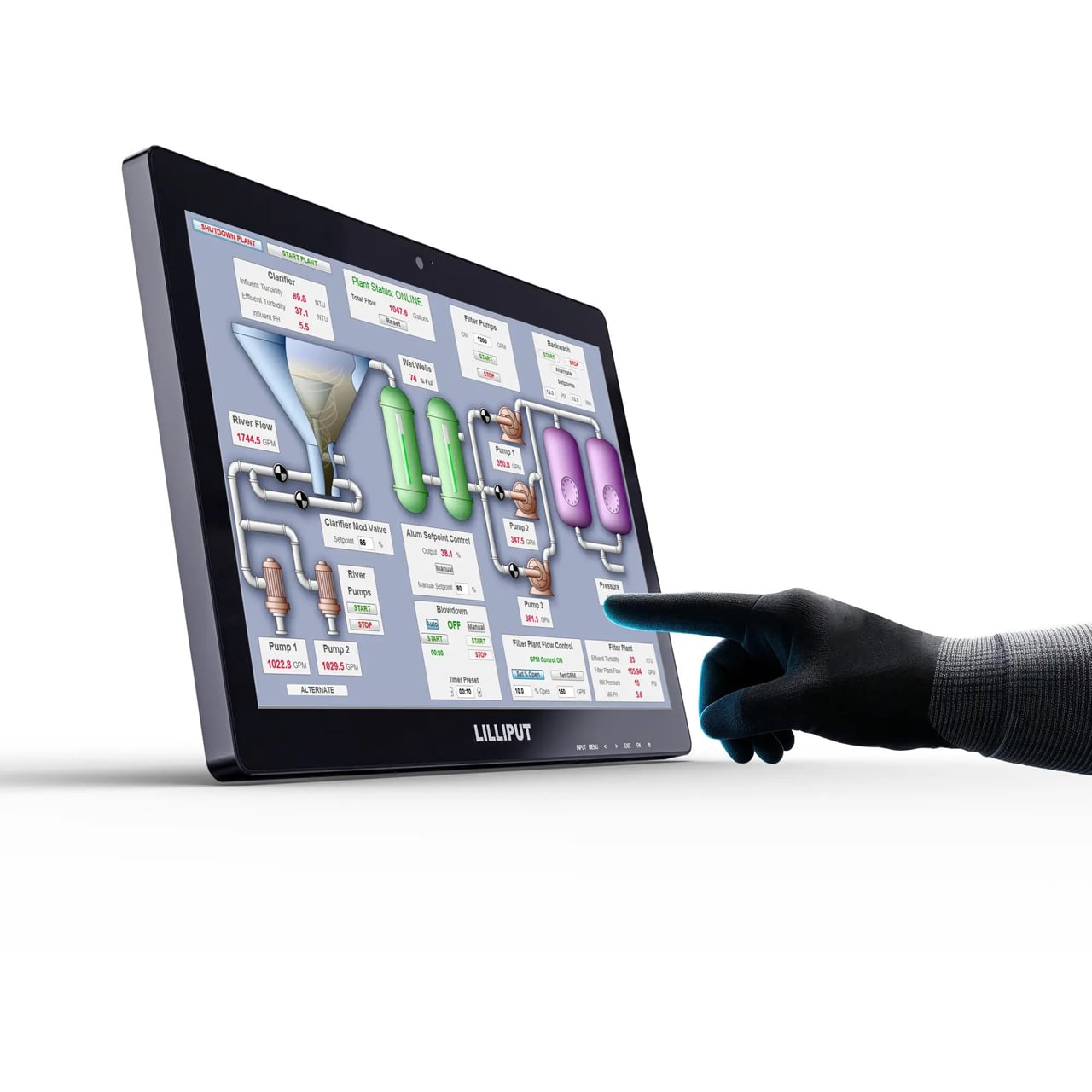

A smart industrial touch screen monitor designed for Industry 4.0 automation, human-machine interface (HMI) systems, and AI edge computing applications.

This Lilliput AD15 15.6" metal monitor comes with a 10-point capacitive touch screen and 1000nits high brightness screen panel. A built-in 8MP front camera that can be activated through Edge PC-BOX, easily meeting the needs of specific scenarios requiring visual recognition. The interfaces support a wide range of customisation options in addition to the existing types such as HDMI, VGA, DP, USB-A hubx4. It supports glove touch, has an IP65/NEMA 4 front panel, 7H hardness, and IK07 impact resistance. Horizontal and vertical installation are both supported for flexible use.

Auto Dimming
Depending on the intensity of ambient light, the brightness of screen will be automatically adjusted to save power.

Optical Bonding
The optical bonding process can remove the air layer between LCD panel and glass, ensuring that dust and moisture will not damage the LCD panel.

High Sensitivity Touchscreen
Touch screen with wet hands or a wide range of gloves, such as rubber gloves, latex gloves, PVC gloves, etc.

UV-Resistant Coating
Under prolonged exposure to sunlight, the UV coating can effectively resist the erosion of ultraviolet rays. in the environment.

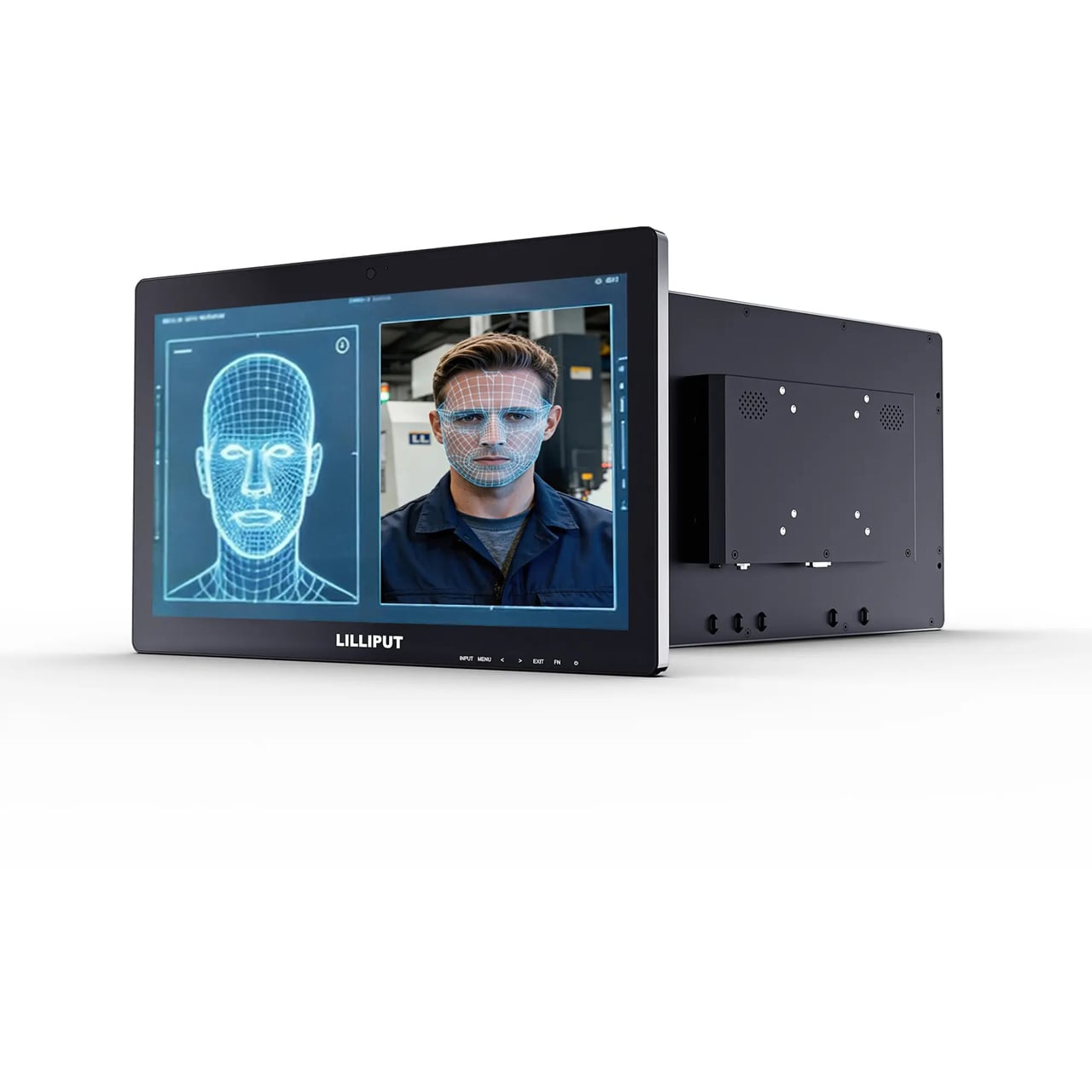

8MP Cam & Mic for AI Edge Computing
A built-in 8MP front camera that can be activated through Edge PC-BOX, easily meeting the needs of specific scenarios requiring visual recognition. In audition, it also has a high-precision microphone, which can recognize the voice of people.

  • Features:

    • 10-point high sensitivity capacitive touch screen
    • 1000cd/m² high brightness with auto dimming
    • AG, AF and UV coatings
    • 8 MP front camera and MIC
    • IP65 front panel waterproof and dustproof

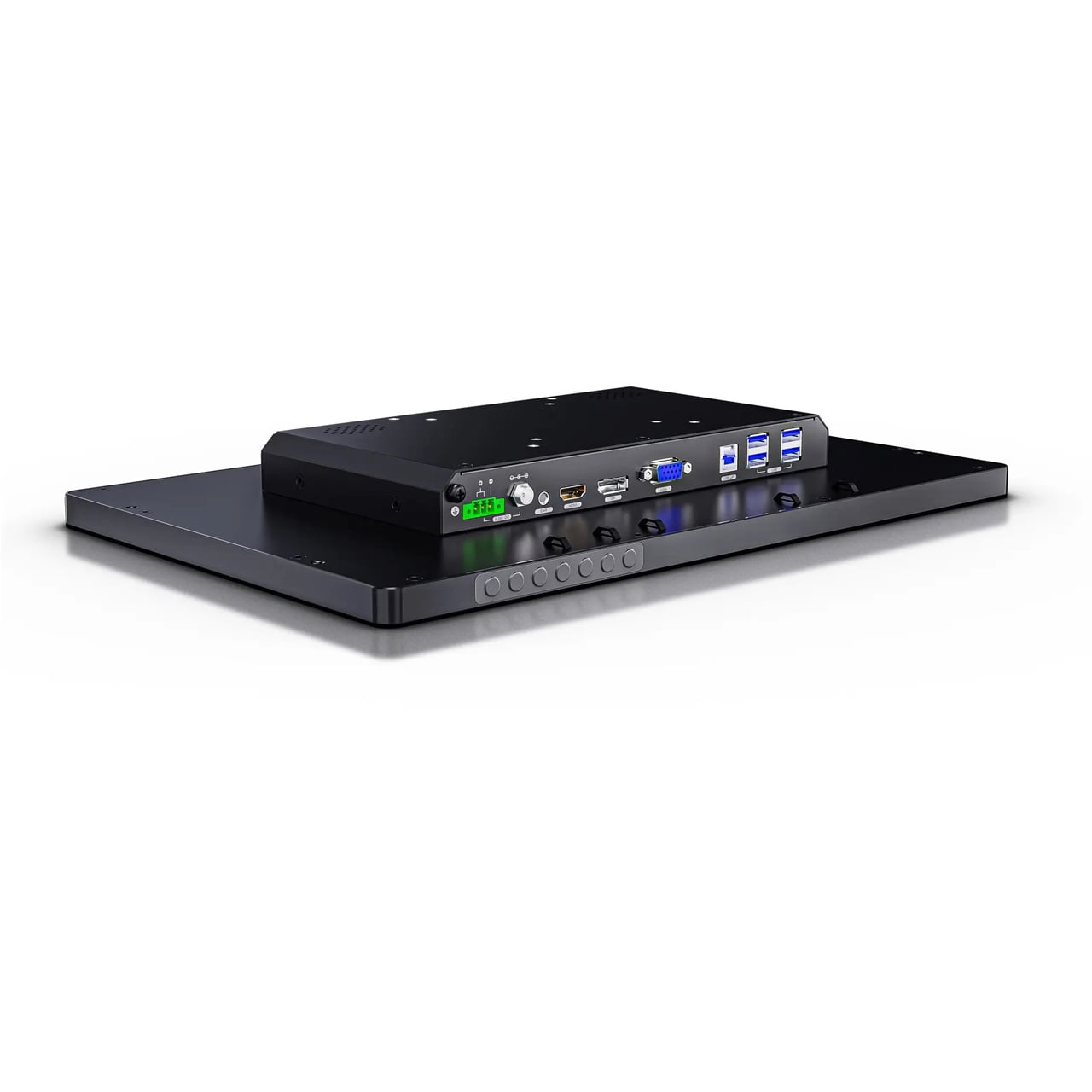

    • Support multiple video input interfaces: HDMI, VGA, DP, USB-Ax4
    • Support Windows, Android, Linux, MAC OS, etc
    • supports standard VESA 75mm x 75mm and 100mm x 100mm mounting patterns

  • Specifications:

      Display
    • Touch Screen: 10-point PCAP
    • Panel: 15.6" LCD
    • Physical Resolution: 1920x1080
    • Aspect Ratio: 16:9
    • Brightness: 1000 nits
    • Contrast: 1000:1
    • Viewing Angle: 170°/170° (H/V)
    • LED Panel Life Time: 50000h
    • Coating: UV-resistant, AG, AF
    • VESA: 75mm x 75mm and 100mm x 100mm

      Inputs
    • HDMI: 1
    • VGA: 1
    • DP: 1
    • USB: 4x USB-A hub (Current 1.5A/3A), 1x USB-B

      Supported Formats
    • HDMI: 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
    • VGA: 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
    • DP: 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60

      Camera
    • Front Camera: 8 MP

      Audio In/Out
    • MIC: For calls, video recording and audio recording
    • Speaker: 2
    • Ear Jack: 3.5mm

      Power
    • Input Voltage: DC 9V - 36V
    • Power Consumption: ≤33W (12V)

      Physical
    • IP Rating: IP65 Front Panel, Front NEMA 4
    • Vibration: 1.5Grms, 5Hz - 500Hz, 1 hr/axis (IEC6068-2-64)
    • Shock: 10G, half-sine wave, last 11 ms (IEC6068-2-27)
    • Operating Temperature: -4°F - 140°F (-20°C - 60°C)
    • Storage Temperature: -22°F - 158°F (-30°C - 70°C)
    • Dimension (LxWxD): 15.08" x 9.65" x 1.59" (383mm x 245mm x 40.4mm)
    • Weight: 6.4lbs (2.9kg)

  • Item Includes:

    • 1x Phoenix 3-pin base
    • 1x HDMI A-A cable
    • 1x USB A-B Cable

  • GTIN:

    0695082160524
