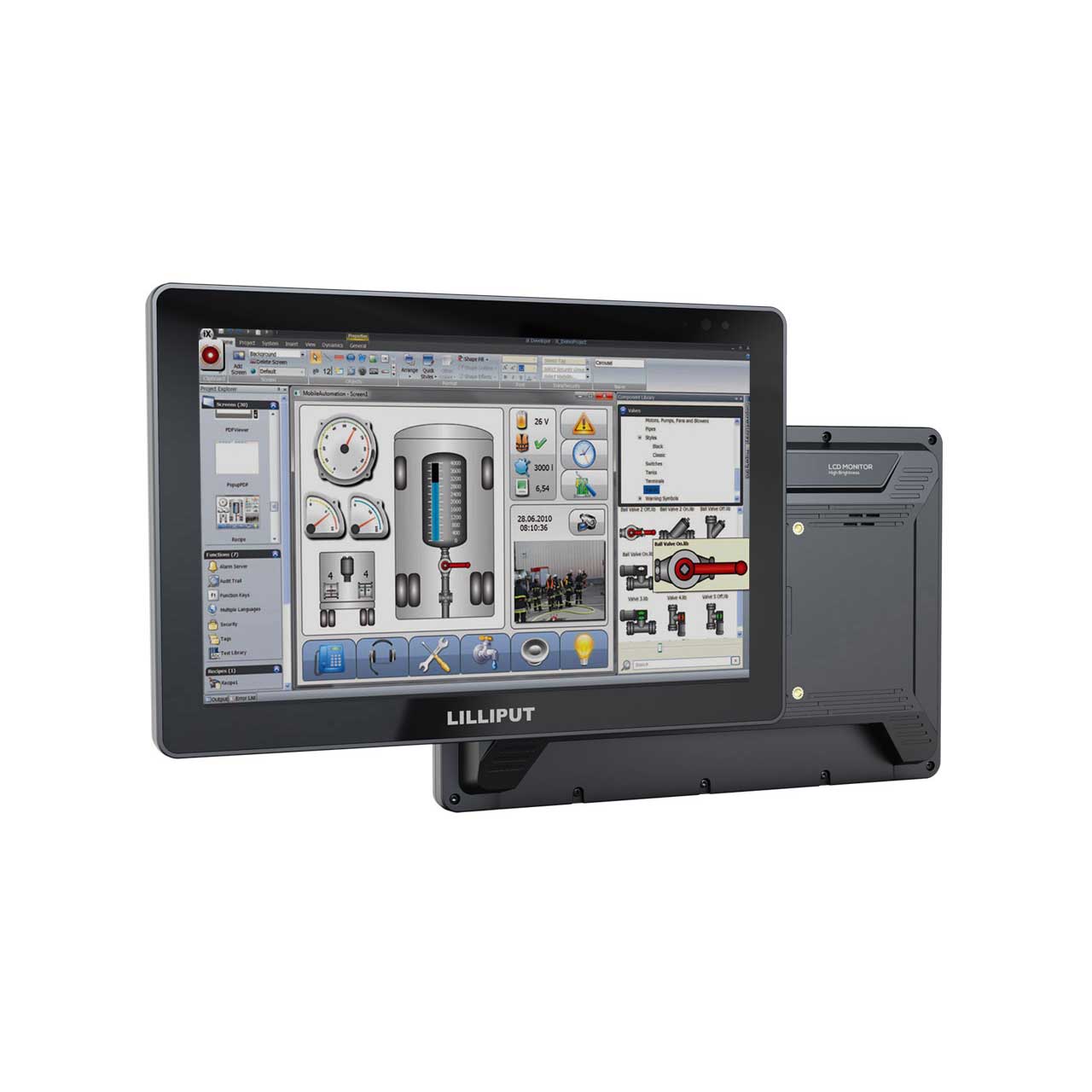

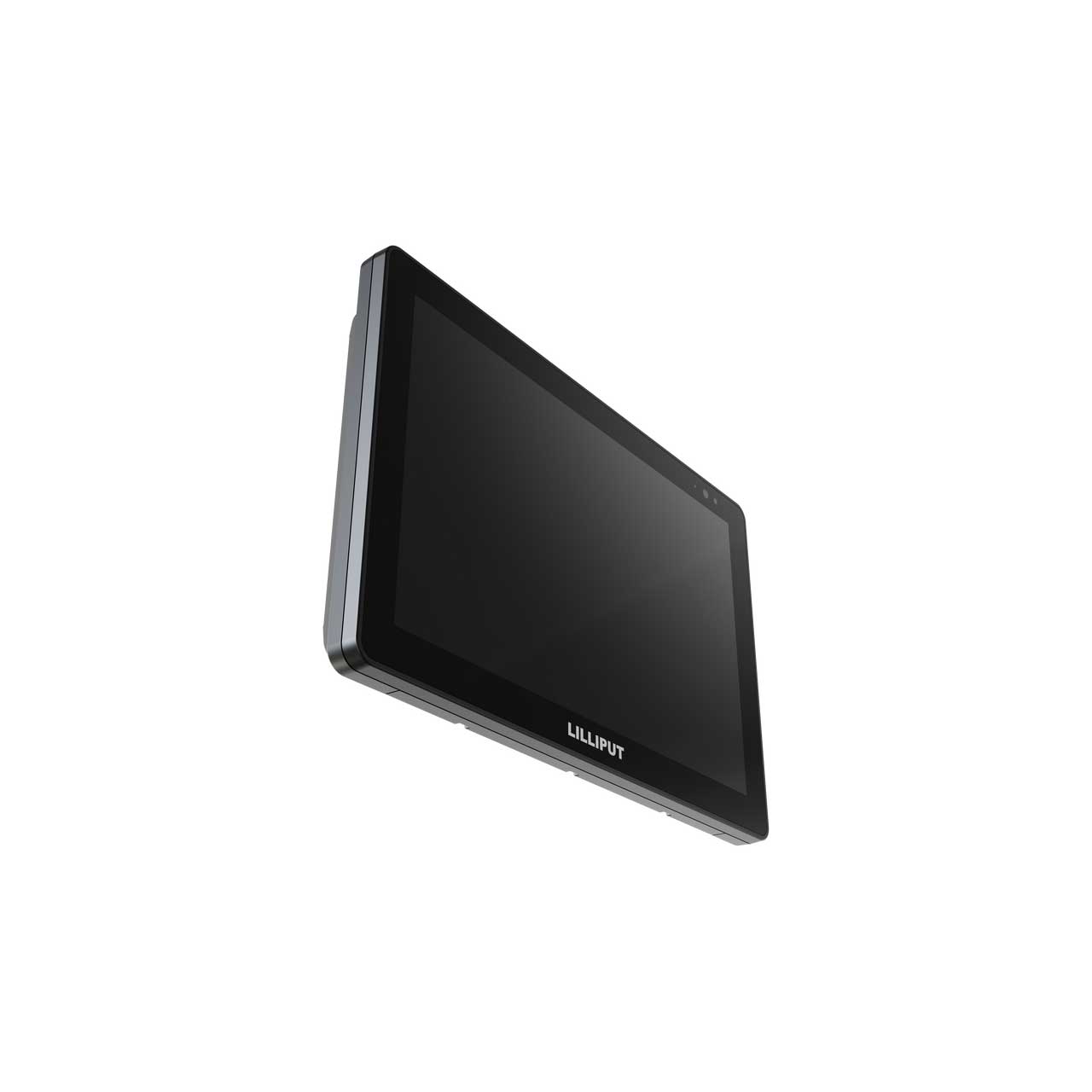

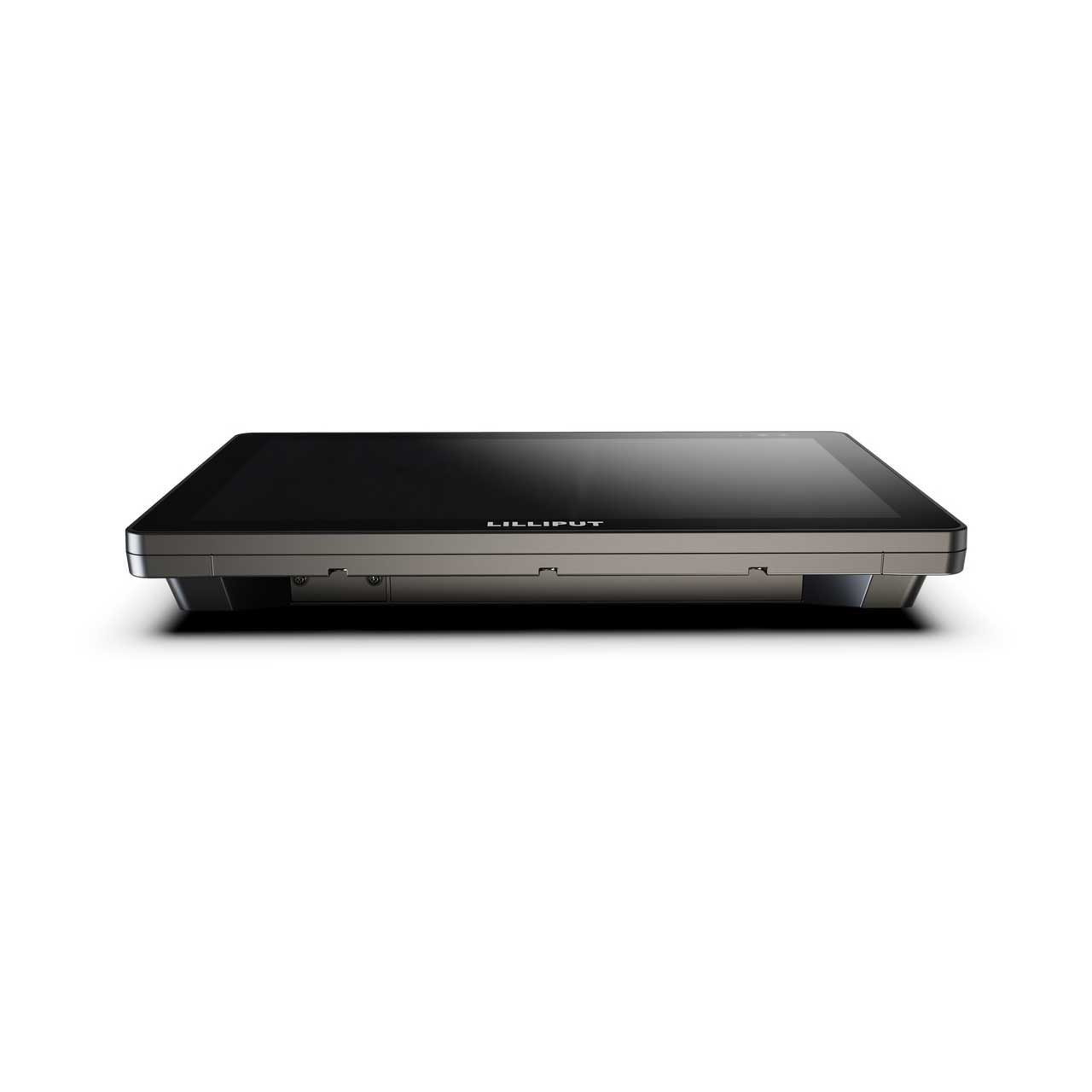

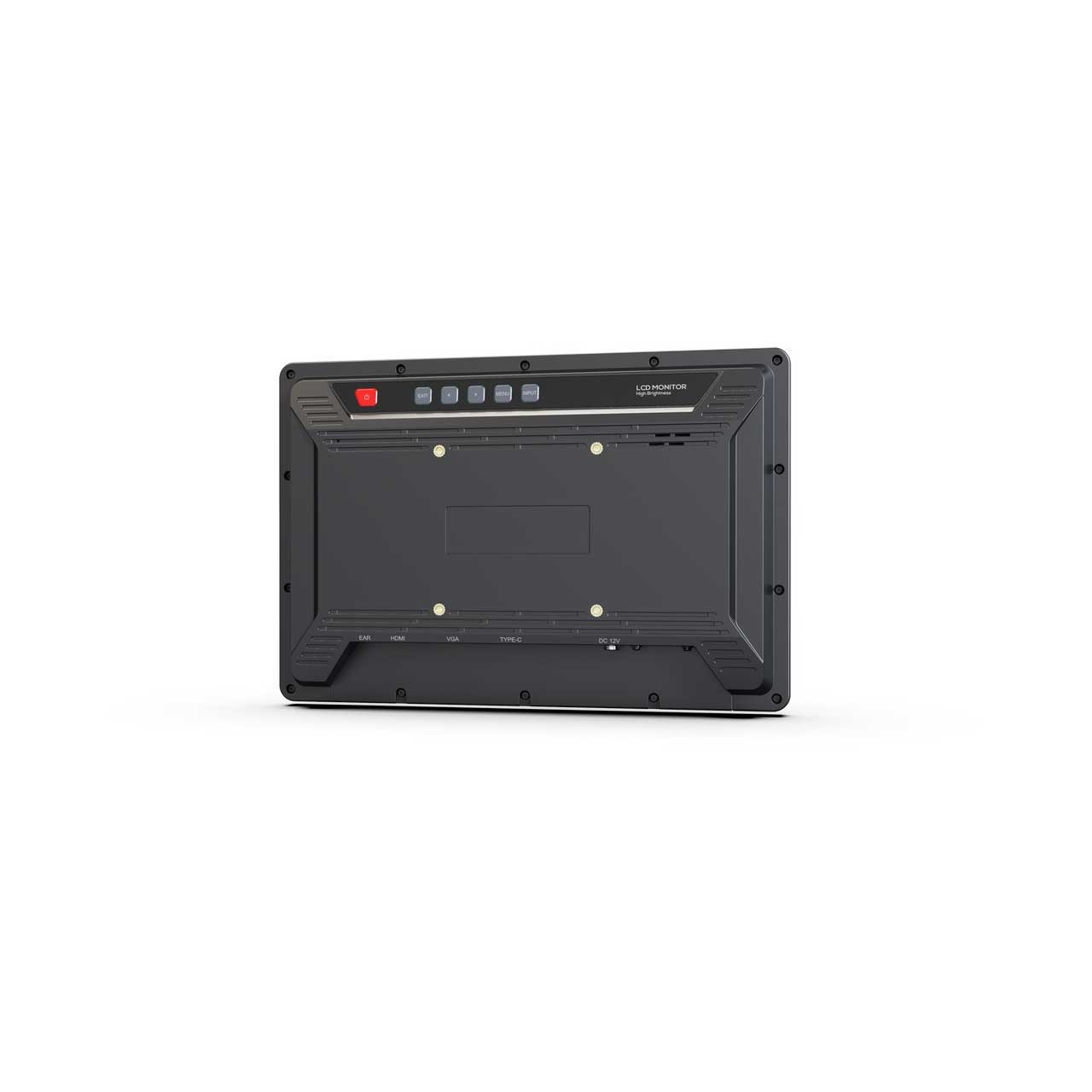

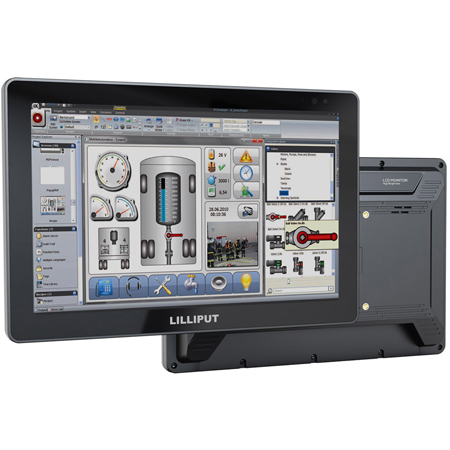

Lilliput FA1019H/T 10.1 Inch 1500 Nits High Brightness Industrial Grade HDMI Touch Screen Monitor

ITEM #: LIL-FA1019H-T MFG #: FA1019H/T

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$399.00

Our Price:

$359.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    FA1019H/T - Overview

    The Lilliput FA1019H/T is a 10.1 inch, 1920x1200 resolution, HDMI Touch Monitor with Lilliput's best-in-range 1500cdm² high brightness screen! Suitable for a wide range of outdoor industrial and commercial applications, the FA1019H/T comes with a capacitive touch function that makes it ideal for use in a POI/POS, Kiosk, HMI or other industrial field-equipment setup.

    The FA1019H/T can be installed as either a desktop device for control centers, a built-in monitor and control unit for production line consoles, or as the controlling panel for a home PC system (or a home automation system like Home Assistant).

    For outdoor / rugged installation environments it can also be purchased with an IP65 frame and cable set, meaning it will stand up better in the more rough-and-tumble of environments.

    Vesa Size: 75mm

    • Features:

      • Screen Size: 10.1 inch touch monitor
      • Resolution: 1920x1200
      • Screen: LED
      • Aspect Ratio: 16:10
      • Housing Material: Metal
      • Brightness: 1500 cd/m²
      • Inputs: HDMI, USB-C

    • Specifications:

      • Display
      • Touch Screen: Capacitive touch
      • Panel: 10.1" LCD
      • Physical Resolution: 1920x1200
      • Aspect Ratio: 16:10
      • Brightness: 1500 nit
      • Contrast: 1000:1
      • Viewing Angle: 170°/ 170°(H/V)
      • LED Panel Life Time: 50000h

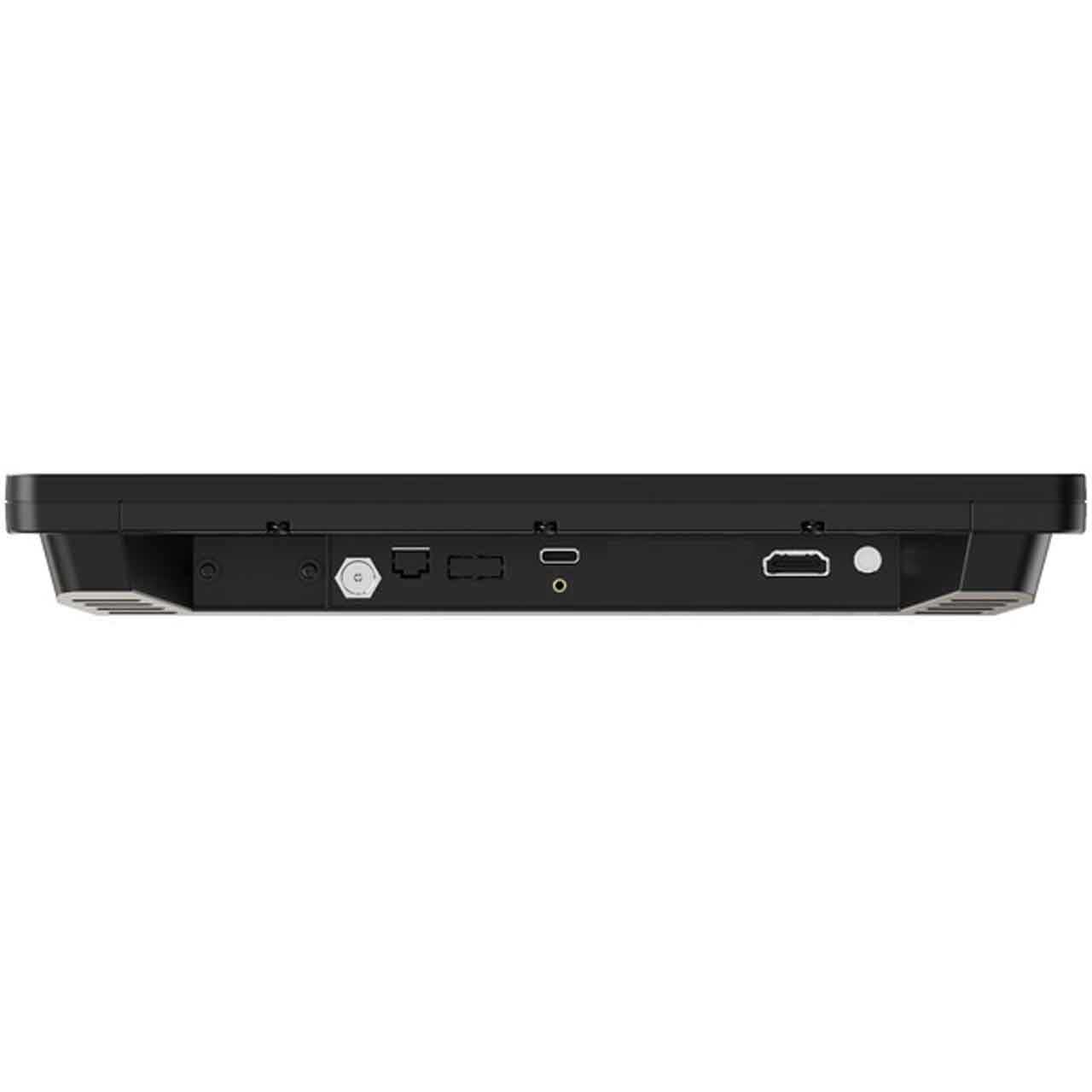

        Signal Input
      • HDMI: 1
      • USB: 1 (USB Type-C)

        Support Formats
      • HDMI: 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60.

        Audio In/Out
      • HDMI: 8ch 24-bit
      • Ear Jack: 3.5mm - 2ch 48kHz 24-bit
      • Built-in Speakers: 1

        Power
      • Input Voltage: DC 12-24V
      • Power Consumption: =19W (12V)

        Environment
      • IP65 Rating: IP65 (Only available for the monitor with extension cable)
      • Operating Temperature: -20°C~60°C
      • Storage Temperature: -30°C~80°C

        Physical
      • Dimension(LWD): 14 x 12 x 5"
      • Weight: 5lb

        Extension Cable
      • HDMI Extension Cable: HDMI, USB-A (For touch)

    • Item Includes:

      • 1x Lilliput FA1019H/T 10.1 Inch 1500 Nits High Brightness Industrial Grade HDMI Touch Monitor

    • GTIN:

      6950821602676
