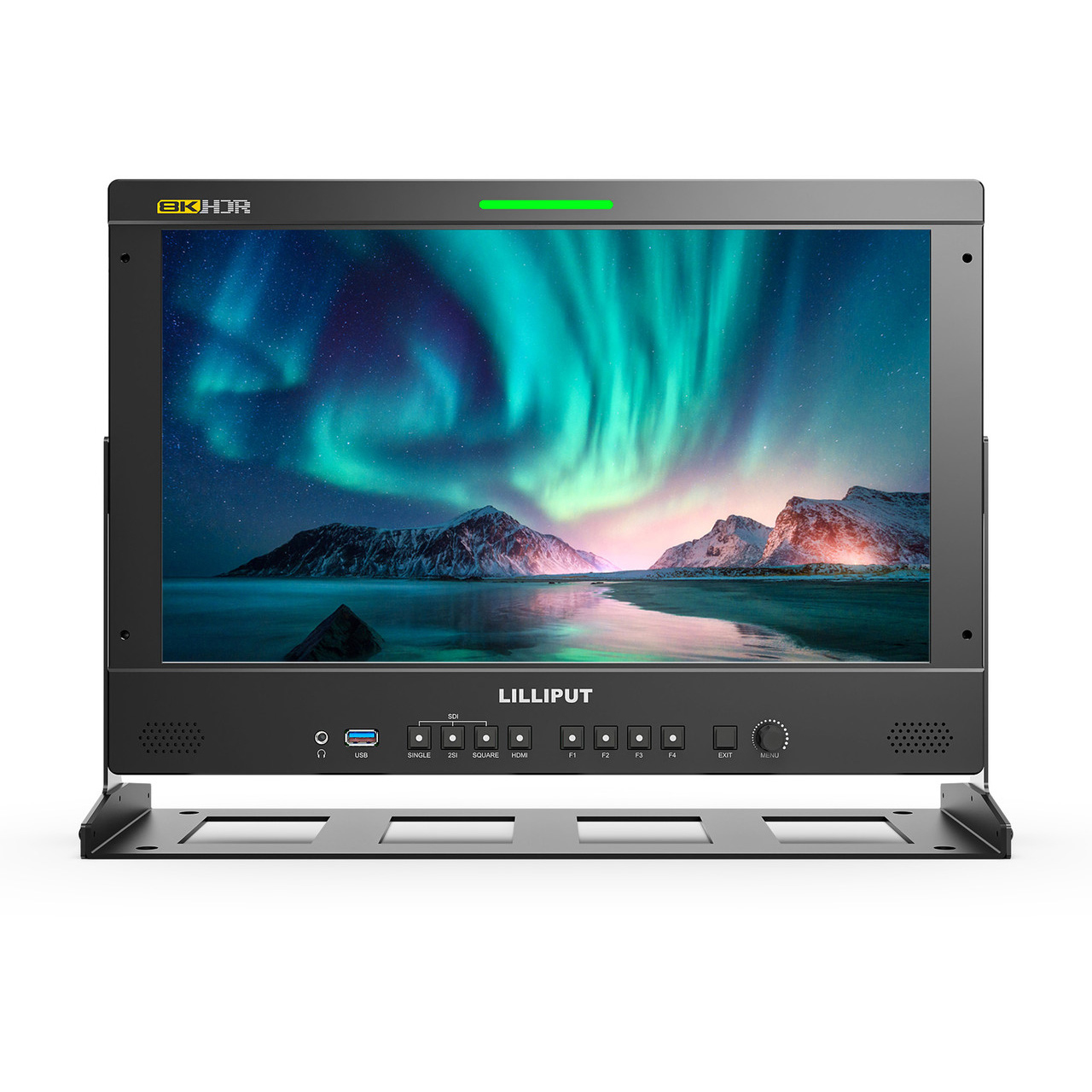

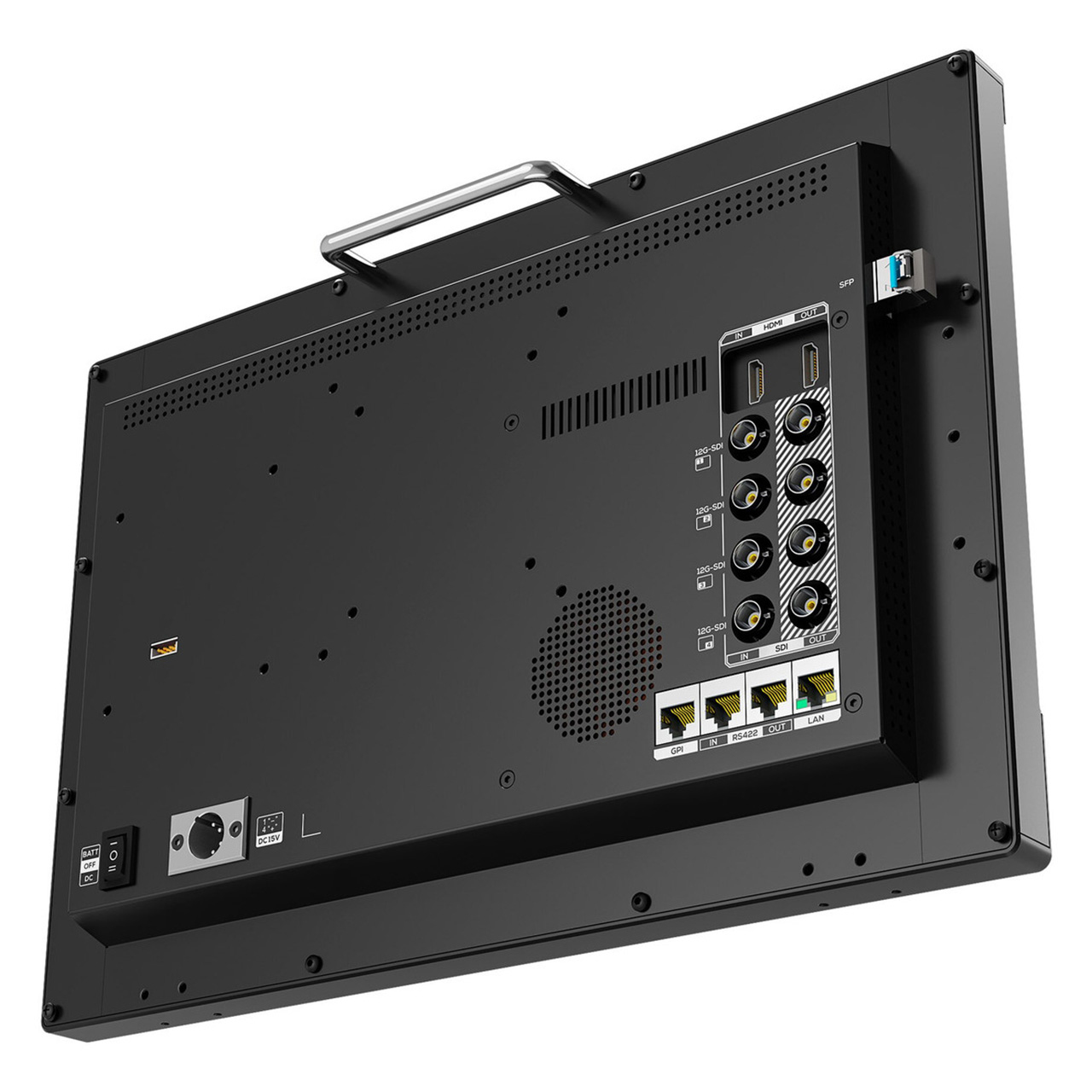

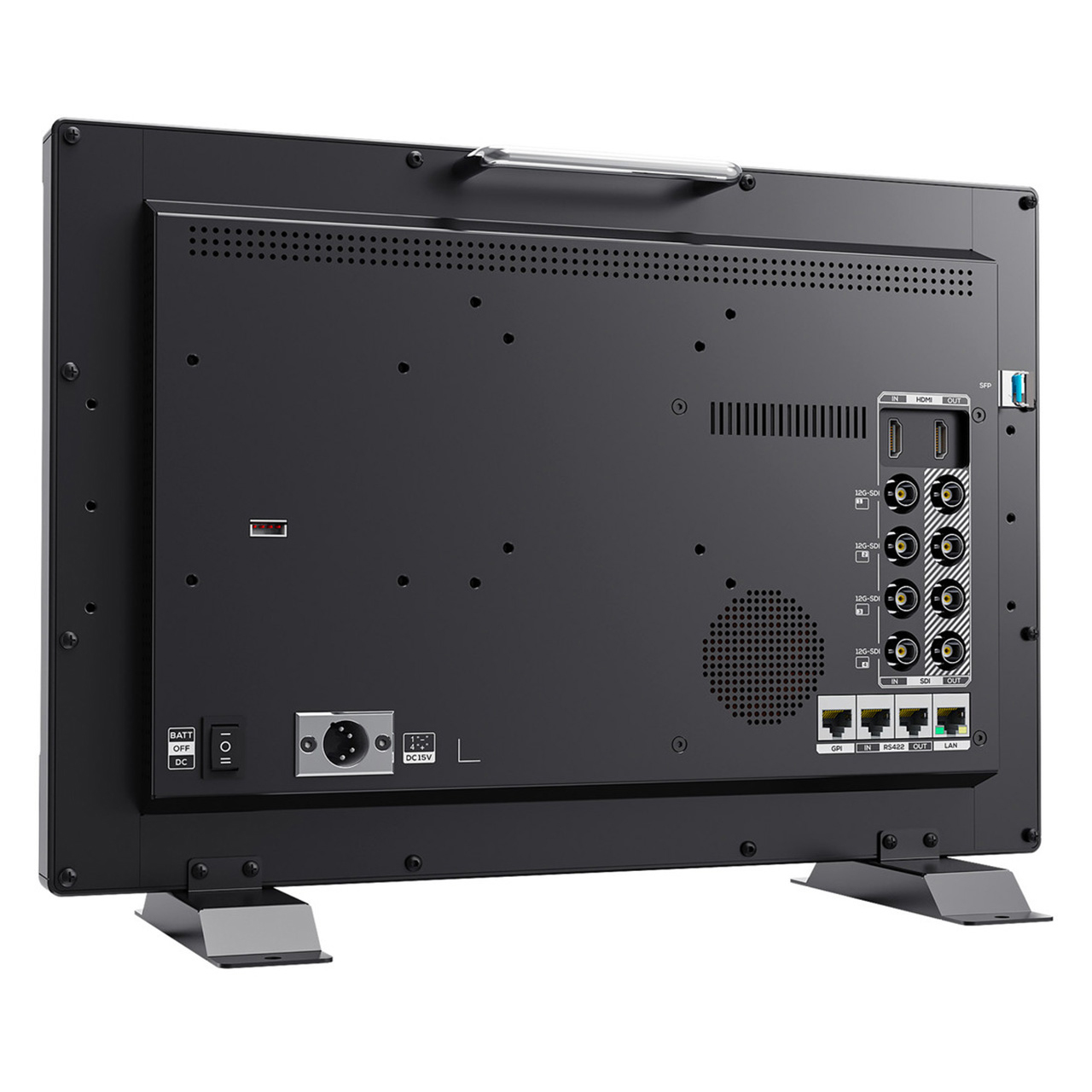

The Lilliput Q15-8K is part of the Lilliput flagship range of monitors designed to handle and process an 8K video input signal. It takes 4x 12G-SDI input feeds via the BNC connectors at the back of the unit, and in compliance with the ST2082-12 video protocol, combines them to create an 8K 60Hz video signal which it displays on the 3840x2160 pixel panel.
With other features such as REC. 709 and DCI-P3 Color Space, 3D LUT Support, Remote Control through LAN connection, Multiview and Quad-Split, and an optionally purchased 12G-SFP connection - the Q18-8K packs massive value monitoring into an easy-to-operate system.

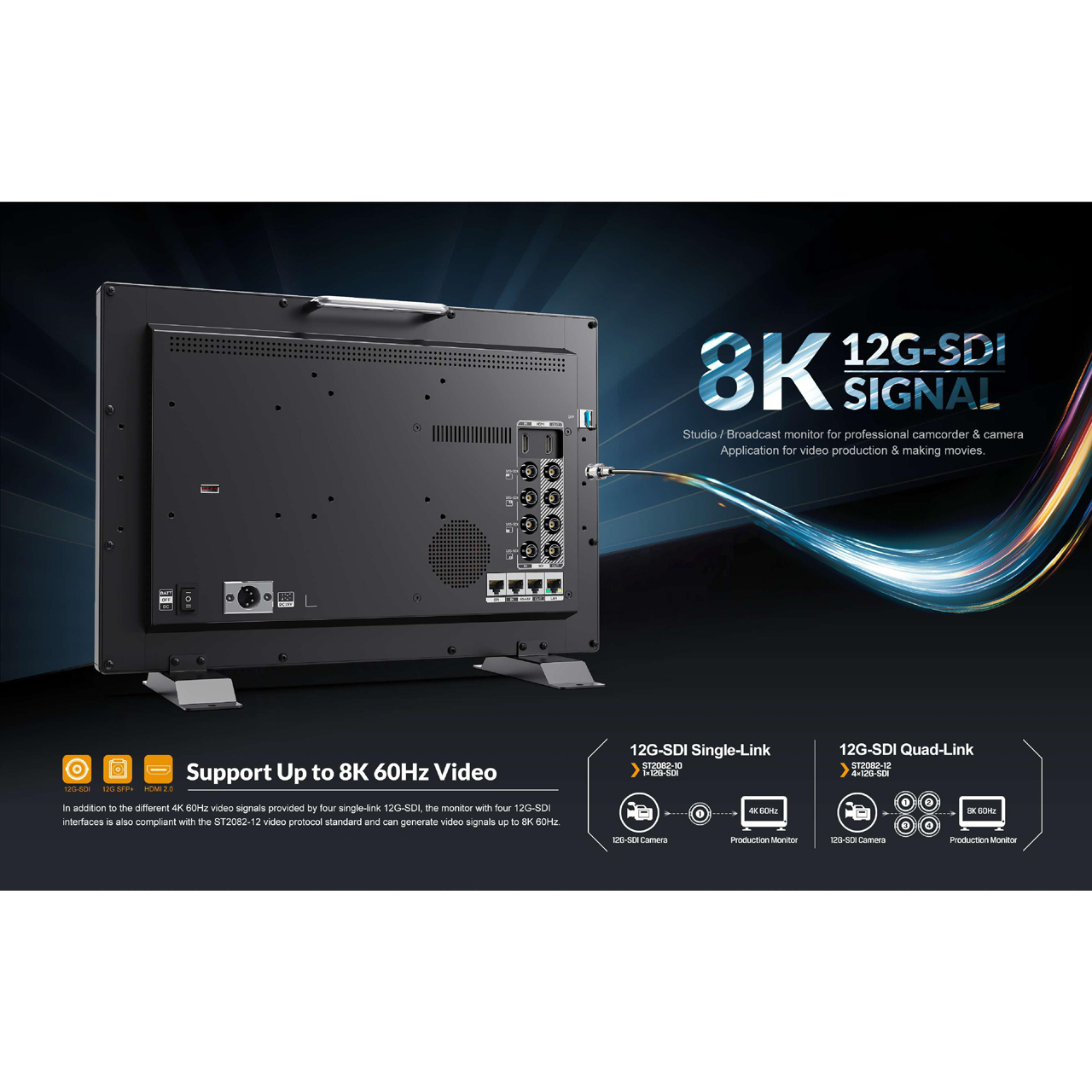

Support up to 8K 60Hz Video
In addition to different 4K 60Hz video signals providted by four single-link 12G-SDI, the monitor with four 12G-SDI interfaces is also compliant with the ST2082-12 video protocol standard and can generate video signals up to 8K 60Hz.
Quad Split Multview
In Quad-Split Multiview mode, any input signals can be selected and changed among 12G-SDI, HDMI2.0 and 12G-SFP+. Moreover, images can be differentiated with colorful borders to enhance the sense of monitoring.
When the Quad-Split Multiview function is turned on, there are four buttons that will turn into signal switching, and each button corresponds to one image respectively. The user can quickly switch between different input signals with the Q15-8k's buttons.
Accurate Color Calibration
A specific calibration to reproduce the colors of the image color space. Q15-8K's color calibration supports PRO/LTE version of ColourSpace CMS by Light Illusion.

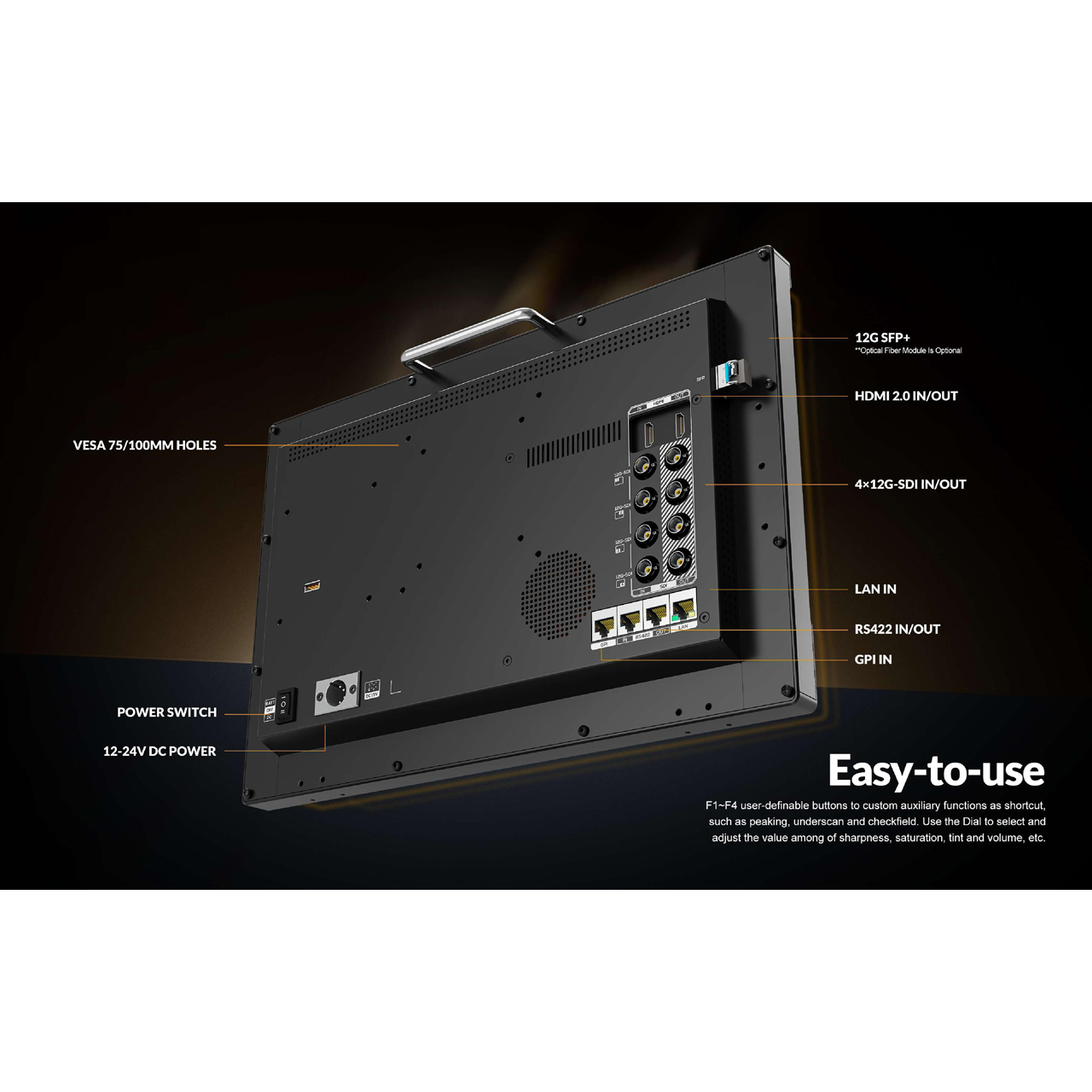

LAN/RS422
Select an appropriate port from LAN or RS422 to connect the user's operating interface, allowing the application to identify the monitor before control.
