Lilliput RM-1731 17.3 inch Pull-out 1RU Rackmount Full HD HDMI 2.0 Monitor for Live Streaming

ITEM #: LIL-RM-1731 MFG #: RM-1731

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$899.00

Our Price:

$799.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    RM-1731 - Overview

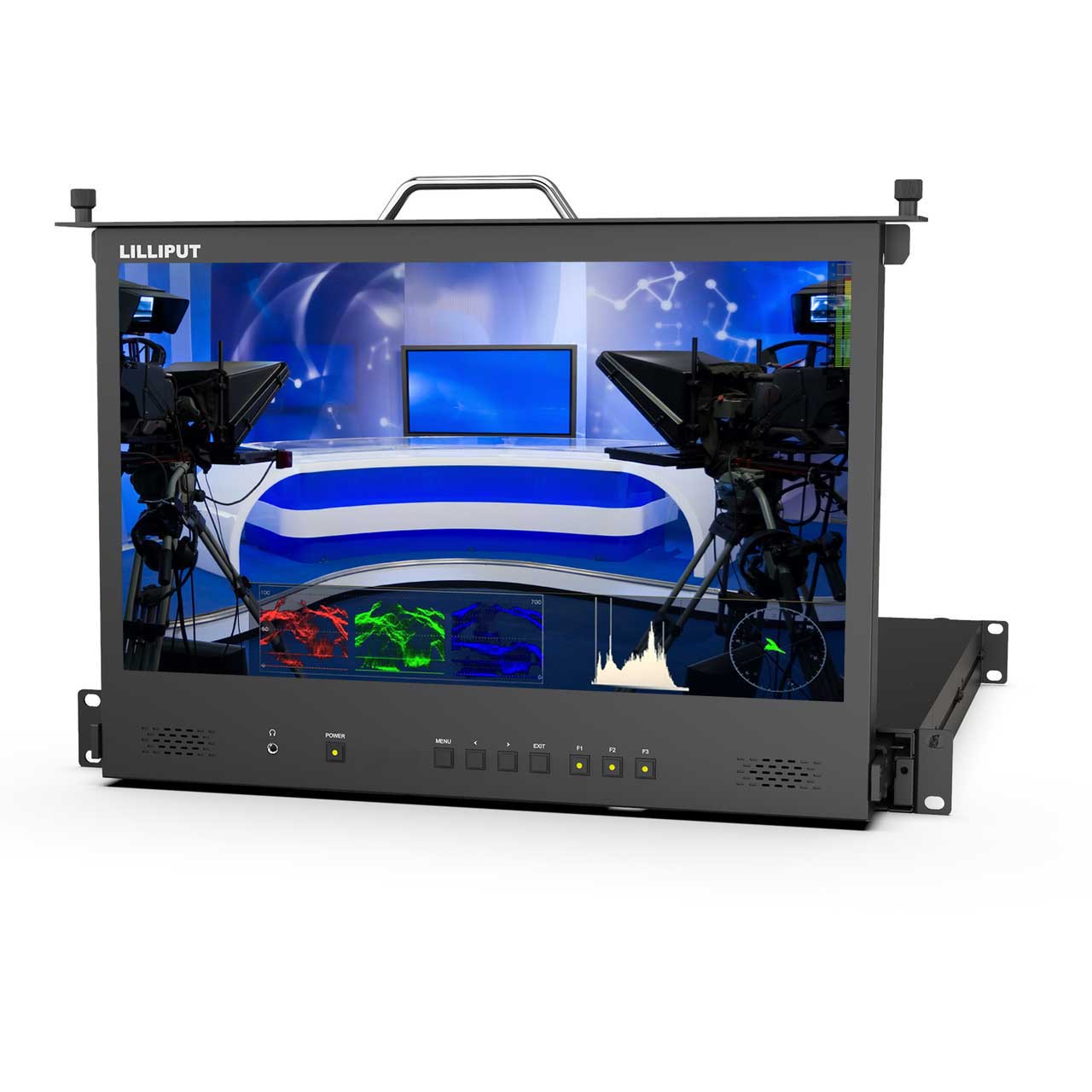

    The RM-1731 is a high quality rack / drawer mount monitor solution. It's ideal for streaming workflows, live events and for installation into space-conscious rack systems. The 17.3 inch full HD IPS screen panel features HDR to provide crisp pictures and sharp color contrast, giving excellent picture quality for text and video alike.

    An Upgrade from the original RM1730, this model features HDMI 2.0, HDR and 3D Luts. It also has the advantage of being able to accept a 4K 30Hz input signal.

    • Specifications:

      • Display
      • Size: 17.3"
      • Resolution: 1920 x 1080
      • Brightness: 300cd/m²
      • Aspect ratio: 16:9
      • Contrast: 800:1
      • Viewing Angle: 170°/170°(H/V)

        Video Input

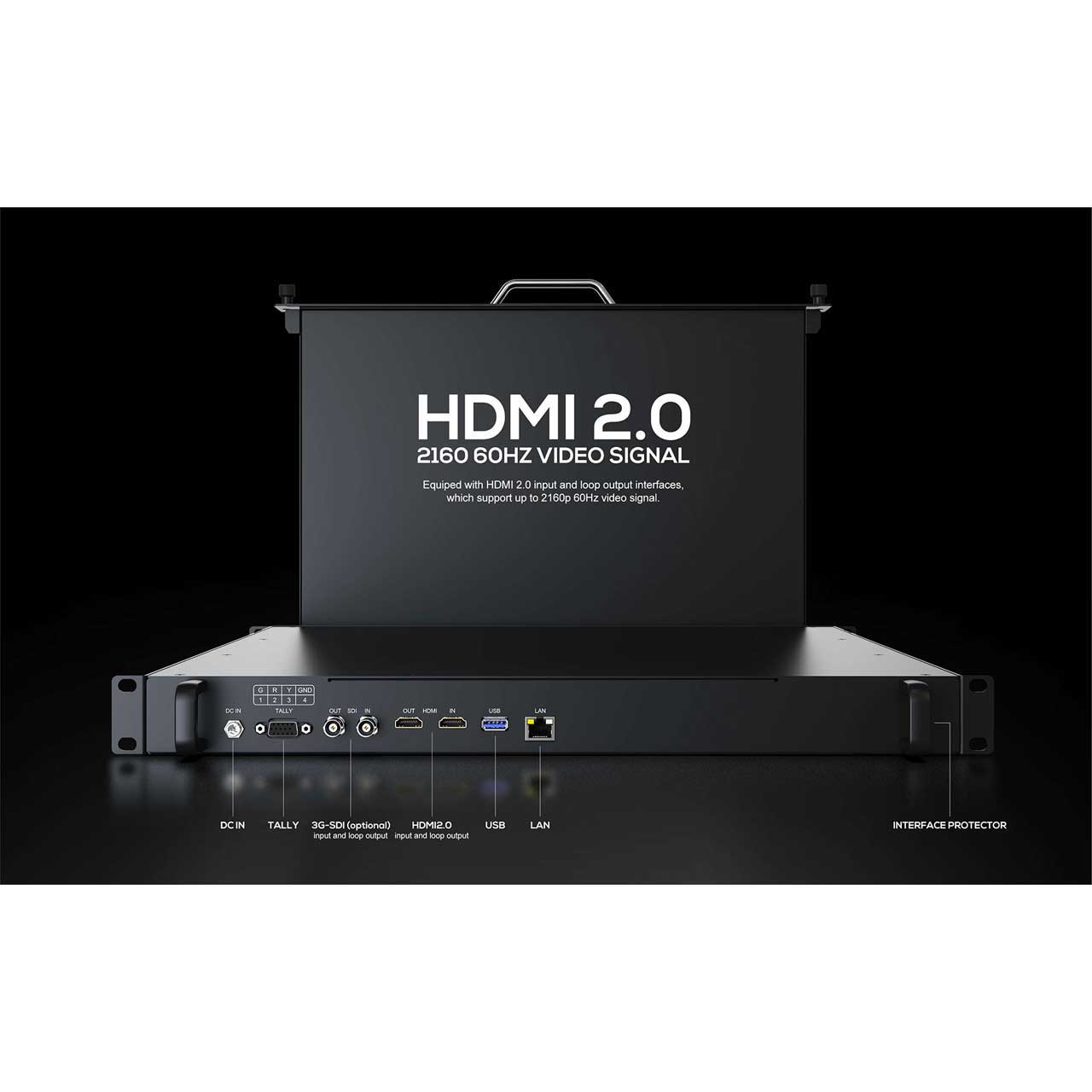

      • HDMI: 1 x HDMI 2.0
      • LAN: 1

        Video Loop Output
      • HDMI: 1 x HDMI 2.0
      • Supported In / Out Formats
      • SDI: 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60.
      • HDMI: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60,2160P 24/25/30/50/60

        Audio In/Out
      • HDMI: 8ch 24-bit
      • Ear Jack: 3.5mm - 2ch 48kHz 24-bit
      • Built-in Speakers: 2

        Power
      • Operating power: ≤14W(12V)
      • DC In: DC 10-24V

        Environment
      • Operating Temperature: 0°C~50°C (32°F~122°F)
      • Storage Temperature: -20°C~60°C (-4°F~140°F)

        Other
      • Dimension(LWD): 482.5 x 44 x 507.5mm (19 x 1.73 x 19.98in)
      • Weight: 8.9kg (19.62lbs) (with case)

    • GTIN:

      6950821602591


    RM-1731 - Required Accessories
