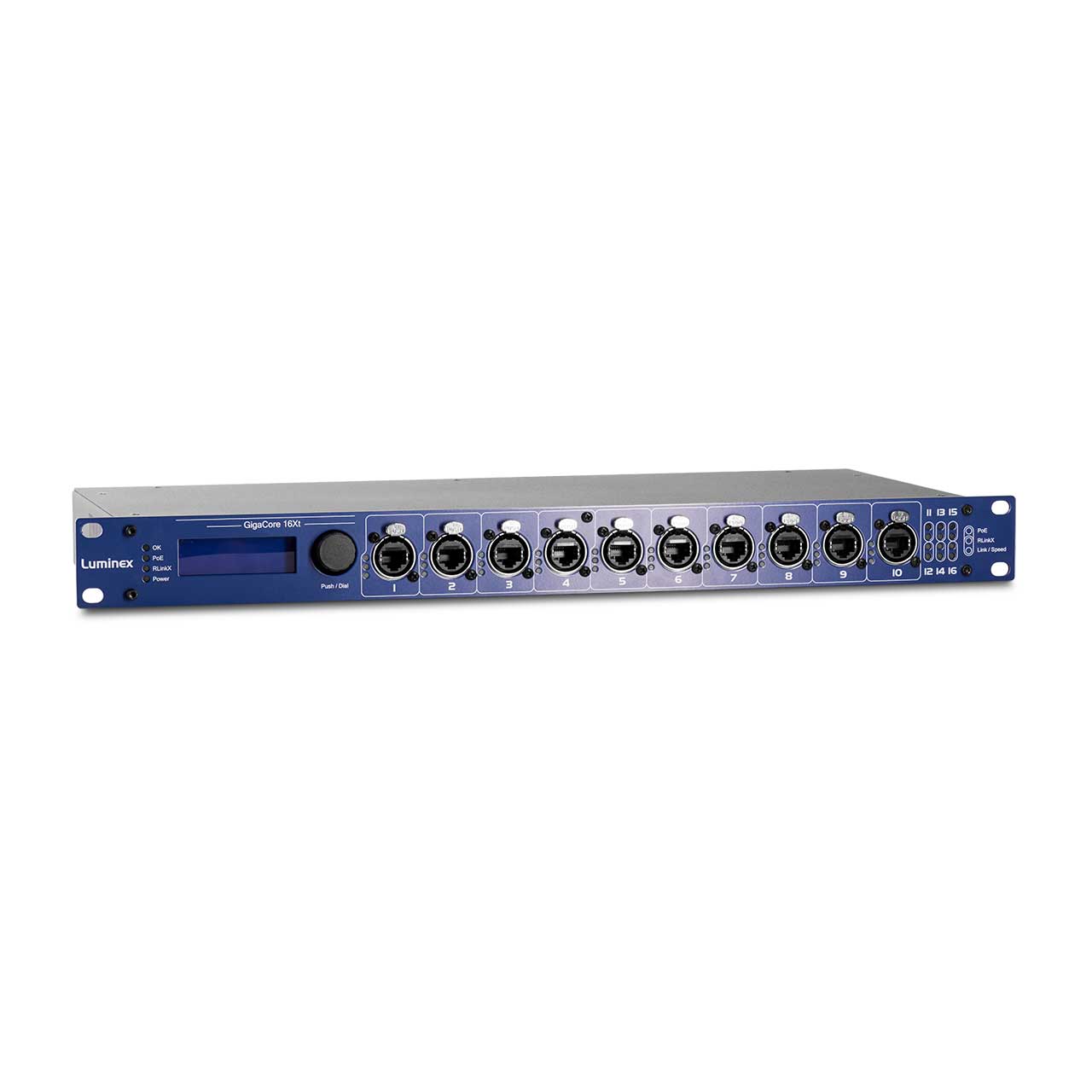

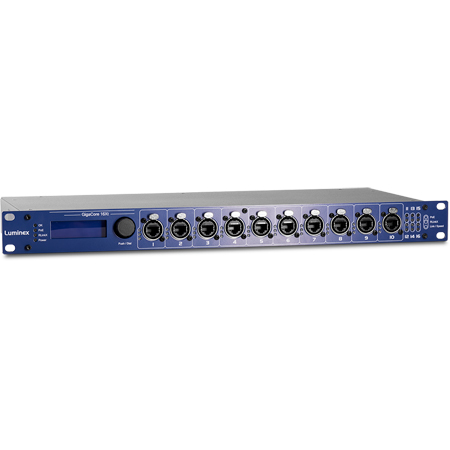

Luminex LU01A0048 GigaCore 16Xt Pre-Configured Ethernet Switch for Professional AV Solutions - No PoE++

LU01A0048 - Overview

• Features:

  • Most suitable applications: Touring and live events
  • RLinkX (Link redundancy): Yes
  • Groups (VLAN segmentation): Yes
  • MultiLinkX (Link aggregation): Yes
  • Profile manager: Yes
  • Memory: 4Mb
  • MAC address table: 8192 Entries
  • Address learning / Aging: Self learning, Auto aging
  • Switching throughput: 32Gbps
  • Jumbo frames: MTU up to 9600
  • IGMP support: Yes (V1/V2/V3)
  • IGMP snooping: Yes, enabled by default
  • Port sensing: Auto negotiation
  • Auto crossover: MDI / MDIX
  • Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)


• Specifications:

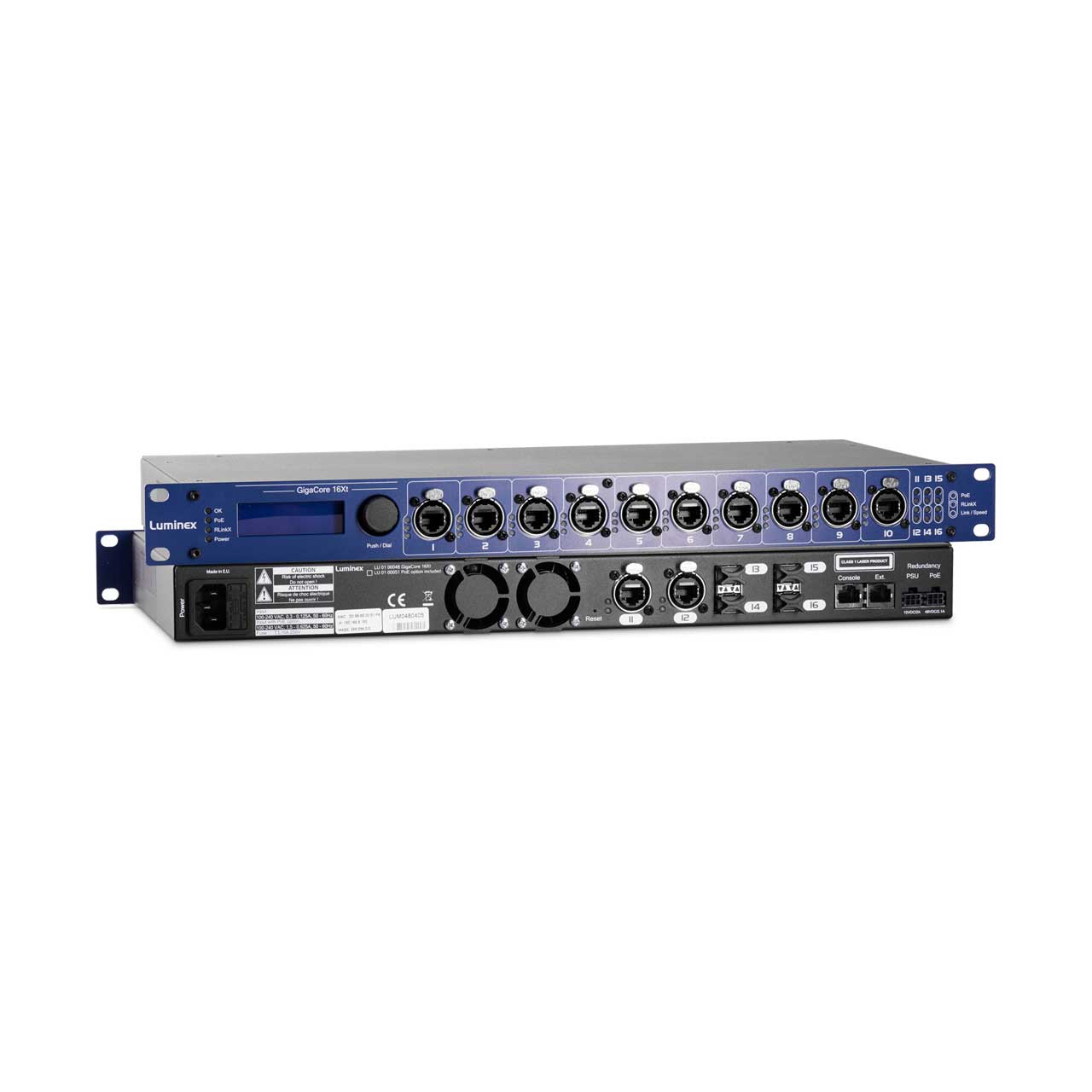

  • Ethernet Connectivity: 12 x Shielded Neutrik Ethercon connectors
  • Fiber Connectivity: 4 x SFP cages
  • Ethernet Port Speed: 1Gbps
  • Serial: 1 x serial RJ45 console port
  • Power Connectivity:
    1 x IEC (14C) inlet with fuse holder
    1 x redundant power input on Molex Micro-Fit 6 pin connector
    1 x redundant PoE input on Molex Micro-Fit 6 pin connector
  • Power Input: 100-240VAC, 50-60Hz
  • Power Consumption: Maximum 30W
  • Fuse: 3.15A 250V Slow Blow
  • Backup Power Input: 15VDC / 2A
  • Mounting: Rack
  • Enclosure: Robust Metal Housing
  • Dimensions: 19" x 8.04" x 1.73" (WxDxH)
  • Weight: 6.4 lbs
  • Environment:
    Operating temperature: 32 to 122 °F
    Storage temperature: 14 to 158 °F
    Humidity (non condensing): 5 to 95% RH
  • Noise Level:
    Max 30dBA (Ambient: 32 - 95°F)
    Max 42dBA (Ambient: 95 - 122°F)


• Item Includes:

  • 1x GigaCore 16Xt
  • 1x Quick Start Guide ( including warranty information and safety instructions)

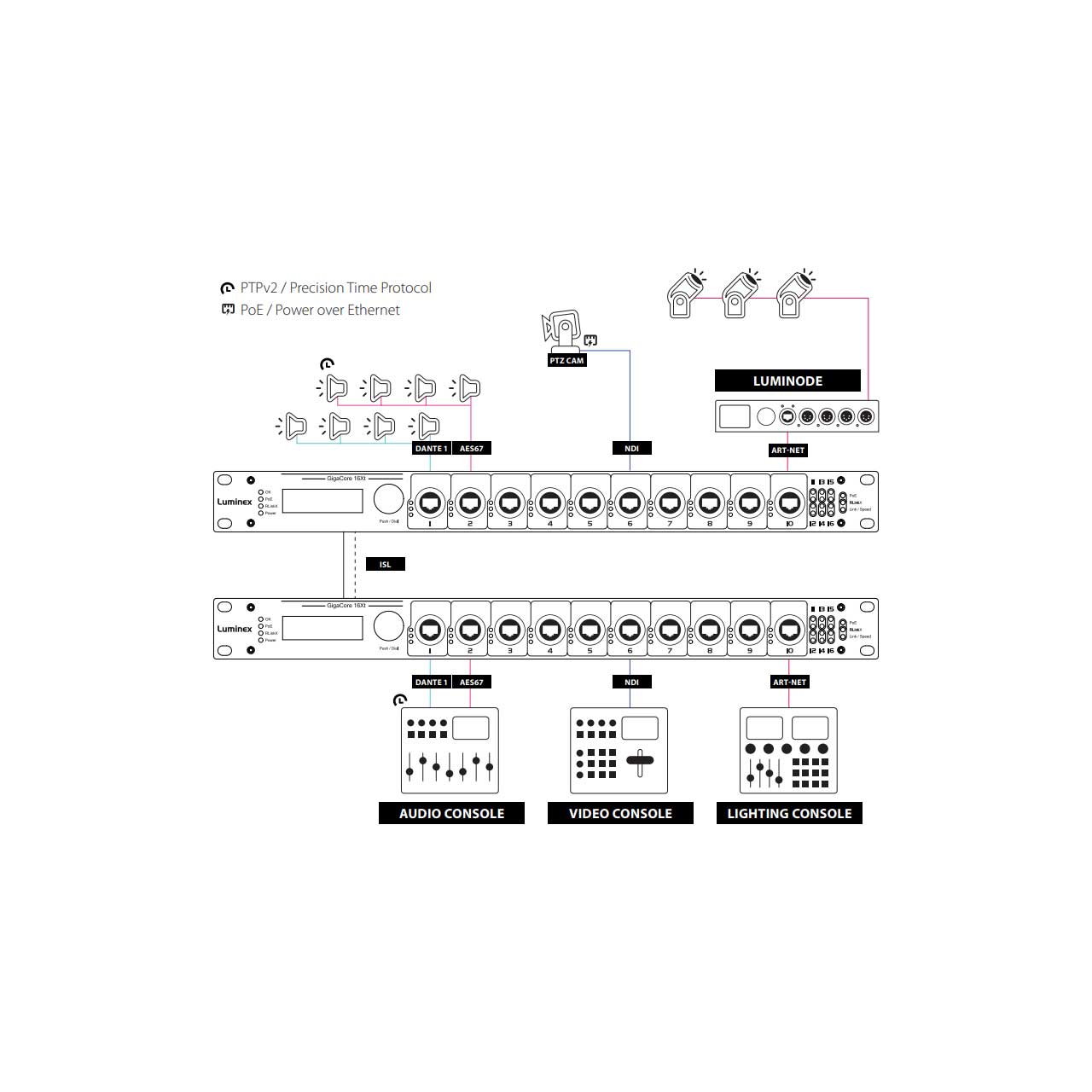

• Applications:

  • Convention centers
  • Architectural lighting
  • Multimedia shows
  • Schools
  • Theme parks
  • Theaters, operas
  • Festivals, tours
