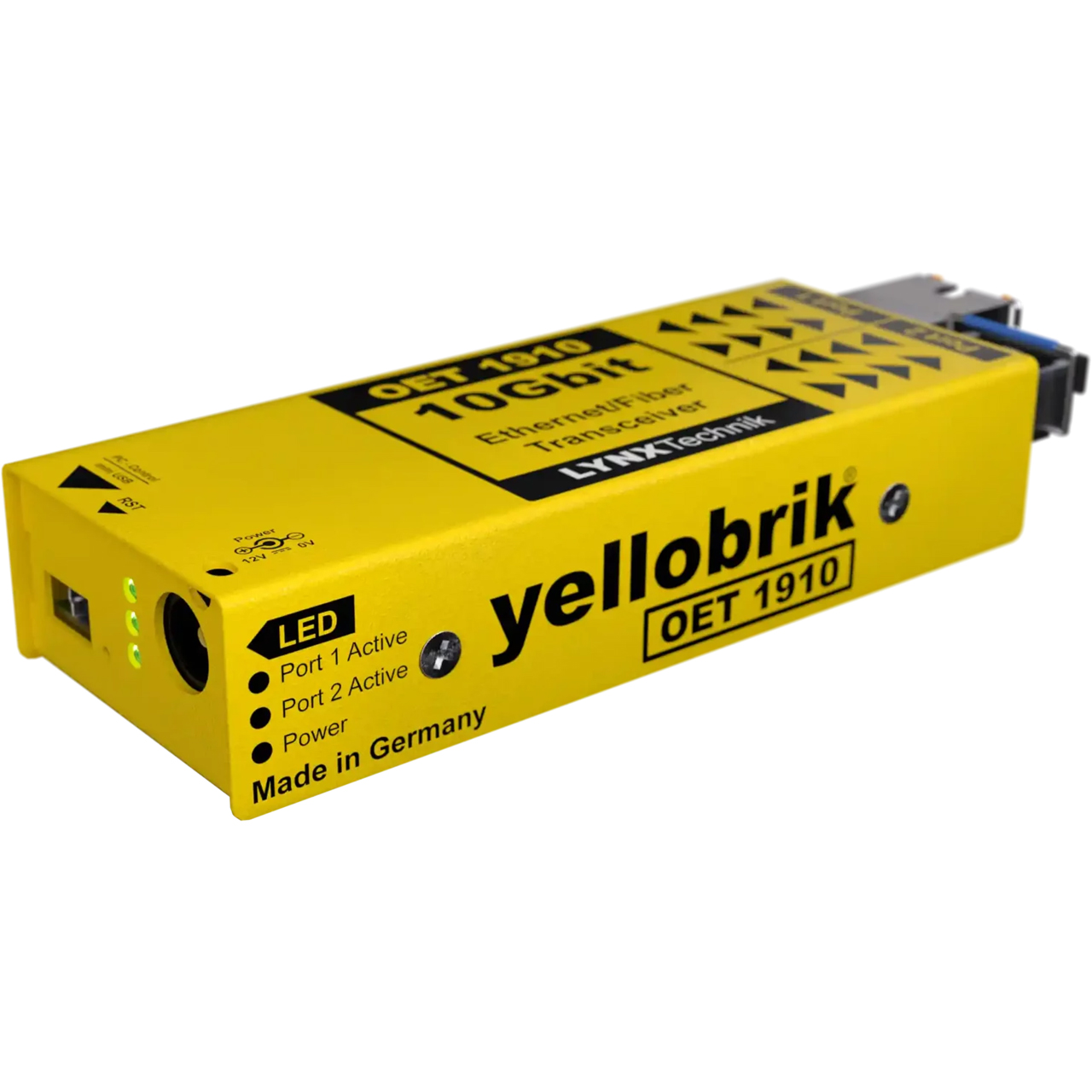

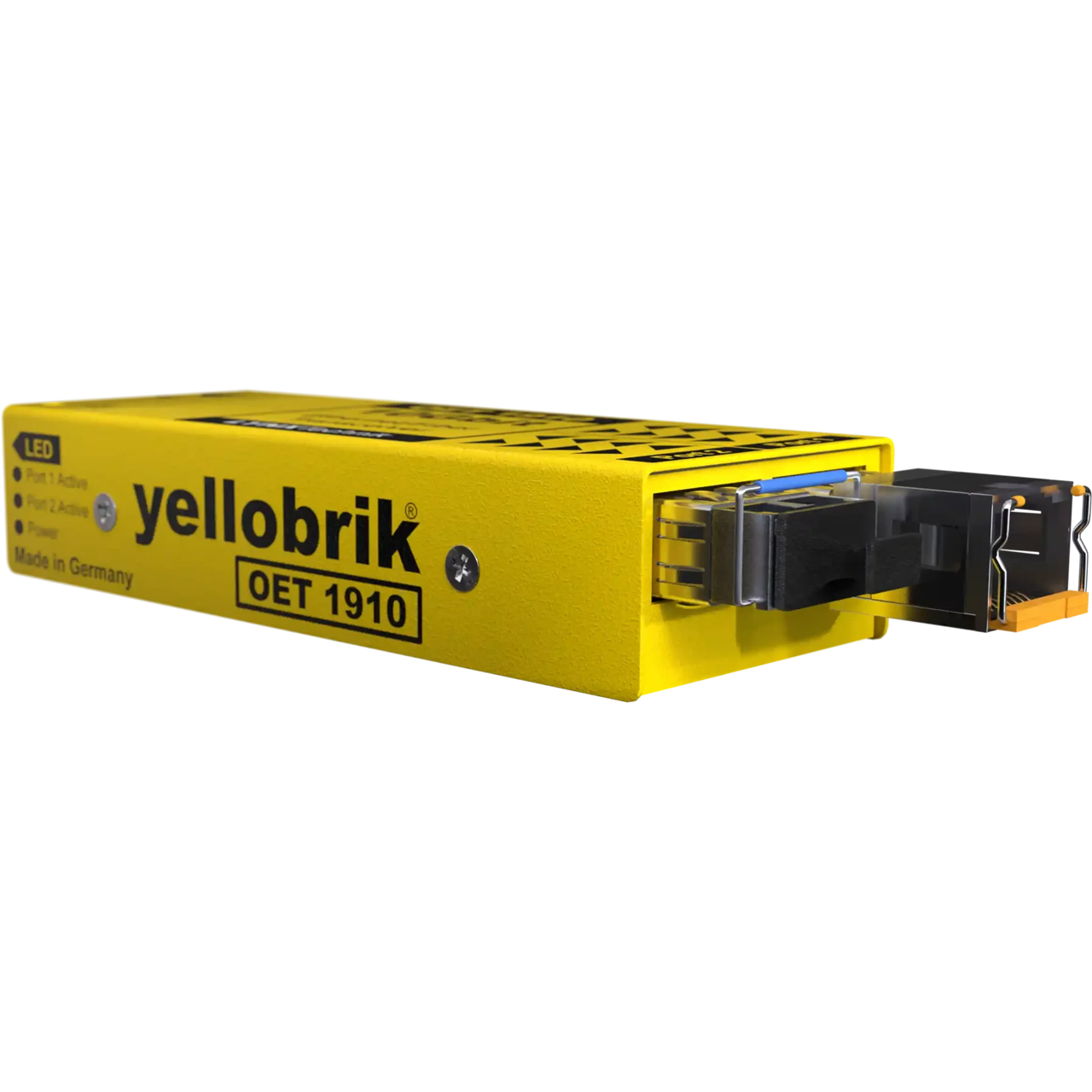

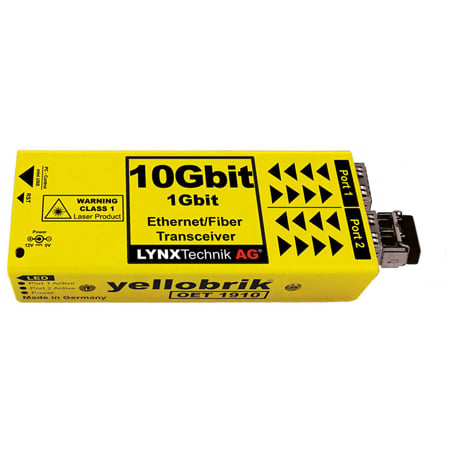

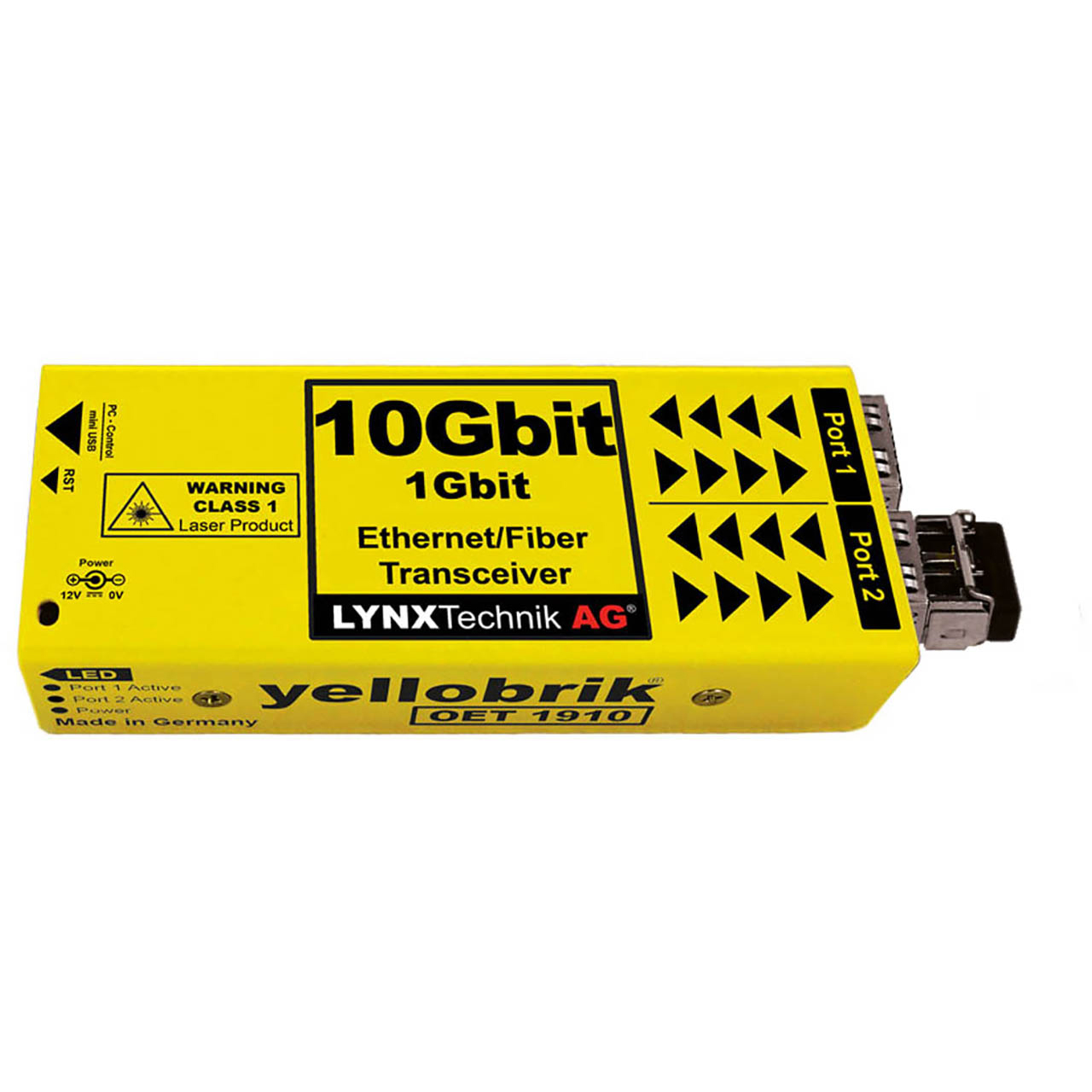

LYNX Technik Yellobrik OET 1910 MC 10GbE Multimode Fiber to Singlemode CWDM Fiber Converter

OET 1910 MC - Overview

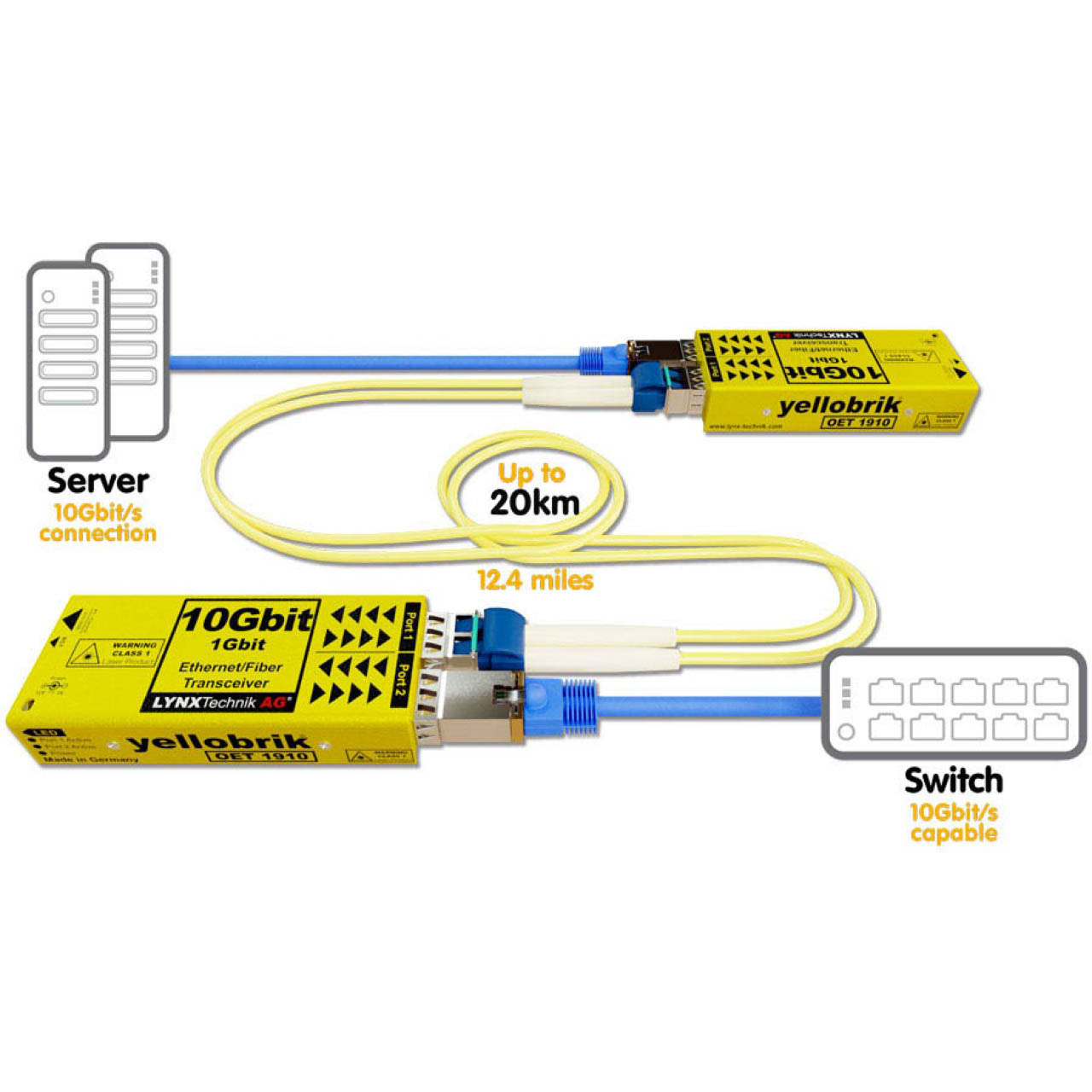

Supports distances up to 15.5 miles (25km) over Singlemode fiber!

• Features:

  • Supports standard 1GbE and 10GbE including Dante Audio and ST 2110
  • Multimode fiber to CWDM Singlemode fiber conversion
  • 18 available CWDM wavelengths: from 1270nm - 1610nm (ITU-T G.694.2)
  • Power and signal status LED
  • Supports hot swapping and hot plugging


• Specifications:

  • SFP Slots:
    - 2x 10 Gigabit SFP+ Slots (Ports 1 & 2)
    - Supports 10GBase-T SFP, 10GBase-X, 1000Base-T
    - IEEE 802.3ae
  • Fiber:
    - 1x or 2x 10GbE Fiber Transceiver SFPs
    - Duplex LC connectors
  • LED: 1x Power LED and 2x Signal presence LEDs
  • Power:
    - +12V DC @ 4.6W nominal (supports 7V - 15VDC input range)
    - Power LED on side of module
  • Physical Size (incl. connectors): 5.51" x 1.65" x 0.86" (140mm x 42mm x 22mm)
  • Weight: 4.4oz (125g)
  • Ambient Temperature: 41°F - 104°F (5°C - 40°C)
  • Humidity: 90% (non condensing)


• Item Includes:

  • 1x OET 1910 MC
  • 1x AC Power Supply
  • 1x OH-TR-10G-LC-MM SFP Module


• Warranty:

  • 3 Year Warranty
