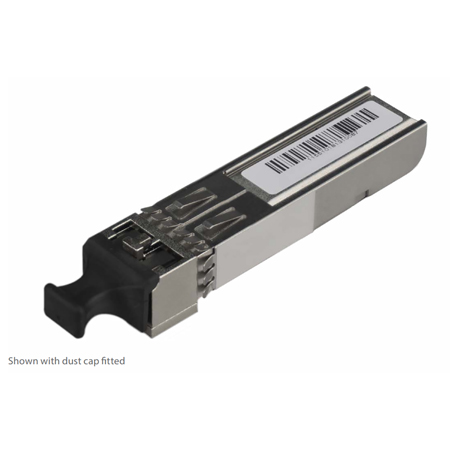

LYNX Technik OH-TR-10G-1310-LC 10GbE Duplex Singlemode Fiber Transceiver SFP - 1310nm - LC Connectors

OH-TR-10G-1310-LC - Overview

• Features:

  • 10GbE/1GbE fiber Transceiver
  • Duplex LC connectors
  • Singlemode
  • 18 CWDM TX wavelengths (ITU-T G694.2)
  • Distance up to 24.9 miles (40km)
  • High receiver sensitivity APD
  • Pluggable and hot swappable
  • Lead free and RoHS compliant


• Specifications:

  Transmitter
  • Wavelength: -6nm - 7.5nm
  • Optical Power: 0dBm - 4dBm
  • Linear Extinction Ratio: 3.5dB

    Receiver
  • Sensitivity: -23dBm
  • Wavelength: 1310nm
  • Overload: -8dBm
  • Loss of Signal Asserted -37dBm
  • Loss of Signal De-Asserted: -24dBm
  • Optical Hysteresis: 1dB

    Mechanical
  • Size (Not Including Connector): 2.24" x 0.53" x 0.49" (57mm x 13.4mm x 12.4mm)
  • Weight: 0.11lbs (50g)
  • SFP Connector Pinning: MSA
  • Fiber Connections: LC/Duplex - Singlemode
  • Power Supply Voltage: 3.3VDC
  • Power Consumption: 455mA max


• Item Includes:

  • 1x 10GbE Duplex Single-mode Fiber Transceiver SFP - 1310nm


• Warranty:

  • 3 Year Limited Warranty
