LYNX Technik RPS A100 12V/8A Power Supply for RFR 1000-1 Rack Frame

ITEM #: LNX-RPS-A100 MFG #: RPS A100

free ship

List Price:

$155.00

Our Price:

$147.25

Availability: In Stock
iAvailability Description Popup


    RPS A100 - Overview

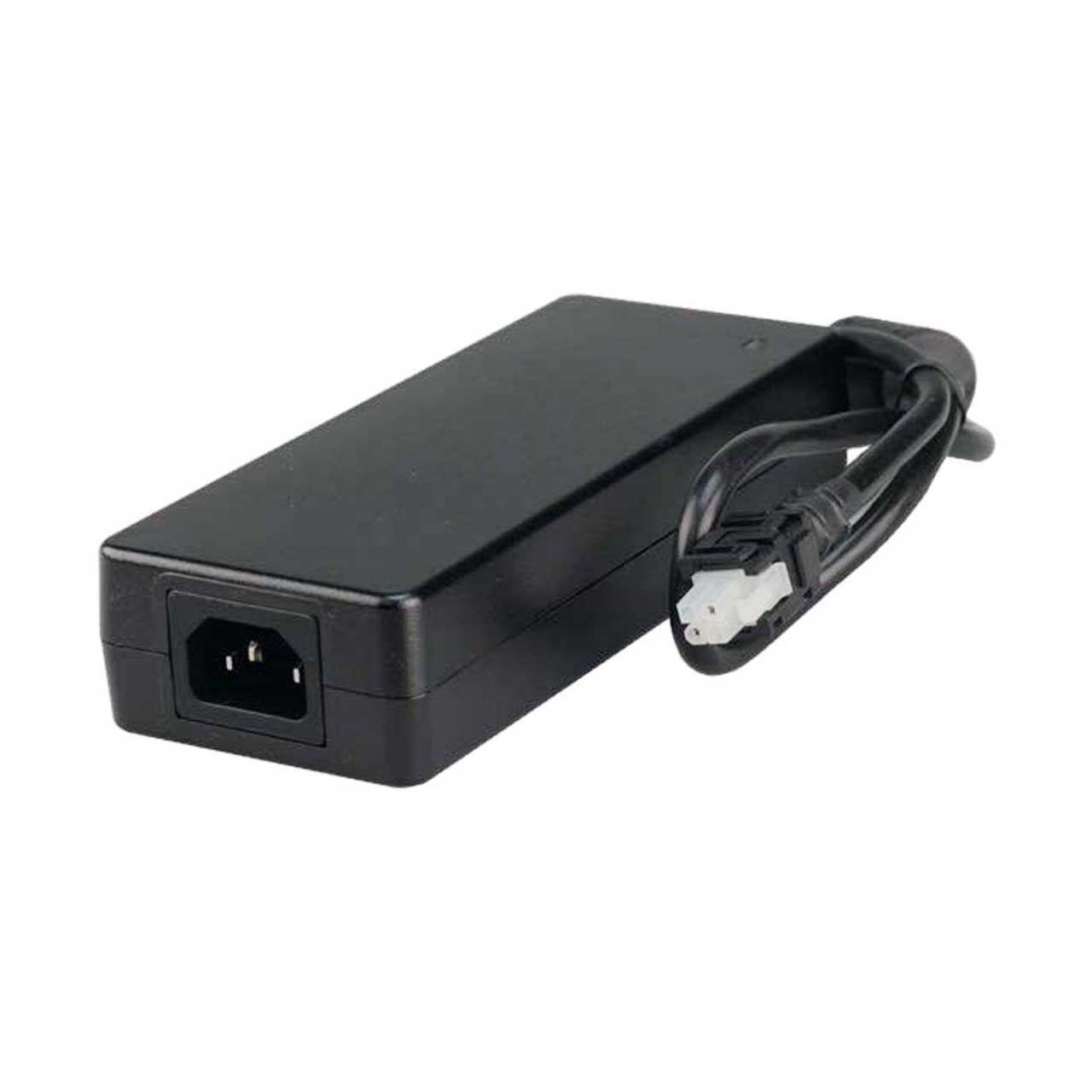

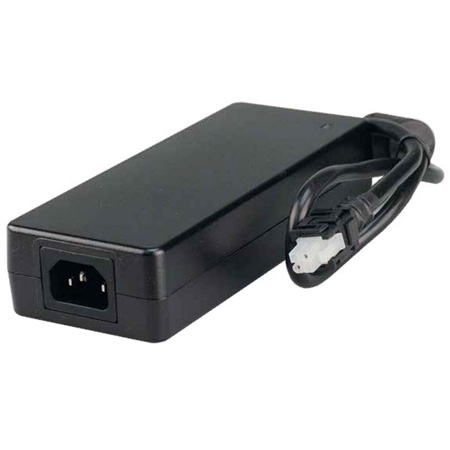

    The Lynx RPS A100 US is an external in line "brick" power supply for use with the RFR 1000-1 rack frame. The DC connector is a 4 pin Molex MiniFit connector.2 x RPS A100 US power supplies can be used with one RFR 1000-1 for Redundant power protection. An IEC power cord with a USA AC plug is included

    • Features:

      • 12VDC central power for RFR 1000-1 with up to 14 yellobriks
      • 100W (max)
      • Molex "Minifit" power connector
      • Includes USA IEC power cord

    • Specifications:

      • Output
      • DC Voltage: 12V
      • Rated Current: 8.3A
      • Current Range: 0~8.3A
      • Rated Power (max.): 100 W
      • Ripple & Noise (max): 230mVp-p
      • Voltage Tolerance: ±5.0%
      • Line Regulation: ±1.0%
      • Load Regulation: ±5.0%
      • Setup, Rise Time: 2000ms, 30ms / 230VAC 2500ms, 30ms / 115VAC at full load
      • Hold Up Time: 20ms / 230VAC 20ms / 115VAC at full load

        Input
      • Voltage Range: 100~240VAC
      • Frequency Range: 50~60Hz
      • Efficiency (Typ): Level VI or CoC Tier II
      • AC Current: 2A
      • Inrush Current (max.): Cold start 80/115AC, 120/230VAC

        Protection
      • Overload: 105 - 160% rated output power
      • Protection Type: Hiccup mode, recovers automatically after fault condition is removed
      • Overvoltage: 105 - 135% rated output voltage
      • Protection Type: Shut down o/p voltage, re-power on to recover
      • Over Temperature: Shut down o/p voltage, re-power on to recover

        Environment
      • Working Temp.: 32 ~ +194°F
      • Working Humidity: 20% ~ 90% RH non-condensing
      • Storage Temp., Humidity: -20 ~ +85°C, 10 ~ 95% RH non-condensing
      • Temp. Coefficient: ±0.03% / °C 32~113 °F)
      • Vibration: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

        Others
      • MTBF: 368.75K hrs min. MIL-HDBK-217F
      • Dimension: 137 x 59 x 34 mm (LxWxH)
      • Packing: 450g

        Safety
      • Safety Standards: UL62368-1, CSA C22.2 No. 62368-1, TUV EN62368-1, BSMI CNS14336, CCC GB4943.1, PSE J62368-1,AS/NZS
        60950.1, FCC, IRAM, RCM

    • Item Includes:

      • 1x RPS-A100 US
      • 1x USA IEC Power Cord

    • Warranty:

      • 3 Years

    • GTIN:

      4250479327955
