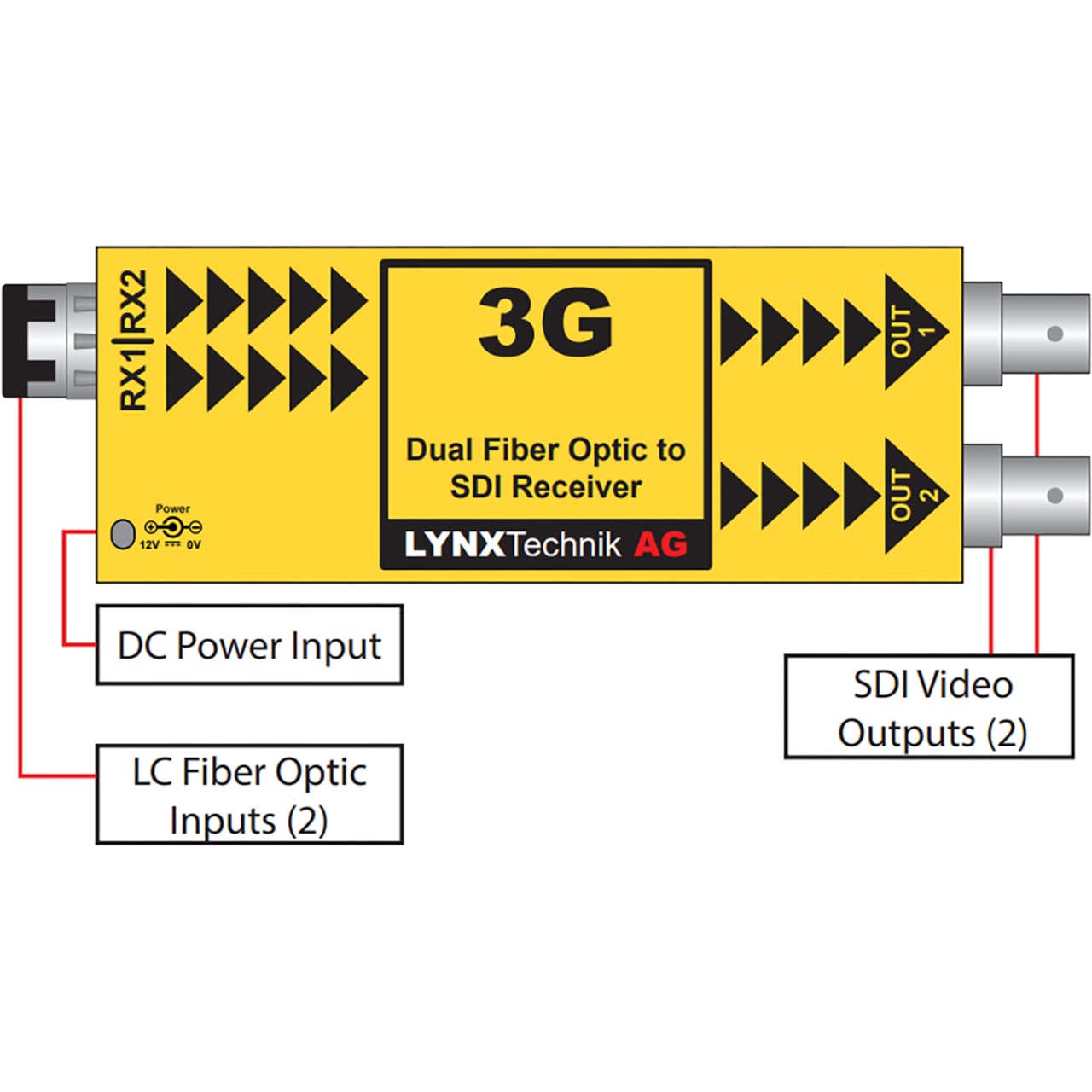

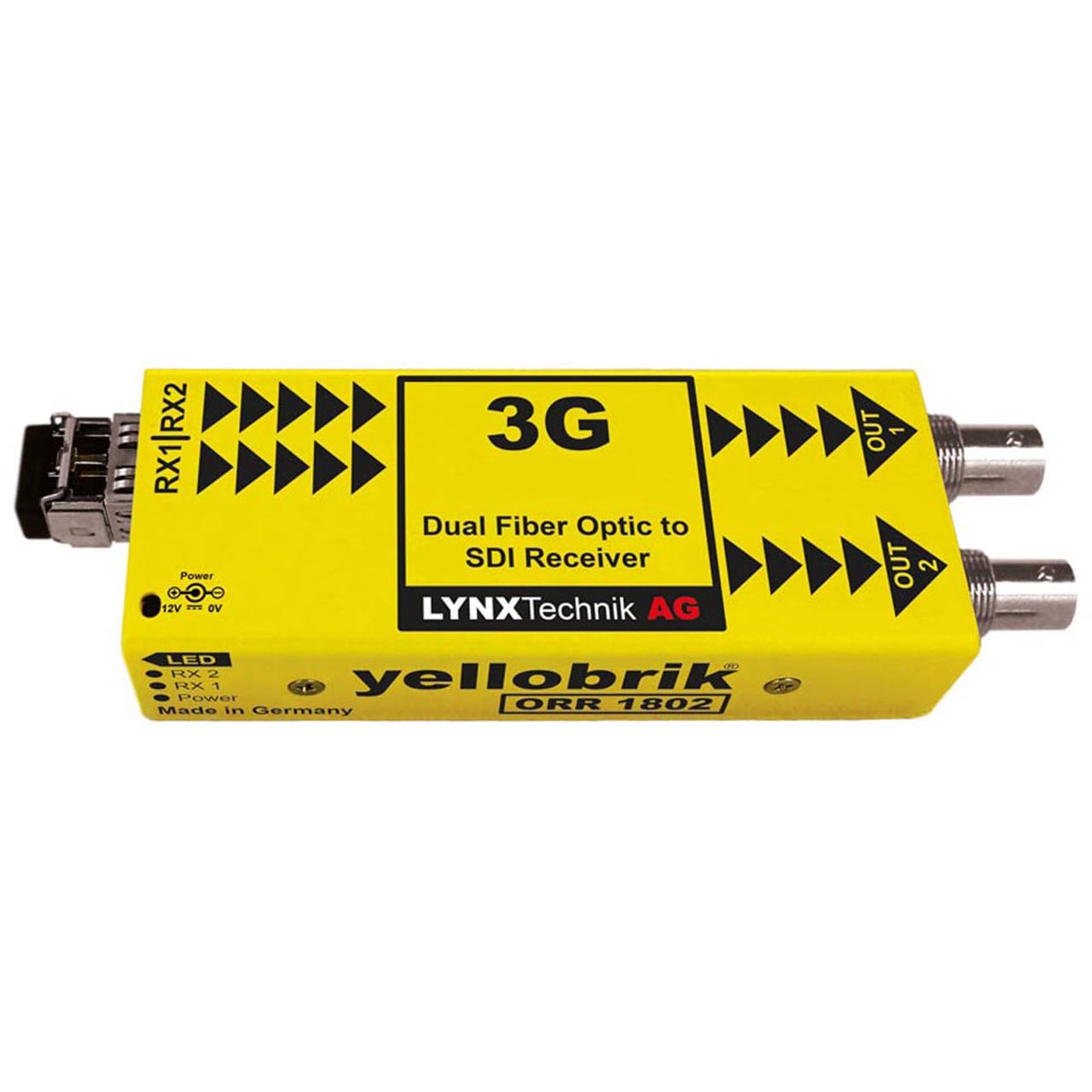

The LYNX Technik ORR 1802-2 HS is a compact 2-Channel Fiber to 3G-SDI receiver designed to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances.
This High Sensitivity version is equipped with a higher performance optical receiver [OH-RR-8-LC] which extends the reach of the fiber connection making it ideal for long haul applications or any application where inherent optical losses may be a concern (example slip rings / patch panels / excessive splices etc.)
When paired with a 3G-SDI optical transmitter (e.g. yellobrik OTT 1812-1, OTX 1812, OTX 1842 etc) it becomes a cost effective optical transmission / receiver system for 3G-SDI signals up to 1080p60, while preserving full uncompressed quality.
The ORR 1802 HS has two completely independent 3G-SDI channels. Each will auto-detect and re-clock any 270Mbit/s, 1.5Gbit/s and 3Gbit/s SDI fiber source prior to electrical conversion. The module is fully compatible with 3G Level A and Level B formats.
