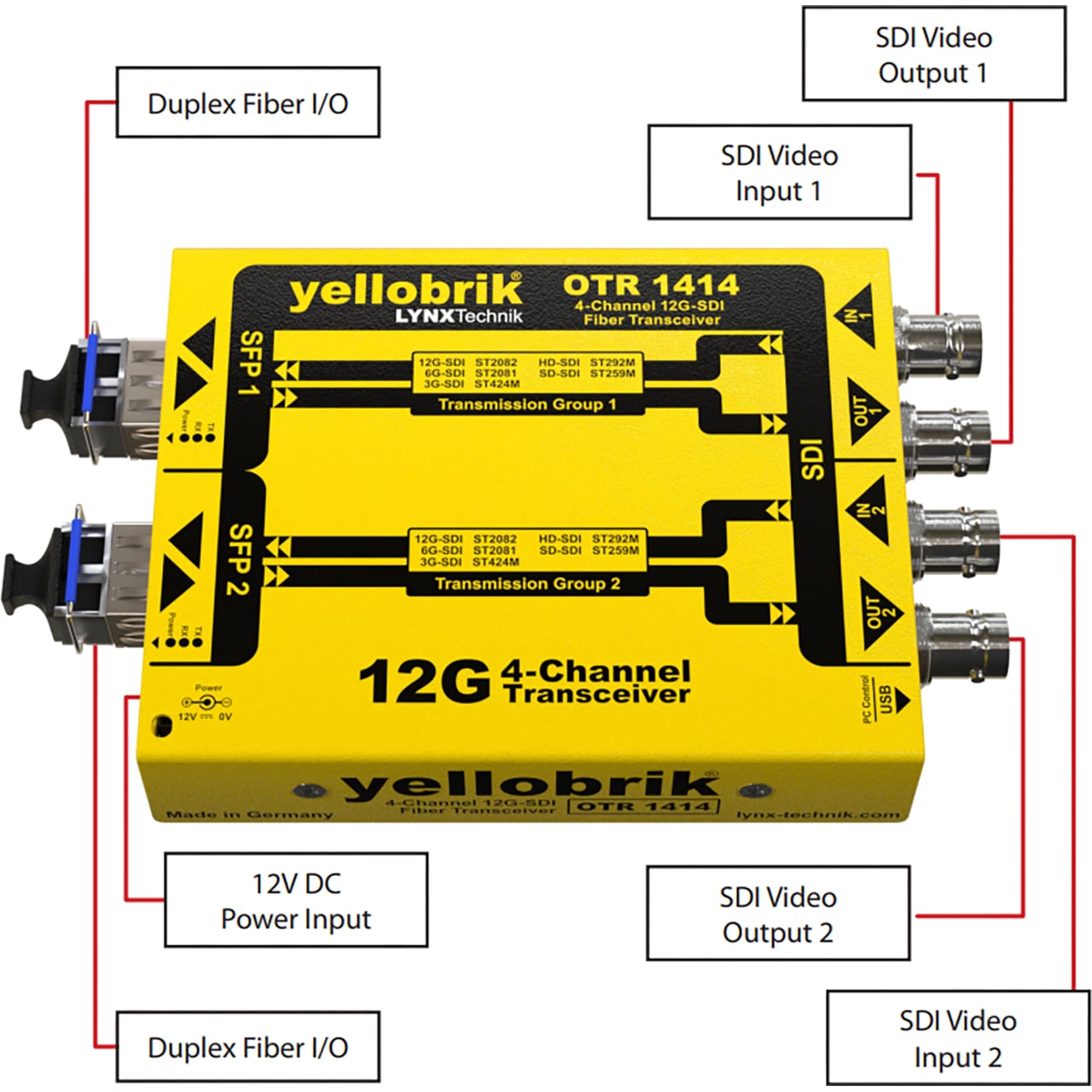

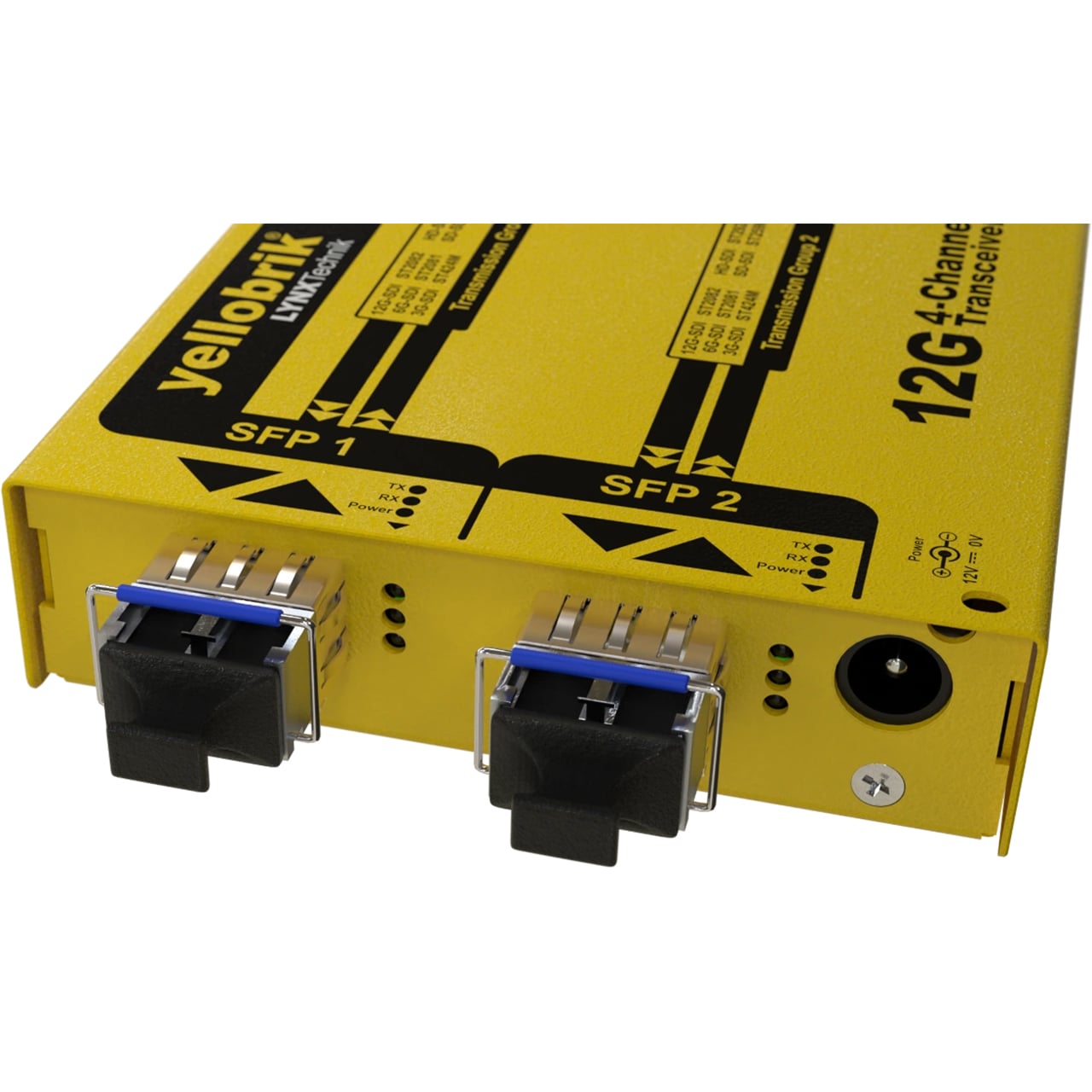

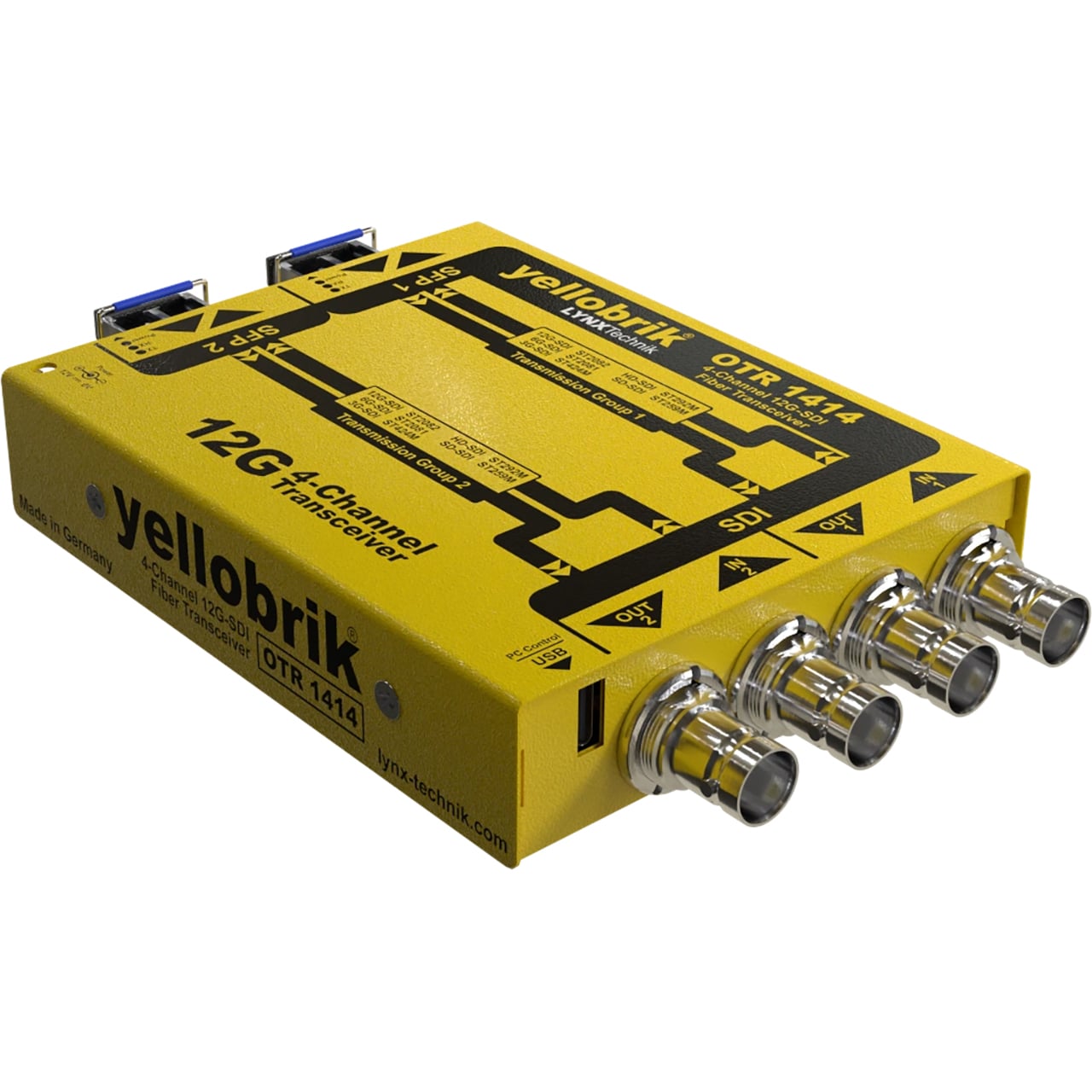

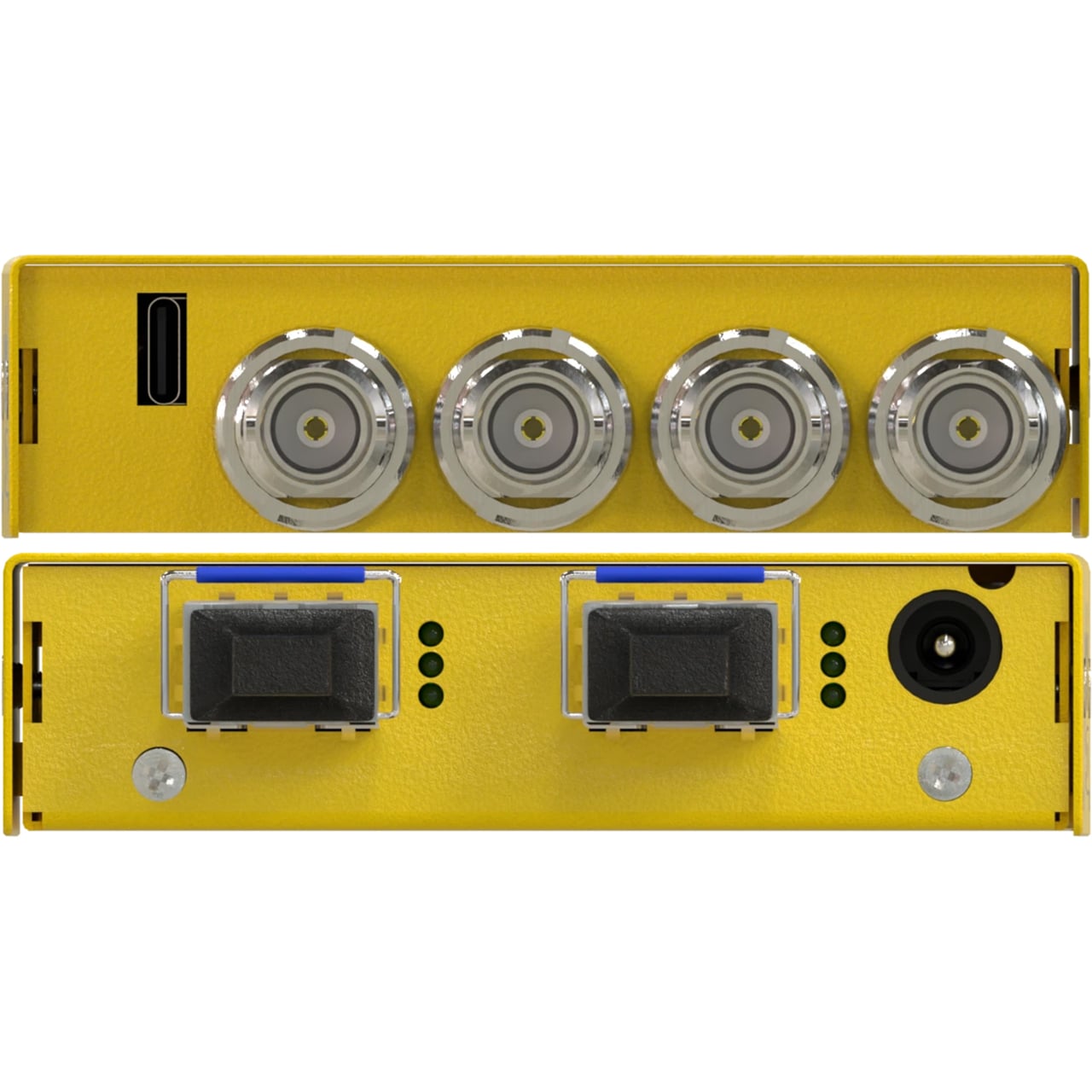

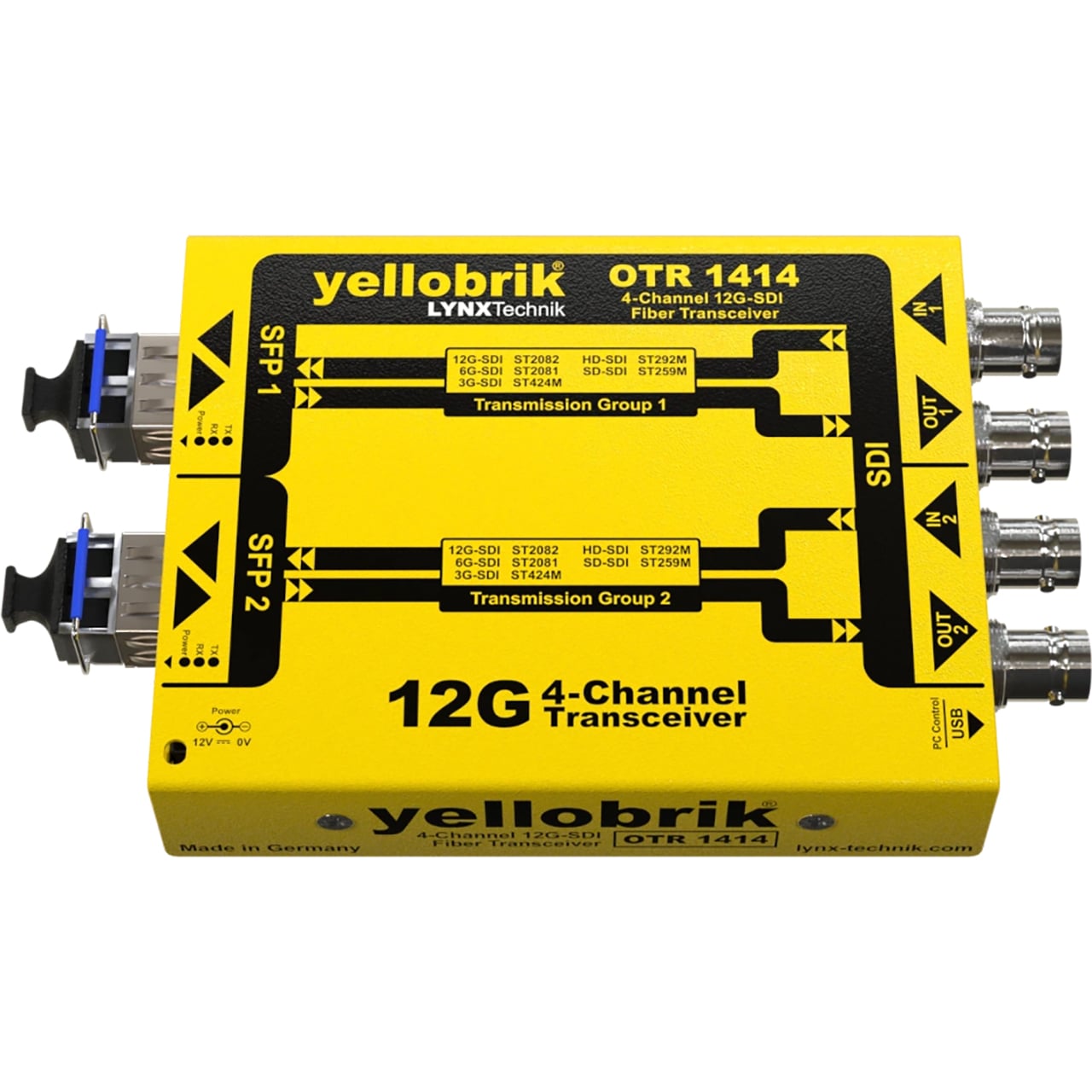

The LYNX Technik OTR 1414 is a 4-Channel 12G Fiber Optic / SDI transmitter and receiver combined in a single self contained package. It is a convenient and cost-effective solution to overcome the restrictions involved with the distribution of uncompressed, high bandwidth, broadcast quality video signals over long distances. It fits within 2RU height and requires no cooling.
Each OTR 1414 transceiver has two independent SDI transmit channels and two independent SDI receive channels, which provides an effective solution for any 12G-SDI signal up to 4096x2160 60Hz. Operation of the receivers and transmitters are automatic. For transmission, the 12G-SDI video format is automatically detected, reclocked and then transmitted over the fiber TX connection. For reception, the optical SDI video input signal on the RX connection is automatically detected, reclocked and provided on the 12G-SDI output.
The OTR 1414 supports 12G/6G/3G/1.5G/270Mbit SDI video standards. Like all yellobrik modules, it is compatible with the RFR 1200 rack frame, which provides power redundancy.
