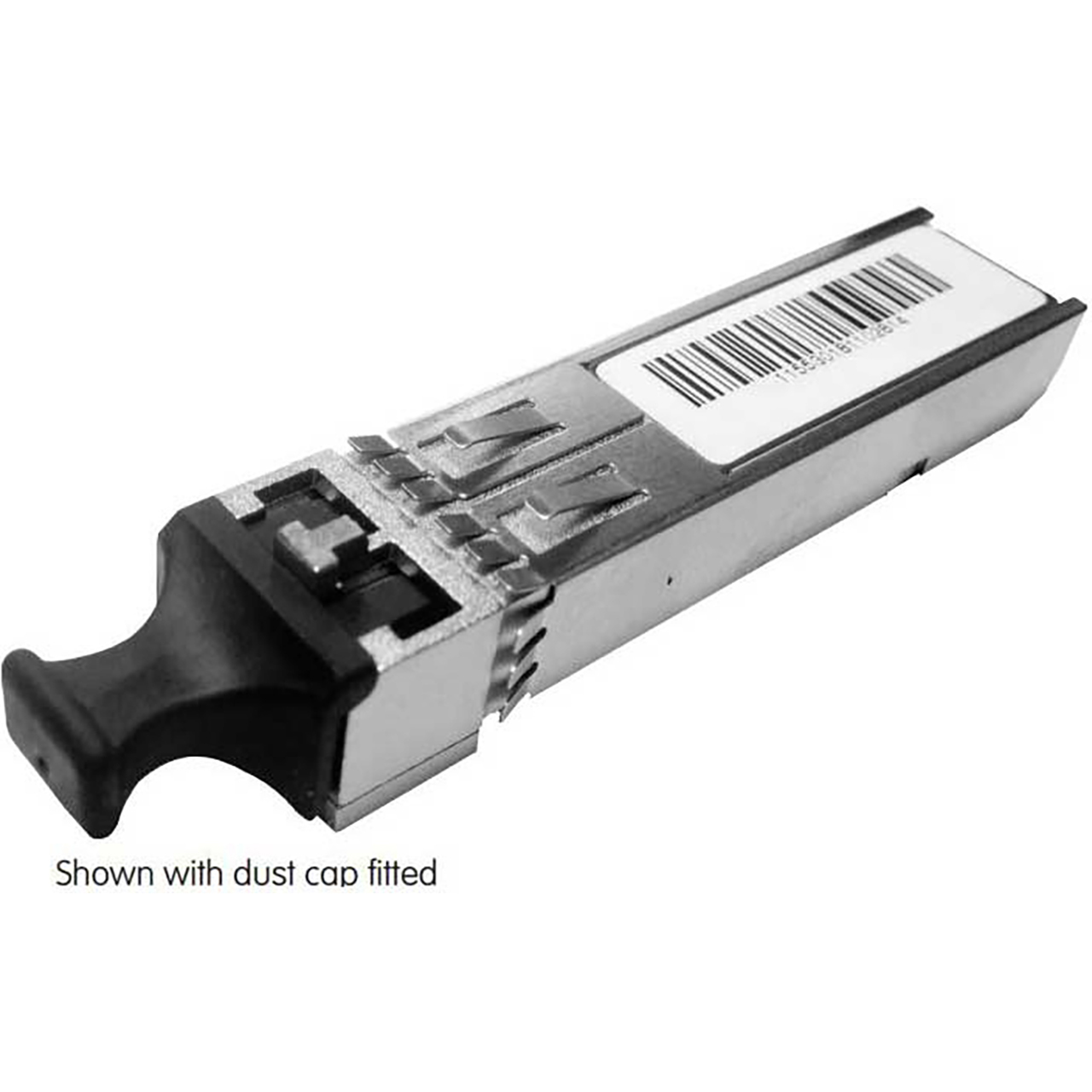

The LYNX OH-TX-4-12G-1290-LC optical transmitter is a 1290nm CWDM fiber plug in option for select LYNX Technik products. This SFP module facilitates the conversion of an electrical SDI signal into an optical signal for transmission over a fiber link. 18 wavelength selections are currently available for CWDM applications and provide support for distances up to 25 miles (40km). The module supports 270Mbit, 1.485Gbit (1.5G), 2.97Gbit (3G), 5.94Gbit (6G), and 11.88Gbit (12G) SDI signals conforming to SMPTE 2082, SMPTE 424M, 292M.
A socket, or "cage," is provided for the SFP in the supporting LYNX Technik product for easy installation or upgrade. The SFP is hot swappable.
