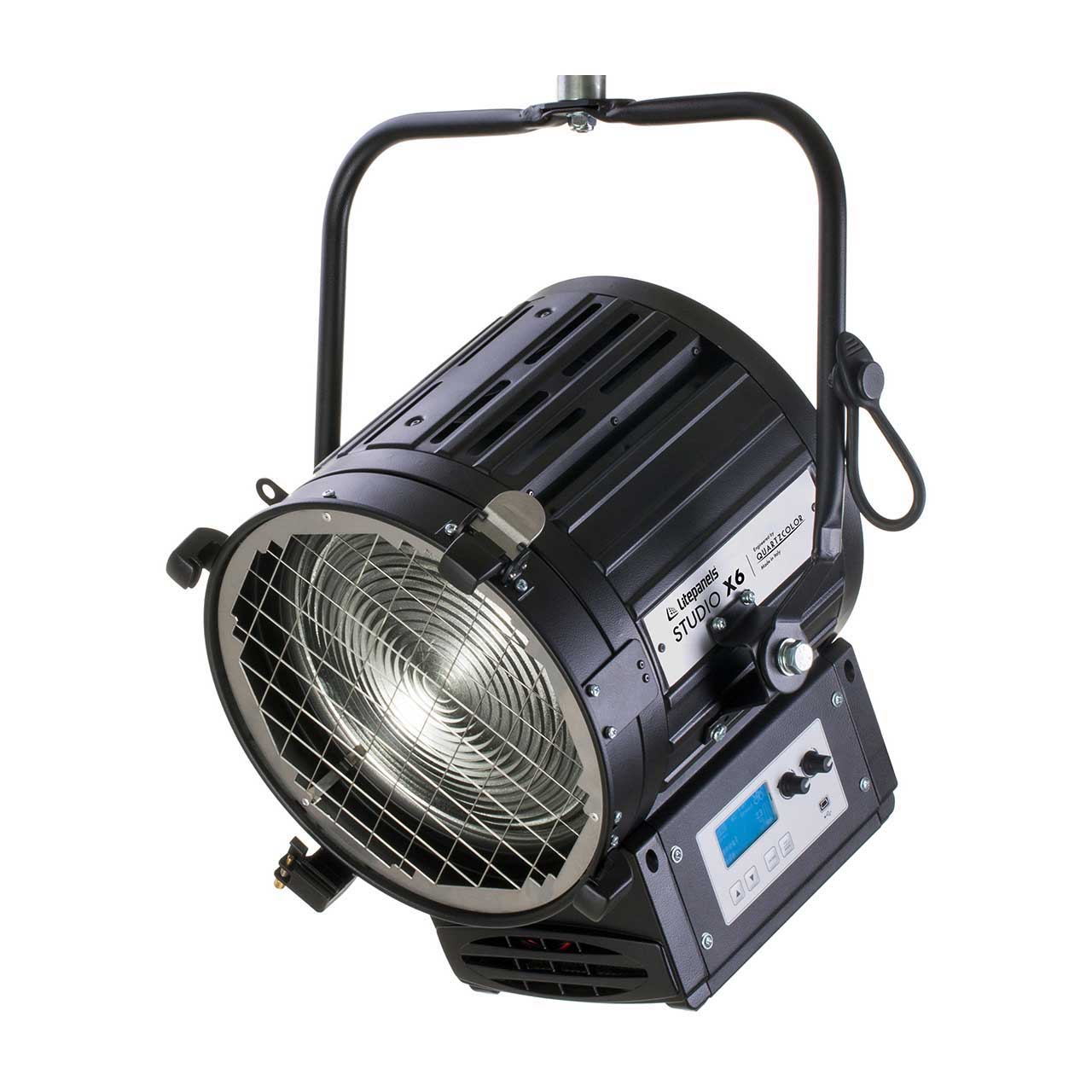

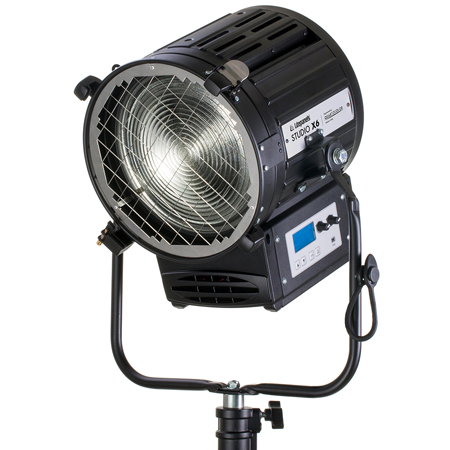

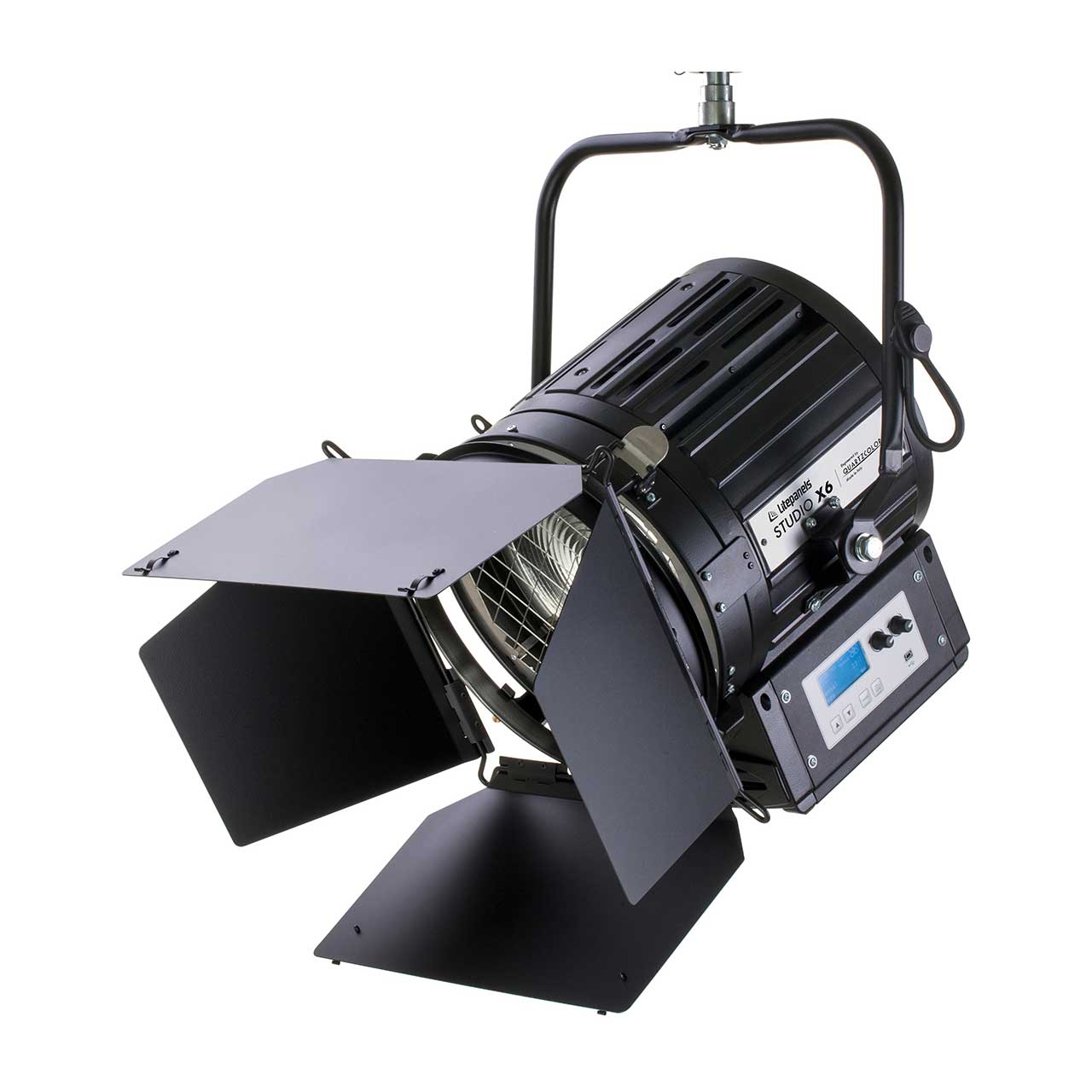

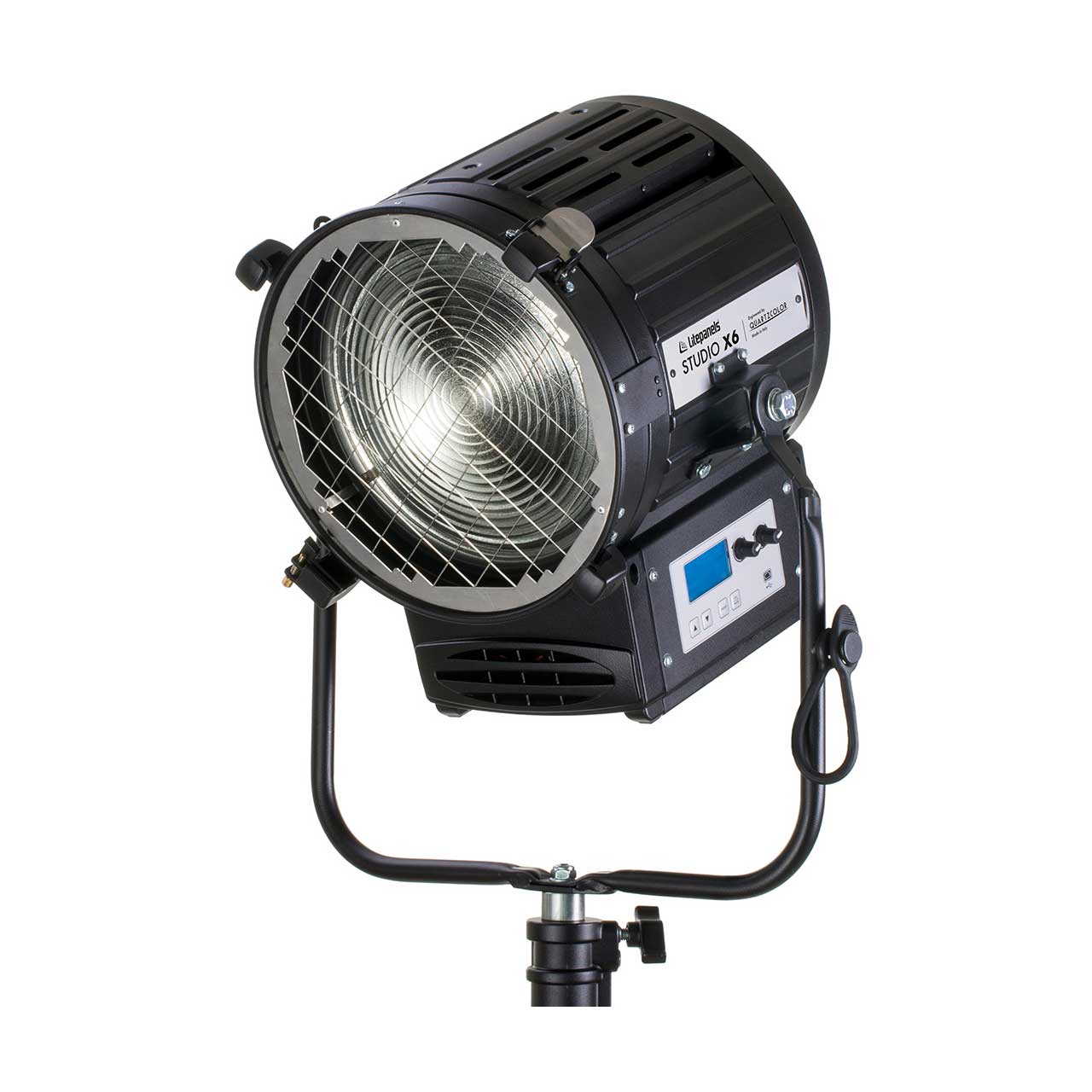

Litepanels 960-6303 Studio X6 Bi-Color 300 Watt LED Fresnel (Standard Yoke / US Power Cable)

ITEM #: LPAN-960-6303 MFG #: 960-6303

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$5,305.00

Our Price:

$5,039.75

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    960-6303 - Overview

    Litepanels Studio X LED Fresnels, engineered by world renowned broadcast lighting professionals Quartzcolor, deliver high-performance, directional, bright white light with precision spot to flood beam control and consistent quality.

    Natural talent light with perfect skin tone rendering is achieved with high output Bi-Color COB LEDs to produce superior white light. With no variation in quality at any dimming level from 0-100% or across the adjustable CCT range from 2700°K to 6500°K, Studio X Bi-Color Fresnels perfectly match ambient and practical set lighting to show talent in a naturally realistic light.

    The Studio X6 Bi-Color 300W has a 10" lens with a wide spot-to-flood beam angle range of 20°-62°. With a maximum output of 22,400 lux at 10ft/3m (spot 5,600K), its output at 3,200K is similar to a 2KW traditional tungsten Fresnel. Advanced thermal management ensures 50,000+ hours of LED engine life, while individual burn-in and calibration tests ensure quality and consistency.

    With high-quality, single source wrap-around illumination, Studio X is the perfect choice to light your talent - naturally.

    • Features:

      • Perfect talent light
      • Pure, bright, and consistent white light
      • Perfect skin tone rendering
      • Flawless fresnel beam
      • Even field throughout the zoom range
      • Effective light control with barndoors Complete control
      • DMX, RDM, and local control
      • Accurate, fine dimming curve
      • Enduring performance
      • Installed in leading broadcast studios
      • Advanced thermal managment

    • Specifications:

      • Optical Data
      • LED engine: Bi-Color COB
      • Lens: Fresnel 250mm / 10" Ø, low expansion borosilicate
      • Beam angle: 20° - 62°
      • Correlated Color Temperature: Variable 2,700K to 6,500K
      • Daylight (5,600K) lux @16ft/5m, Spot 20°: 8,064
      • Daylight (5,600K) lux @16ft/5m, Flood 62°: 626
      • Tungsten (3,200K) lux @16ft/5m, Spot 20°: 6,228
      • Tungsten (3,200K) lux @16ft/5m, Flood 62°: 515
      • CRI: 97
      • TLCI:97

        Operational Data
      • Focus adjustment: Wire focus mechanism on Teflon bushing
      • Dimming control: Constant Current 0-100% Continuous
      • Local control: Dual dial (dimming and CCT) and keypad controller with backlit LCD display
      • Control connections: DMX in and through 5-Pin XLR, Mini-USB
      • DMX control: Dimming and CCT, 8-bit and 16-bit
      • RDM control: DMX setup, hour counter, temperature
      • Fan: High efficiency convection, super silent fan with 3 speed presets
      • Software [Mini-USB]: Fixture status, firmware upgrade through PC
      • Ambient operating temperatur: 0° - 40°C / 32°-104°F
      • Estimated LED lifetime: 50,000 hrs

        Mechanical Data
      • Mounting: Yoke with lateral thrust bearing and lock off knob, Jr Pin [28mm / 1 1/8"]
      • Weight: 13.8kg / 30.4lb
      • Tilt angle: +/- 90°
      • Barndoor diameter: 323mm / 12.7"
      • Safety mesh: Stainless steel 25x25mm / 1x1"

        Electrical
      • Nominal power draw: 300W maximum
      • Power supply: Integrated, universal
      • Mains input: 90 - 260 Vac, 50/60 Hz, autosensing
      • Power connection: powerCON TRUE 1, in and through
      • IP rating: IP20

    • Item Includes:

      • 1x LCD graphic display and on-board control panel
      • 1x 5-pin RDM-DMX in/out connectors
      • 1x Standard yoke with 1 1/4" (28mm) Jr Pin
      • 1x PowerCON in/out connectors
      • 1x Built-in universal power supply
      • 1x 4-leaf rotating barndoor Ø 12.7" (323mm)
      • 1x 10ft (3m) US powerCON True 1 cable
      • 1x gel frame Ø 12.7" (323mm)

    • Warranty:

      • 2 Years

    • GTIN:

      5060896401348
