Livestream LS-StudioOne HD (4x HDMI) Desktop Encoder
  • Livestream LS-StudioOne HD (4x HDMI) Desktop Encoder
  • Livestream LS-StudioOne HD (4x HDMI) Desktop Encoder
  • Livestream LS-StudioOne HD (4x HDMI) Desktop Encoder
Questions? Ask a Markertek Expert:
800-522-2025 Email

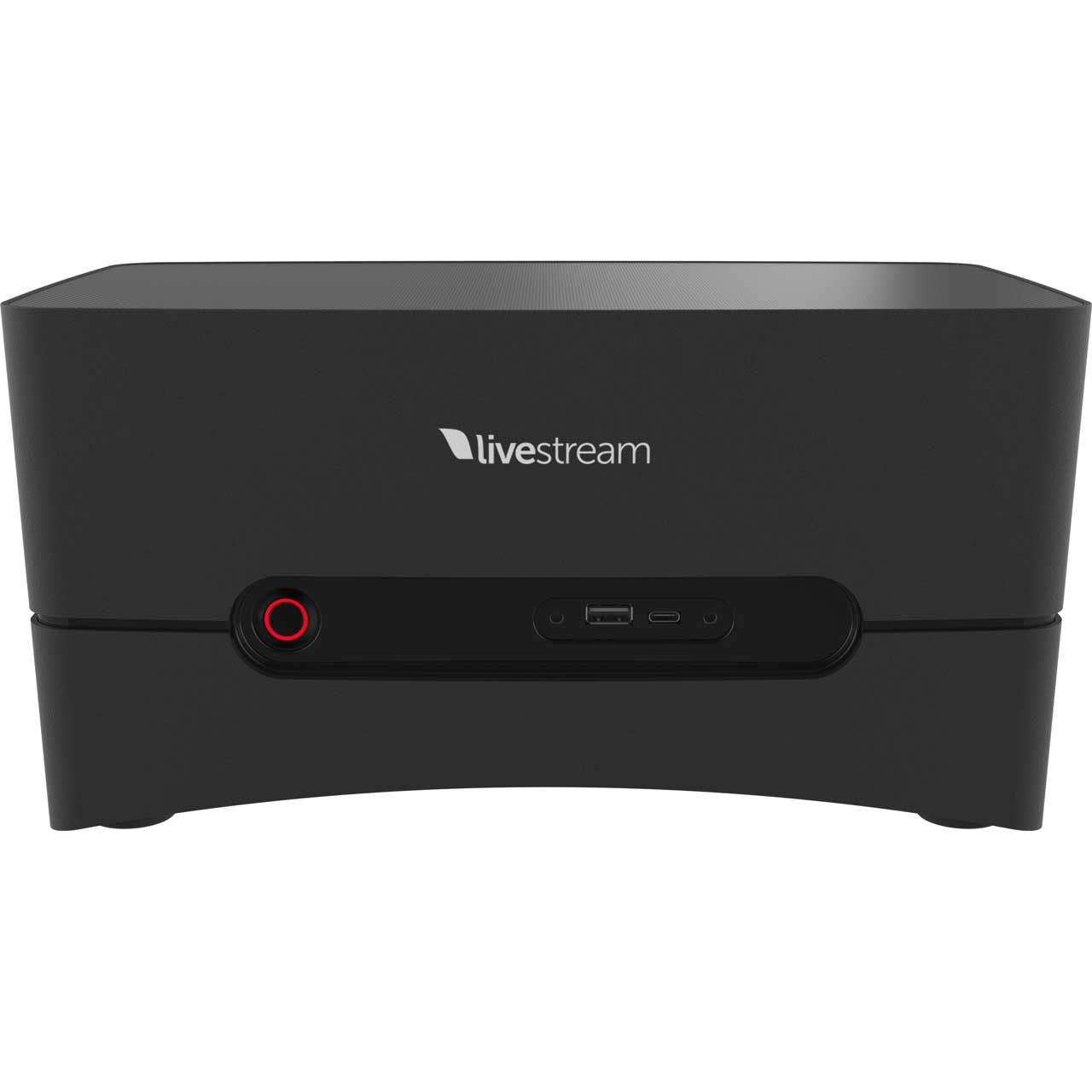

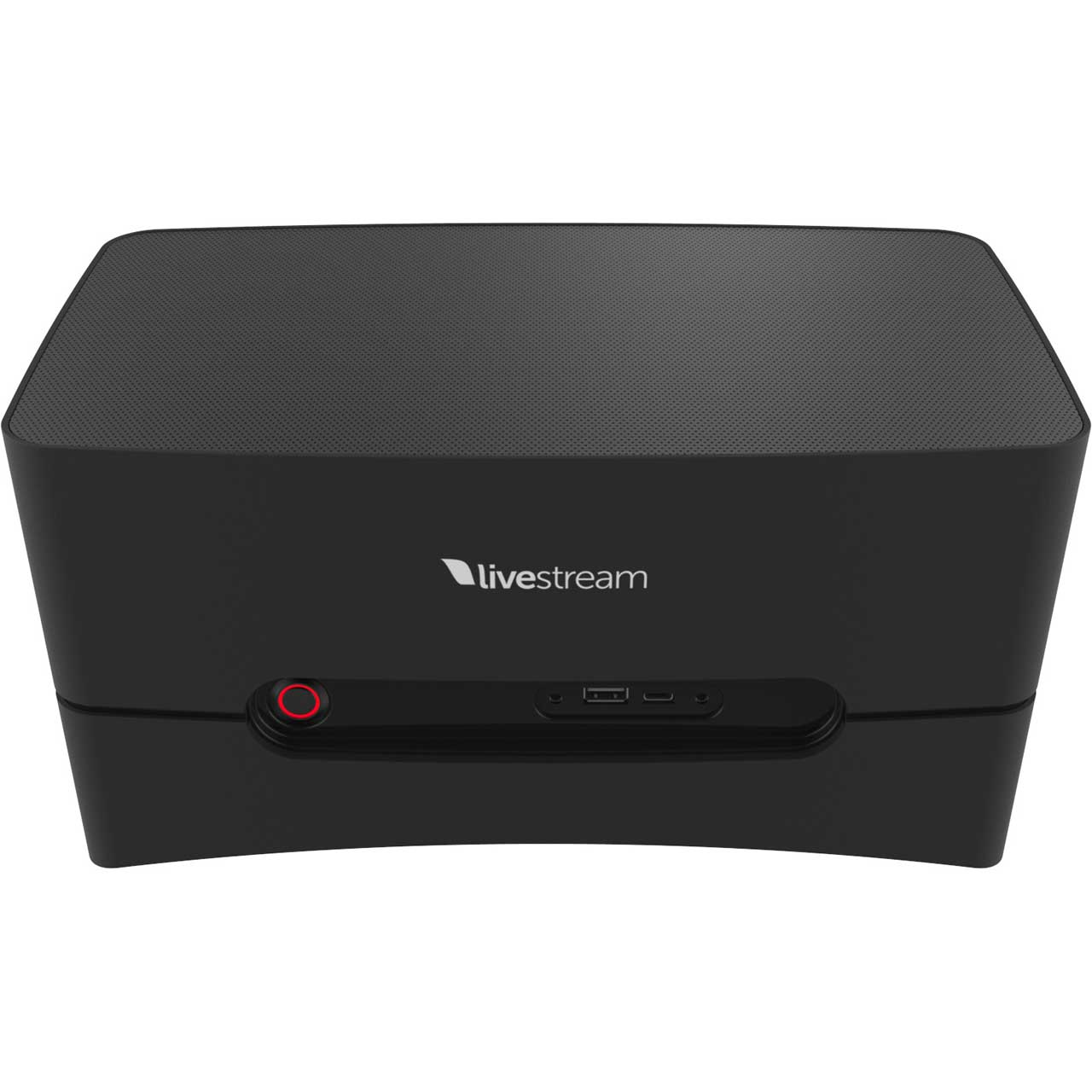

Livestream LS-StudioOne HD (4x HDMI) Desktop Encoder

Manufacturer: Livestream



Our Price:$5,575.00

free ship
More on the way, usually ships in 3-10 business days
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.

    California Residents:
    Cancer and Reproductive Harm -


    The Livestream Studio One LS-STUDIOONE HD HDMI UHD 4K with 4 x HDMI Inputs is an all-in-one 4K switcher with pre-installed Livestream Studio production software. Connect up to two HDMI or ten NDI sources, and stream to in-venue screens or to the web using the built-in multi-bit rate encoder via HDMI, Ethernet, or wireless using the built-in Wi-Fi capabilities. The Studio One 4K outputs 4K30 and can record up to 20 hours of broadcast-quality HD video. Also included is a 12-month telephone support plan, a configurable, color-coded Livestream production keyboard, and a mouse with mouse pad. The Studio One 4K supports embedded audio from HDMI and NDI input sources, as well as analog audio via two 1/4" inputs. Audio monitoring is available via a 3.5mm output.

    The pre-installed Livestream Studio live production software provides a full-field rate multiview that displays all live inputs, graphics, and media players in real time. The multiview features audio monitoring for each input and audio PPM overlay with peak hold on all inputs and outputs. In terms of graphics, the Studio One 4K supports three graphic layers and two video media tracks. Two layers can be overlayed and mixed with transparency. Add text, images, live picture-in-picture, countdown graphics, and more.

    • Features

      • 4 x HDMI and 10 x NDI Inputs
      • HDMI, NDI, and Wireless Streaming Output
      • Live Streaming Multi-Bit Rate Encoder
      • Pre-Installed Livestream Studio Software
      • Supports up to 1080p60
      • 10-Bit 4:2:2 Video, 24-Bit 48 kHz Audio
      • Three Graphics Layers
      • Two Media Tracks
      • Livestream Keyboard and Mouse Included
      • 1-Year Phone Support
    • Specifications

      • Input: HDMI: 2 x HDMI 1.4a
      • NDI: 1 x RJ45 (shared)
      • Output: Program: 1 x HDMI
      • Multiview: 1 x HDMI
      • Gigabit Ethernet: 1 x RJ45 (bidirectional, shared)
      • Wireless: 802.11ac
      • Media Sources: 2 x DDRs (video clip playback with built-in transcoder)
      • 3 x GFX (graphics) 2 x Color bars / background color
      • Video Switcher/Mixer: 1 x M/E with no upstream keyer
      • Recording Format: AVI MJPEG up to 150 MB/s MP4/h.264 up to 100 MB/s
