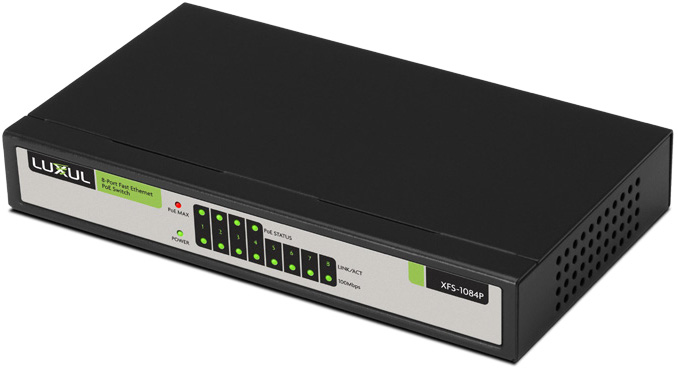

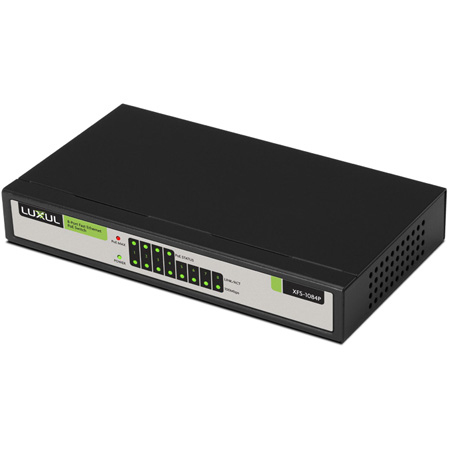

Luxul XFS-1084P 8-Port Fast Ethernet Switch with 4 PoE Ports

Manufacturer: Luxul

Item #: LUXU-XFS-1084P   •   MFG #: XFS-1084P


We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    With 4 PoE ports and 4 additional Ethernet ports, the Luxul 8 Port/4 PoE Fast Ethernet Switch (XFS-1084P) is an ideal solution for use with a 4 Channel NVR Security System. The 4 PoE ports ensure that all 4 cameras can be connected while still offering 4 additional Ethernet ports for use as uplinks to your router, main switch, or even directly to the NVR. With a healthy budget of 60W and a max of 15.4W per port, you’ll have sufficient power for even the most demanding projects. The XFS-1084P is designed to be used as a plug and play device.

    Use the XFS-1084P To:

  • Connect up to 4 IP Cameras or Other PoE-Enabled Devices (Max Output 60 Watts)
  • Cost-Effectively Add 802.3af PoE Capability to Your Network
  • Simplify PoE Device Installation, (IP Cameras, VoIP Devices, Wireless APs)
  • Simply Plug and Play
  •
    • Features

      • Four RJ45 Fast Ethernet Ports with 802.3af PoE
      • Four RJ45 Fast Ethernet Ports
      • 57 Watt Power Budget
      • Plug-and-Play Installation
      • Fanless for Silent Operation
      • Compact Size in a Durable Metal Enclosure
      • 3 Year Limited Warranty

    • Specifications

      • Standard: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af

        Data Transfer Rate Ethernet
      • 0Mbps (Half Duplex)
      • 20Mbps (Full Duplex)
      • Fast Ethernet
      • 100Mbps (Half Duplex)
      • 200Mbps (Full Duplex)

        Network Media (Cable)
      • 10Base-T:
      • UTP category 3, 4, 5 cable (maximum 100m)
      • EIA/TIA-568 100V STP (maximum 100m)
      • 100Base-TX:
      • UTP category 5, 5e cable (maximum 100m)
      • EIA/TIA-568 100V STP (maximum 100m)
      • Number of Ports: 8 10/100Mbps Auto-Negotiation RJ45 ports with PoE enabled on ports 1 - 4

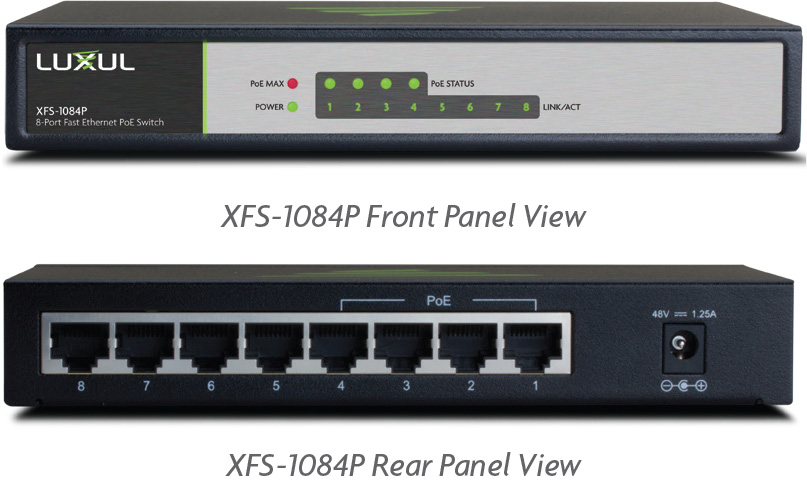

        LEDs
      • Power
      • Link/Act
      • 100Mbps
      • PoE Status
      • PoE MAX

      • Transfer Method: Store-and-Forward
      • MAC Address Learning: Automatically learning, Automatically aging

        Frame Filter Rate
      • 10Base-T: 14880pps/Port
      • 100Base-Tx: 148800pps/Port

        Frame Forward Rate
      • 10Base-T: 14880pps/Port
      • 100Base-Tx: 148800pps/Port

      • Power Consumption: 5.8 Watts (max. no PD connected) 58 Watts (max. with 53W PD connected)

        Physical Characteristics
      • Operating Temperature: 32 - 104°F (0 - 40°C)
      • Storage Temperature: -40 - 158°F (-40 - 70°C)
      • Operating Humidity 10% - 90% non-condensing
      • Storage Humidity: 5% - 90% non-condensing
      • Dimensions LxWxH in. (mm): 3.9"(228.6) x 6.7"(170.2) x 1.1"(28)
      • Weight Item: 1.1 lbs (.5Kg)
      • Packaging: 2.45 lbs (1.11Kg)

    • Item Includes

      • One: XFS-1084P 8-Port Fast Ethernet PoE Switch
      • One: External Power Adapter
      • One: Power Cord
      • One: Quick Install Guide

    • Warranty

      • 3-year limited warranty
