Luxul XWS-2610 High Power Wave 2 AC3100 Wireless Controller System

ITEM #: LUXU-XWS-2610 MFG #: XWS-2610

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the LUXU-XWS-2610

XWS-2610 - Overview

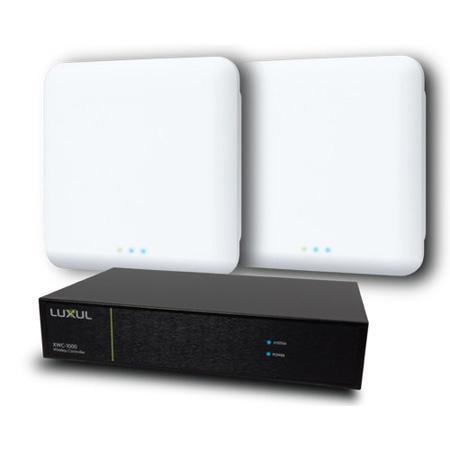

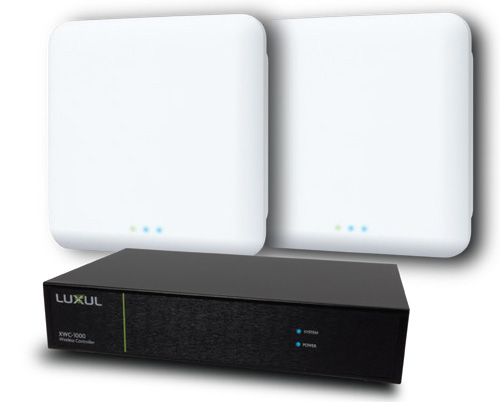

The Luxul XWS-2610 Wireless Controller Kit combines a XWC-1000 Wireless Controller built with Luxul Roam Assist™ technology, and a pair of Apex™ XAP-1610 Wave 2 Wireless Access Points, featuring high-output power and leading-edge 802.11ac 4x4 MU-MIMO dual-band beamforming technology to deliver data rates up to 3167Mbps* and outstanding wireless performance. With seamless roaming and installation simplicity, the XWS-2610 is purpose-built to meet the needs of the residential and light commercial custom installation professional.

Minimum Requirements:
Computer with Windows, Mac or Linux OS
Ethernet cable

  • Features:

    • Controller Features:
    • Roaming solved between Access Points with Roam Assist™
    • Simple central control and configuration of Luxul APs
    • Secure guest networking
    • Durable 1U metal enclosure for rack mount or desktop use
    • Three-year limited warranty

      XAP-1610 FEATURES:
    • High output power for maximum coverage
    • Concurrent dual-band (2.4GHz and 5GH)
    • 4a4 Wave 2 technology
    • Data transfers up to 3167Mbps*
    • Three-year limited warranty


  • Specifications:

    • XWC-1000 Management Features
    • Controller
    • Simple setup wizard
    • Management via web interface
    • Cloud-based firmware updates
    • AP provisioning
    • Supports up to 16 APs
    • Access Point
    • Secure guest networks via VLAN
    • 802.1Q VLANs
    • WPA, WPA2 security with TKIP, AES encryption

      Controller Hardware Features
    • Interface: One 10/100/1000M port
    • AV Series: LEDs on the front, port on the back of controller
    • Power: Internal switched power; AC 100-240V, 50/60Hz 0.3A
    • Max Power Consumption: 8.6W
    • Dimensions LxWxH in. (mm): 8.75"(222.3) x 5.25"(133.4) x 1.75"(44.5)
    • Weight lbs (kg): 1.55 (.72)
    • LEDs: Power, System, Ethernet activity
    • Certifications: FCC, CE, RoHS

      XAP-1610 Hardware Features
    • Standards Compliance: IEEE, 802.11b/g/n, 802.11a/n/ac, 802.3at
    • Interface: One 10/100/1000M ports
    • Antenna: Four dual-band antennas
    • Power: PoE (injector included)
    • Power Consumption: 18W avg
    • Max Power Consumption: 26W
    • Operating Temperatures: 0-50°C
    • Dimensions WxHxD in. (mm): 7.28"x1.71"x7.28" (185 x43.5 x185)
    • Weight lbs (kg): 1.50 (.68)
    • LEDs: Power, 2.4GHz, 5GHz (Can be turned off/on via user interface)
    • Frequency Concurrent 2.4GHz and 5GHz with beamforming
    • Wireless Speed: 2.4GHz: 1.0Gbps*; 5GHz: 2.167Gbps*
    • Wireless Security WPA-PSK, WPA2-PSK, WPA/WPA2

      Minimum Requirements
    • Computer with Windows
    • Mac or Linux OS
    • Ethernet cable


  • Item Includes:

    • XWC-1000 Wireless Controller (1) Rack mount kit
    • Rubber feet
    • Power cord
    • XAP-1610 access points (2)
    • PoE injector (2)
    • Quick Install Guide


  • Warranty:

    • 3-year limited warranty


  • GTIN:

    0655003920925
