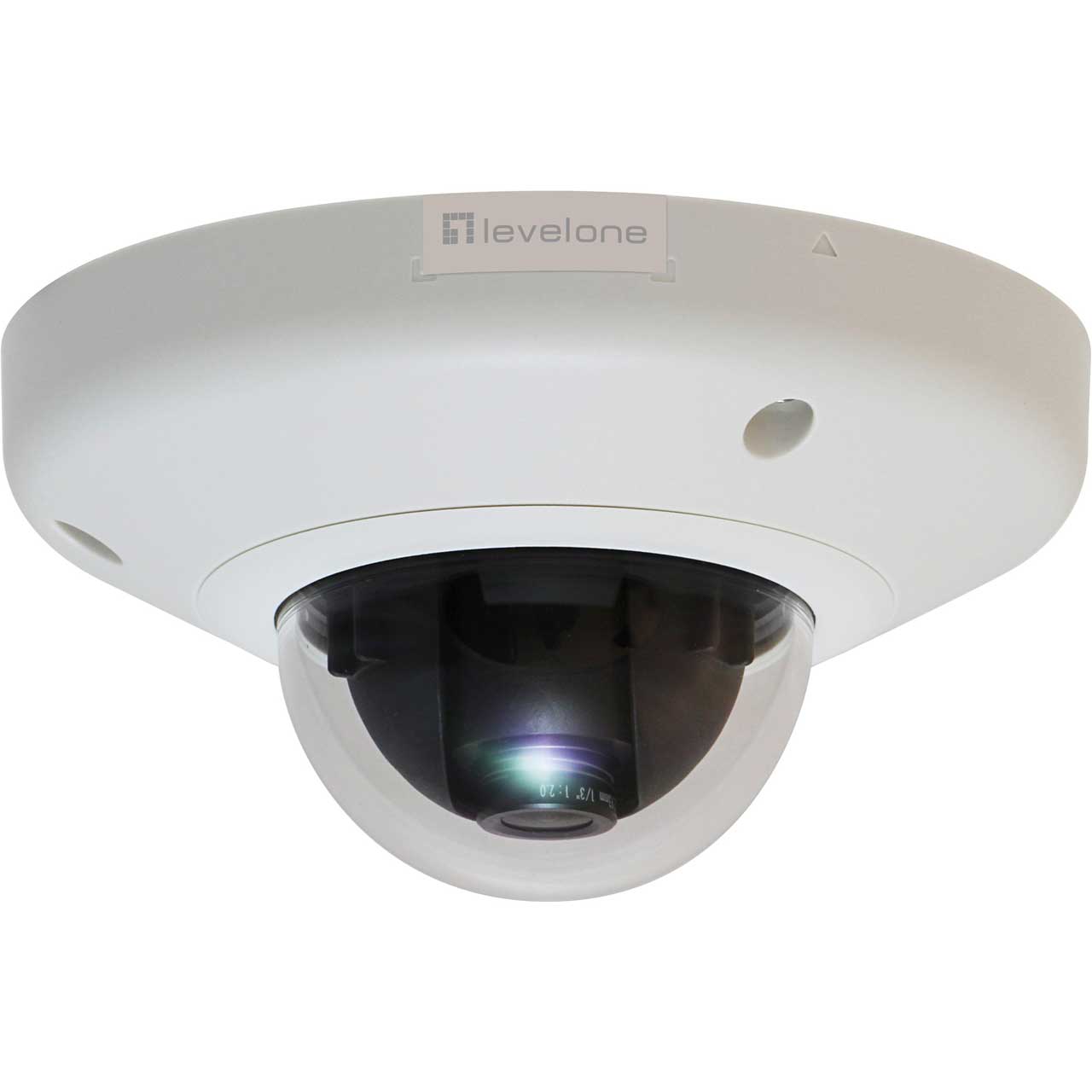

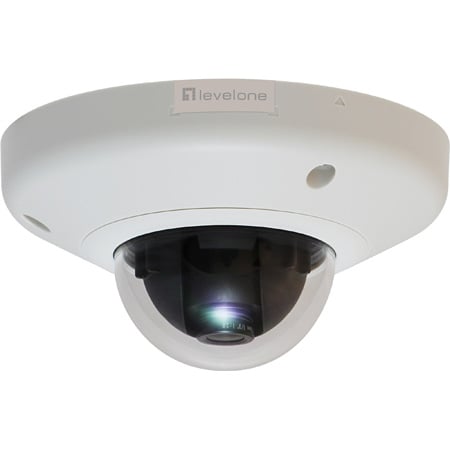

LevelOne FCS-3054 HUBBLE Fixed Dome IP Network Camera - 3MP - 802.3af PoE - Vandalproof

FCS-3054 - Overview

• Features:

  • Built-in Micro SDHC/SDXC card slot for local storage
  • 3-Megapixel high-definition resolution
  • Vandal-proof IK08-rated housing
  • Video compression: H.264, MJPEG
  • Power support: PoE (IEEE 802.3af)
  • Free surveillance and CMS (Central Management System) software packages with 64-channel license


• Specifications:

  • Standards & Protocols
  • IEEE 802.3 10-BASE-T, Ethernet
  • IEEE 802.3u 100-BASE-TX, Fast Ethernet
  • IEEE 802.3af Power over Ethernet (PoE)
  • IEEE 802.1X Network Access Control
  • TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour


  • Image Sensor: 3-Megapixel 1/3.2" Progressive Scan CMOS
  • Lens: Fixed focal, Fixed iris, Fixed focus, f2.93mm , F2.0

    Ports
  • 1 x RJ-45 10/100 Mbps PoE port
  • 1 x MicroSDHC/ MicroSDXC card slot


  • Button/Knob: Reset Button
  • Indicator: Power
  • Shutter Time: 1/5 ~ 1/10,000 sec
  • Angle of View: 83.3°
  • Pan/Tilt/Zoom: Digital Zoom to very high detail available on Software
  • Video Format: H.264 / MJPEG
  • Resolution: 3M(2048 x 1536)
  • Output Video Format: RAW
  • Power Input: 802.3af PoE
  • Power Consumption: PoE Class 1 (IEEE802.3af) / 2.91W
  • Data Rate: 10/100Mbps
  • Storage Capacity: SD/MicroSD memory card of up to 64GB

    Operating Temperature (°C):
  • Operating: -10°C ~ 50°C

    Operating Humidity (Non-condensing):
  • Operating: 10% ~ 85%

    Mount
  • Wall/Ceiling Mount

    Features
  • General: Backup: MicroSDHC /MicroSDXC card slot for local storage
  • Video
    Image Settings:
  • Adjustable image size, quality and bit rate
  • Configurable brightness, sharpness, contrast, saturation, white balance and exposure
  • AGC/AWB/AES
  • Back Light Compensation (BLC)
  • 2D Noise Reduction (2DNR)
  • Streaming: Up to 2 video streams

    Performance
  • Frame Rate (fps): 15 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
  • Minimum illumination: Color: 0.1 lux at F2.0

    Physical Specifications
  • Dimensions (W x D x H mm): 110 x 58 x 110
  • Weight (g): 202 g

    Approval and Compliance
  • EMI/EMS: CE, RoHS, FCC, IK08
  • Environmental Test: Vandal Resistant IK08-reted

    Others
  • Supported Browsers: Microsoft Windows 8/7/Vista/XP


• Item Includes:

  • x1 FCS-3054
  • x1 Screw Kit
  • x1 Quick Installation Guide
  • x1 Resource CD (User Manual, Utility, QIG)


• GTIN:

  0846359034392
