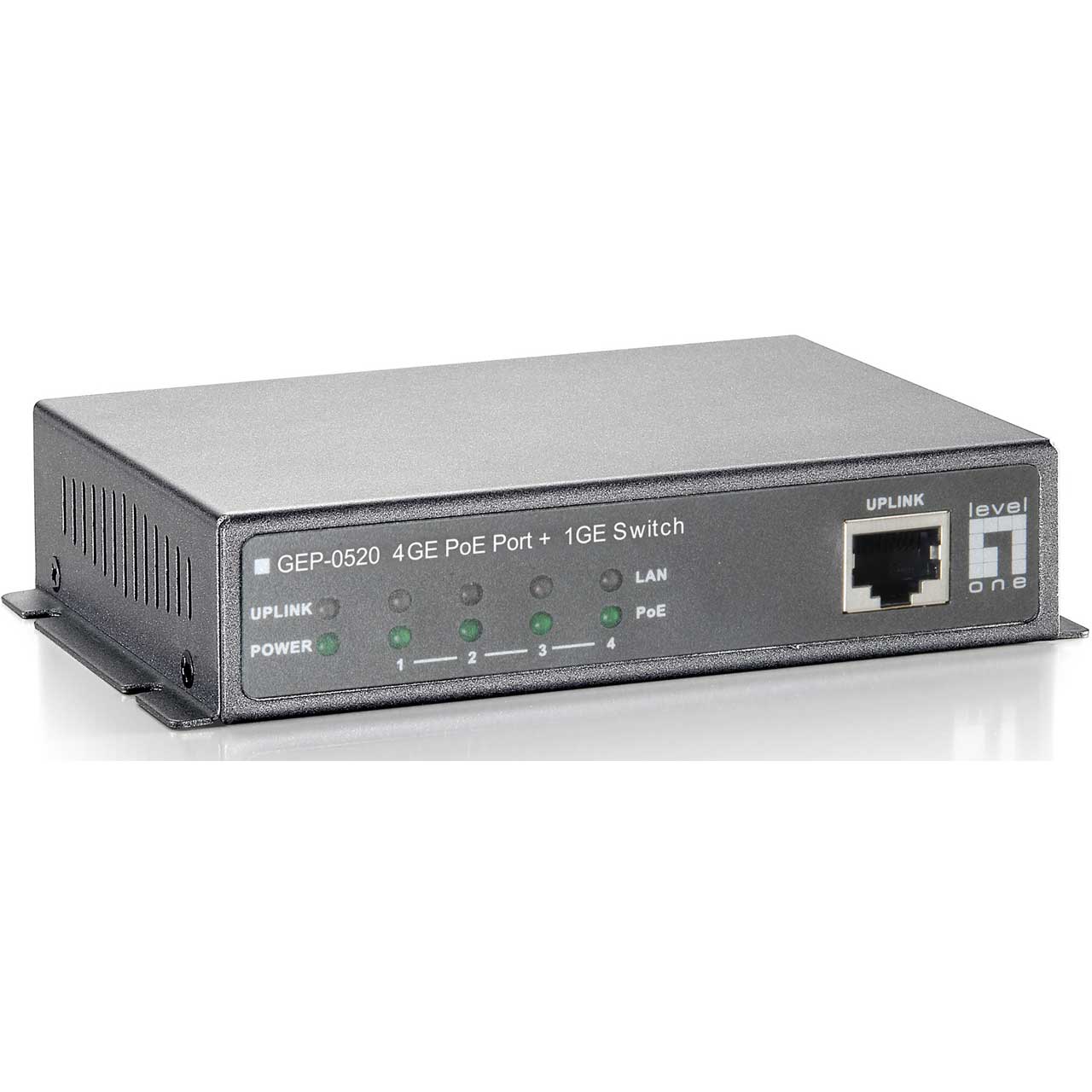

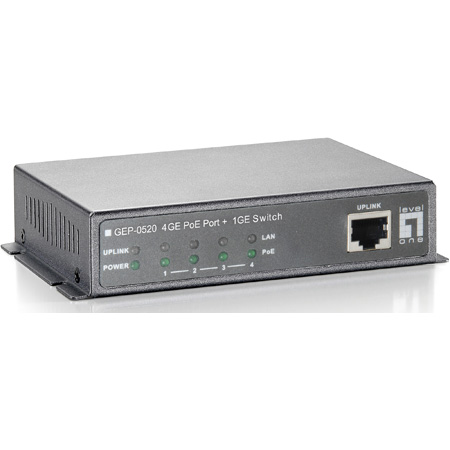

LevelOne GEP-0520 5-Port Gigabit PoE Switch - 61.6W - 802.3af PoE - 4 PoE Outputs - Power Adapter included

ITEM #: LVL1-GEP-0520 MFG #: GEP-0520

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup

    GEP-0520 - Overview

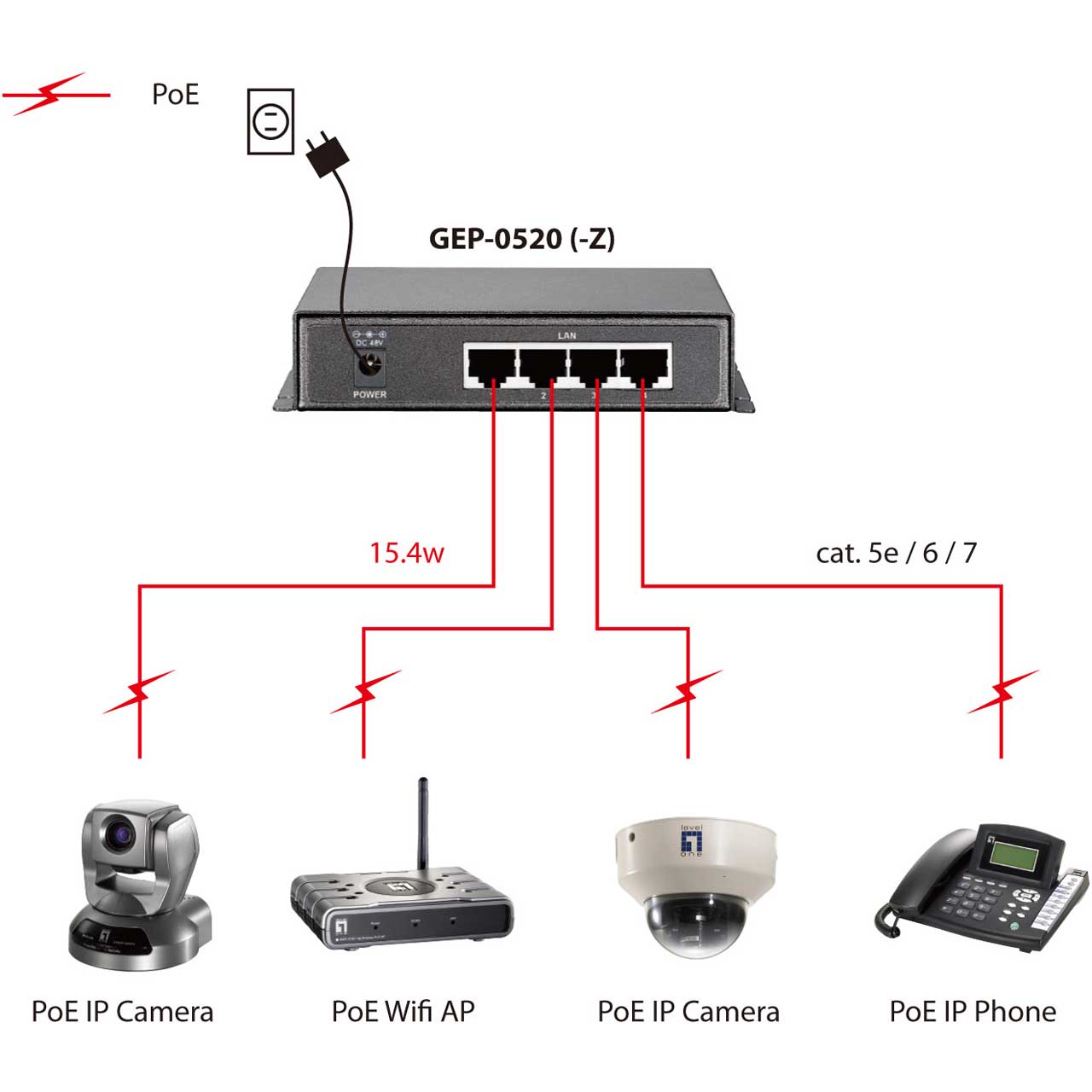

    The LevelOne GEP-0520(Z) is a high-performance Gigabit PoE Switch with 4 Gigabit PoE ports and 1 Gigabit uplink port.This switch is IEEE 802.3af compliant, and provides power and data over a single Ethernet cable to any PoE device, with total PoE power budget of 61.6W, up to 15.4W per PoE port. Together with Energy Efficient Ethernet (IEEE 802.3az) standard compliant, it substantially low power consumption during periods of low-link utilization. Moreover, it supports Gigabit Ethernet connectivity with 9K jumbo frames for network performing enhancement. Ideal for small businesses that prefer an inexpensive solution for PoE deploying infrastructure.

    • Features:

      • 1 Gigabit port and 4 Gigabit PoE ports
      • IEEE 802.3af PoE compliant to simplify deployment and installation
      • 9K jumbo frames to increase data transfer rates
      • Auto-detection and protection of non-standard PoE devices
      • IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
      • Total PoE power budget: 61.6W, up to 15.4W per port
      • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
    • Specifications:

      • Standards:
        IEEE 802.3: 10 BASE-T
        IEEE 802.3u: 100 BASE-TX
        IEEE 802.3ab: 1000 BASE-T
        IEEE 802.3af: Power over Ethernet
        IEEE 802.3az: Energy Efficient Ethernet
      • MAC Address: 2K
      • Buffer Memory: 128KB
      • Transmission Method: Store-and-Forward
      • Backplane: 10Gbps
      • Jumbo Frame: 9K
      • Filtering/Forwarding Rates:
        1000Mbps port-1488,000pps
        100Mbps port-148,000pps
        10Mbps port-14,880pps
      • Transmission Media:
        10Base T Cat. 3, 4, 5 UTP/STP
        100Base TX Cat. 5 UTP/STP
        1000Base TX Cat. 5e/6/7 UTP/STP
      • Network Interface:
        4x 10/100/1000Mbps RJ-45 PoE Ports
        1x 10/100/1000Mbps RJ-45 Uplink Port
      • PoE:
        PD Classification Identity
        PoE Standard: IEEE 802.3af Power over Ethernet
        PoE over current protection
        PoE circuit sorting protection
        PoE Power Output: Per Port 48V DC, Max. 15.4 watts (802.3af)
        PoE Power Budget 61.6W
        Power Pin Assignment: 1/2(+), 3/6(-)
      • Power Consumption: 65W

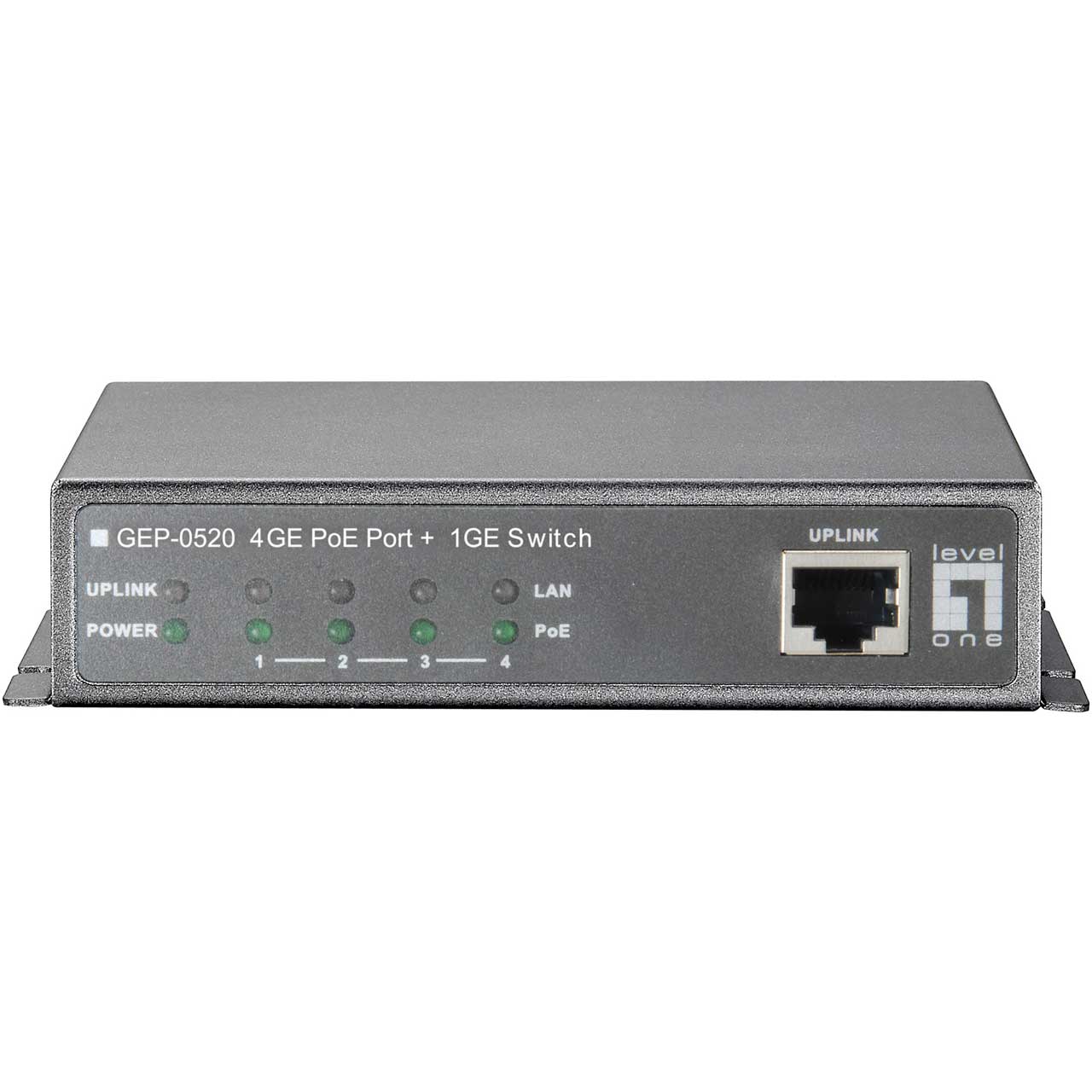

      • LED Indicators: Power, Uplink, LAN 1to4 port, PoE 1to4 port
      • Power Input: 48-56VDC / 50-60Hz External Power Adapter
      • Dimensions (LxWxH): 4.72 x 3.54 x 1.10" (120 x 90 x 28mm)
      • Weight: 2.20Lbs (0.8kg)
      • Operating Temp: 32° to 113°F (0 to 45°C)
      • Storage Temp: -40° to 158°F (-40 to 70°C)
      • Humidity: 10 to 90% (non-condensing)
      • Certifications: FCC, CE
    • Item Includes:

      • x1 GEP-0520
      • x1 Power Adapter
      • x1 Quick Installation Guide
    • GTIN:
