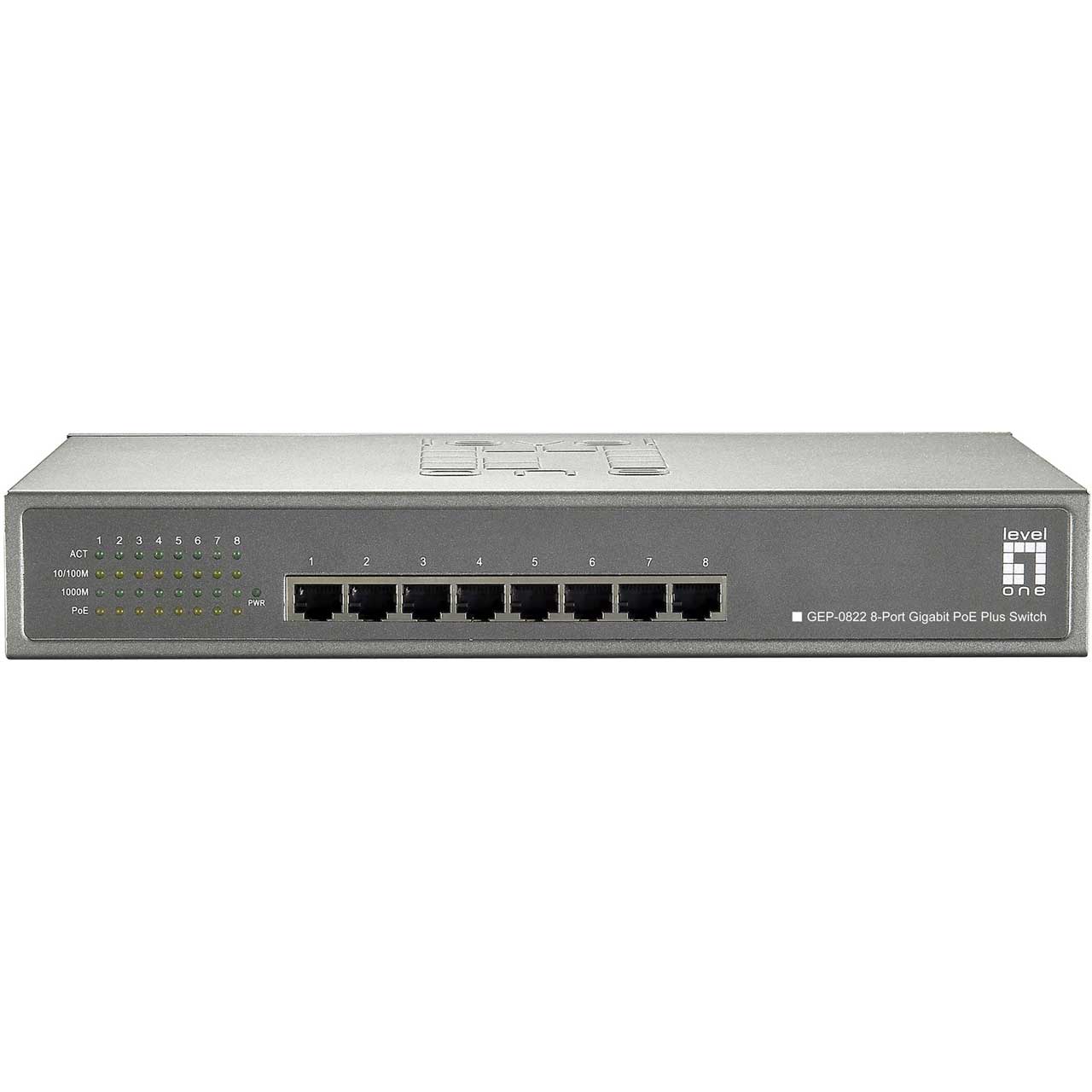

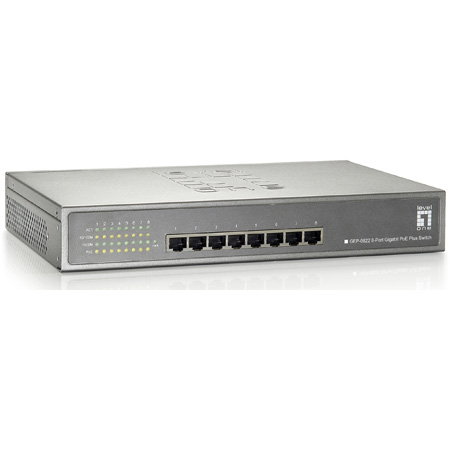

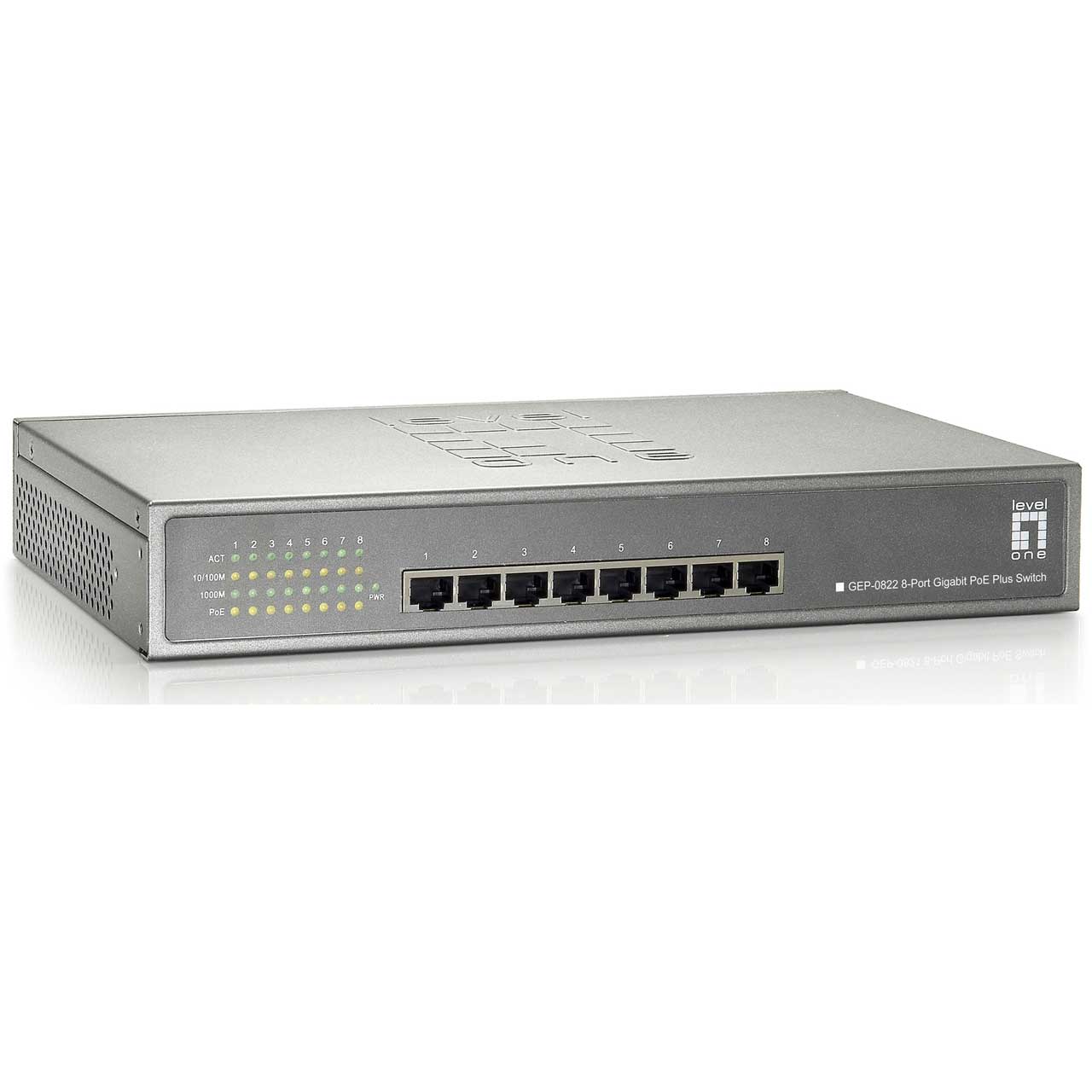

LevelOne GEP-0822 8-Port Gigabit PoE Switch - 802.3at/af PoE - 240W

ITEM #: LVL1-GEP-0822 MFG #: GEP-0822

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$376.52

Our Price:

$338.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    GEP-0822 - Overview

    The LevelOne GEP-0822 provides 8 x 10/100/1000Mbps ports with IEEE 802.3at PoE-Plus supported. This switch is IEEE 802.3af/at compliant, and provides power and data over a single Ethernet cable to any PoE device, with total power budget of 240W, up to 30W per port. Together with Energy Efficient Ethernet (IEEE 802.3az) standard compliant, it substantially lower power consumption during periods of low-link utilization. Moreover, supports Gigabit Ethernet connectivity with 9K jumbo frames for network performing enhancement. Ideal for small businesses that prefer an inexpensive solution for PoE deploying infrastructure.

    • Features:

      • IEEE 802.3af/at PoE compliant to simplify deployment and installation
      • 10/100/1000Mbps wire speed transmission and reception
      • 9K jumbo frames to increase data transfer rates
      • Supports 8K MAC address auto-learning and auto-aging
      • Auto-detection and protection of non-standard PoE devices
      • IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
      • 19-inch rackmount kit included
        Total PoE power budget: 240W, up to 30W per port
      • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)

    • Specifications:

      • Standards:
        IEEE 802.3 10-BASE-T (Ethernet)
        IEEE 802.3u 100-BASE-TX (Fast Ethernet)
        IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
        IEEE 802.3x Flow Control (full-duplex flow control)
        IEEE 802.3af Power over Ethernet
        IEEE 802.3at Power over Ethernet Plus
        IEEE 802.3az: Energy Efficient Ethernet
      • MAC Address: 8K
      • Buffer Memory: 128KB
      • Transmission Method: Store-and-Forward
      • Backplane: 16Gbps
      • Jumbo Frame: 9K
      • Filtering/Forwarding Rates:
        1000Mbps port-1488,000pps
        100Mbps port-148,000pps
        10Mbps port-14,880pps
      • Transmission Media:
        10Base T Cat. 3, 4, 5 UTP/STP
        100Base TX Cat. 5 UTP/STP
        1000Base TX Cat. 5e/6/7 UTP/STP
      • Network Interface: 8x 10/100/1000Mbps RJ-45 PoE Ports
      • PoE:
        PoE Standard: IEEE 802.3af/at Power over Ethernet / PSE
        PD classification identity
        PoE over current protection
        PoE circuit sorting protection
        PoE Power Output: Per Port 56V DC, Max. 15.4 watts (IEEE 802.3af) or 30 watts (IEEE 802.3at)
        Power Budget: Max. 240W
        Power Pin Assignment: 1/2(+), 3/6(-)
      • LED Indicators: Power, Active, 10/100M, 1000M, PoE
      • Power Input: 100-240V AC, 50-60 Hz, 5A Internal Power Supply
      • Power Consumption: 250W
      • Dimensions (LxWxH): 11.02 x 7.28 x 1.73" (280 x 185 x 44mm)
      • Weight: 4.41Lbs (2kg)
      • Operating Temp: 32° to 113°F (0° to 45°C)
      • Storage Temp: -40° to 158°F (-40° to 70°C)
      • Humidity: 10 to 90% (non-condensing)
      • Certifications: FCC, CE

    • Item Includes:

      • x1 GEP-0822
      • x1 Power Cord
      • x1 19" Rack Mount Kit
      • x1 Rubber Feet
      • x1 Quick Installation Guide

    • GTIN:

      0846359018965
