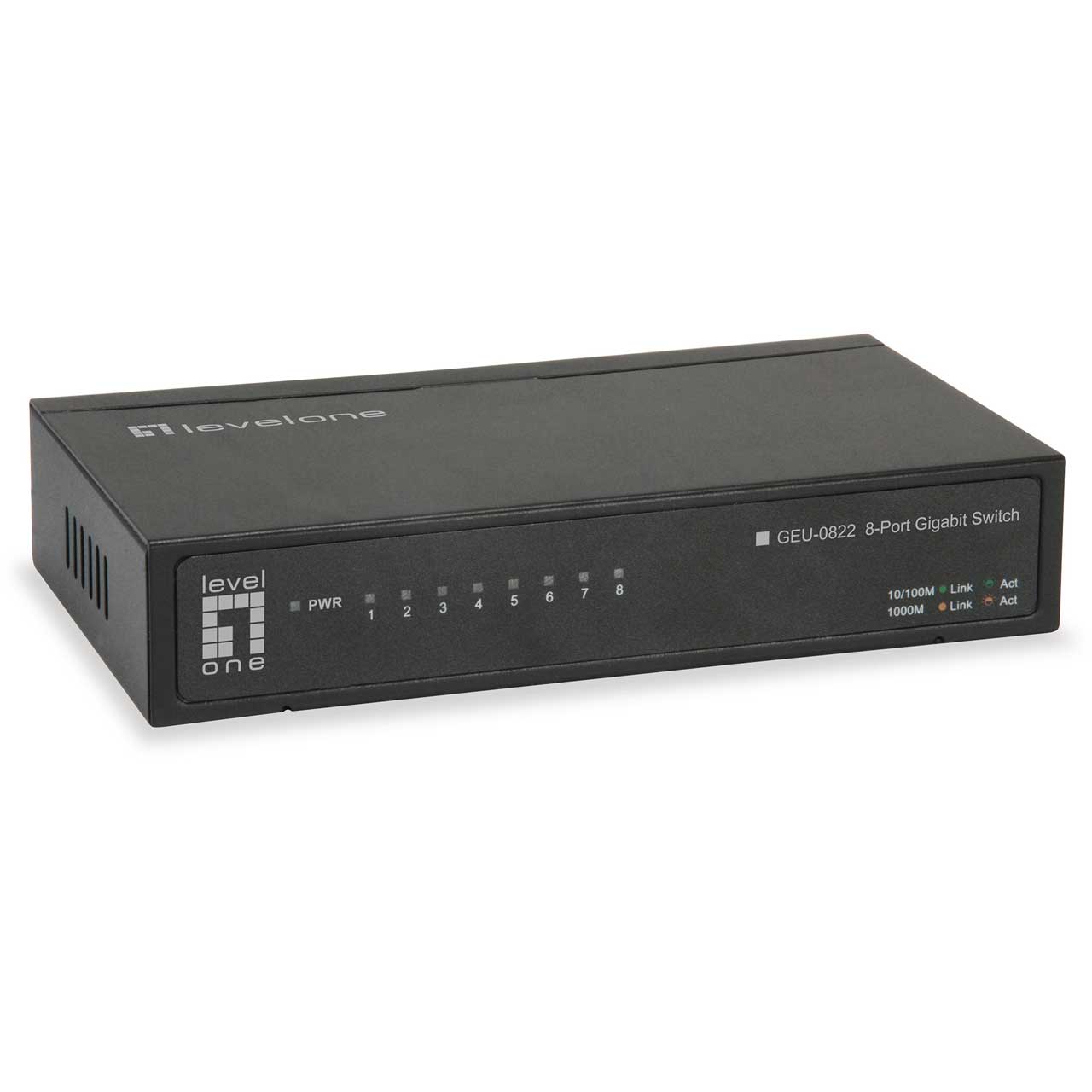

LevelOne GEU-0822 8-Port Gigabit Switch

ITEM #: LVL1-GEU-0822 MFG #: GEU-0822

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the LVL1-GEU-0822

GEU-0822 - Overview

The LevelOne GEU-0822 Gigabit Ethernet Switch is designed for reliable high-performance networking. With its non-blocking switching fabric in full-duplex mode, this switch can deliver up to 2000Mbps per port, while the Store-and-Forward service brings low latency and error-free packet delivery. This highperformance Gigabit Ethernet switch is perfect for fulfilling the demands of online gaming and multimedia streaming. Moreover, this switch also supports IEEE 802.3az Energy Efficient Ethernet which helps reduce power consumption.

Power Saving Features
The GEU-0822 supports IEEE 802.3az Energy Efficient Ethernet to provide power-saving benefits without compromising performance. One way is to automatically detecting the length of connected cables and to adjust power usage by saving energy on shorter cable connections.

Compact and Stylish Design
The stylish, compact wall-mountable housing of GEU-0822 fits any working environment. It comes with 8 x 10/100/1000Mbps ports to meet SOHO and home network expansion needs.


The GEU-0822 features plug-and-play for easy installation. No configuration is required. Autonegotiation on each port senses the link speed of a network device and adjusts for compatibility and optimal performance.

  • Features:

    • 8 Gigabit Ethernet ports
    • 10/100/1000Mbps wire speed transmission and reception
    • 9K jumbo frames to increase data transfer rates
    • Supports 4K MAC address auto-learning and auto-aging
    • Provides wall or desktop mounting
    • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)

  • Specifications:

    • Standards:
      IEEE802.3(10BASE-T)
      IEEE802.3u(100BASE-T)
      IEEE802.3ab(1000BASE-T)
      IEEE802.3az Energy Efficient Ethernet

    • Memory: 16kbit
    • Buffer Memory: 1.5Mbit

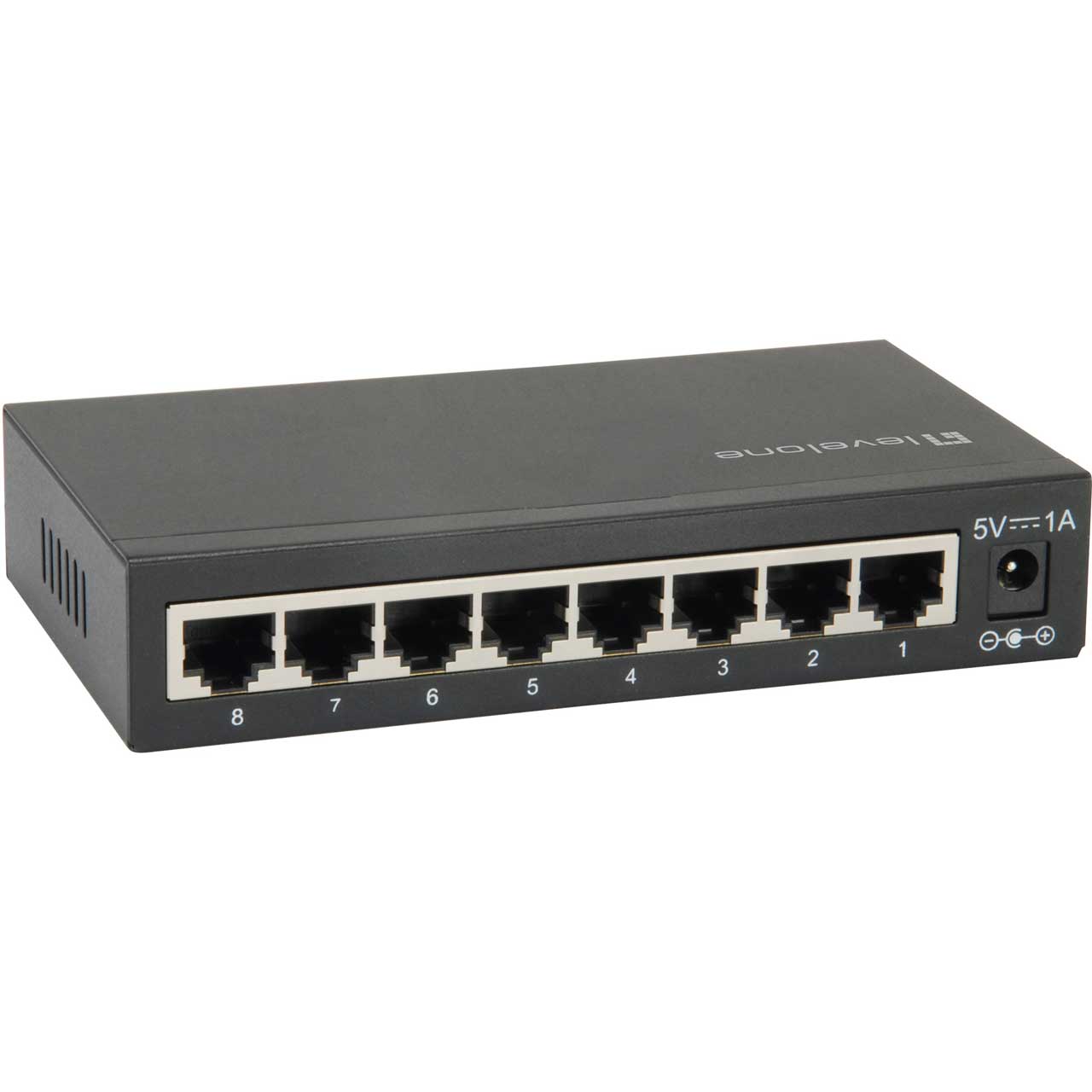

    • Port: 8 x 10/100Base-T RJ-45 Port
    • Indicator: Power
    • LINK/ACT: 1000M
    • Transmission Method: Store- froward
    • Power Input: DC 5V/1A
    • Backplane (Gbps): 16Gbps
    • MAC Address Table: 4K
    • Power Saving: YES
    • Operating Temp: 32° to 104°F (0 to 40°C)
    • Humidity: 10 to 90% (non-condensing)
    • Storage Temp: -40° to 158°F (-40°C to 70°C)
    • Humidity: 5 to 90% (non-condensing)

      General:
    • 8 x 10/100/1000Mbps
    • Packet Forwarding Rate: 1488000pps
    • Jumbo Frame (K): 9216KByte
    • Dimensions (WxDxH): 5.51 x 3.07 x 1.10" (140 x 78 x 28mm)
    • Weight: 1.14Lbs (520g)

  • Item Includes:

    • x1 GEU-0822
    • x1 Power Adapter
    • x1 Quick Installation Guide

  • GTIN:

    0846359036839
