Liberty 12-4C-GRY Commercial Grade General Purpose 12 AWG 4 Conductor Speaker Cable Reel - 1000 Foot - Gray

ITEM #: LWC-12-4C-GRY MFG #: 12-4C-GRY

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the LWC-12-4C-GRY

12-4C-GRY - Overview

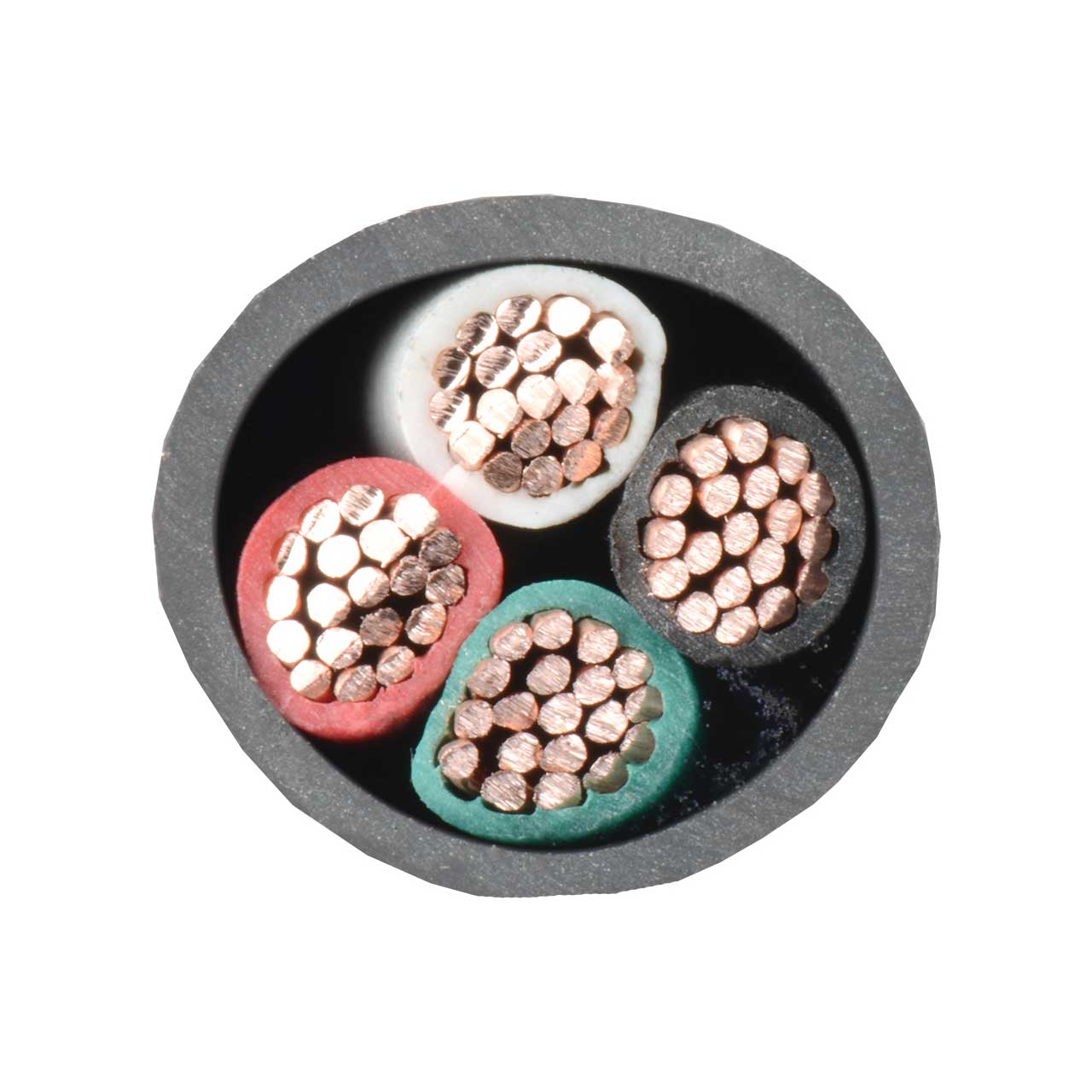

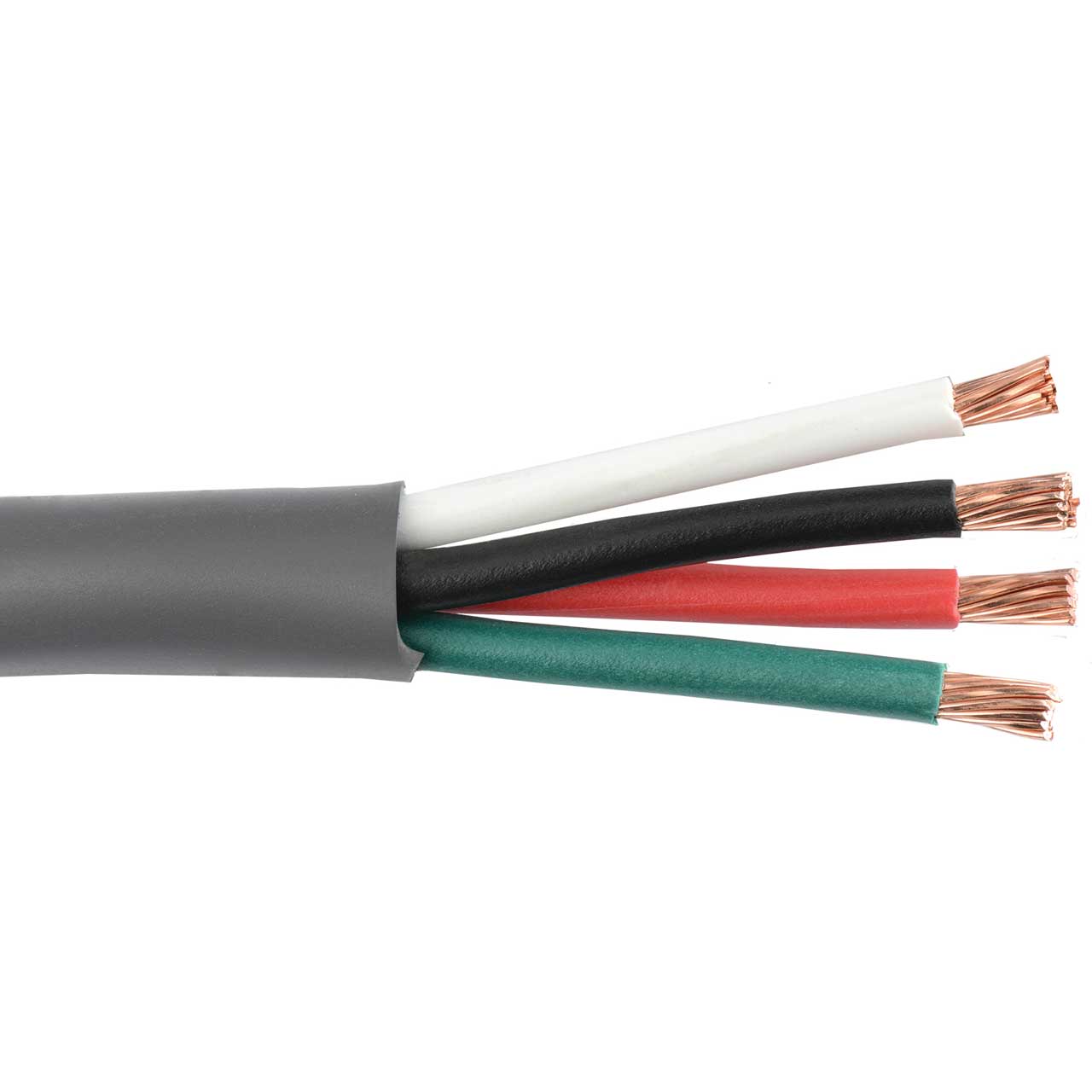

The Liberty 12-4C-GRY is a 4 conductor 12 AWG stranded, twisted, and unshielded cable NEC type CL3R and CEC type CMG FT4 for Audio Only. Product manufactured compliant to the requirements of UL13 for installations and applications in
accordance with NEC article 725.

Applications
Speaker level audio distribution
70V speaker systems
DC power, class 2 and class 3 power, system control

  • Features:

    • Stranded annealed bare copper conductors
    • Semi-rigid PVC insulation
    • Twisted, unshielded
    • Riser rated PVC jacket
    • NEC CL3R, CEC CMG FT4 for audio only, RoHS compliant


  • Specifications:

    • Electrical
    • DC resistance: 1.71Ω / 1000' | 5.61 Ω/KM
    • Mutual capacitance: 34.6 pF/FT | 113.49 pF/M
    • Impedance: 53 Ω
    • Inductance: 0.15æH/FT | 0.49æH/M
    • Velocity of Propagation: 55%
    • Voltage rating: 300V
    • Maximum current: 9.6A@25°C

      Insulation
    • Polyvinyl chloride
    • Wall thickness: 0.010" | 0.25mm
    • Diameter: 0.110" | 2.79mm

      Regulatory
    • NEC: CL3R 60°C
    • CEC: CMG FT4 For Audio Only 60°C
    • EU RoHS-2 2011/65/EU Compliant


  • GTIN:

    0601446144275
