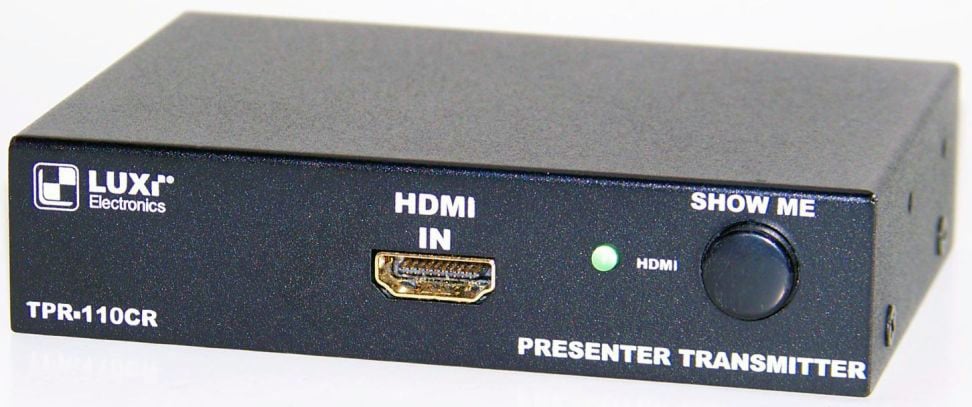

Luxi TPR-110CR Presenter Transmitter 100 Series Daisy-Chainable HDMI Input - Rack-Mountable


  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    TPR-110CR - Overview

    The TPR-110CR is a Presenter transmitter with HDMI input. Presenter is a revolutionary and Luxi patented product line that can form any sized (up to 32) AV systems by daisy-chaining transmitters (one for each user) and receivers (one for each display) with Cat6 cables in between. Superior video quality with zero compression or delay.

    • Features:

      • Revolutionary products to replace the centralized switching and distribution

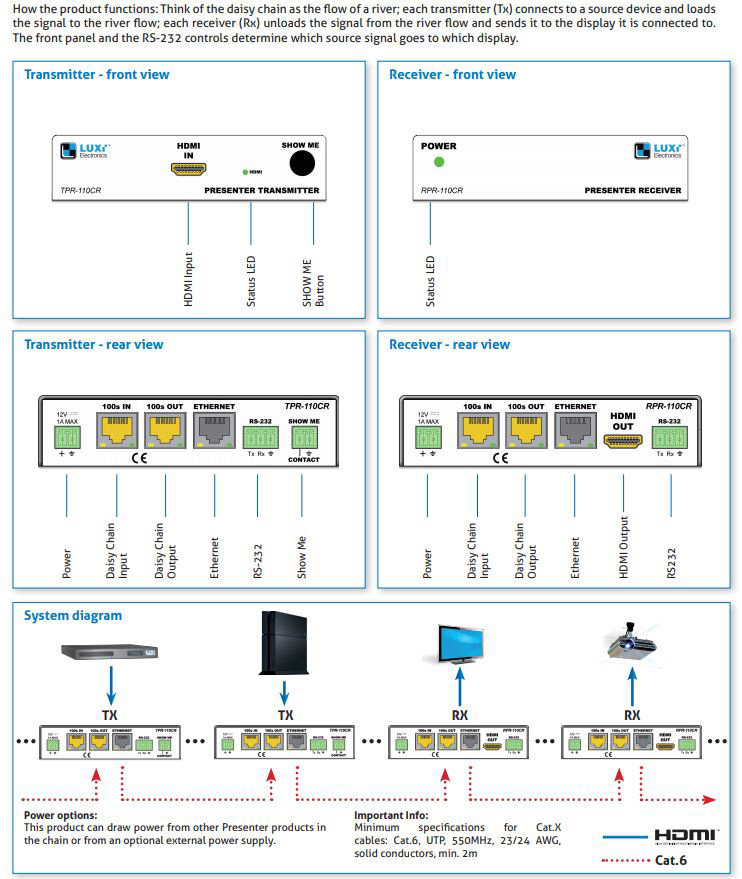

      • 1 transmitter (Tx) SKU and 1 receiver (Rx) SKU (optional Node) does it all; much simplified inventory control, system design and installation; see system diagrams
      • Completely scalable; you can add more Tx or Rx boxes on the fly for expansion
      • Only 1 Cat6 cable needed to connect the adjacent Presenter Tx or Rx; no more heavy clusters of cables; very easy cable pull and termination
      • HDMI 2.0 4k 24 Hz, 32 audio channels, 1536 kHz audio sample rates, 21:9 aspect ratio, dynamic AV sync, CEC extensions, 3D, deep color compliance
      • Compatible with all signal formats, VGA/audio, HDMI, DisplayPort (150 models)
      • Built-in scaler for mixed signal formats and resolutions in a system (150 models)
      • No compression; full 18 Gbps bandwidth; virtually no propagation delays
      • Show Me control button on every Tx box gives every user the simple control; no other control system needed
      • Additional control devices can be inserted anywhere in the chain via RS-232
    • Specifications:

      • Enclosure material: steel
      • Enclosure size: 4.29 x 1.00 x 3.00 (10.9 x 2.5 x 7.6 cm)
      • Maximum data rate: 9 Gbps
      • Resolution range: Up to 1080p 48-bit @ 60 Hz, or 3D, or 4k @ 30 Hz
      • Daisy chain system: Luxi proprietary format, digital video, audio, control, Ethernet and power, up to 32 devices (1 Tx = 1; 1 Rx = 2)
      • System cables: unshielded Cat6 550 MHz rated 23 AWG solid conductor cables recommended
      • Max distance between 2 adjacent devices: Typical 33 m (110') for WXGA/720p; 18 m (60') for 1080p (depends on source, display device performance, and signal format)
      • RJ45 connector pin configuration: standard EIA 568B pinout
      • Power: 12 V DC, 0.2 A from external power or other Presenter
      • Safety: CE, cUL, UL (power supply only)
      • EMI/EMC: CE, FCC Class A
    • Item Includes:

      • Transmitter
      • Manual
      • Captive screw plugs
    • Warranty:

      • 3 years
