KanexPro SP-HD20-1x44K 4K HDMI 1x4 Splitter with HDCP2.2 1x4 HDMI DA with HDCP2.2 4K Cinema Resolutions & Smart EDID
  • KanexPro SP-HD20-1x44K 4K HDMI 1x4 Splitter with HDCP2.2 1x4 HDMI DA with HDCP2.2 4K Cinema Resolutions & Smart EDID
  • KanexPro SP-HD20-1x44K 4K HDMI 1x4 Splitter with HDCP2.2 1x4 HDMI DA with HDCP2.2 4K Cinema Resolutions & Smart EDID

Questions? Ask a Markertek Expert:
800-522-2025 Email

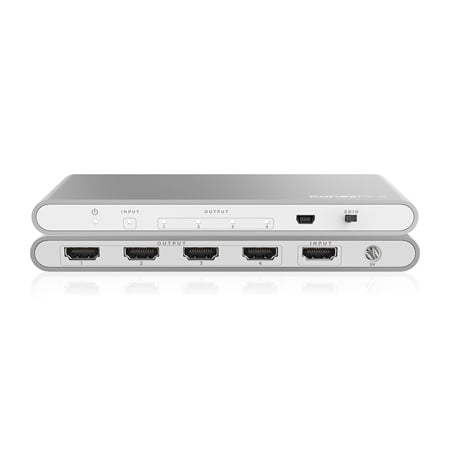

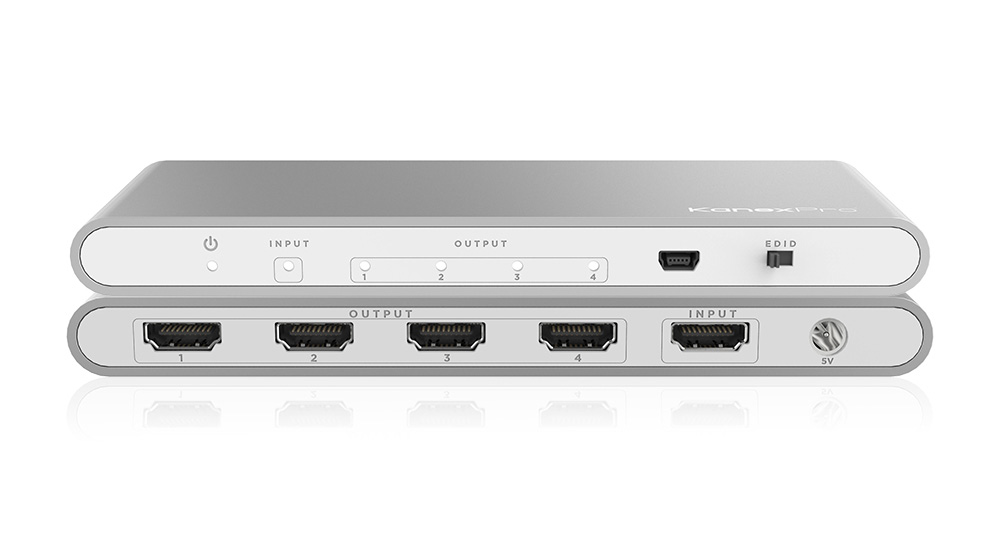

KanexPro SP-HD20-1x44K 4K HDMI 1x4 Splitter with HDCP2.2 1x4 HDMI DA with HDCP2.2 4K Cinema Resolutions & Smart EDID

Manufacturer: KanexPro

Item #: KAN-SPHD201X44K   •   MFG #: SP-HD20-1X44K



List Price:$99.95
Our Price:$79.95

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The KanexPro SP-HD20-1X44K is an one input, four output HDMI Distribution Amplifier engineered to split 4K quality videos or high res images from one source to four HD 4K displays with resolutions up to [email protected] and HDCP2.2 specifications. Built-in EDID management allows optimal resolution to be selected and properly outputted to avoid response time and delays.

    The conforming outputs also have the ability of buffering and amplifying all the HDMI signals. It can achieve long distance transmission of HDMI signals up to 50 feet (15 meters) or can be combined with our HDBaseT Extenders to route distances up to 330 feet (100 meters).

    Applications:

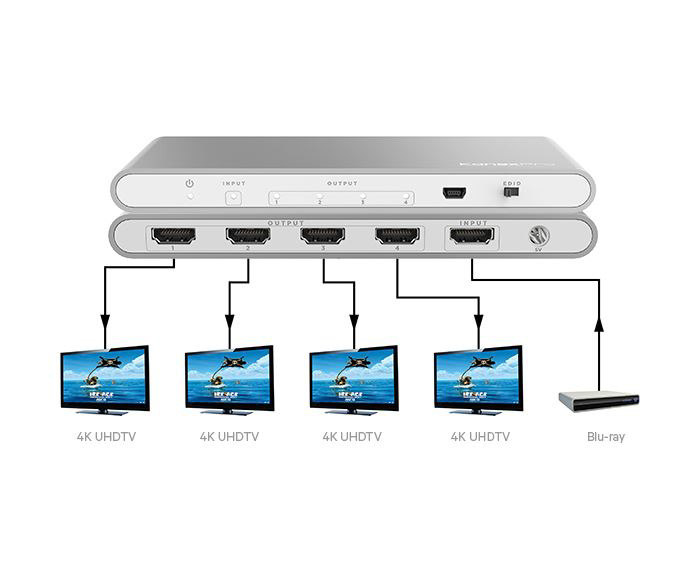

    The 1x4 DA fully conforms to the latest High Speed HDMI specifications with HDCP 2.2. This HDMI splitter is optimized for distributing HDMI video and embedded multi-channel digital audio to multiple 4K display environments such as residential or digital signage markets and computer lab applications.


    • Features

      • Distribute True 4K HDMI video and audio signals to four HD 4K displays
      • [email protected] UHD, 1080p & 3D resolutions
      • 4Kx2K @30Hz with 24bit RGB, YCBCR 4:4:4 & YCBCR 4:2:2
      • 4Kx2K @60Hz with 12bit YCBCR 4:2:0
      • Conforms to High Speed HDMI specifications:
      • (Deep color, HD lossless audio formats & Lip Sync)
      • HDCP 2.2 compliant
      • EDID Selector for optimal resolutions
      • Built-in Smart EDID Control
      • Front-panel LED's for input/ output signal presence
      • Includes 5V DC external power supply

    • Specifications

      • Signal Input/Outputs: Input DDC Signal: 5 Volts p-p (TTL), Input & Output Signal: High Speed HDMI Spec 2.0a.
      • Input Ports: 1 x HDMI (Female).
      • Output Port: 4 x HDMI (Female).
      • Operating Frequency: Vertical Frequency Range: 50/60Hz.
      • Supported Resolutions:480i ~1080p50/60, [email protected]/30, [email protected] with 12bit YCBCR 4:2:0, VGA~UXGA.
      • Power Requirements: Power Consumption: 2W, External Power Supply: 5V, 1A DC.
      • Regulatory Approvals: Converter Unit: FCC, Ce, UL, Power Supply: UL, Ce, FCC.
      • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F.
      • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F.
      • Dimensions: 2.52" (W) x 6.10" (D) x .67" (H).

    • Item Includes

      • HDMI 1X4 Splitter
      • 5V, 2A Power Supply
      • Operation Manual
