Marshall CV355-27X-IP UHD 27x Optical Zoom IP - HDMI & 3G-SDI Box Camera - 8.5 Megapixel Sensor - Black

ITEM #: MAR-CV355-27X-IP MFG #: CV355-27X-IP

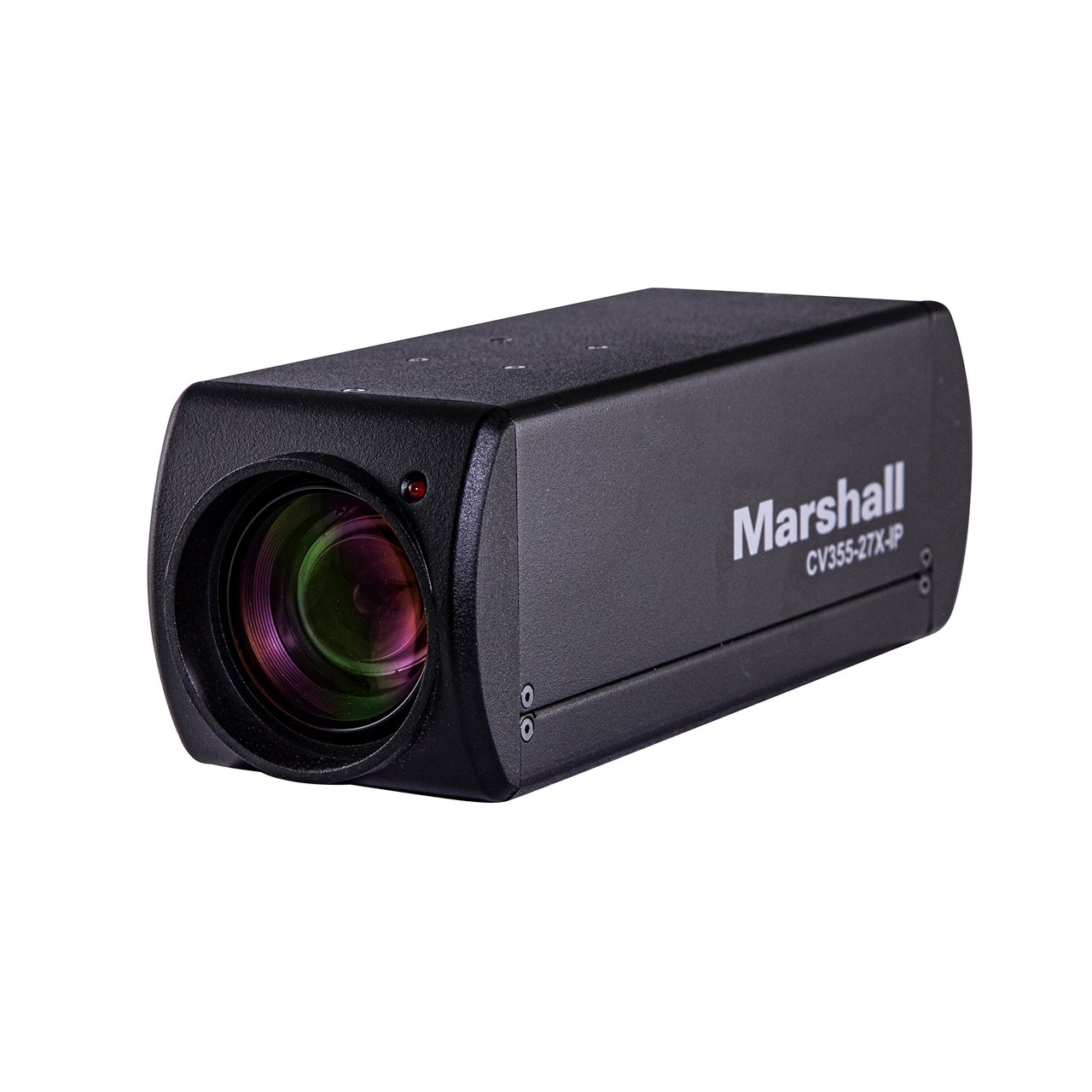

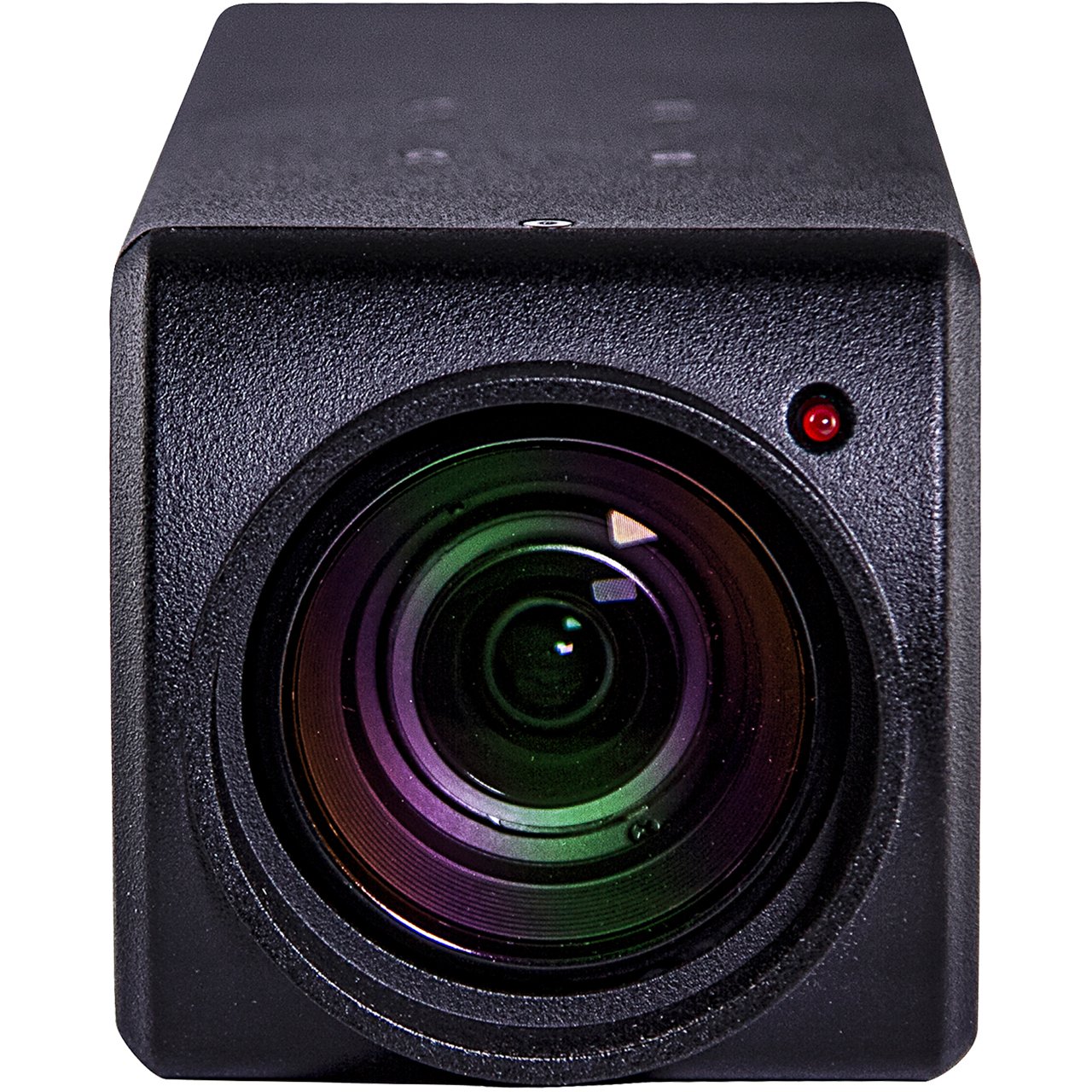

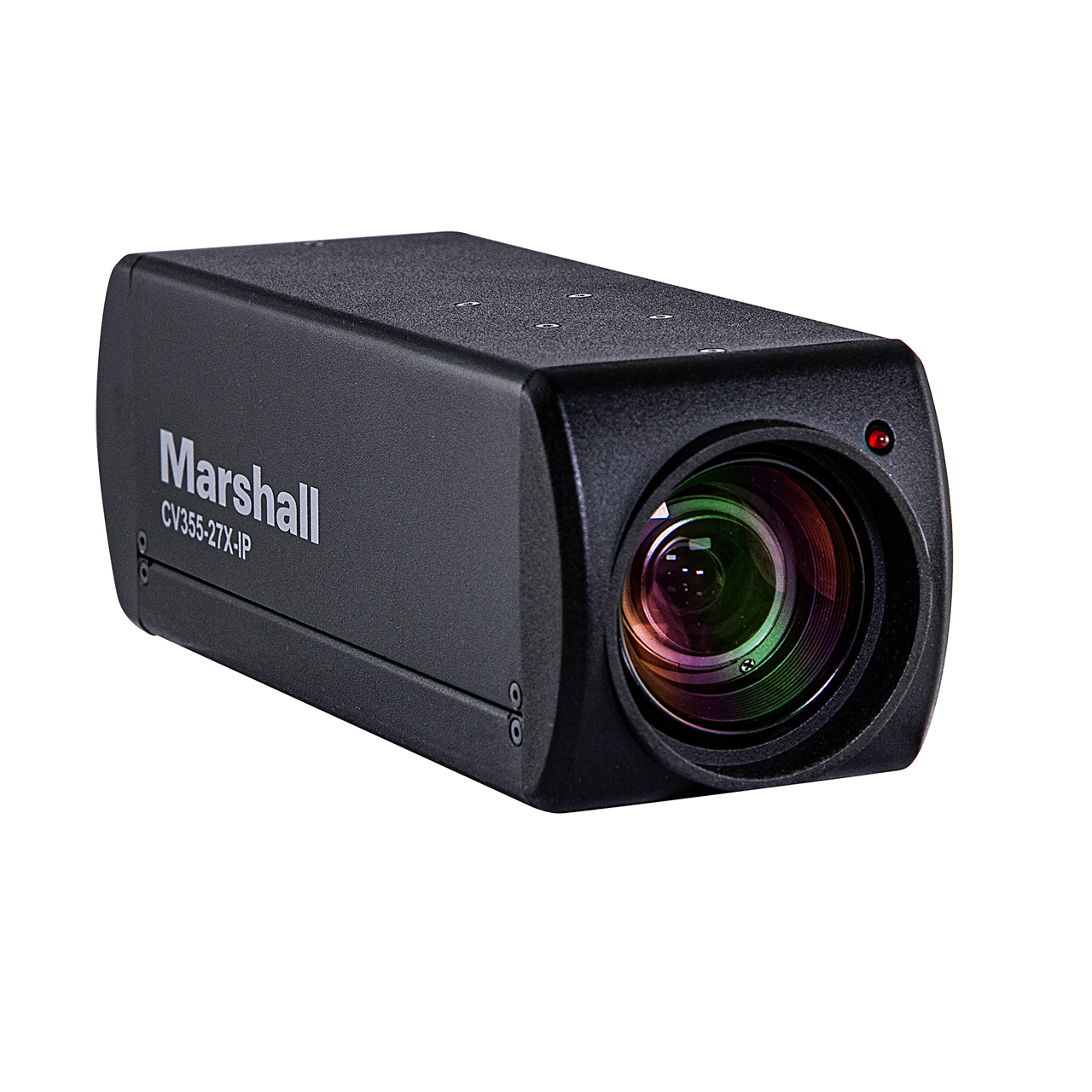

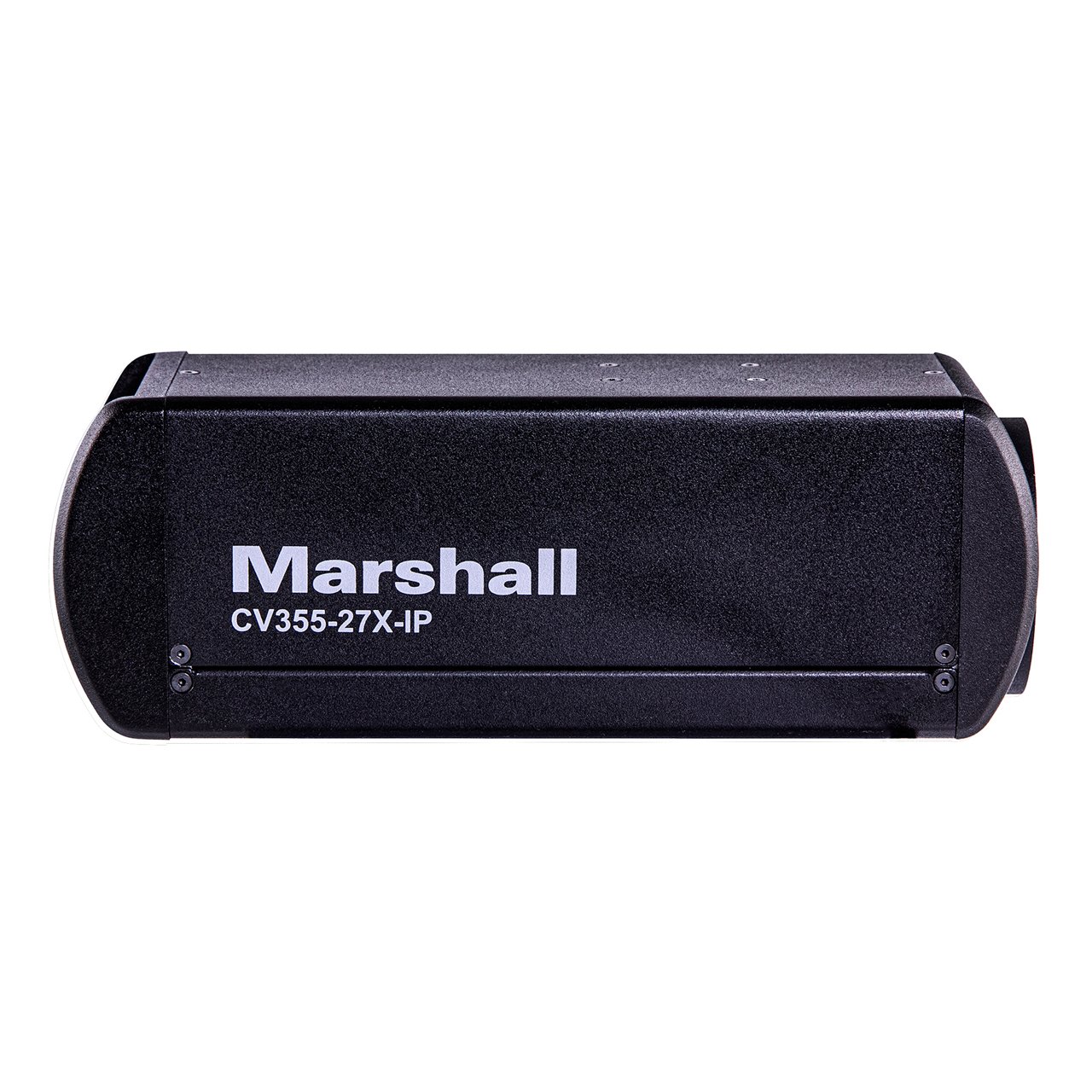

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,499.00

Our Price:

$1,299.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CV355-27X-IP - Overview

The Marshall CV355-27X-IP 27X optical zoom IP (HEVC/SRT) camera utilizes a professional grade 8.5-megapixel sensor to capture crisp HD video up to 1920x1080 at 60fps with support for all HD formats. Marshall's straight forward design and ease of use make this camera a valuable tool in a wide variety of broadcast and professional A/V applications.

27X Optical Zoom
The 27X optical zoom block offers an extensive zoom range from 5.56mm to 150mm starting at 60° all the way out to 3.2° horizontal angle-of-view for maintaining image crispness from ultra-wide to long telephoto shots.

IP (HEVC/SRT) Workflow
SRT stands for Secure Reliable Transport. SRT is an open-source video transport protocol and technology stack that optimizes video streaming performance across unpredictable networks. With secure streams and simplified firewall traversal, SRT delivers the best quality video over the worst networks.

Low-light Sensitivity
The CV355-27X-IP operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including live events, houses of worship, indoor or outdoor sporting events, and other dynamic lighting environments.

IP (HEVC) Convenience
One cable to camera provides up to HD video, audio, control, and power (PoE) over one cable with IP (HEVC) and HDMI simultaneous outputs with stereo audio embedding.

CV355-27X-IP Applications:
The CV355-27X-IP is suitable for use in networked HD and workflows where image quality and versatility are of utmost concern, including:

- Live broadcast productions
- Courtroom capture
- Corporate video
- Government assembly
- Sportscasts
- Newscasts
- Reality television
- Concerts
- House of worship and many more.

  • Features:

    • 8.5 Megapixel (1/2.5") HD sensor
    • 27X Optical Zoom (5.5~150mm) - 60° AOV
    • Supports:1092x1080p and 720p 60/59.94/50/30/29.97/25 fps, 1920x1080i 60/59.94/50 fps
    • IP formats: SRT, DHCP, DNS, HTTP, HTTPS, IPv4, NTP, RTSP, RTCP, RTP, TCP, UDP
    • IP (HEVC/SRT) and HDMI simultaneous outputs
    • Ethernet I/O supports video, control, audio and PoE over a single cable
    • RS232 and 3.5mm audio input with passthrough

  • Specifications:

    • Sensor: IMX317
    • Optical Zoom: 27x
    • Digital Zoom: 12x
    • Angle of View:
      - Horizontal: 60°
      - Vertical: 35°
      - Diagonal: 68°
    • Aperture: f1.66 - f4.98
    • Focal Length: f=5.56mm - 150.29mm
    • Focus Distance:
      - Wide: 1m - ∞
      - Tele: 1.5m - ∞
    • Field of View:
      - Wide Horizontal Viewing Angle = 60° (±5%)
      - Tele Horizontal Viewing Angle = 3.2° (±5%)
    • Minimum Environmental Illumination: 10 lux
    • Minimum Illumination: 0.1 lux (F1.6, 50IRE, 30fps)

      Camera System
    • Stream: Dual Stream (Main/Sub)/Webpage
    • Streaming Protocol: RTSP/RTMP/RTMPS/SRT
    • Video Compression: HEVC (H.265)/AVC (H.264)/MJPEG
    • Audio Compression: G.711 / AAC
    • Preset: 256
    • Preset Speed: NA
    • Focus System: Auto/One-Push AF/Manual
    • Electronic Shutter: 1/1 to 1/10000 sec
    • Exposure Control: Auto / Shutter Pri/Iris Pri/Manual
    • Gain Control: Auto, Manual
    • Brightness Control: Yes
    • 3D NR: Yes
    • WDR: Yes
    • Backlight Compensation: Yes
    • White Balance: Auto, Manual R/B Gain
    • Flip/Mirror: Yes
    • Firmware Update: Operation on Webpage
    • Output Resolution:
    • HDMI:
      - 1080p: 60/59.94/50/30/29.97/25 fps
      - 1080i: 60/59.94/50 fps
      - 720p: 60/59.94/50/30/29.97/25 fps
    • 3G-SDI:
      - 1080p: 60/59.94/50/30/29.97/25 fps
      - 1080i: 60/59.94/50 fps
      - 720p: 60/59.94/50/30/29.97/25 fps
    • Stream:
      - PTZ view
      - 1080p: 60/59.94/50/30/29.97/25 fps
      - 1080i: 60/59.94/50 fps
      - 720p: 60/59.94/50/30/29.97/25 fps
      - 360p: 30/29.97/25 fps
      - Webpage: PTZ: MJPEG 360p

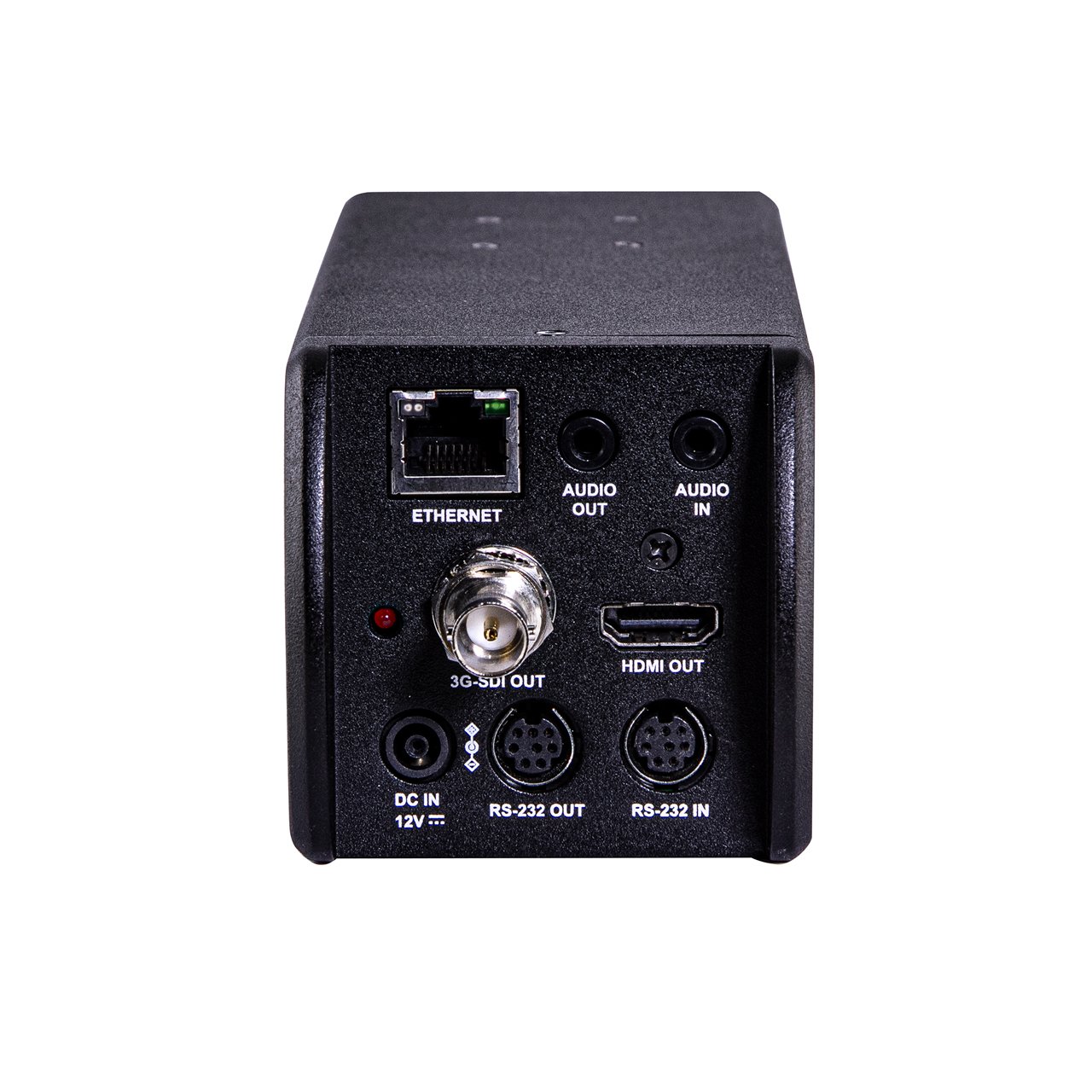

      Interfaces
    • Line In: 1x; 3.5mm phone jack
    • Line Out: 1x; 3.5mm phone jack
    • Audio Output: HDMI/3G-SDI/RTSP/RTMP/SRT
    • Audio Type: Stereo, Unbalanced
    • Audio Compression Format: AAC
    • HDMI: 1x
    • Audio Output: Yes
    • HDMI Color Format: RGB/YUV422
    • 3G-SDI: 1x
    • Audio Output: Yes
    • Serial: RS232
    • RS232 In: RS232 In; Mini-Din 1x
    • RS232 Out: RS232 Out; Mini-Din 1x

      Network
    • Ethernet RJ45 Port: 1x; 1Gbps
    • Number of Clients (connection): RTSP 1080P60 *5
    • Network Protocol: DHCP, DNS, HTTP, HTTPS, IPv4, NTP, RTSP, RTCP, RTP, TCP, UDP
    • Network Security: No Critical issues

      Camera Control
    • Serial Control: RS-232 In 1x; RS-232 Out 1x
    • Protocol: VISCA
    • Baud Rate: 9600 / 38400
    • Network: Webpage
    • HTTP CGI
    • HTTP API
    • Onvif Profile S
    • VISCA over IP

      General
    • Tally Light: Yes; Red
    • Power Supply: POE; IEEE 802.3af
    • DC 12V/3A; EIAJ Type 4
    • Power Consumption: PoE: ≦ 15W; DC: ≦ 13W

  • Item Includes:

    • 1x Marshall CV355-27X-IP UHD 27x Optical Zoom IP and 3G-SDI Box Camera - 8.5 Megapixel Sensor - Black
