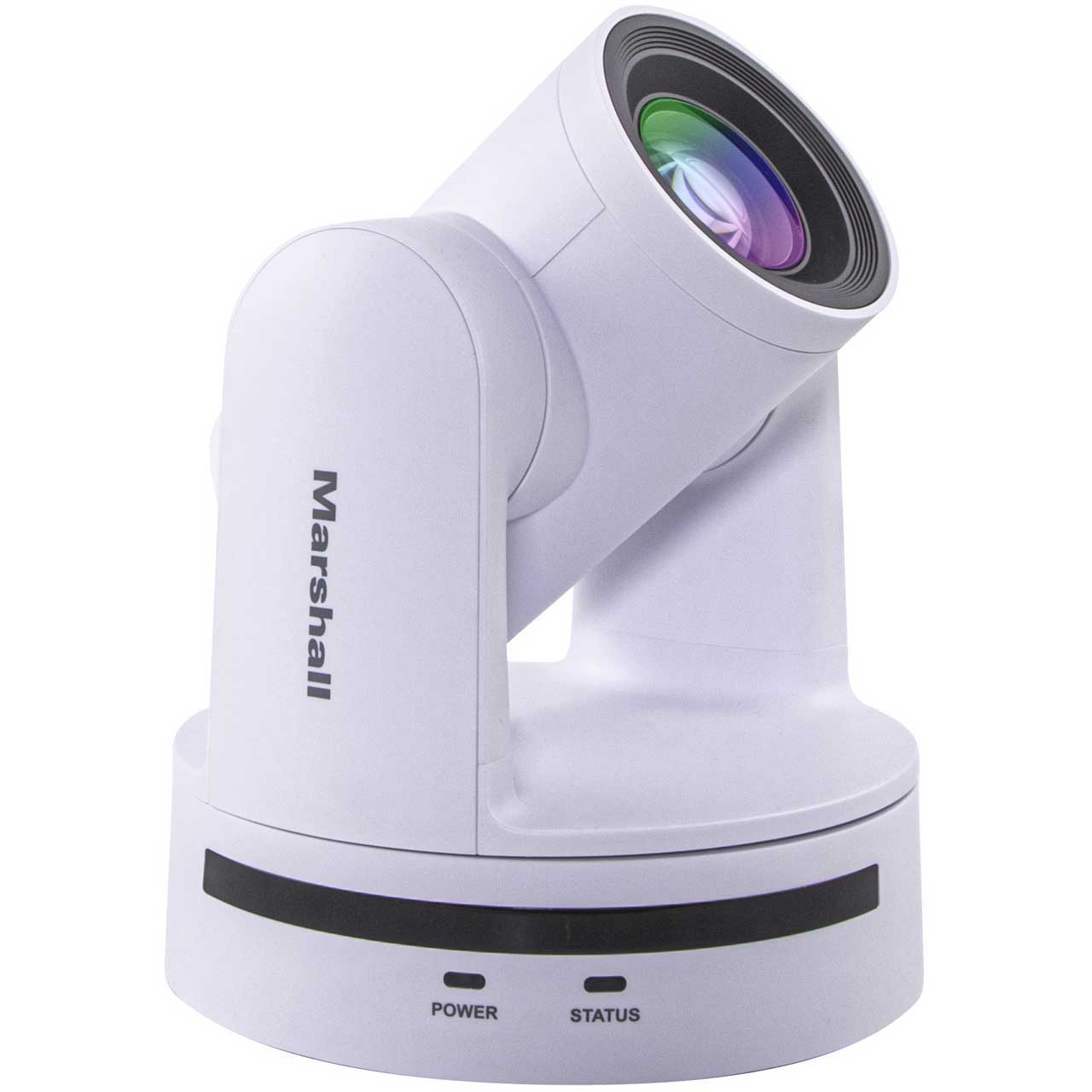

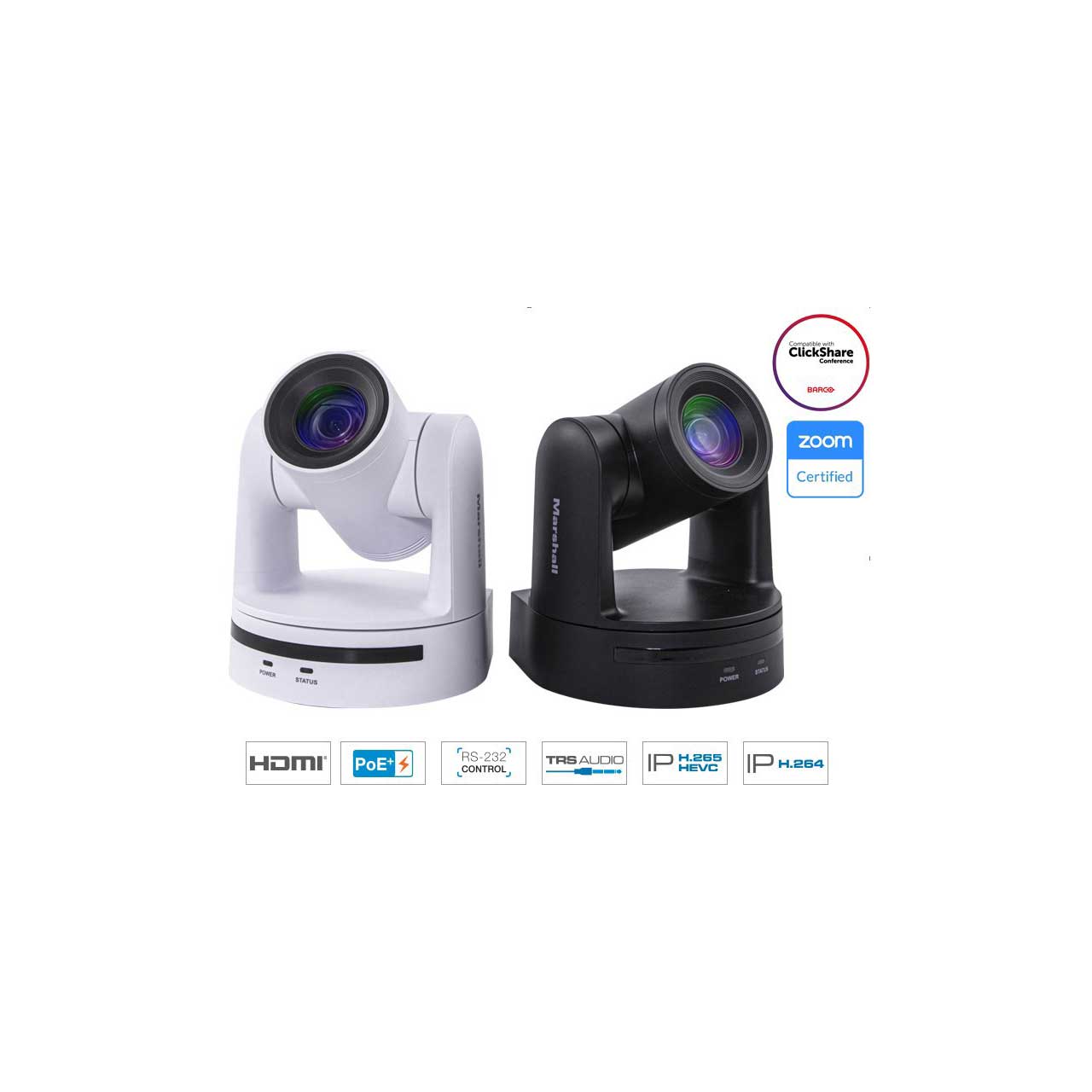

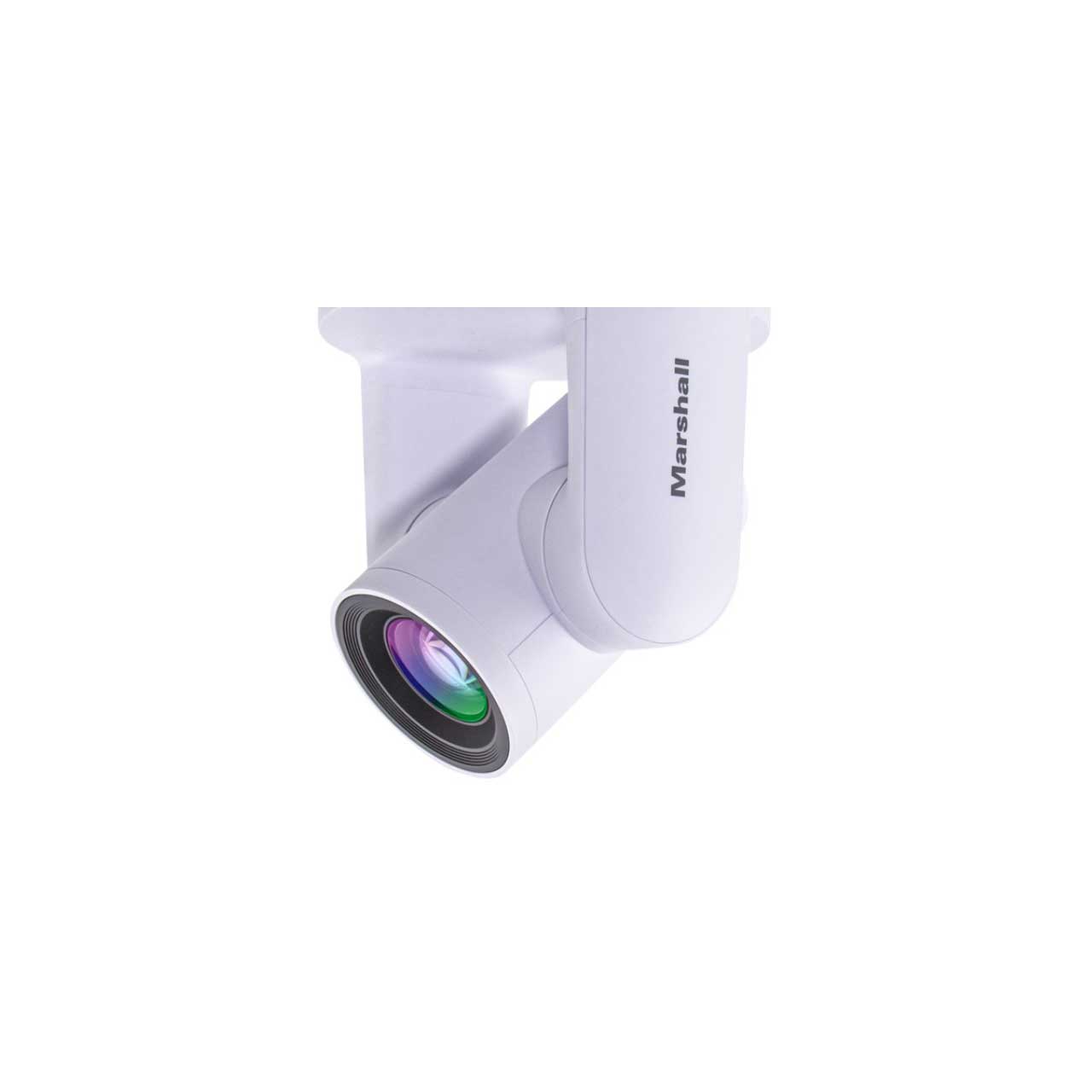

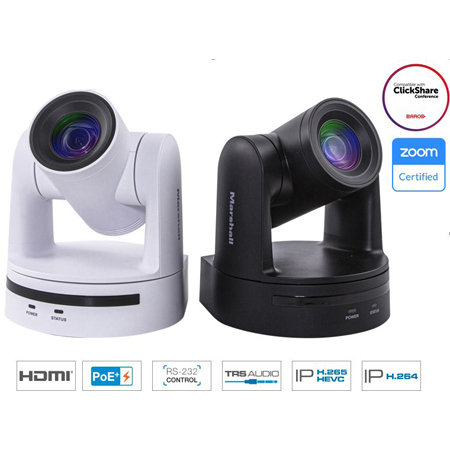

Marshall CV605U3 HD60 5x Zoom PTZ Camera with USB-C / HDMI & IP - White

ITEM #: MAR-CV605-U3-W MFG #: CV605-U3/W

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$699.99

Our Price:

$599.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    CV605-U3/W - Overview

    The Marshall CV605 5X optical zoom USB-C, HDMI and IP camera utilizes a professional grade 2 Megapixel sensor to capture crisp HD video starting at a wide-angle 85° and up to 1920x1080p resolution at 60fps. Multiple outputs include HDMI, USB.C and IP (H.265/H.264). Marshall's straight forward design and ease-of-use make this camera an affordable camera for a wide variety of video conference, video streaming and professional A/V applications. CV605-U3 can be setup through one Ethernet (CAT) cable carrying video, audio, power (PoE), and control over IP. Also is easily dockable via OBS Studio, Zoom (certified) and as well as useful in other soft codecs.

    • Features:

      • 2 Megapixel (1/2.8") Full-HD sensor
      • 5X Optical Zoom (3~15mm) - starting at 85° AOV
      • Full-HD Resolution: 1920x1080p up to 60fps, 1920x1080i & 1280x720p
      • Low Illumination capability at 0.5Lux (F1.8) for challenging environments
      • USB-C (USB3.0/2.0) HDMI and IP (H.265/H.264) or RS232 via RJ45
      • Ethernet IP supports video, audio, control, and PoE over one Cat cable
      • PoE IEEE802.3af - power consumption 48V (13W)
      • Control Options: Zoom (certified), software GUI via web, UVC1.5, OBS Studio plugins & docs, IR remote, Marshall VS-PTC-200 (RS232) & VS-PTC-IP (IP/RS232)
      • 3.5mm audio linear input (AAC, MP3, G.711A compression)

    • Specifications:

      • Optical Zoom: 5x, f=3.1~0.61" (15.5mm)
      • Sensor: 1/2.8-inch-high quality HD CMOS sensor
      • Effective Pixels - Video Format:
        USB: YUY2, NV12: 640x480/320x180/480x270/640x360/800x448/800x600/1024x576/1280x720/1920x1080
        MJPEG, H.264: 640x480/320x240/352x288/480x270/640x360/720x480/720x576/800x448/800x600/960x540/1024x576/1280x720/1600x896/1920x1080
        HDMI: 1080P 60/59.94/50/30/29.97/25;720P 60/59.94/50;
      • Viewing Angle: 16.43°(tele)--83.7°(wide)
      • Digital Zoom: 10X additional
      • Minimum Illumination: 0.5Lux (F1.8, AGC ON)
      • DNR: 2D & 3D DNR
      • White Balance: Auto / Manual/ One Push/ VAR
      • Focus: Auto/Manual/One Push
      • Iris: Close/F11/9.6/8.0/6.8/5.6/4.8/4.0/3.4/2.8/2.4/2.0/1.8
      • Electronic Shutter: Auto/Manual
      • BLC: ON/OFF
      • Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
      • SNR: >55dB
      • Video Interfaces: USB3.0 Type-C, HDMI, LAN
      • Video Compression Format: H.264, YUV2, NV12, MJPEG
      • Audio Input Interface: Two-channel 3.5mm (Line and Mic level)
      • Audio Output: USB3.0, HDMI, LAN output together with video
      • Audio Compression Format: AAC/MP3/G.711A
      • IP Interface: 100M IP port(100BASE-TX)
      • Network Protocol: RTSP/RTMP, ONVIF; Support IP Visca control protoco
      • Control Interface: RS232
      • Control Protocol: VISCA/Pelco-D/Pelco-P;
      • Baud Rate: 115200/38400/9600/4800/2400
      • Power Interface: HEC3800 outlet (DC12V)
      • Supply Adapter: AC110V-AC220V to DC12V/1.5A
      • Input Voltage: DC12V±10%
      • Input Current: 1A(Max)
      • Consumption: 12W (Max)
      • Pan Rotation: ±135°
      • Tilt Rotation: -30°~+30°
      • Pan Control Speed: 0.1 -60°/sec
      • Tilt Control Speed: 0.1-30°/sec
      • Preset Speed: Pan 60°/sec, Tilt 30°/sec
      • Preset Number: 255 presets (10 presets by remote controller)
      • Store Temperature: 14° to -140°F (-10°C~+60°C)
      • Store Humidity: 20% - 95%
      • Working Temperature: 50° to 122°F-10°C~+50°C
      • Working Humidity: 20% - 80%
      • Dimension: 5.72 x 5.78 x 6.06" (145.4 x 147 x 154mm)
      • Weight: 2.84 (1.29Kg)
      • Using Environment: Indoor

    • Item Includes:

      • 1x Power adapter
      • 1x IR Remote
      • 1x USB3.0 Type-C Cable
      • 1x Thank You Card
      • 1x Warranty card

    • GTIN:

      0801813225242
