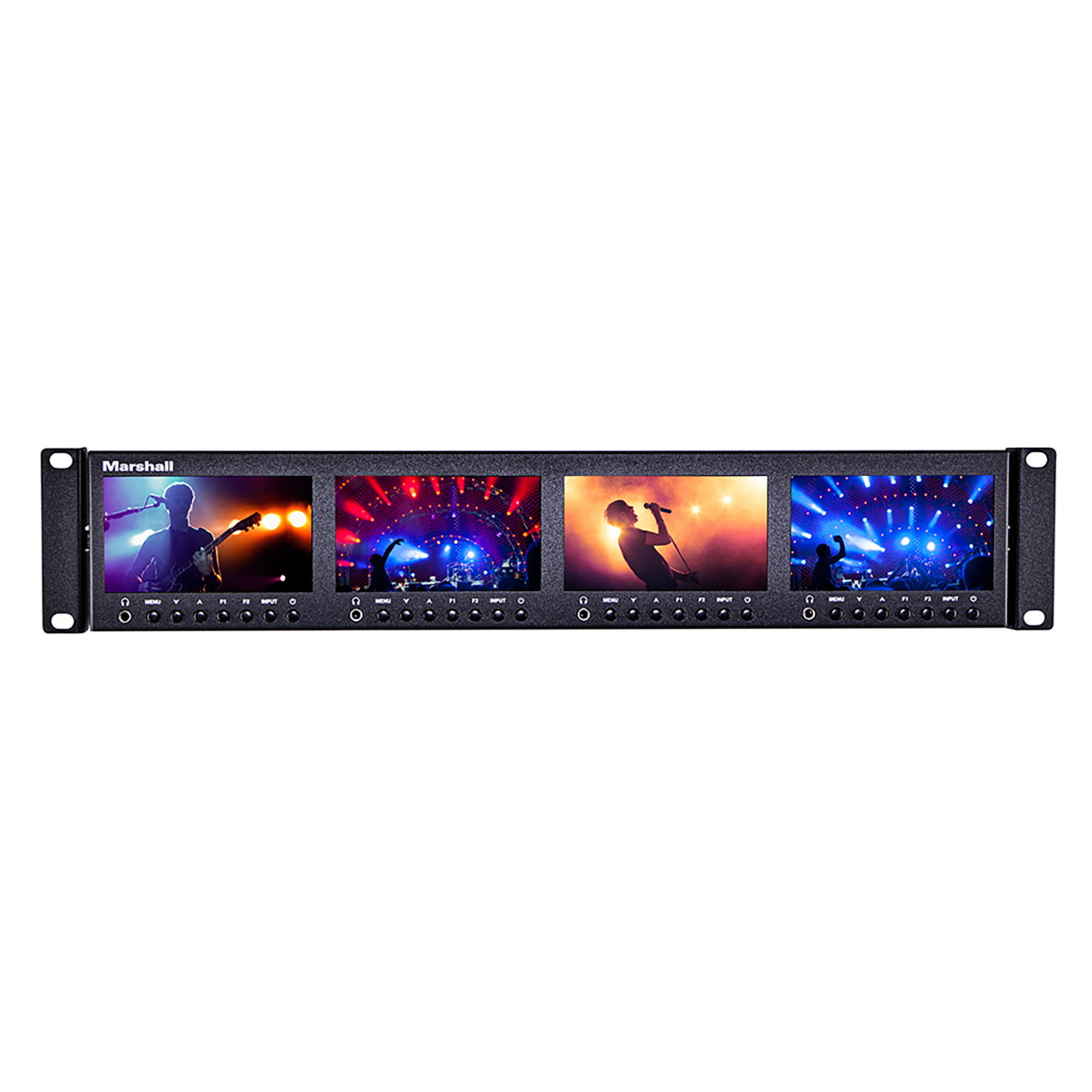

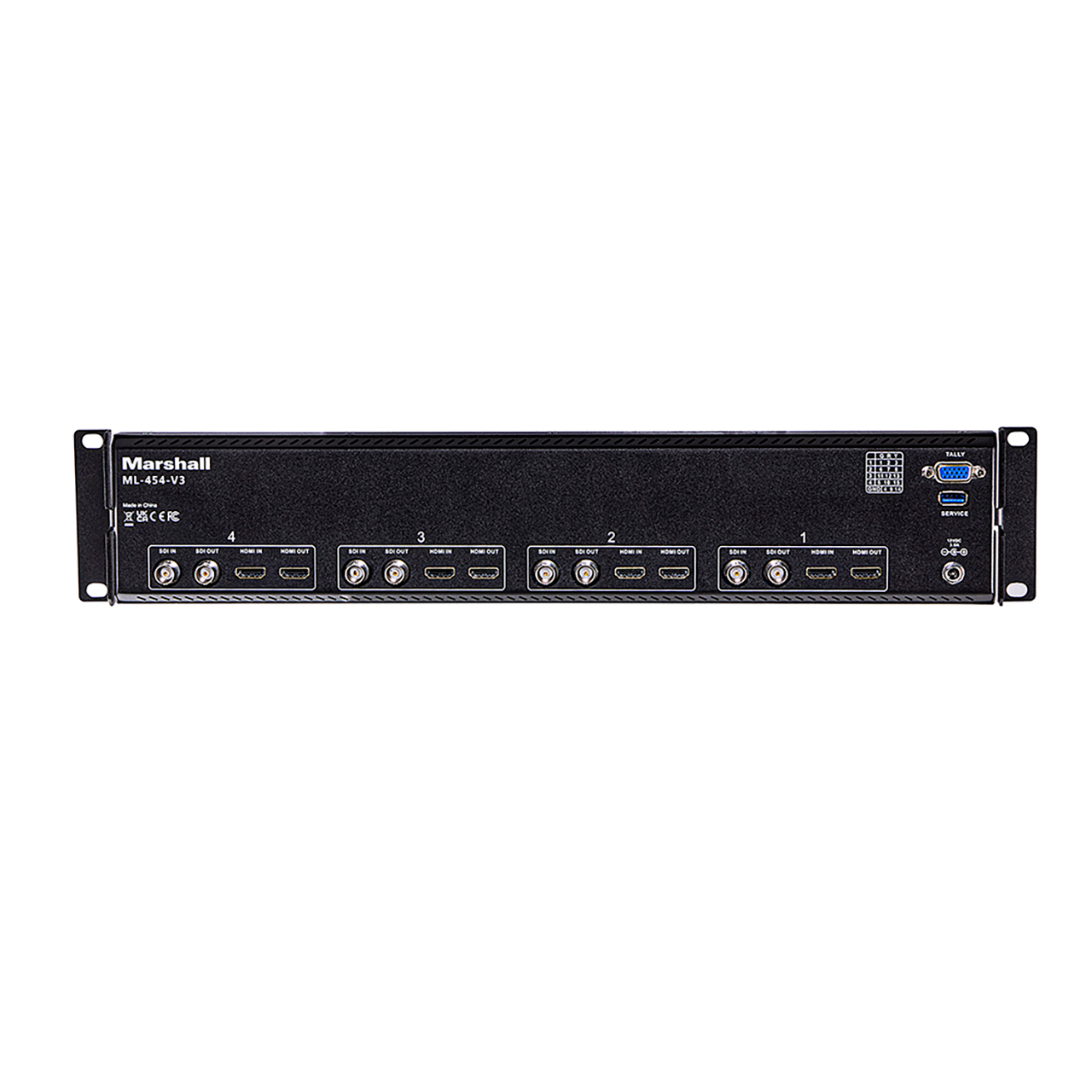

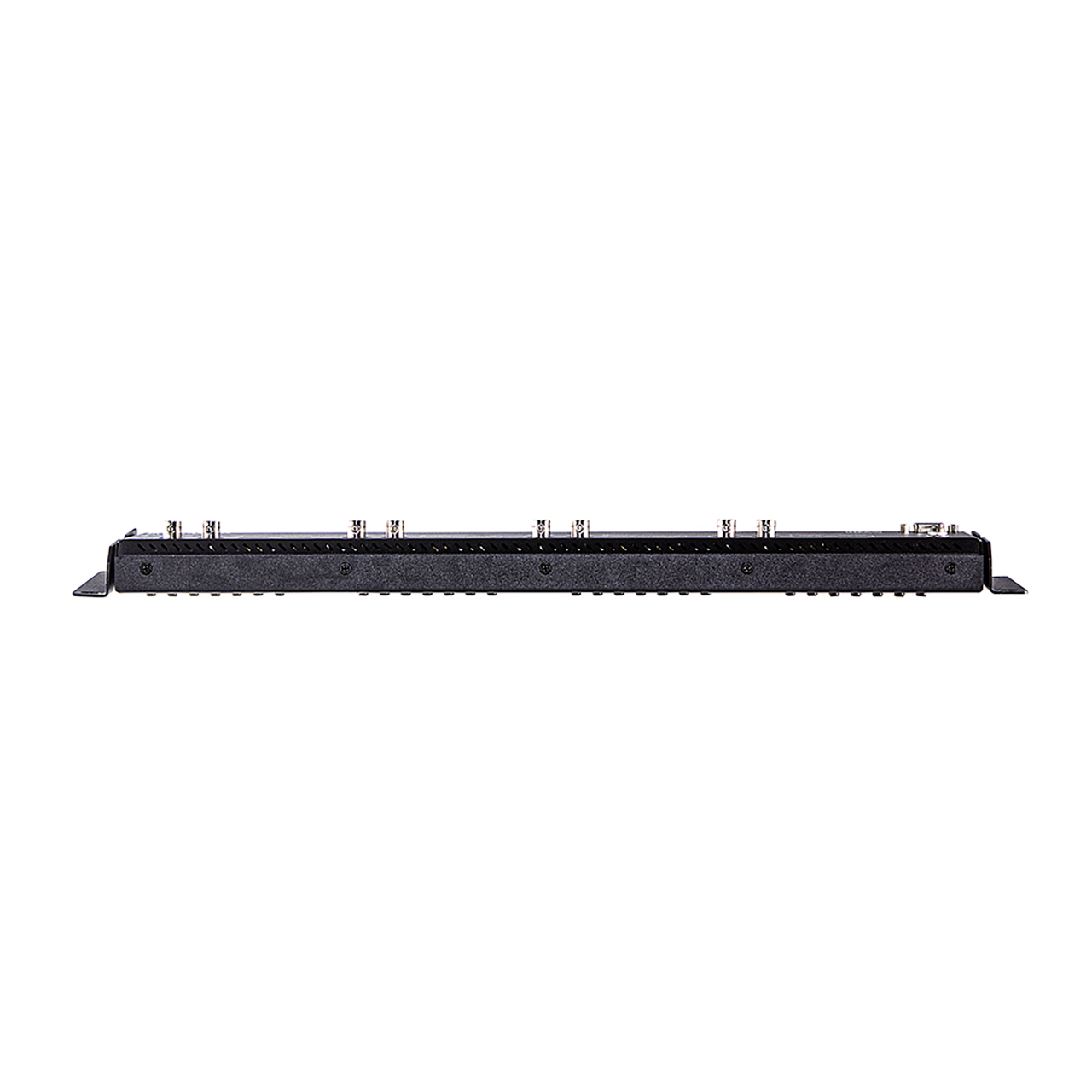

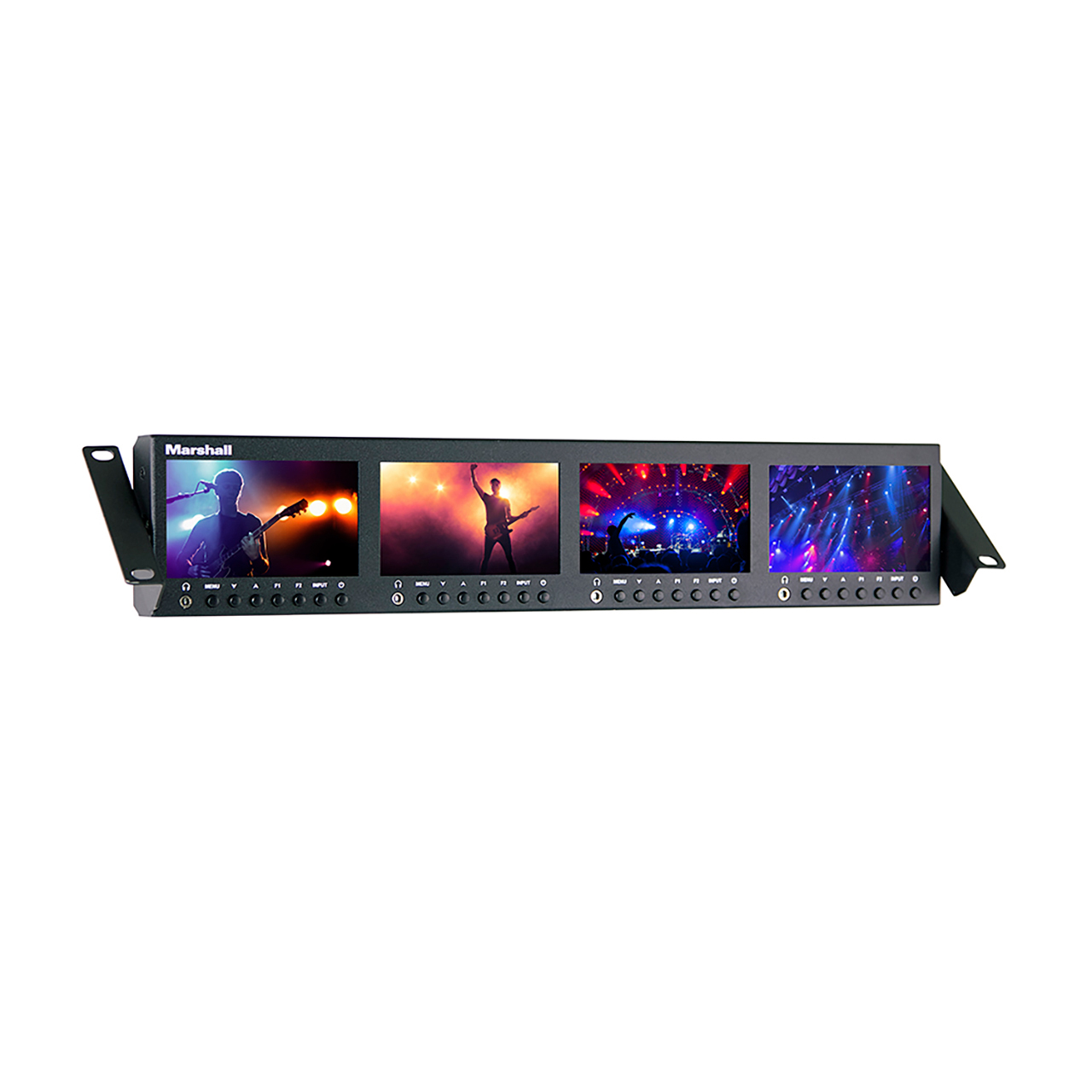

Marshall ML-454-V3 Quad 4.5-Inch 2RU High Resolution LCD Rack Mount Video Monitor with HDMI/3G-SDI and Composite Inputs

ITEM #: MAR-ML-454-V3 MFG #: ML-454-V3

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$2,258.60

Our Price:

$2,033.20

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ML-454-V3 - Overview

The Marshall Electronics ML-454-V3 Quad 4.5" Screens LCD Display is a feature-packed, economical solution perfect for fly-packs, control rooms, routing rooms and countless other video system applications. Looping video inputs set this product apart from similar-looking products. With the ML-454-V3, you are not limited to the single SDI connector you may find on competitor models. Standard power and tally connections as well as a logical menu structure make this display an easy choice for flexible system designs.

  • Features:

    • High resolution 1920 x 1080 bright, colorful display with no-compromise input selections for each screen
    • Digital inputs: HDMI, 3GSDI
    • Multi-screens in 2RU (3.5") Height
    • Slim Compact Panel - only 1.5" deep
    • Bright screens with great off-axis performance
    • Excellent Power Efficiency
    • SDI have active loop through outputs
    • On-screen 3-color Tallies

  • Specifications:

    • Screen: 4" x 4.41" LCD
    • Chassis: 2RU
    • Resolution: 1920 x 1080
    • Aspect Ratio: 16:9
    • Viewing Angle:
      - Horizontal: +85°/-85°
      - Vertical: +85°/-85°
    • Brightness: 400 cd/m²
    • Contrast Ratio: 1500:1
    • Video Input:
      - 4x 3G/HD/SD-SDI
      - 4x HDMI
    • Video Loopout:
      - 4x 3G/HD/SD-SDI
      - 4x HDMI
    • Audio In: Embedded Audio from SDI and HDMI
    • Audio Out:
      - SDI and HDMI embedded audio from 3.5mm headphone jack
      - Embedded audio from SDI and HDMI loopout
    • Control: On-screen tally from 15-pin D-Sub port
    • Power: DC input support 10V - 24V (typical 12V), 24W
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Operating Temperature: 32°F - 122°F (0°C - 50°C)
    • Dimensions (WxHxD): 19" x 3.5" x 1.5" (482.7mm x 88mm x 38mm)
    • Weight: 3.50lbs (1.6kg)

  • Item Includes:

    • 1x DC 12V Power adapter
    • 1x Tally Connector - 15-pin breakout adapter

  • Warranty:

    • 1 Year Limited Warranty
