Marshall ML-702-V2 Dual 7-Inch Rackmountable 1920 x 1200 LCD Video Monitor with HDMI/3G-SDI and Composite Inputs

ITEM #: MAR-ML-702-V2 MFG #: MAR-ML-702-V2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Marshall Electronics
Free Shipping with $49 Minimum Order

List Price:

$945.29

Our Price:

$850.76

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

MAR-ML-702-V2 - Overview

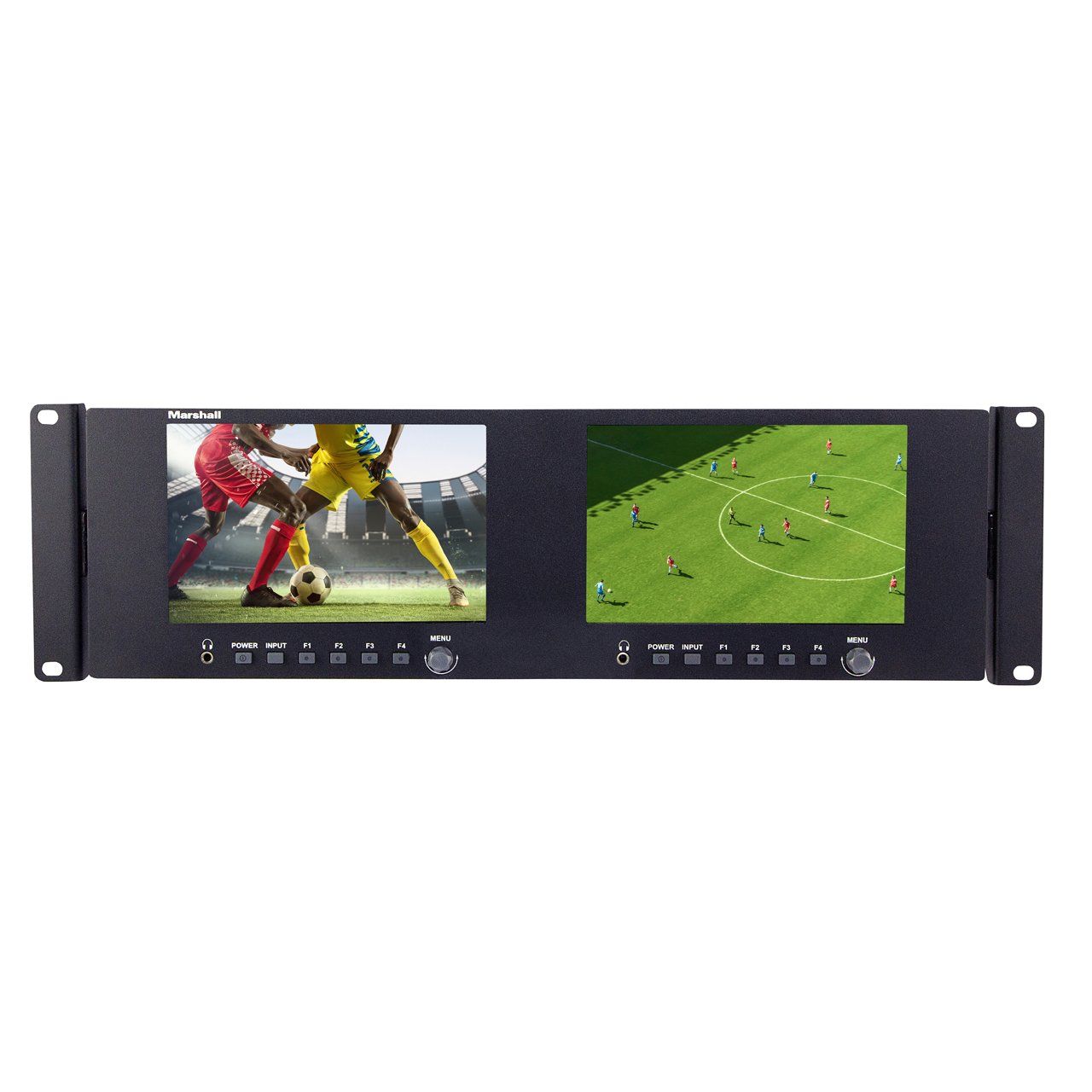

7" Rackmountable 3RU monitor with 3G-SDI, HDMI, and Composite

The Marshall ML-702-V2 is a Dual 7" 3RU LCD professional broadcast monitor with a feature-packed, economical solution perfect for fly-packs, control rooms, routing rooms, and countless other video system applications. Looping video inputs set this product apart from similar-looking products. Standard power and tally connections and a logical menu structure make this display an easy choice for flexible system designs.

Dual Full HD Screens
Two High-Definition screens with excellent color rendition and stability. Adjustable back light compensates for different viewing environments.

Great Off-Axis Performance
Excellent angle of viewing allows the user to position the rack in any number of physical locations.

  • Features:

    • Dual 7" with 1920 x 1200 resolution, typical brightness 420 cd/m² and contrast 1200:1
    • Each screen supports SDI, HDMI, CVBS (with analog audio) Inputs, all with looping outputs
    • SDI supports up to 3G-Level A, HDMI supports up to 3840 x 2160p30 and 4096 x 2160p30
    • Two bar audio overlay
    • Main features include:
      - Compact size
      - Tilting rack mount
      - Dual power inputs

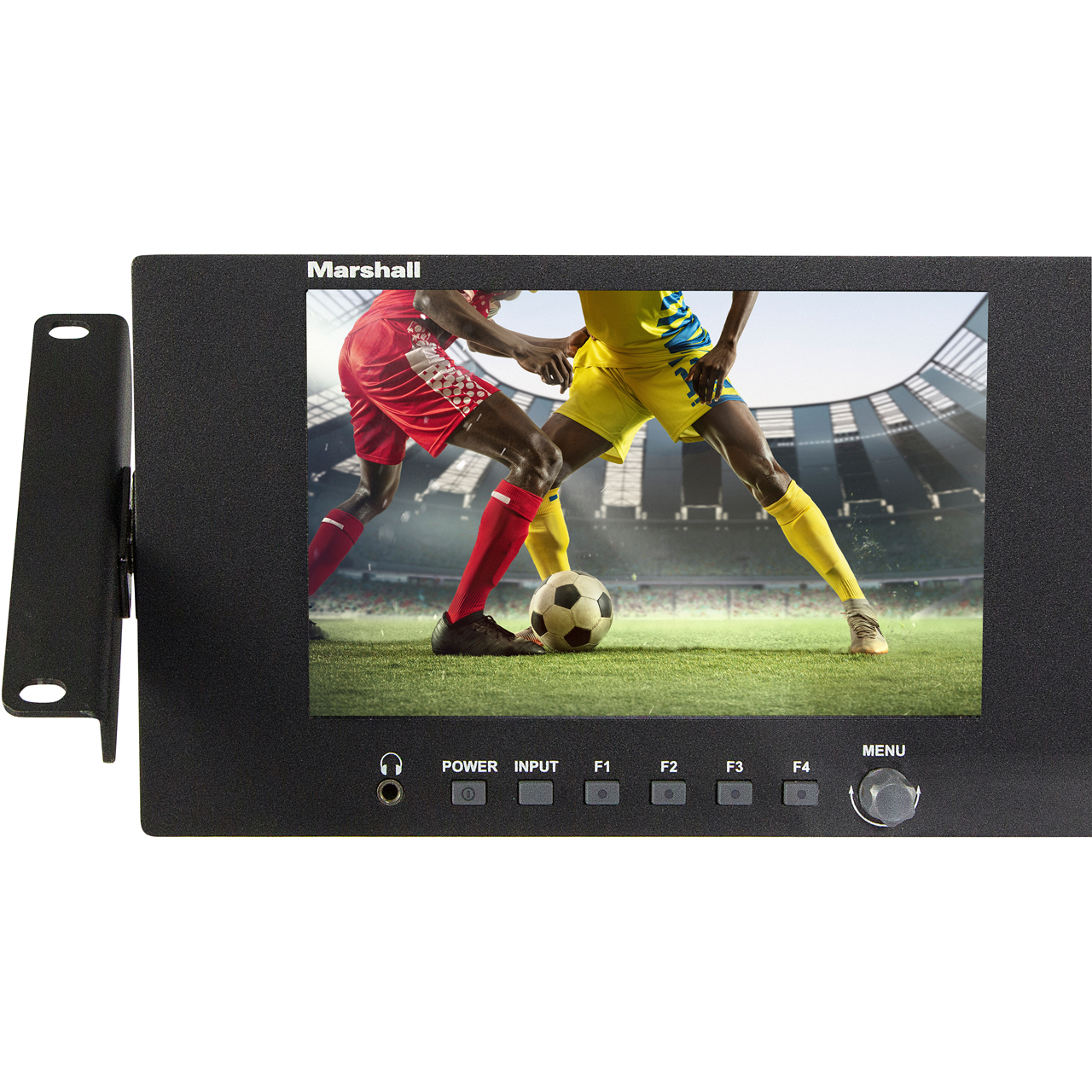

      - Front panel control plus Ethernet control
      - Bright displays with very good viewing angle
      - Four User-defined function buttons
      - Front panel headphone jacks
      - On-screen Tally borders
      - Histogram, marker, focus peaking and more


  • Specifications:

    • Number of Panels: 2
    • Panel Size: Dual 7" Diagonal, 3RU high
    • Resolution (Pixels): 1920 x 1200
    • Aspect Ratio: 16:10
    • Viewing Angle: 160°/160° (H/V)
    • Brightness: 420cd/m2
    • Contrast Ratio: 1200:1

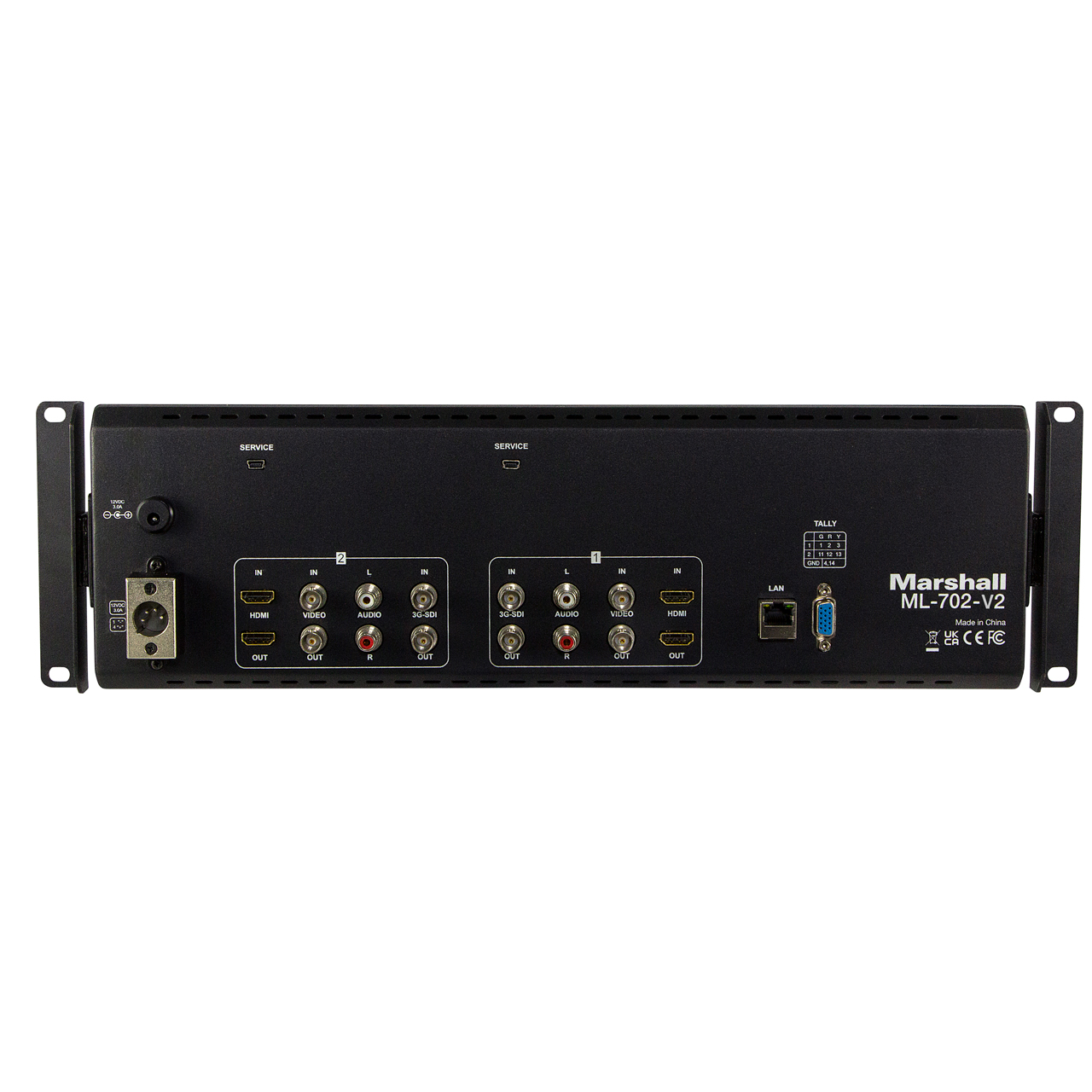

    • Digital Video Inputs:
      - 3G-SDI with loop out (conforms to SMPTE-292M, 259M, 424M)
      - HDMI 2.0 with loop out
    • Analog Video Inputs:
      - CVBS (Composite) with loop out (RCA-type)
      - Analog Stereo Audio (RCA-type)
    • Compatible Input Formats:
      - SDI/HDSI/3G-SDI: 525i 59.94/625i 50/ 720p 24, 25, 29.97, 30, 50, 59.94, 60/1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60, 1080i 50, 59.94, 60
      - HDMI: 480i, 480p 59.94/576i/576p 50/720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60/1080i 50, 59.94, 60/1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60, 3840/4096 23.98, 24, 25, 29.97, 30p
      - CVBS: 480i 59.94/576i 50

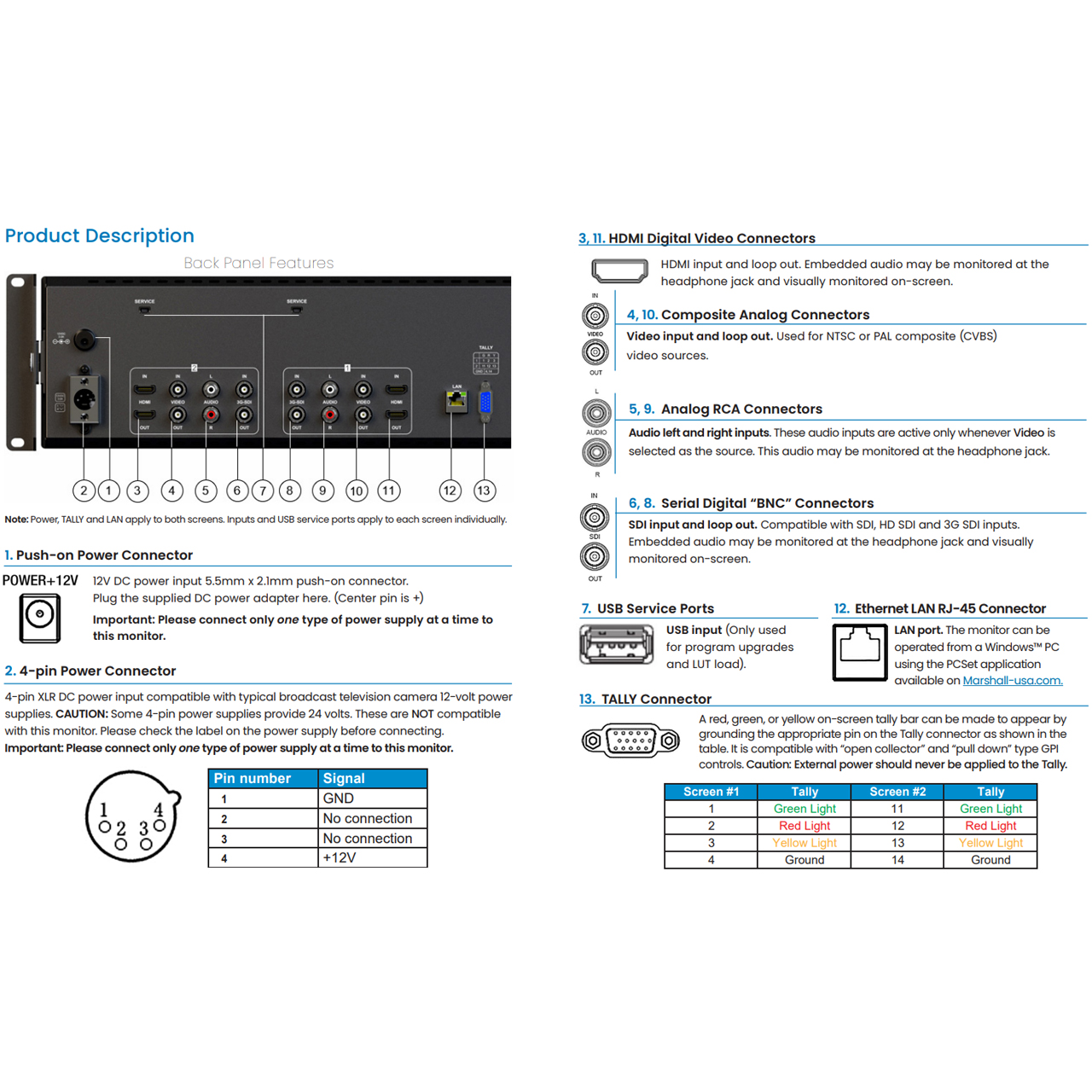

    • Control Inputs:
      - RJ-45 for Ethernet Control
      - 9-pin D-Sub for GPI Tally Control
      - Mini USB Service Port
    • Power: 12 Volts DC @ 1.6 Amps (12V - 24V DC range) via XLR 4-pin or 5.5mm x 2.1mm push-in coaxial jack
    • Dimensions: 19" W x 5.26" H x 2.1" D (481.9mm x 133.5mm x 53.4mm)
    • Weight: 5lbs (2.27kg)


  • Item Includes:

    • 1x DC 12V 3A Universal 120/240 VAC 50/60 Hz Power adapter with 5.5mm x 2.1mm push connector
    • 1x Tally kit - adapts 15-pin Tally connector to solderless terminal block
