V-702W-12G-V2 - Overview

The Marshall V-702W-12G-V2 dual 7" LCD Display is a feature-packed, solution perfect for remote production trucks, fly-packs, control rooms, routing rooms and countless other video system applications. Based on the Marshall V-702W model, the 12G-SDI inputs provides low latency and eliminates the need for outboard down conversion.

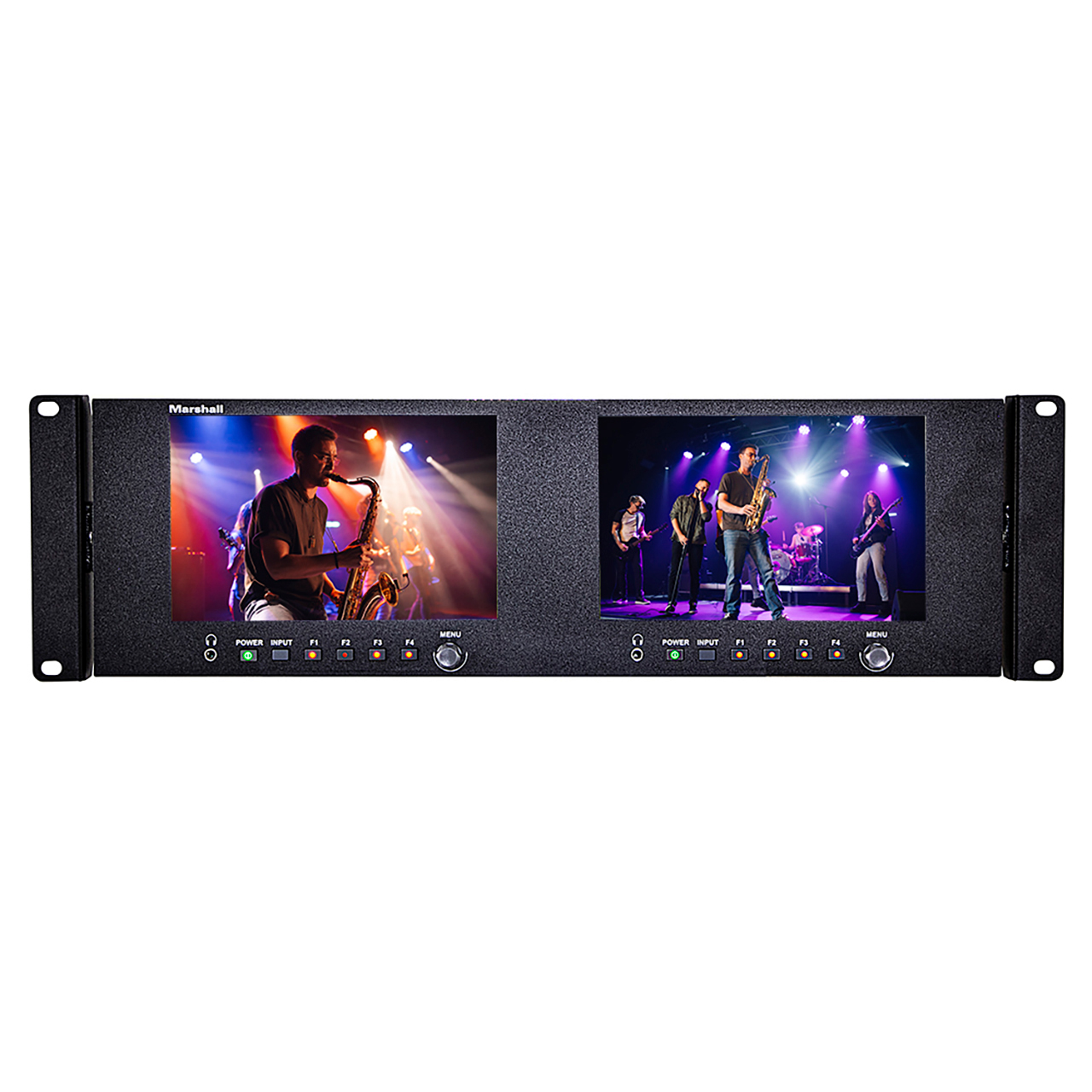

Dual Full HD Screens
Two High-Definition screens with excellent color rendition and stability. Adjustable back light compensates for different viewing environments.

Split-Screen Comparison
Compare HDR, Gamma and S-Log scene corrections side-by-side. See "before and after" effect in real-time.

Great Off-Axis Performance
Excellent angle of viewing allows the user to position the rack in any number of physical locations.

Features:
- 12G-SDI input low latency, eliminates external downconverter
- Two 7" diagonal displays
- Front panel controls give access to all functions
- Remote controllable via Ethernet. PCSet Control App available
- Red, Green, Yellow on-screen tally. Control via GPI or Ethernet

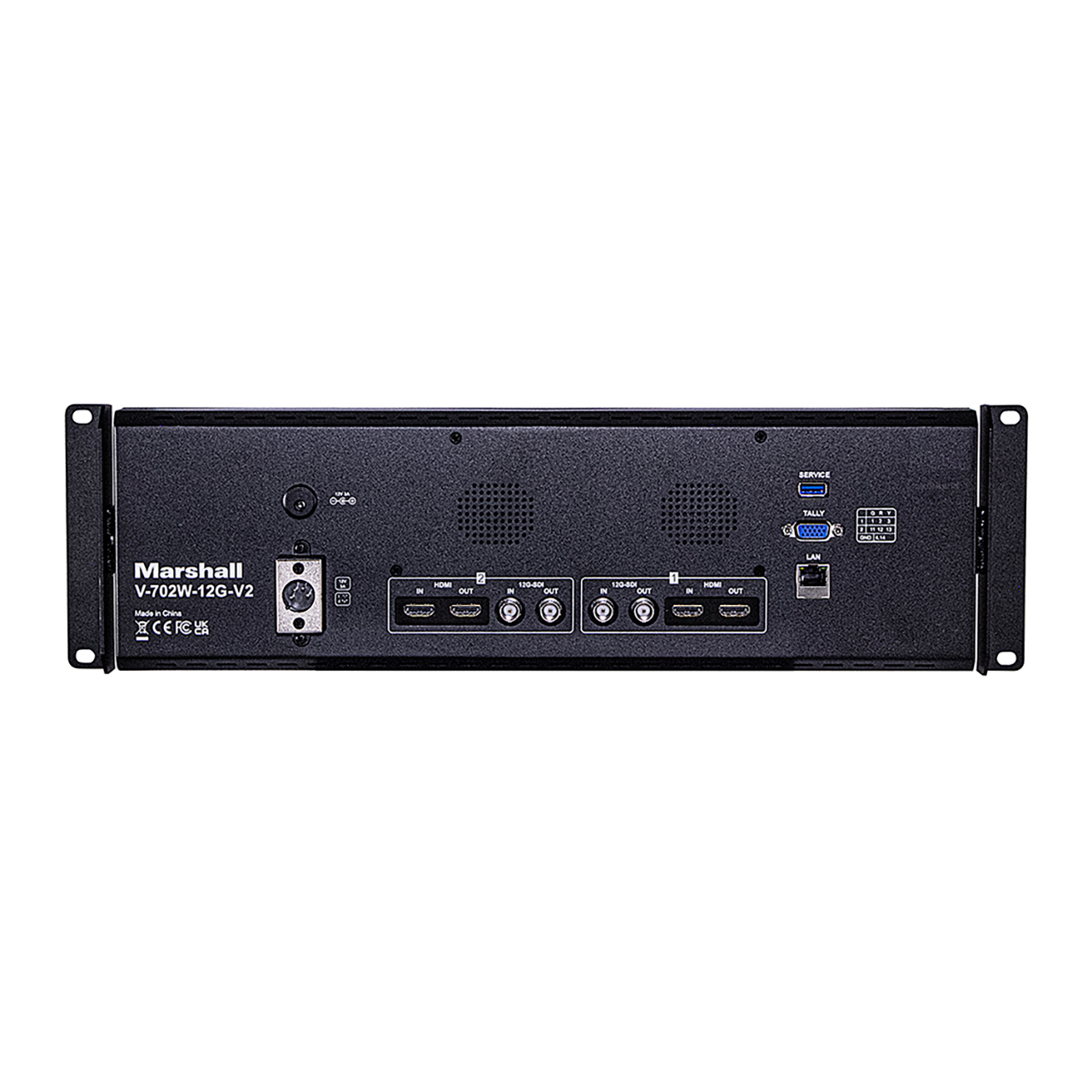

- All inputs have looping outputs allowing for flexible system design

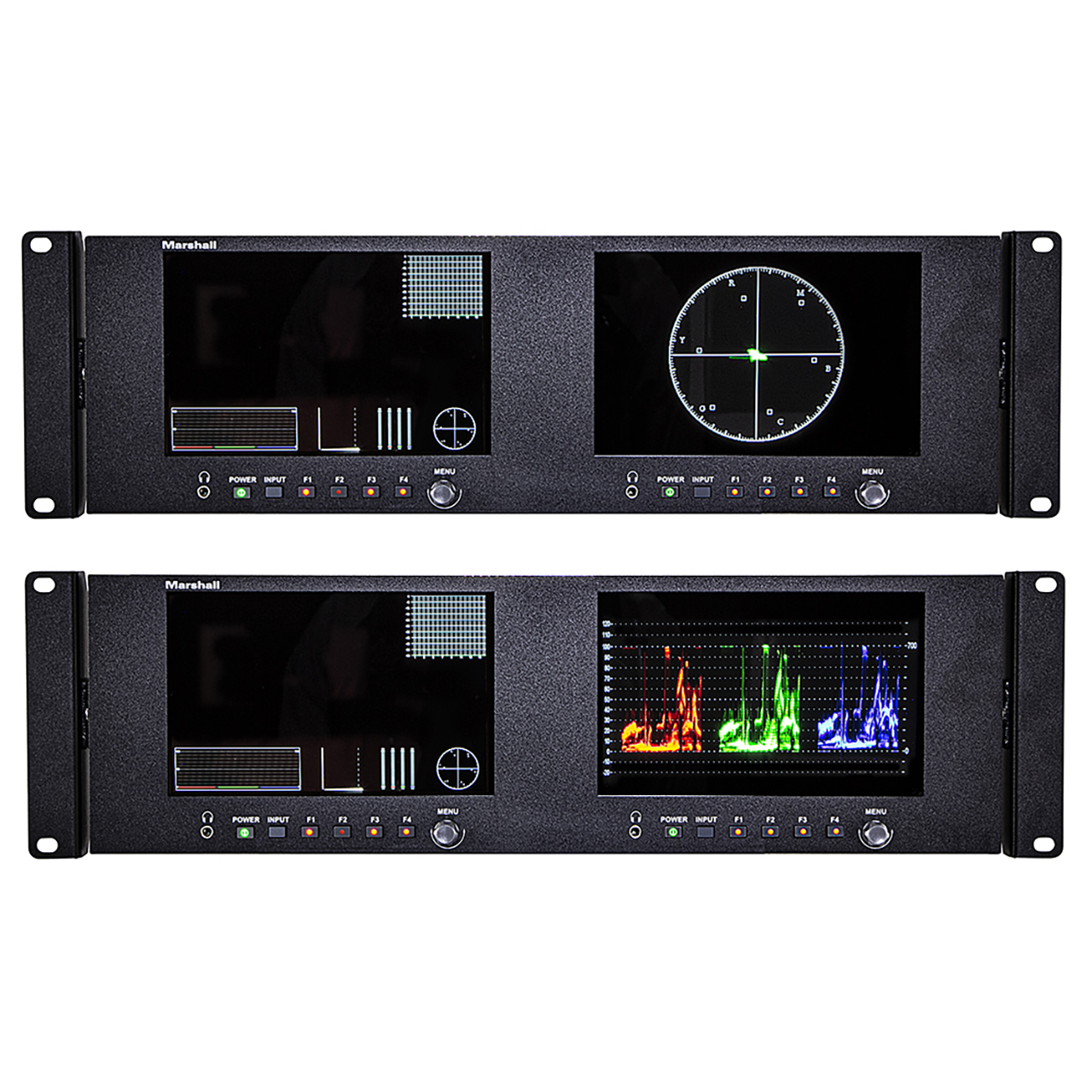

- Waveform, Vector, Histogram, HDR, S-LUT and User LUT's
- Timecode Display (VITC & LTC modes)
- Four user Function buttons

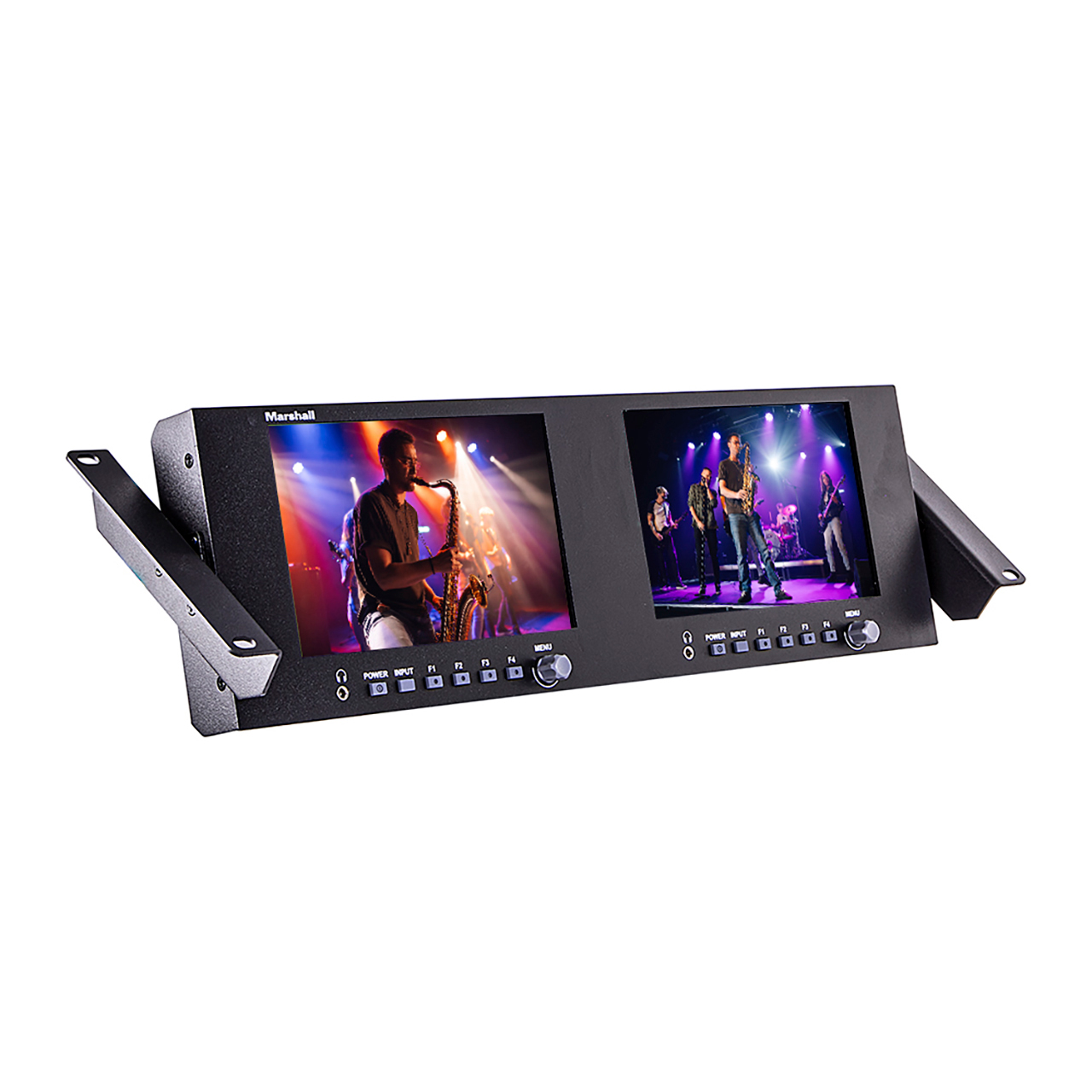

- Tilting mount. Adjust for optimum viewing or accessing back panel
- Headphone jack to monitor embedded stereo audio
- Firmware update via USB drive
Specifications:
- Number of Panels: 2
- Screen: 2" x 7" LCD
- Chassis: 3 RU
- Resolution: 1920 x 1200
- Aspect Ratio: 16:10
- Viewing Angle:
  - Horizontal: +80°/-80°
  - Vertical: +80°/-80°
- Brightness: 450 cd/m2
- Contrast Ratio: 1200:1
- Video Input:
  - 2x 12G/3G/HD/SD-SDI
  - 2x HDMI
- Video Loopout:
  - 2x 12G/3G/HD/SD-SDI
  - 2x HDMI

  Input Formats
- SDI:
  - SD: 480i 59.94/576i 50
  - HD: 720p 25/29/30/50/59.94/60
  - 1080i 50/59.94/60
  - 1080p 23.98/23.98sf/24/24sf/25/29.97/30
- 3G Level A:
  - 1080p50/59.94/60/23.98/23.98sf/24/24sf/25/25sf/29/29.97sf/30/30sf
  - 1080i 50/59.94/60
- 12G:
  - 3840/2160p 23.98/24/25/29.97/30/50/59.94/60
  - 4096x2160p 23.98/24/25/29/30/50/59.94/60
- HDMI:
  - 480i 59.94/480p 59.94/576i 50/576p 50
  - 720p 25/29.97/30/50/59.94/60
  - 1080i 50/59.94/60
  - 1080p 23.98/24/25/29.97/30/50/59.94/60
  - 3840x2160p 23.98/24/25/29.97/30/50/59.94/60
  - 4096x2160p 23.98/24/25/29.97/30/50/59.94/60
  - 640x480 60
  - 800x600 60
  - 1024x768 60
  - 1280x768 60
  - 1360x768 60
  - 1280x960 60
  - 1280x1024 60
  - 1400x1050 60
  - 1600x1200 60
  - 1920x1200 60
- Audio In: Embedded Audio from SDI and HDMI
- Audio Output:
  - SDI and HDMI embedded audio from 3.5mm headphone jack
  - Embedded audio from SDI and HDMI loopout
- Control:
  - On-screen tally from 15-pin D-Sub port
  - GUI control via Ethernet

  Other
- Power Supply: DC 10.8V - 24V (Typical 12V), 21W (Typical)
- Storage Temperature: -4°F - 140°F (-20°C - 60°C)
- Operating Temperature: 32°F - 122°F (0°C - 50°C)
- Dimensions (WxHxD): 19" x 5.26" x 2.42" (481.8mm x 133.5mm x 61.4mm)
- Weight: 5.35lbs (2.43kg)
- Features: Color space, camera log (default log and user log), Gamma adjust, HDR, safety marker, aspect marker, center marker, marker color, scan modes, aspect ratio, H/V delay, check field, image freeze, Image flip, waveform, vectorscope, peaking color, peaking level, false color, exposure level, histogram, time code, audio meter, 4 user defined function buttons
Item Includes:
- 1x V-702W-12G-V2 monitor
- 1x DC 12V 3A Universal 120/240 VAC 50/60 Hz Power adapter with 5.5mm x 2.1mm push connector
- 1x TALLY kit - plug in module adapts 15-pin connector to solderless terminal block
