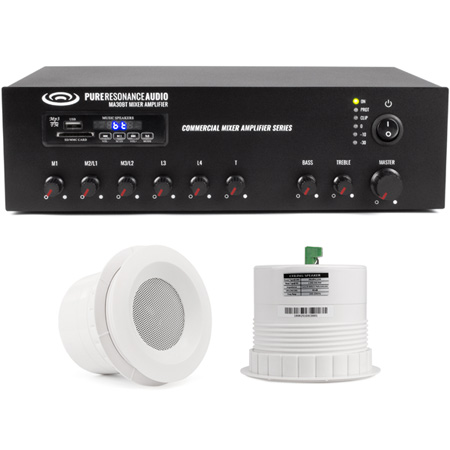

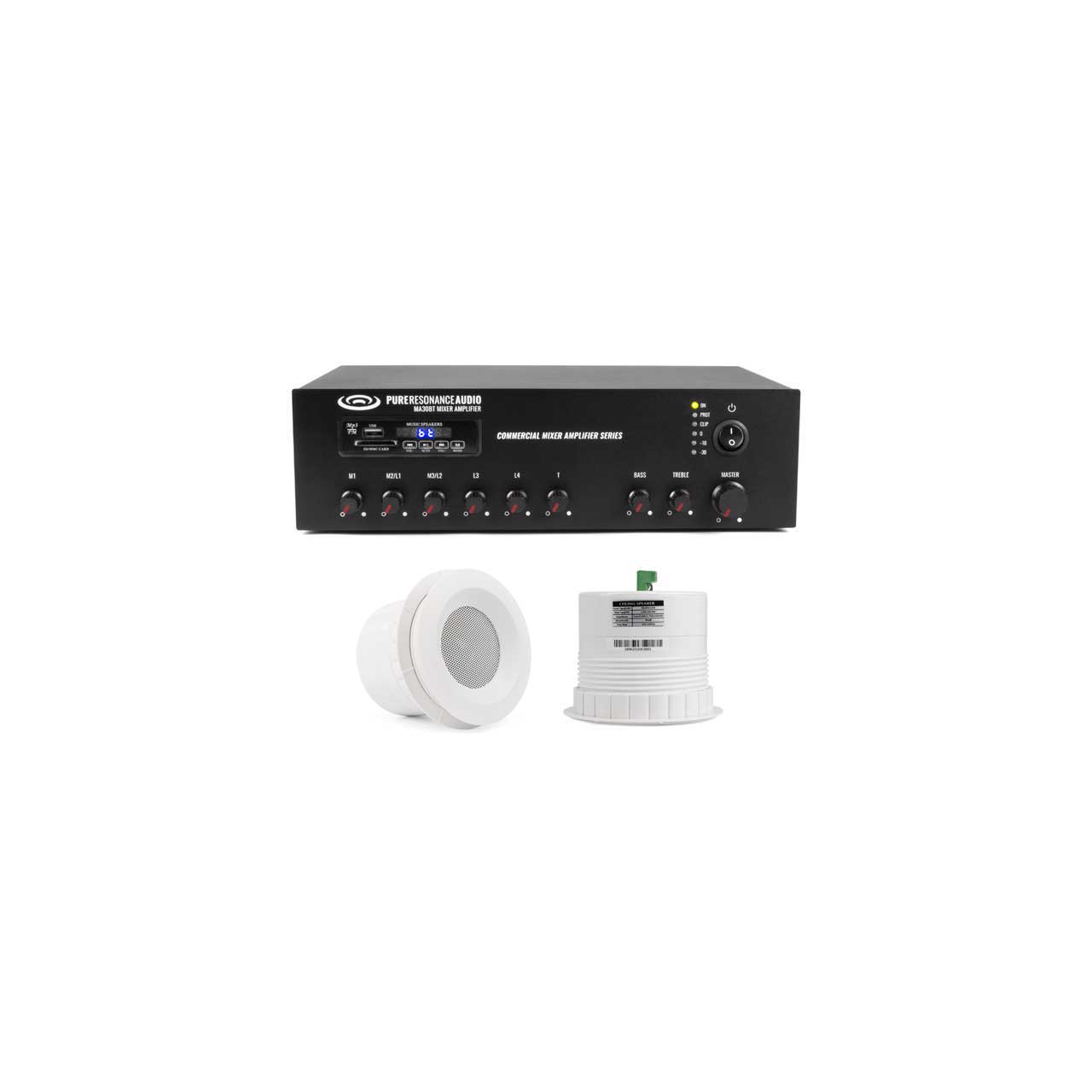

Pure Resonance Audio MDSS-2C3MA30BT Auxiliary System with 2 C3 Speakers & Amplifier with Bluetooth

ITEM #: MDSS-2C3MA30BT MFG #: MDSS-2C3MA30BT

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$589.99

Our Price:

$493.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    MDSS-2C3MA30BT - Overview

    Auxiliary Area Sound System With Bluetooth
    Provide excellent background music, paging for your hospital or clinic auxiliary spaces such as doctors' offices, nurses' stations, labs, hallways and corridors. Music in healthcare can provide powerful benefits for patients and staff. If you're looking for a stylish, easy-to-operate, high-quality music and paging system, they got you covered. This medical auxiliary speaker system has everything you need to provide excellent background music, paging, and ambient sound.

    Pure Resonance Audio MDSS-2C3MA30BT auxiliary area speaker system is perfect for playing background music, but it can do a lot more than that! Connect a handheld or push-to-talk paging microphone to use this sound system for paging doctors and patients or making important announcements.

    The 30W mixer amplifier allows you to play from multiple sources, hook up your Bluetooth-enabled device, connect an MP3 player, USB thumb drive, SD card or simply play music with the built-in FM radio. You can easily control the music and volume from a distance with the included infrared remote control. Help anxious patients relax before a procedure or provide music therapy to improve patient moods or decrease discomfort.

    This healthcare auxiliary sound system includes two small-but-mighty C3 3" ceiling speakers with quick and Easy-Mounting threaded mounting rings to provide secure and clean installation into ceiling tiles and other ceiling types. Its stylish design seamlessly blends into your ceiling to compliment any decor. Also included is the MA30BT 30 watt Bluetooth mixer amplifier, a reliable 6-input solution with built-in Bluetooth and FM radio.

    • Features:

      • Pure Resonance Audio C3 3" Micro Ceiling Speaker with Easy-Mounting Ring
      • Compact and lightweight
      • Smallest possible footprint while maintaining powerful quality sound
      • Intelligent, stylish design that seamlessly blends into the ceiling
      • Power tap transformer switch for selectable 8 ohm or 70V/100V operation for commercial applications
      • Tap settings: 70V: 8 ohm, 1.5W, 3W, 5W - 100V: 8 ohm, 3W, 6W, 10W
      • Quick & easy installation with threaded mounting ring
      • Perfect for background music in offices, retail stores, restaurants, hotels, foyers, and auxiliary spaces

        Pure Resonance Audio MA30BT 7-Channel Mixer Amplifier with Bluetooth
      • 7-channel powered mixer amplifier (6 inputs + Bluetooth Media Player)
      • Volume Controls for Mic 1-3, Line 1-2, MP3/FM Radio, Bass, Treble and Master
      • MP3 Player, FM Radio & Bluetooth (with IR remote control)
      • USB and SD inputs on front panel
      • Power output rating 30 Watts
      • Built-in 70V/100V transformer
      • Speaker outputs: 70V, 100V, 4, 8 and 16 Ohms
      • Mic 1 of balanced XLR input (with phantom power)
      • Mic 2-3 microphone or line switchable
      • Line 1-2 input of RCA inputs
      • DIP switches for Mic/Line, phantom power and microphone priority
      • Unbalanced 6.3 mm phone jack input
      • One RCA line output (0.775 line level 0 dBV)
      • Telephone input (600 Ohm/100mV) with VOX priority and MOH (Music on Hold) (600 Ohm 1 Volt)
      • LED indicators for power clip, protect signal, Mic 1-3, Line 1-2 and telephone inputs
      • Short-circuit, clip, overload and high temp protection
      • 24 VDC Emergency backup supply
      • 115V 60 Hz & 24V DC both operation system

    • Specifications:

      • C3 Ceiling Speaker
      • Frequency Response: 120Hz - 20kHz
      • Low Frequency (-10 dB): 180 Hz - 20 kHz
      • Impedance: 8 Ohms with 70V transformer (built-in)
      • Maximum Input Voltage: 17 dBV (7.1V, 6W into 8Ω)
      • Power Taps @ 70V: 1.5W/3W/5W
      • Power Taps @ 100V: 3W/6W/10W
      • Transducer: Full-range 3" driver
      • Nominal Coverage Angle: 130° Conical Coverage
      • Cutout Size: 4.25" (107.95 mm)

        MA30BT Mixer Amplifier
      • Rated Power Output: 30W
      • Speaker Outputs: 70V, 100V and 4 Ohms, 8 Ohms or 16 Ohms
      • Connectors:
        Mic 1 input by balanced XLR with phantom power
        Input 2-3 Mic/Line switchable unbalanced 6.3 mm phone jack
        Line 1-2 inputs by RCA; Line output by RCA
      • Frequency Response: 60Hz - 15kHz (±3dB)
      • Protection: Short-circuit, clip, overload and high temp protection

    • Item Includes:

      • 2x Pure Resonance Audio C3 3" Micro Ceiling Speakers with Easy-Mounting Rings
      • 1x Pure Resonance Audio MA30BT 30W Bluetooth Mixer Amplifier
      • 1x IR Remote Control
      • 1x Power Cord
      • 1x (50') Free 18/2 Gauge Speaker Wire

    • Warranty:

      • Speakers: 2 Years
      • Amplifiers & Electronics: 1 Year
      • Microphones: 1 Year
      • Accessories: 1 Year
