Magewell 32040 USB Capture HDMI Plus Dongle - USB 2.0/3.0 w/ Loop Out and Audio In/Out

ITEM #: MGW-32040 MFG #: 32040

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$359.00

Availability: In Stock
iAvailability Description Popup


    32040 - Overview

    ZOOM CERTIFIED HARDWARE! Zoom Certified Hardware has undergone comprehensive testing by Zoom to ensure you a seamless communication experience.

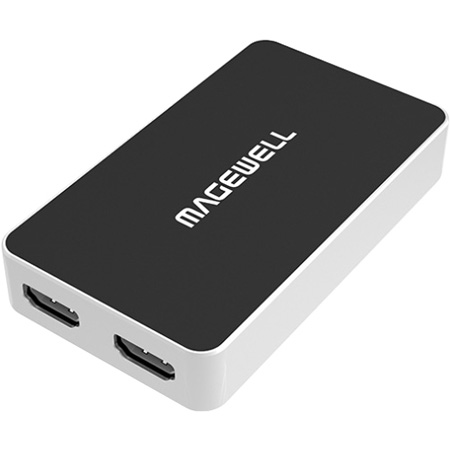

    With a ruggedized metal housing, the Magewell 32040 USB Capture HDMI Plus dongle is suitable for all kinds of mobile video capturing settings, even for outdoors. The dongle has support for 8/10/12-bit color depth, full colorimetry support, capture resolutions of up to 2048 x 2160 and frame rates of up to 120fps. It allows for full 8-bit video processing with features such as cropping, scaling, de-interlacing, aspect ratio, color format and frame rate conversion and vertical flip and mirror. It has an adaptive HDMI equalizer support for cables lengths up to 98ft.

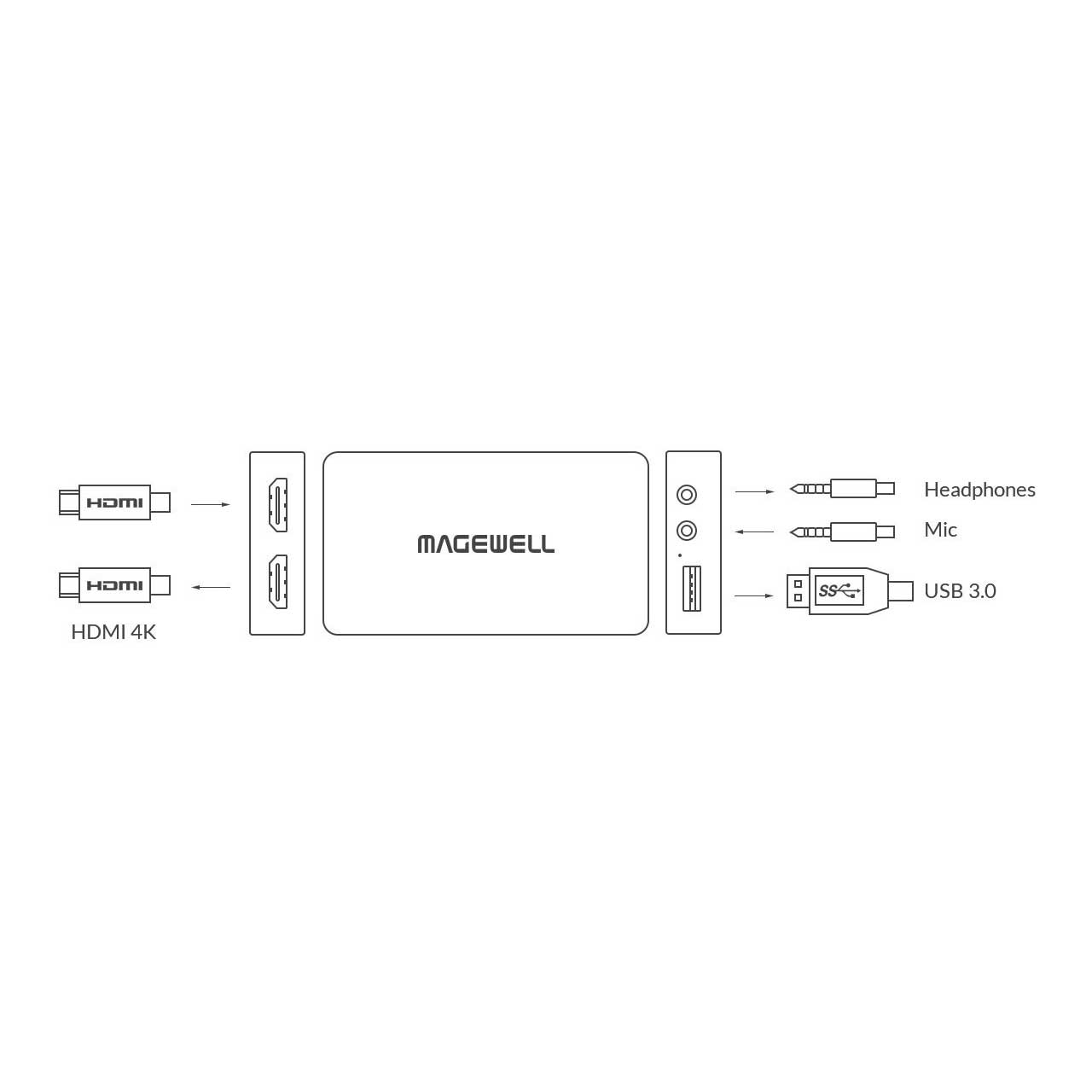

    With an HDMI 1.4 interface, it can capture signals from PS4 Pro, Xbox One, graphics cards, HD cameras (professional, sports, surveillance, video conference) and other devices. USB Capture HDMI Plus has an input interface as well as a loop through one, which enables monitoring the image while streaming/recording. Different audio input and output functions have also been added to the devices.

    The dongle uses a USB 3.0 interface and no external power is needed. It also supports USB 2.0, but the real-time frame rate will be reduced due to limited bandwidth.

    The device is compatible with most popular professional third party software for streaming, recording, video conferencing, video stitching, VJ, etc. It supports multiple Windows, Linux, Mac operating systems as well as Chrome operating system, Windows, Linux and Mac OS APIs and multiple software platforms such as vMix, Wirecast and Adobe Flash Media Encoder.

    • Features:

      • HDMI
      • 297MHz HDMI receiver
      • Adaptive HDMI equalizer support for cables lengths up to 98ft
      • Support for customized EDID
      • Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
      • Full colorimetry support
      • Support for up to 4096 x 2160 4:4:4/4:2:2 30fps or 4096 x 2160 4:2:0 60fps input signals
      • For 4:2:0 input signals, the horizontal and vertical resolution will be reduced to 1/2 for capturing
      • For 4:4:4/4:2:2 input signal at more than 170MHz, the horizontal resolution will be reduced to 1/2 for capturing
      • Support for 2 channel IEC60958 audio streams
      • Support for extraction of audio formation information & channel status data
      • Support for extraction of video timing information
      • Support for extraction of 3D format information
      • Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode

        Analog Audio
      • Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo mini-jack Line Out
      • Capture of analog audio via 3.5mm microphone interface
      • Playback audio via 3.5mm headphones interface
      • Support for recording the playback audio of the computer

      • Multiple Devices on One Host
      • Continuously Work for 24/7
      • High-Speed Memory
      • LED Status Indicator
      • Windows & Linux SDK
      • Capture HDMI + embedded audio
      • Loop-through HDMI signal
      • Audio input via mic
      • Extract HDMI embedded audio output via headphones
      • Support 4Kp60 4:2:0 input. Capture from the newest game consoles such as PS4 Pro and XBOX One S. Automatically down scale to 2K for recording or streaming

    • Specifications:

      • Supported OS
        Windows
      • Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
        Linux (support x86, x64 & ARM architecture)
      • Ubuntu 12.04/14.04/16.04/17.04/17.10 (x86 & x64)
      • CentOS 6.5/7 (x86 & x64)
      • Fedora 25/26/27 (x86 & x64)
      • Red hat 6.5 and above (x86 & x64)
      • Other Linux OS with kernel version 2.6.35 and above
        Mac
      • OS X 10.9/10.10/10.11
      • macOS 10.12/10.13
        Chrome OS

        Supported APIs
        Windows
      • DirectShow
      • Wave API/DirectSound/WASAPI
        Linux
      • V4L2
      • ALSA
        OS X/macOS
      • QuickTime
      • AV Foundation

        Supported Software
      • Zoom Certified
      • VLC
      • VirtualDub
      • OBS
      • XSplit
      • vMix
      • VidBlaster
      • Wirecast
      • Microsoft Media Encoder
      • Adobe Flash Media Encoder
      • Any other DirectShow, V4L2, QuickTime, AV Foundation based encoding or streaming software

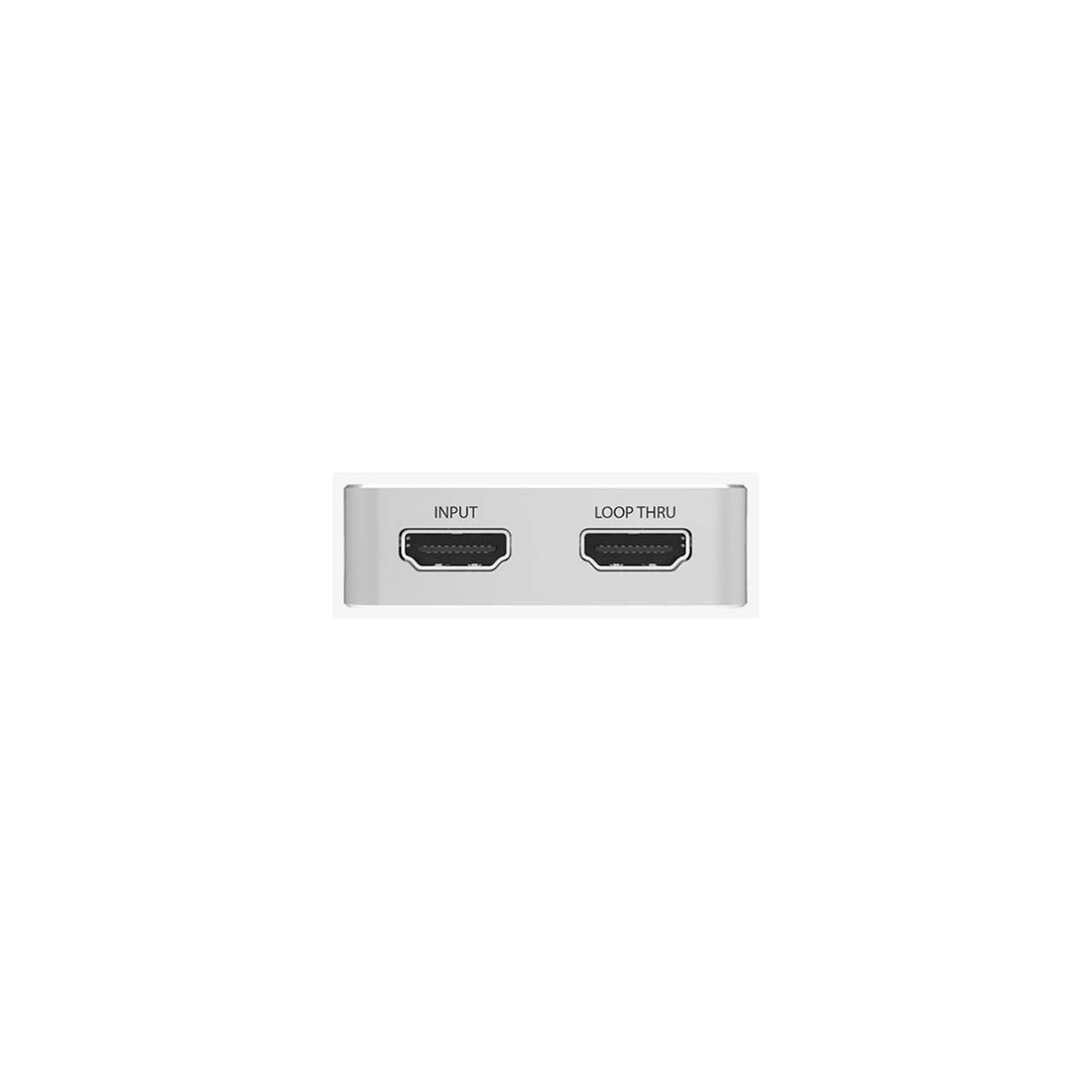

        Input Interfaces
      • HDMI: DVI-D 1.0, HDMI 1.4
      • 3.5mm Audio Jack: Microphone interface
      • Host Interface: USB 3.0 (compatible with USB 2.0, USB 3.1 Gen 1)

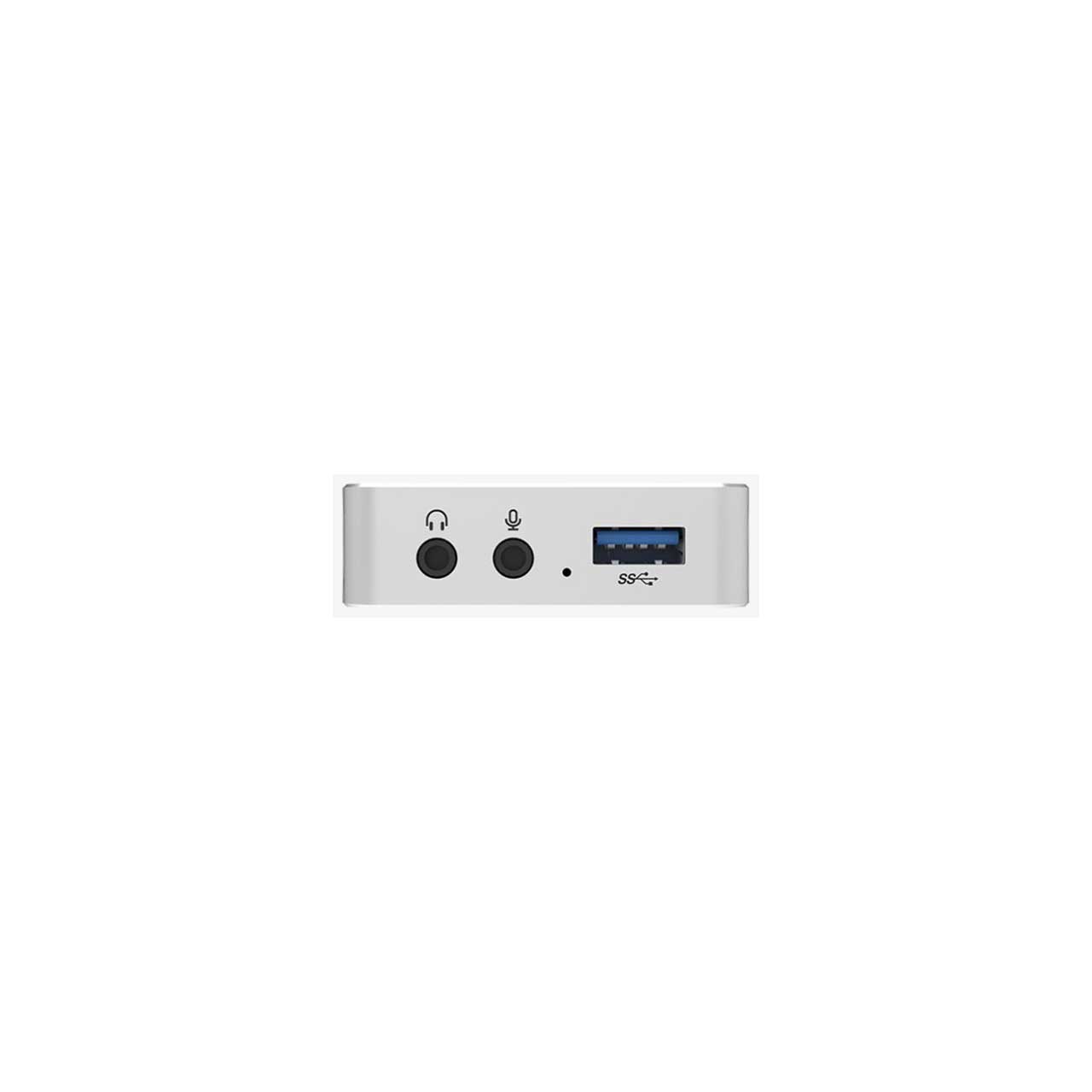

        Output Interface
      • 3.5mm Audio Jack: Headphones interface

        Loop-Through Interface
      • HDMI: DVI-D 1.0, HDMI 1.4

        Video Engine
      • 8-bit video processing
      • Deinterlace
      • Cropping
      • Color Adjustment
      • Color Space Conversion
      • Up/down Conversion
      • Aspect Ratio Conversion
      • Mirror and Flip

        Video Capture Format
      • Support for capture resolutions up to 2048 x 2160
      • Support for capture frame rates up to 120fps (Actual capture frame rate can be limited by the USB bandwidth and internal working frequency. Typical capture frame rates on the Intel USB3.0 controller are as follows.): 1920 x 1080 YUY2 (up to 70fps); 1920 x 1080 RGB24 (up to 60fps)
      • Support for YUY2 & UYVY 4:2:2 8-bit
      • Support for RGB24 & RGB32 4:4:4 8-bit
      • The default capture format is YUY2. More capture formats can be set using USB Capture Utility.

        SDK
      • The USB Capture SDK provide functions including signal status extraction, capture configuration, etc.

        Physical & Power
      • Form Factor: 98.1mm (L) x 56.8mm (W) x 17mm (H)
      • 5V Max Current: 900mA
      • Max Power Consumption: ~ 4.5W
      • Operating Temperature: 32°F - 104°F
      • Storage Temperature: -4°F - 158°F
      • Relative Humidity: 5% to 90% non-condensing

    • Item Includes:

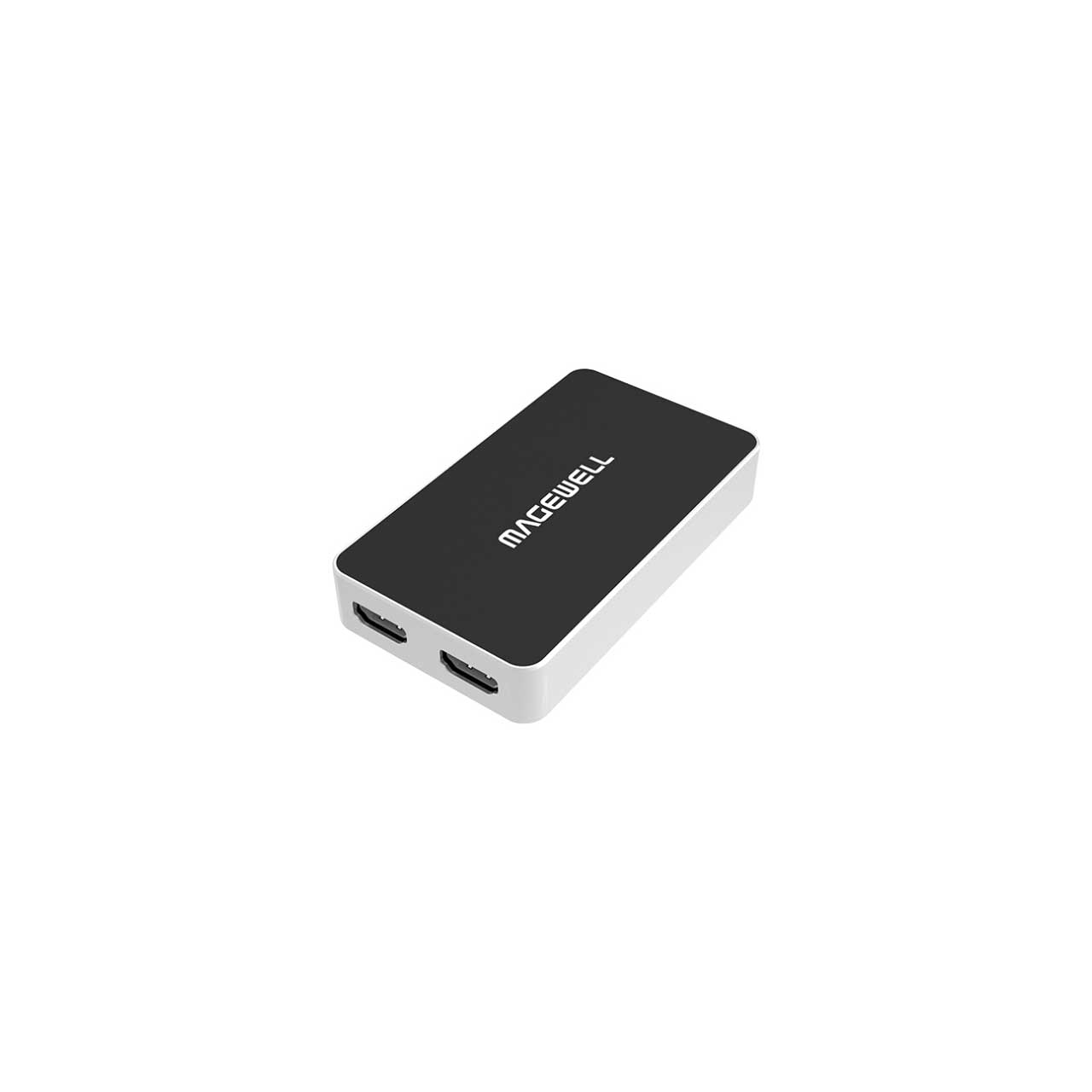

      • Magewell USB Capture HDMI Plus dongle

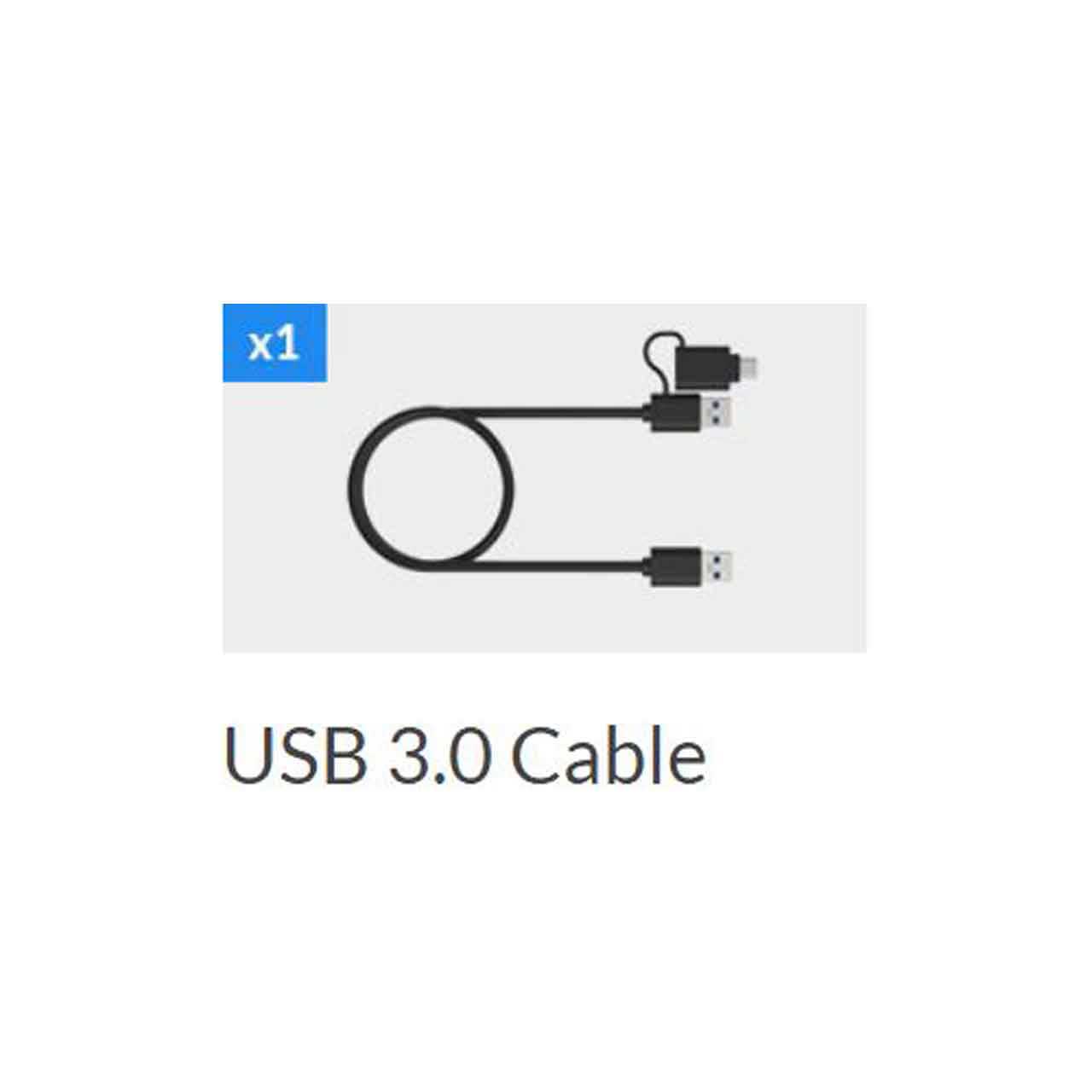

      • USB 3.0 cable

    • Warranty:

      • 3 year

    • GTIN:

      8143950200860
