Motu M64 MADI USB/AVB Audio Interface with MADI

ITEM #: MOTU-M64 MFG #: 9365

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Our Price:

$595.00

Availability: In Stock
iAvailability Description Popup


    9365 - Overview

    The M64 is a flexible MADI interface, router, repeater, splitter, converter and stand-alone mixer with AVB/TSN networking and connectivity to a host computer through class compliant, highspeed USB 2.0 (compatible with USB 3.0 and iOS).

    The M64 provides 64 channels each of optical MADI I/O, BNC (coaxial) MADI I/O, USB and AVB-TSN network I/O, plus a headphone output, for 514 simultaneous I/O channels. A convenient, assignable front-panel headphone output with volume control allows for convenient monitoring of any stereo channel pair.

    Powerful DSP delivers large console style mixing with 48 channels, 12 stereo busses, and 32-bit floating point effects processing, including modeled analog EQ, vintage compression and classic reverb. Matrix routing lets you quickly patch ins to outs, or split inputs to multiple destinations.

    Housed in a sturdy aluminum alloy half-rack enclosure, the M64 is ideal for routing 64-channel MADI streams in live performance systems, AVB/ TSN network installations or recording studios of any size.

    • Features:

      • 256 channels of MADI I/O
      • Flexible repeater, router, converter and splitter
      • Stand-alone operation with wireless control
      • Ultra-low latency and proven, high-performance MOTU drivers
      • Web app control from any device
      • Audio analysis tools

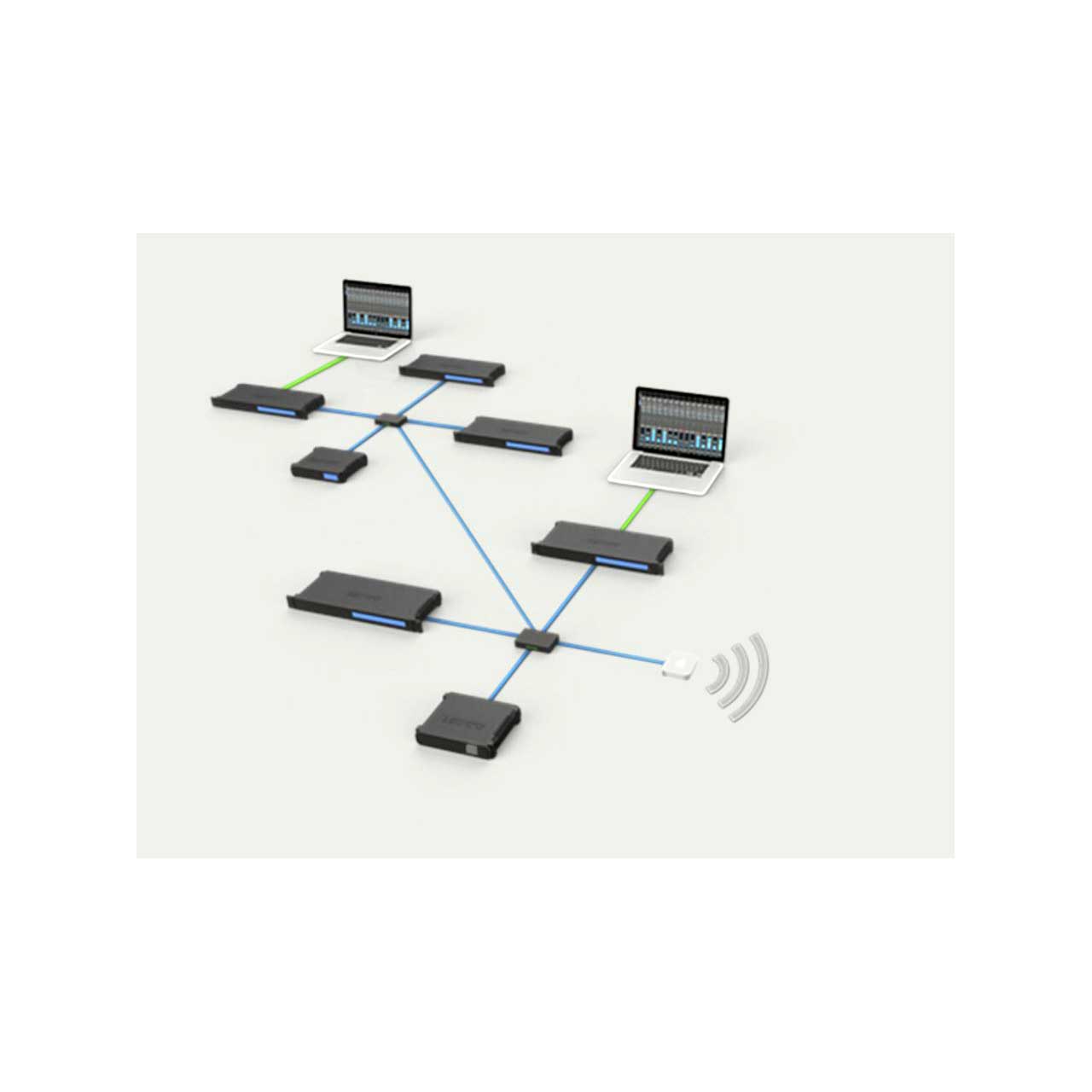

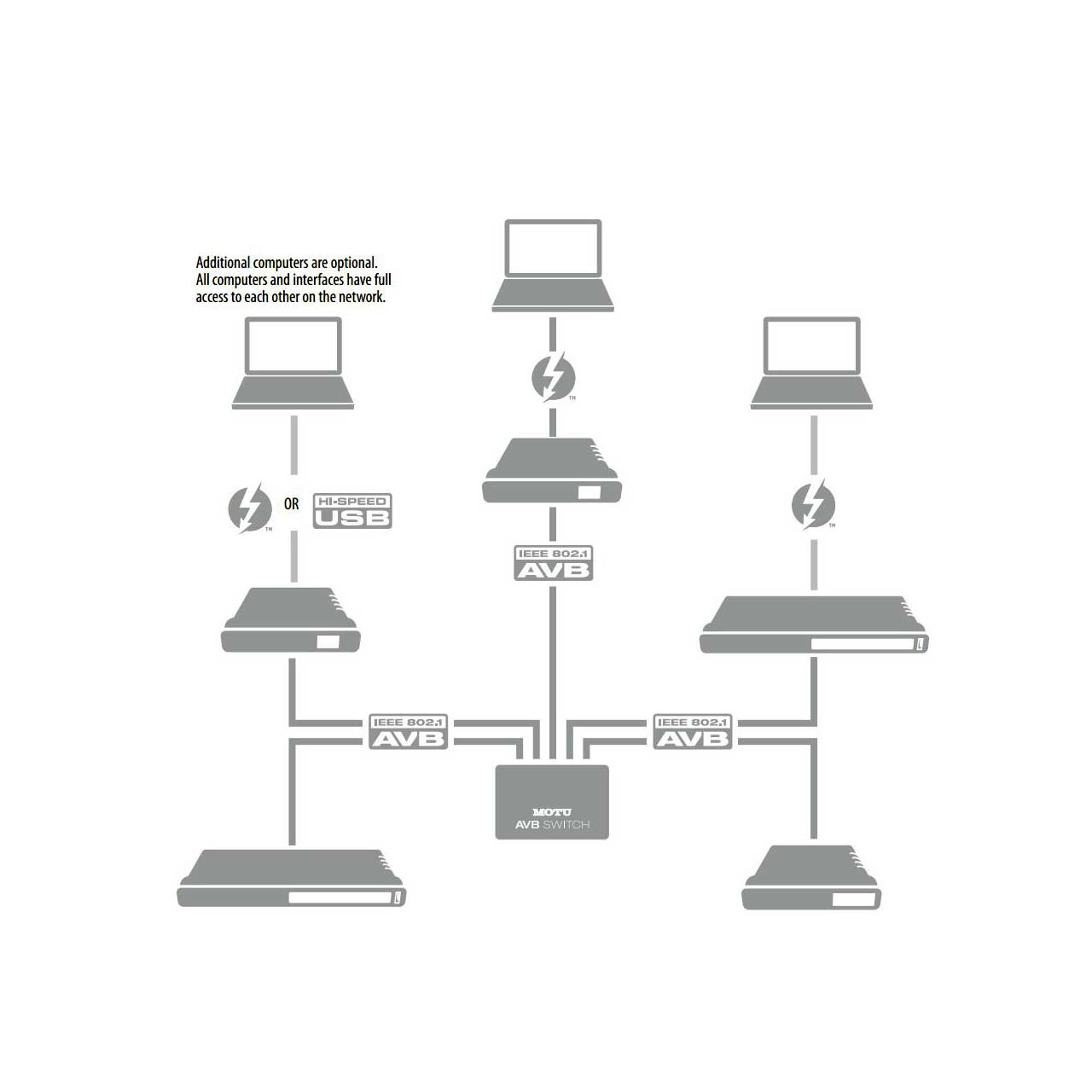

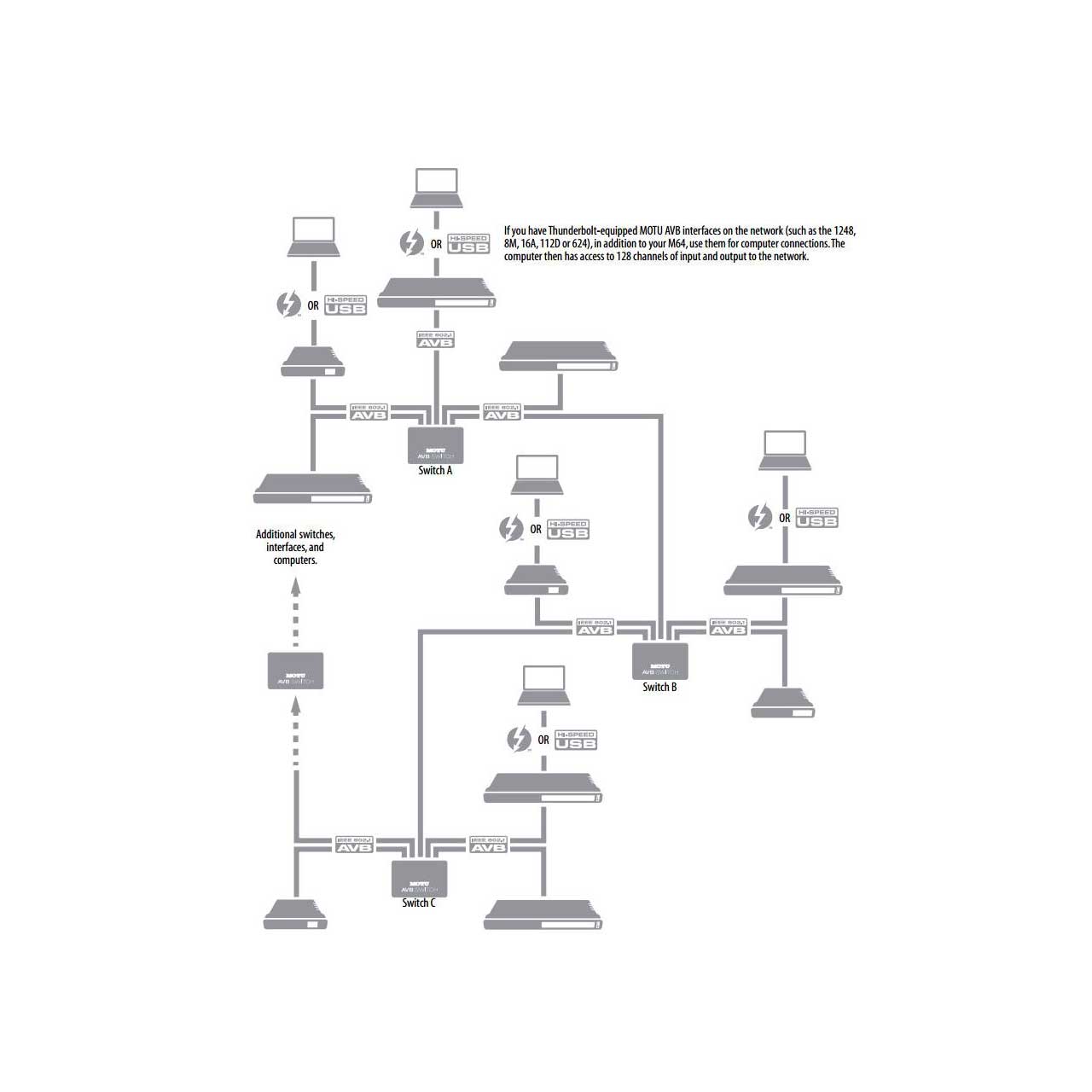

      • AVB-TSN audio networking
      • Convenient headphone monitoring

    • Specifications:

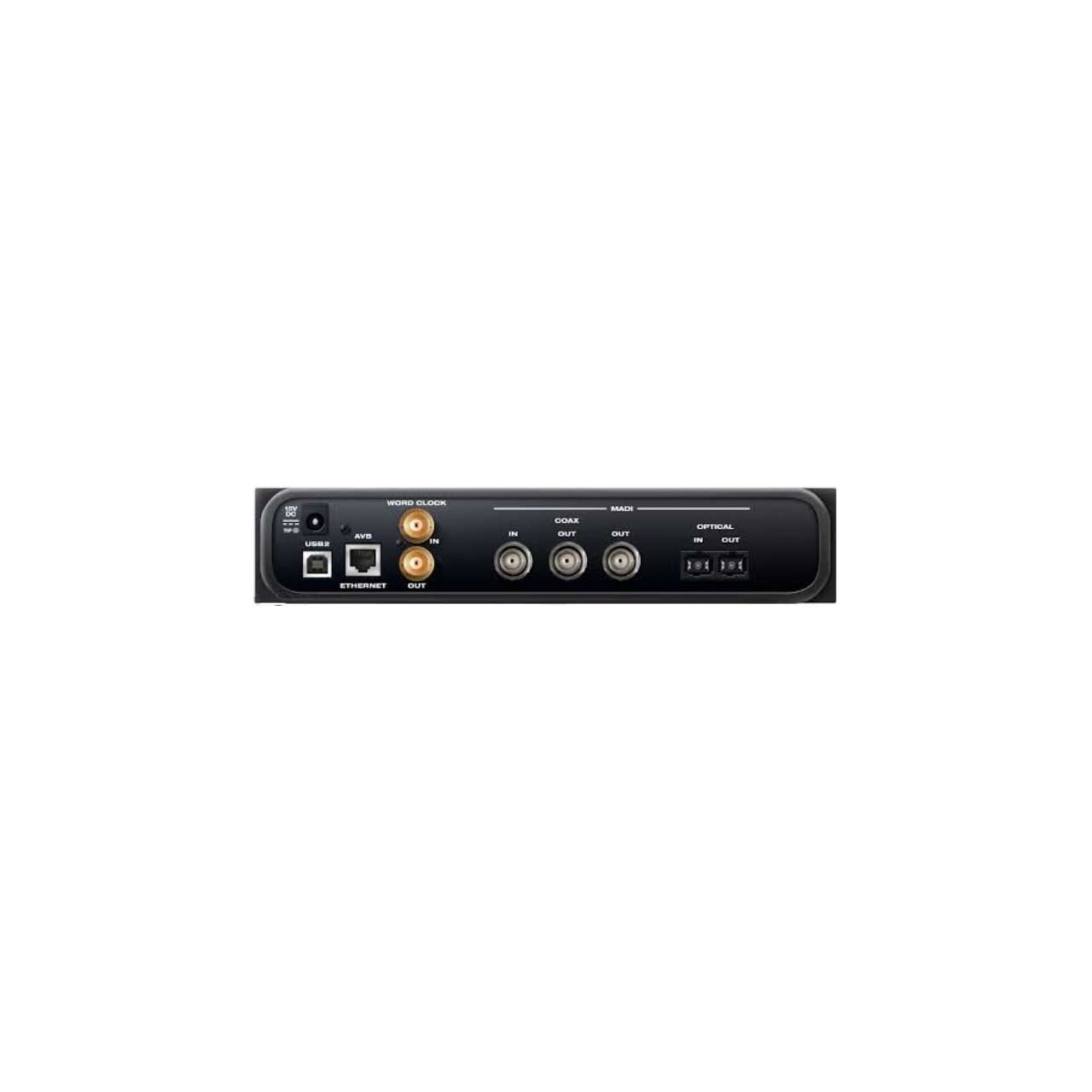

      • Digital I/O
      • 1x BNC MADI in
      • 2x BNC MADI out (mirrored)
      • 1x optical MADI in/out
      • 64/56 ch @ 1x, 32/28 @ 2x, 16/14 @ 4x

        Total I/O
      • 128 in / 128 out (256 total) at 1x sample rates
      • 64 in / 64 out (128 total) at 2x sample rates
      • 32 in / 32 out (64 total) at 4x sample rates
      • Computer I/O: 1x USB 2.0 audio class compliant / USB 3.0 and iOS compatible

        Computer I/O channels
      • 64 in/out at 1x (44.1 to 48 kHz)
      • 32 in/out at 2x (88.2 to 96 kHz)
      • 24 in/out at 4x (176.4 to 192 kHz)

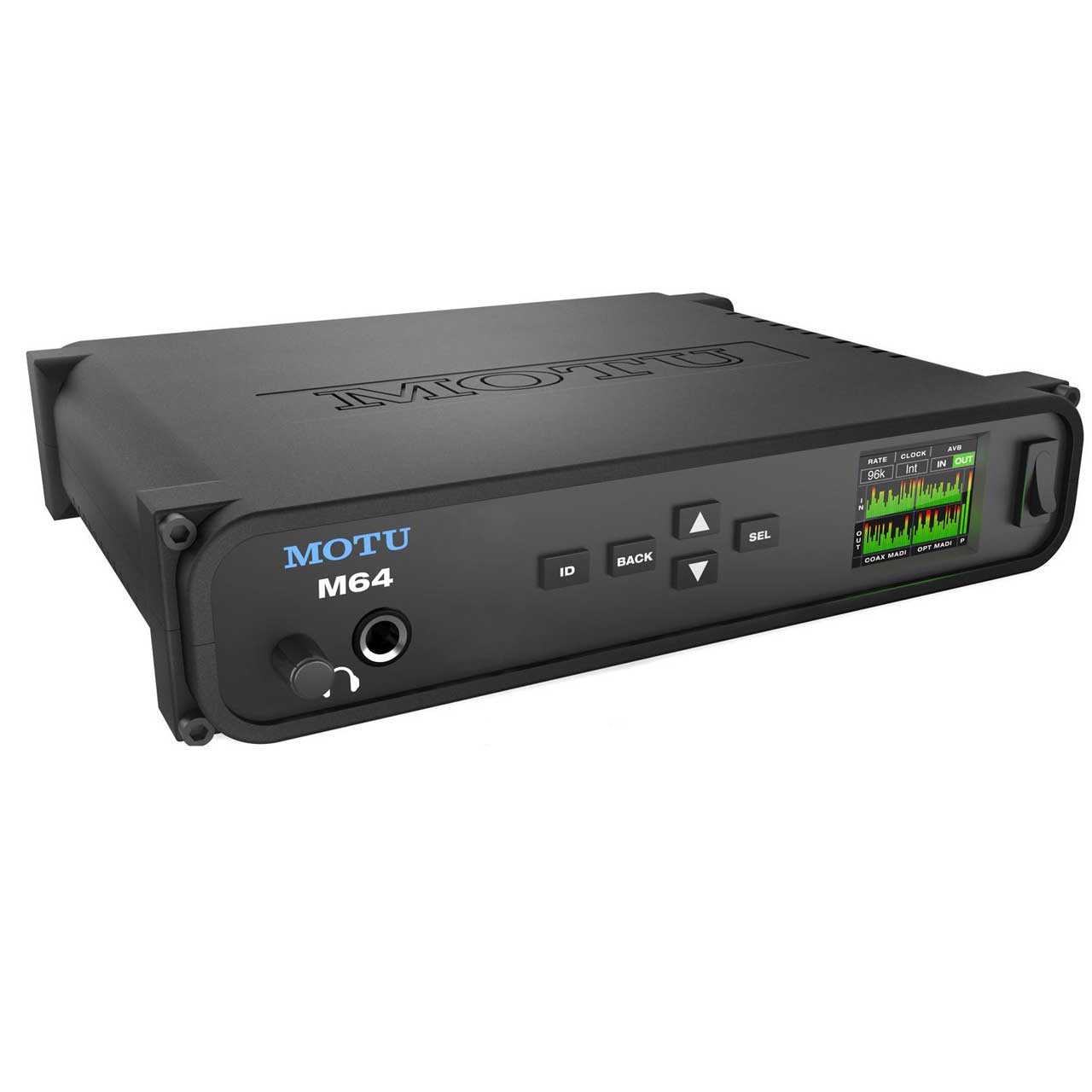

        Front panel
      • 1x - 1/4" TRS headphone output
      • 4x - switches for menu navigation
      • 160 x 128 RGB LCD for level meters / menu

        Mac System Requirements
      • 1 GHz Intel-based Mac or faster
      • 2 GB RAM; 4 GB or more recommended
      • Mac OS X version 10.8 or later
      • Available USB 2.0 or 3.0 port
      • A large hard drive (at least 500 GB for recording)

        Windows System Requirements
      • 1 GHz Pentium-based PC compatible or faster
      • 2 GB RAM; 4 GB or more recommended
      • Windows 7, 8 or 10
      • Available USB 2.0 or 3.0 port
      • A large hard drive (at least 500 GB for recording)

        Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
      • Headphone: 1 x 1/4" TRS stereo phone (assignable)
      • Power: External 12-18V DC power supply, 1.0A max, tip pos or neg
      • Dimensions(WxDxH): 8.6" x 7" x 1.75"
      • Weight: 2.0 lbs

    • Item Includes:

      • 1x - Audio interface
      • 1x - USB cable
      • 1x - DC power adapter
      • 1x - Rack mounting kit with brackets and screws
      • 1x - Manual
      • 1x - Product registration card

    • GTIN:

      0839128006072
