Matrix Switch MSC-SFPRX-HDMI HDMI SFP Input Module

ITEM #: MSC-SFPRX-HDMI MFG #: MSC-SFPRX-HDMI

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MSC-SFPRX-HDMI

MSC-SFPRX-HDMI - Overview

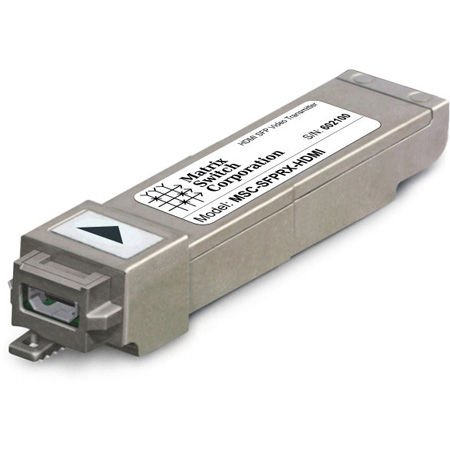

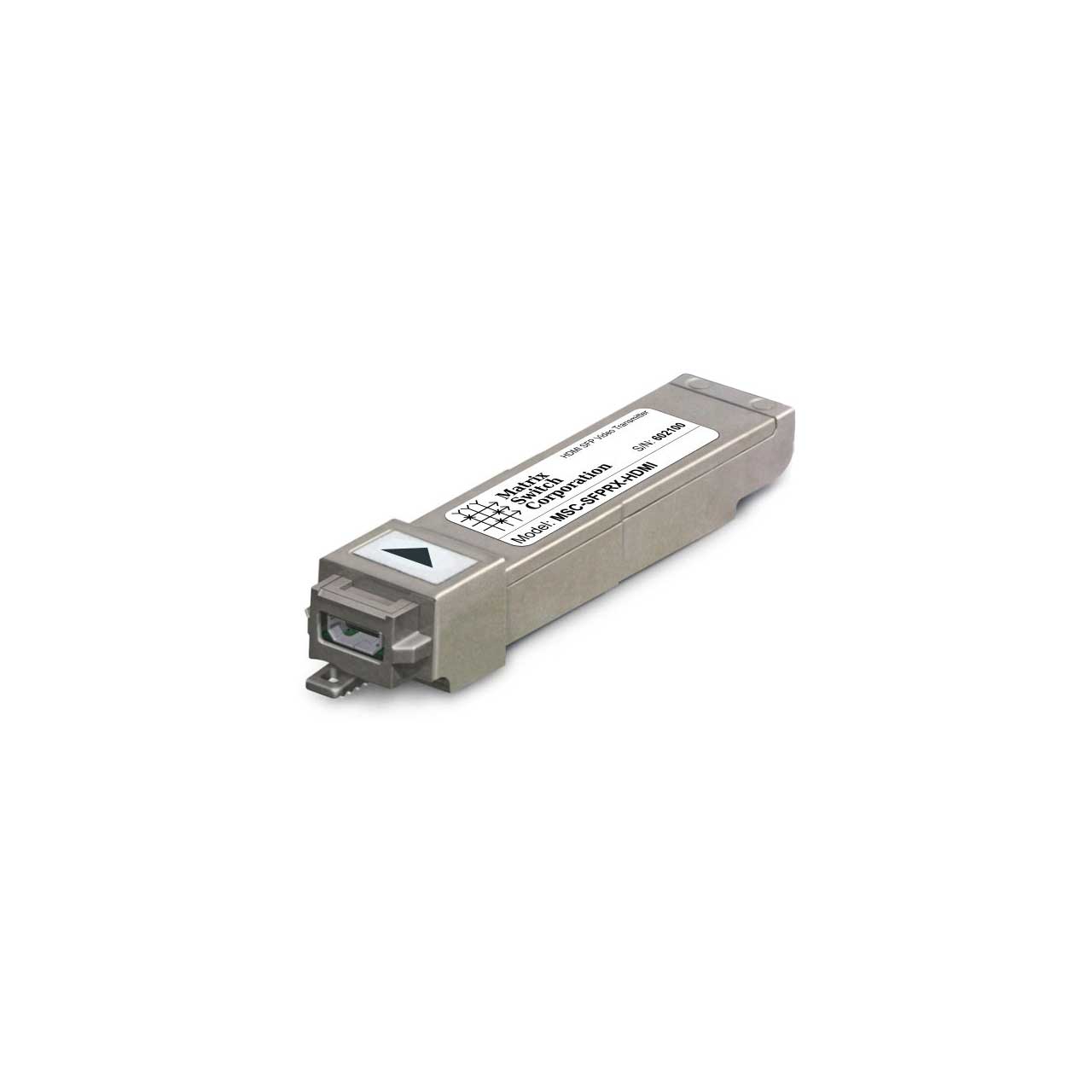

The MSC-SFPRX-HDMI SFP module can be used with the MSC-CARDRX-SFP8 input card and Matrix Switch Corporation's XDM family of Modular SDI Routers to add a single HDMI or DVI input. This is convenient for connecting to HDMI or DVI sources without the need for external converters.

This MSA compliant SFP module is designed to convert to SDI from HDMI 1.4 or DVI 1.0 without scaling artifacts. Up to 8 channels of HDMI audio are re-embedded in the SDI stream. A frame buffer is used to suppress accumulated low and high frequency jitter (timing and alignment). Utilizes a patented Type D connector to prevent accidental disconnects and to provide reliability even under cable stress.

PLEASE NOTE: CABLE IS NOT INCLUDED

  • Features:

    • Passes SDI embedded audio and ancillary data
    • Complies with all relevant FCC, U/L, CE, and RoHS requirements

  • Specifications:

    • General
    • Inputs 1
    • Size 0.56" x 0.52" x 2.35"
    • Weight 0.1 lbs

    • HDMI SFP Input
    • HDMI Version v1.4
    • DVI Version v1.0
    • Video Format Up to 1080p
    • Color Space RGB or YCbCr
    • Data Rates 3G-SDI, HD-SDI, and SD-SDI
    • Audio Channels 8
