Murideo MU-M4SOL-BASE Battery Powered HDBaseT Tester/Analyzer w/ 1 HDBaseT 1.0 VS100 TX/RX Module and PoH Adaptor

ITEM #: MUR-MU-M4SOLBASE MFG #: MU-M4SOL-BASE

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MUR-MU-M4SOLBASE

MU-M4SOL-BASE - Overview

Murideo's MSTest Pro is the only HDBaseT Tester that is reliable, portable, and affordable, making it an indispensable tool for all manufacturers, installers, and integrators. This unique testing device provides A/V professionals with all the information they need when testing HDBaseT products. This unit helps A/V installers test infrastructure, helps manufacturers develop HDBaseT products, and gives audio/video testing labs the tools they need to work out customer issues. Moreover, Murideo's HDBaseT tester generates reports, including all the parameters necessary to certify link quality and status up to 4K UHD content. The report can then be transferred to a computer so you can add your letterhead and present the information to your client.

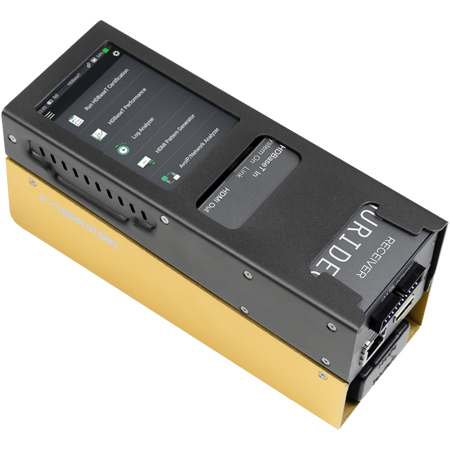

Every Murideo MSTest Pro HDBaseT Tester consists of a main unit, Rx module and Tx module. By emulating an HDBaseT transmitter or receiver, operating up to pixel rates of 300MHz, the tester is capable of testing 4K ultra-high definition source or sink devices even when installed up to 100 meters (328 feet) away.

No More Truck Rolls - If you are an A/V Integrator, wiring, connecting, and performing a test viewing is not enough to test your system before considering your install finished. However, that is the extent of what 99% of integrators are doing. Murideo knows this is a recipe for return visits, also known as truck rolls. Every time an integrator has to spend time fixing a previously installed system, it's time taken away from the company's new revenue.

Testing your infrastructure will set you apart from your competitors and develop a reputation for rock-solid audio video installs that will set your business up for future success.

Easy to Use Analyzing - Murideo's HDBaseT testing device uses a color-coding system based on traffic lights for universal understanding.
- Green means your signal is good to go
- Yellow means that your signal can pass, but you may need to check your connections and cabling
- Red means your signal is not going to pass in a way that will give you a stable connection.

Ultimate HDBaseT Interoperability - With the ability to check the attached cable run's length and what type of HDBaseT chipset is being used, this testing device allows for seamless interoperability between different HDBaseT products. Having this data lets you know if a specific HDBaseT product will work with another. For example, can you use Brand X HDBaseT Transmitter with the HDBaseT port built into the overhead projector? It's easy to find out with this testing device.

Here is a breakdown of each of the options and components for the Murideo HDBaseT Testing device:

MUR-MU-M4SOL-BASE:
Battery powered HDBaseT Tester/Analyzer featuring one HDBaseT 1.0 VS100 TX/RX Module and PoH adaptor. Includes Wireless AP for cord free control and reporting.

MUR-MU-M4SOL2310:
HDBaseT 2.0 VS2310 TX/RX Module with KVM extension testing.

MUR-MU-M4SOL-HCT:
HDMI Cable Tester Module. Check presence of pins, wire gauge (AWG), and whether channels have been shorted or disconnected.

MUR-MU-M4SOL-DC:
The DC Resistance module enables the checking of DC resistance unbalance both within, and between twisted pairs.

MUR-MUM4SOLMXNET:
License upgrade allowing for the analysis of device addressing, SNMP, and IGMP information.

  • Features:

    • Tests All HDBaseT Connections
    • HDBaseT 2.0 Support
    • Module Based - Only buy the modules you need
    • Receive Analytics in Seconds
    • Portable/Handheld
    • Generates a Link Certification Report
    • Pattern Generator
    • POE Support
    • 24 Hour Log File Reports (timed testing)
    • Remote Control over Web Based GUI
    • 100 Meter Support

  • Specifications:

    • Interface: 3.5" Colour Touch Screen
    • Video Connectivity: 1x HDMI output (female) for HDMI test pattern generation (side of unit)
    • Audio Connectivity: 1x 3.5mm stereo jack for audio test signal (side of unit)
    • LAN Connectivity:
      1x RJ45 Ethernet connection (top of unit)
      1x TX / RX module slot connected, 1x TX / RX module slot (storage)
      4x USB ports for download of firmware / test reports
    • Charger: 1x 12.6V 3A DC
    • Power Consumption: 7.5W
    • Unit Dimensions (W x D x H): 68mm x 178mm x 78mm
    • Unit Weight: 0.9kg
    • Carry Case Dimensions (WxDxH): 250mm x 240mm x 115mm
    • Carry Case Weight: 2.2kg
    • Operating Temperature: 32°F to 104°F (0°C to 40°C)
    • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
    • Operating Humidity: 0-80% non condensing

  • Item Includes:

    • 1x MU-M4SOL-BASE Unit

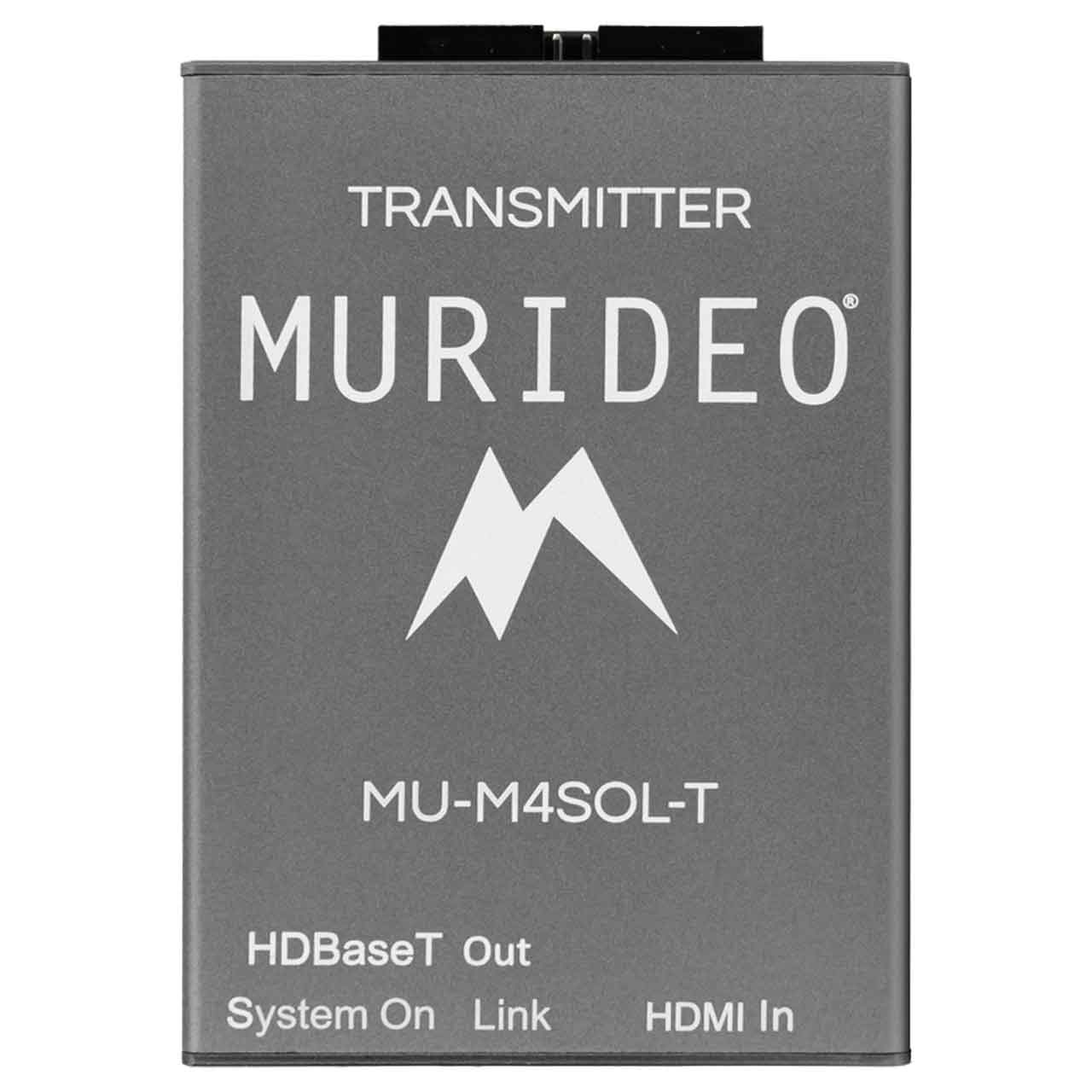

    • 1x Transmitter Module - HDBaseT Spec 1.0
    • 1x Receiver Module - HDBaseT Spec 1.0
    • 1x 12.6V 3A Charger with US, UK & EU Territory Clips
    • 1x Remote Termination Block
    • 1x Ruggedized Carry Case
