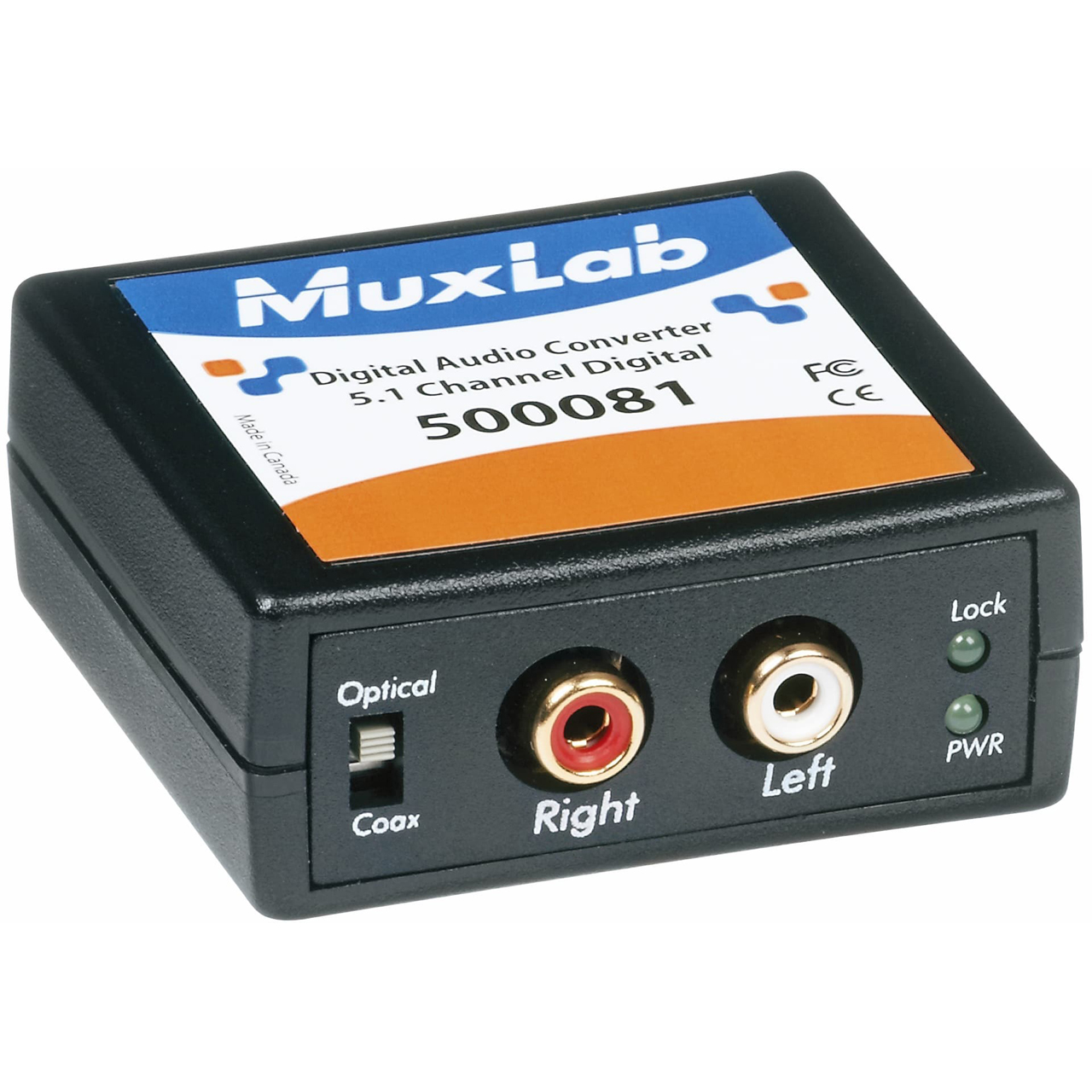

MuxLab 500081 Digital Audio Converter for Decoding Dolby Digital Audio Signals

500081 - Overview

• Features:

  • Converts and downmixes Dolby Digital to stereo audio
  • Switch for selecting between S/PDIF and TOSlink inputs
  • Digital Optical (TOSlink) cable included


• Specifications:

  • Environment: Digital Audio, Dolby Digital Digital Audio
  • Devices: DVD, CD Players, TV, PC, laptops.
  • Transmission: Transparent to the user
  • Signals: Dolby Digital and 2 channel LPCM (Linear Pulse Code Modulation)
  • Connectors:
    - 1x Coaxial connector
    - 1x TOSLink Connector
    - 2x RCA Connectors.
    *Note: TOSlink cable included. RCA audio cables not included.
  • Switch: Selects between SPDIF and TOSlink
  • Distortion: <0.001% @ 1kHz
  • SNR:> 90dB (20Hz - 20kHz)
  • Sample Rate: 32, 44.1, 48 and 96kHz
  • Bit Depth: 24 bit S/PDIF bitstream on right and left channels
  • Power Supply: 1x 110V - 240V/5VDC power supplies with interchangeable blades
  • Power Consumption: 0.75W
  • Temperature:
    - Operating: 32°F - 104°F (0°C - 40°C)
    - Storage: -4°F - 185°F (-20°C - 85°C)
    - Humidity: Up to 95% non-condensing
  • Enclosure: ABS fire retardant plastic
  • Dimensions: 2.4" x 2.25" x 1.0" (6.1cm x 5.5cm x 2.5cm)
  • Weight: 1.0lb (0.45kg)
  • Compliance:
    - Regulatory: FCC, CE, RoHS
    - Flammability: 94V0


• Item Includes:

  • 1x 500081 Digital Audio Converter
  • 1x TOSLink Cable
  • 1x 5DC Power Supply
  • 1x Velro Pad Set


• Warranty:

  • 2 Year Warranty
