Muxlab 500450-LR HDMI Extender Long-Reach Kit - Supports HDMI 1.3a 1080p 8-bit & distances up to 500 feet over Cat5e/6
  • Muxlab 500450-LR HDMI Extender Long-Reach Kit - Supports HDMI 1.3a 1080p 8-bit & distances up to 500 feet over Cat5e/6
  • Muxlab 500450-LR HDMI Extender Long-Reach Kit - Supports HDMI 1.3a 1080p 8-bit & distances up to 500 feet over Cat5e/6

Questions? Ask a Markertek Expert:
800-522-2025 Email

Muxlab 500450-LR HDMI Extender Long-Reach Kit - Supports HDMI 1.3a 1080p 8-bit & distances up to 500 feet over Cat5e/6

Manufacturer: MuxLab Inc

Item #: MUX-500450-LR   •   MFG #: 500450-LR



List Price:$554.00
Our Price:$379.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

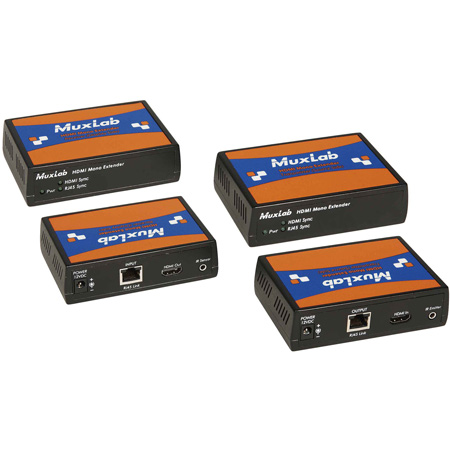

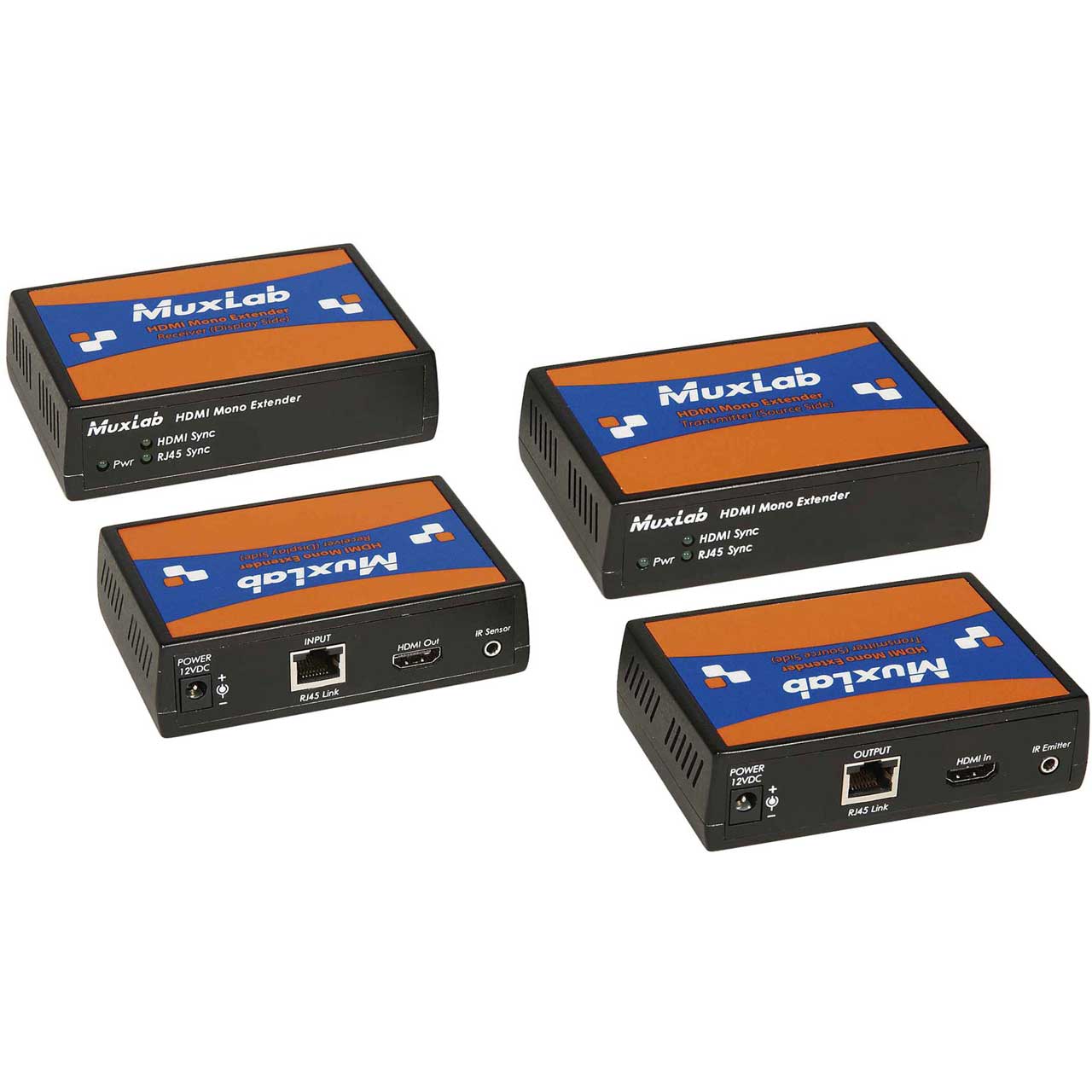

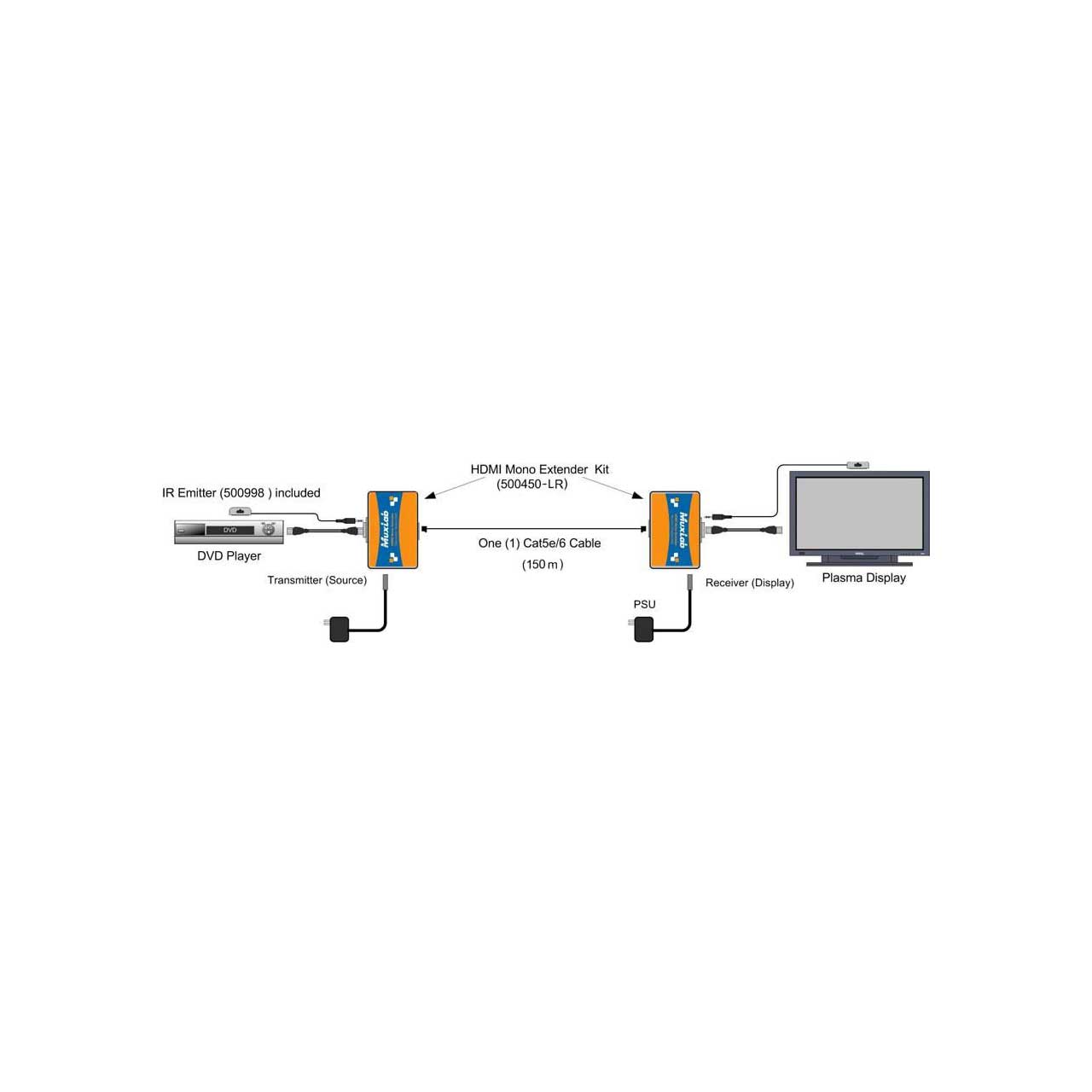

    The Muxlab 500450-LR HDMI Extender Kit Long-Reach allows HDMI equipment to be connected up to 500ft (150m) @ 1080p 8-Bit via one (1) Cat 5e/6 unshielded twisted pair cables in a point-to-point configuration. The kit comes with one (1) Transmitter and one (1) Receiver as well as an IR Emitter (500998) and IR Sensor (500999) for remote control applications.

    Applications:
    Applications include commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, and medical information systems.


    • Features

      • Supports HDMI 1.3a 1080p 8-bit
      • Supports Long Reach extended distances up to 500ft (150m) over Cat5e/6 UTP or STP cable
      • Supports IR remote control of end-devices
      • Includes IR Emitter (500998) and IR Sensor (500999)

    • Specifications

      • Environment: HDMI 1.3a
      • Devices: DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI.
      • Transmission: Transparent to the user
      • Bandwidth: 148.5 MHz
      • Signals HDMI: 1.3a protocol

        Connectors
      • One (1) HDMI receptacle.
      • One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
      • 3.5mm jacks for IR emitter and sensor
        Note: HDMI cables not included.

        Maximum Distance - Based on a maximum length of 6.6 ft (2 m) of HDMI cable per end.
      • 480i/p: Cat 5e/6: 500 ft (150 m)
      • 720p, 1080i: Cat 5e/6: 500 ft (150 m)
      • 1080p 8-Bit: Cat 5e/6: 500 ft (150 m)
        Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used.

        RJ45 Pin - Configuration
        Reverse Polarity Sensitive. Use EIA/TIA 568A or 586B straightthrough wiring.
      • RJ45 Link
      • Pin 1 (R) Pin 2 (T)
      • Pin 3 (R) Pin 6 (T)
      • Pin 4 (R) Pin 5 (T)
      • Pin 7 (R) Pin 8 (T)

      • Cable: One (1) Cat 5e/6 or better twisted pair cables required
      • Power Supply: Two (2) 110-240V/5VDC power supplies with interchangeable blades
      • Power Consumption Transmitter: 4 Watt Receiver: 6 Watt
      • Temperature Operating: 0° to 40°C Storage: -20° to 85°C
      • Humidity: Up to 95% non-condensing
      • Enclosure: Aluminum
      • Dimensions: 4.50" x 3.00" x 1.25" (11.4 x 7.6 x 3.2 cm)
      • Weight: 2.6 lb (1.2 kg)
      • Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0
      • Warranty: 2 years

    • Item Includes

      • 1x IR Emitter (500998)
      • 1x IR Sensor (500999)

    • Warranty

      • 2 Years

    • GTIN:

      0627699014509
