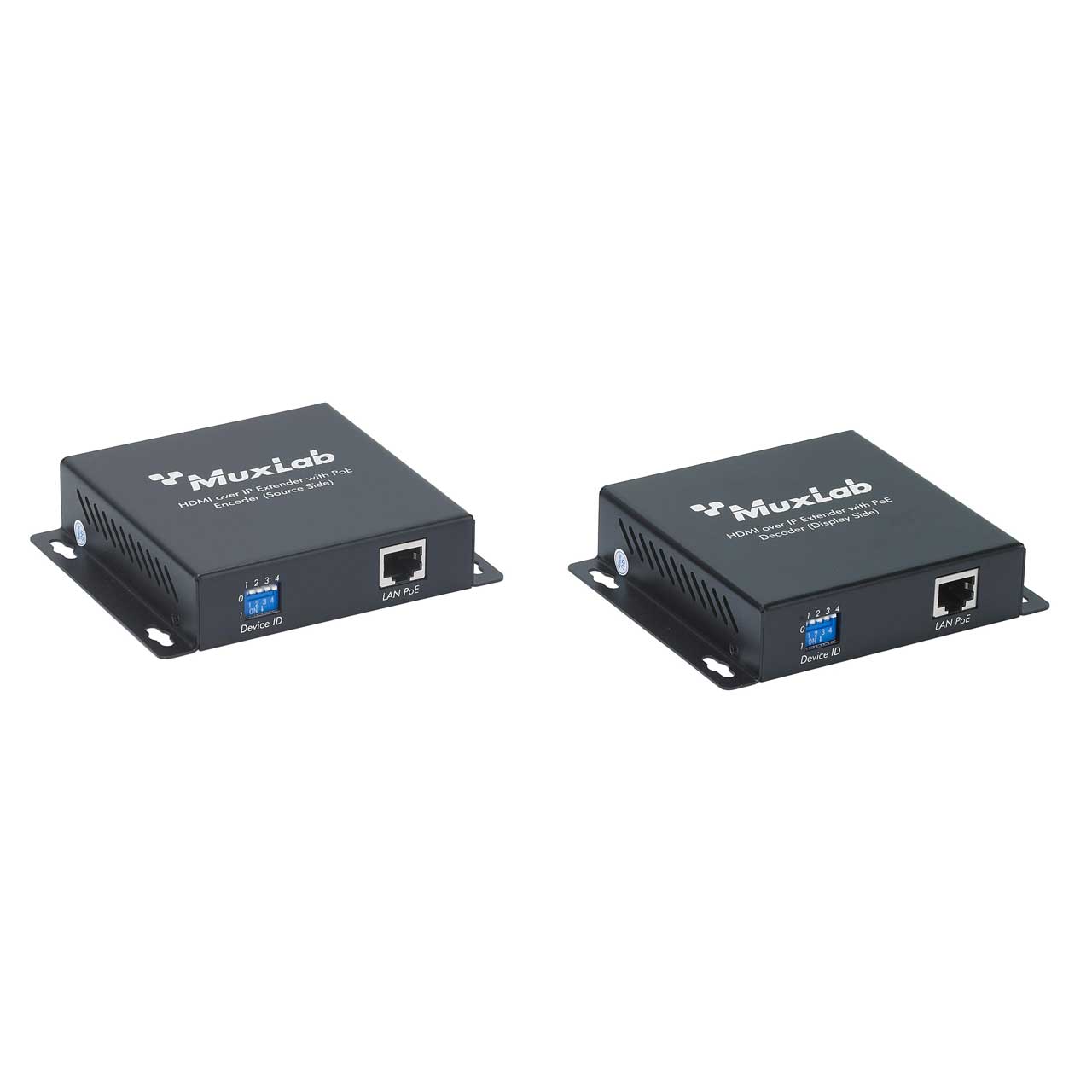

MuxLab 500752-TX HDMI over IP Extender Transmitter with PoE

ITEM #: MUX-500752-TX MFG #: 500752-TX

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$495.00

Our Price:

$342.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    500752-TX - Overview

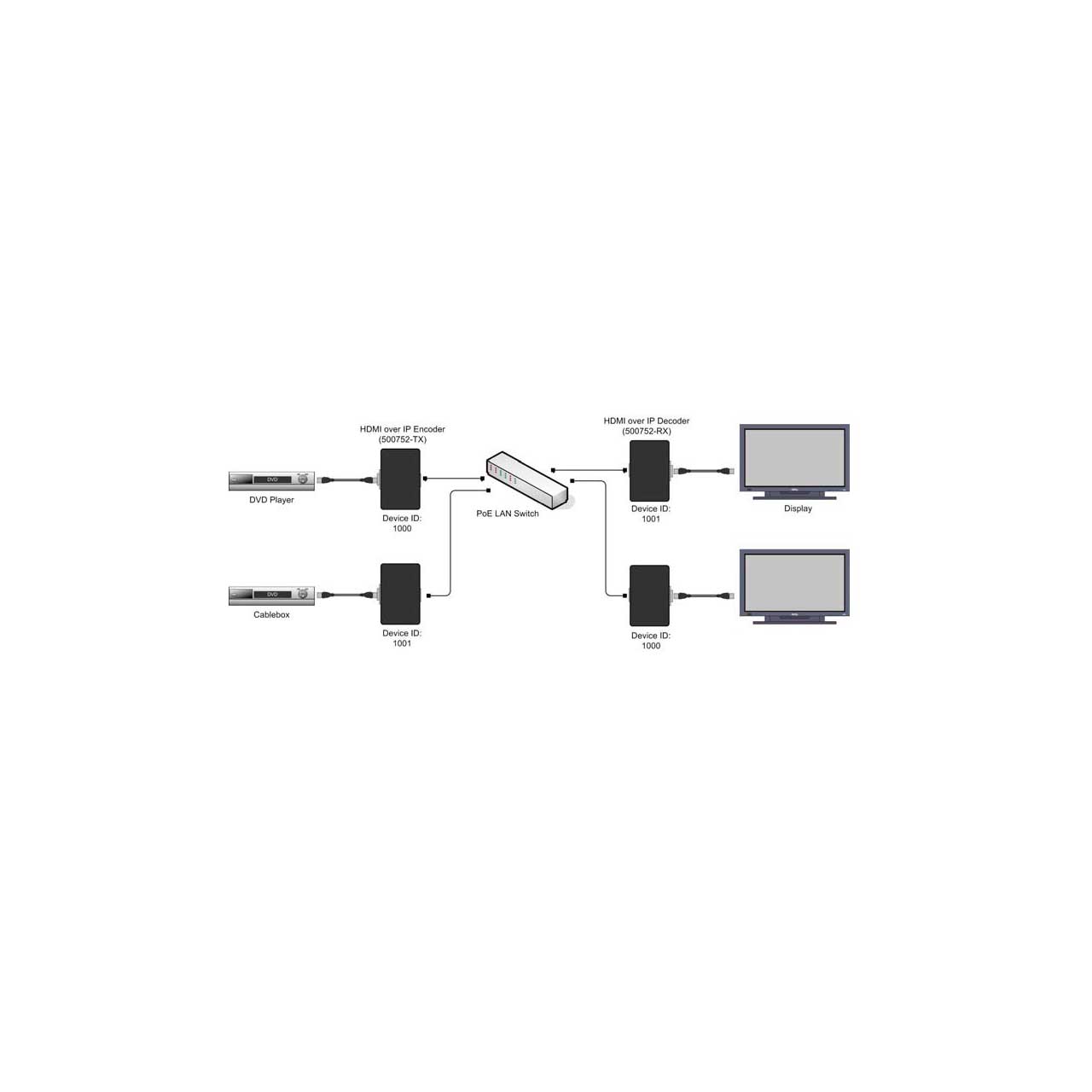

    The Muxlab HDMI over IP extender allows HDMI equipment to be connected up to 330feet (100m) @ 1080p via one (1) Cat5e/6 unshielded twisted pair cable in a point-to-point configuration. Point-to-multipoint and multipoint-to-multipoint is possible by connecting several Transmitters and Receivers to the same Ethernet network. The Transmitter (500752-TX) and Receiver (500752-RX) also support PoE (PD) if used with a PoE (PSE) Ethernet Switch. The HDMI over IP extender kit comes with one (1) Transmitter and one (1) Receiver ideal for starting to set up your HDMI over IP network. The IR Emitter and IR Sensor, if required, may be purchased separately for remote control applications.

    For the point-to-multipoint and multipoint-to-multipoint configuration the Ethernet switch must have Gigabit ports, DHCP Server capability and IGMP communications protocol. MuxLab recommends using the Cisco SG300 Series Managed Switches.

    The MuxLab Pro Digital Network Controller (500811) is available to simplify the configuration and utilization of the MuxLab IP based products via an Ethernet web interface, and supports third party management via smartphone and tablet.

    Applications: Commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, and medical information systems.

    Note: This device supports PoE (PD), and is intended to be powered via a PoE (PSE) Ethernet Switch. If a PoE (PSE) Ethernet Switch is unavailable, then the power supply (500992) may be purchased separately.

    The MUX-500752-RX is a receiver only and requires a model MUX-500752-TX to complete the system. You can also purchase model MUX-500752 as a complete kit.

    Cables not included

    • Features:

      • Extends 1080P HDMI signals up to 330ft (100m)
      • Supports up 16 transmitters and 200 receivers
      • Supports multicasting and broadcasting
      • Supports PoE
      • IR Control, HDCP compliant

    • Specifications:

      • Environment: HDMI 1.3a
      • Devices: DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI.
      • Video Transmission: Transparent to the user
      • Video Bandwidth: 225MHz
      • Signals: HDMI 1.3a protocol

        Connectors
      • One (1) HDMI receptacle.
      • One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
      • One (1) 3.5mm jacks for IR emitter/sensor.
      • Four (4) DIP Switches for device ID addressing.

        Maximum Distance
      • 6.6ft (2m) of HDMI cable per end.
      • Cat5e/6: 330ft (100m) up to 1080P
      • Cat5e/6: 400ft (120m) when used point to point without hub.

      • Latency: One (1) Frame
      • Compression: Motion JPEG
      • Network Bandwidth: 60Mbps
      • Network Requirement: 100BaseT for Point to Point; 1000BaseT for other configuration
      • IR Frequency: 38 to 56KHz
      • Cable: One (1) Cat 5e/6 or better twisted pair cables required

        Power Supply
      • This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500992) may be purchased separately.
      • PoE IEEE 802.3af

      • Power Consumption Transmitter: 2.9Watt Receiver: 1.8Watt
      • Temperature Operating: 0° to 40°C Storage: -20° to 85°C
      • Humidity: Up to 95% non-condensing
      • Enclosure Metal: black
      • Dimensions: 3.70" x 3.68" x 0.97" (94 x 93.5 x 24.6mm)
      • Weight: 1.1lbs (0.5kg)
      • Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0

    • Warranty:

      • 2 Year Warranty on all Active Products - lifetime Warranty on all Passive Products

    • GTIN:

      0627699907528
