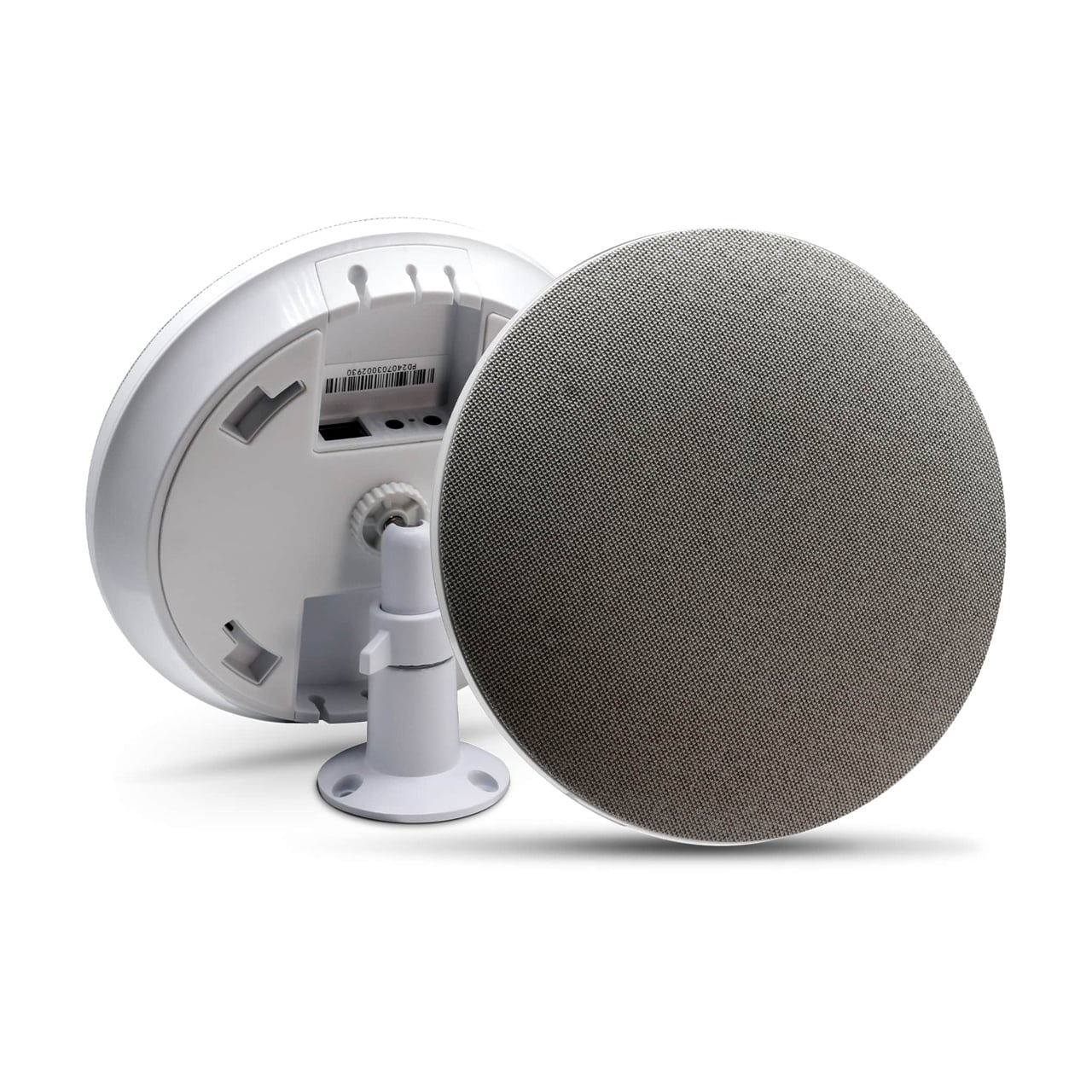

MuxLab 500797 MuxMeet Omnidirectional Ceiling Microphone with PoE Support

500797 - Overview

• Features:

  • Digital array microphone
  • Supports Power over Ethernet (PoE)
  • Low latency audio transmission
  • Multiple interface outputs
  • Sound source localization technology
  • AI audio algorithms
  • Hoisting, wall and ceiling mounting


• Specifications:

  Audio Features
  • Environment: Custom audio-video systems in a structured cabling environment

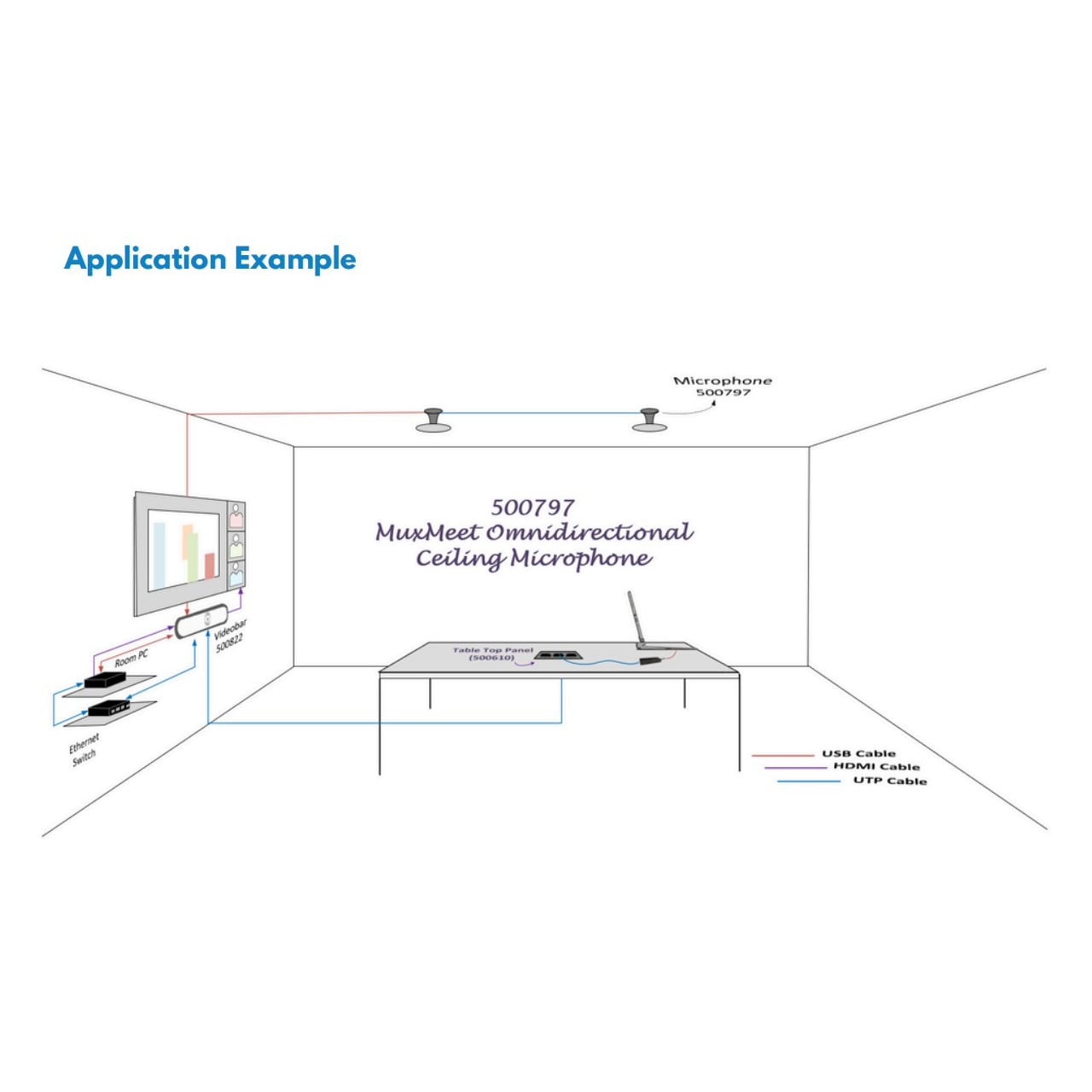

  • Application: Head-end installations, conference room, interactive teaching
  • Compatible Product: Muxlab 500822
  • Microphone Type: Omnidirectional Microphone
  • Array Microphone: Built-in 6 mics to form ring array microphone, 360° omnidirectional pickup
  • Sensitivity: -38dBFS
  • Signal to Noise Ratio: 65 dB(A)
  • Frequency Response: 50Hz - 16KHz
  • Pickup Range: 3m clear pickup, 6m effective pickup
  • Audio Algorithms:
    - Automatic Echo Cancellation (AEC), Automatic Noise Suppression (ANS) and
    - Automatic Gain Control (AGC)

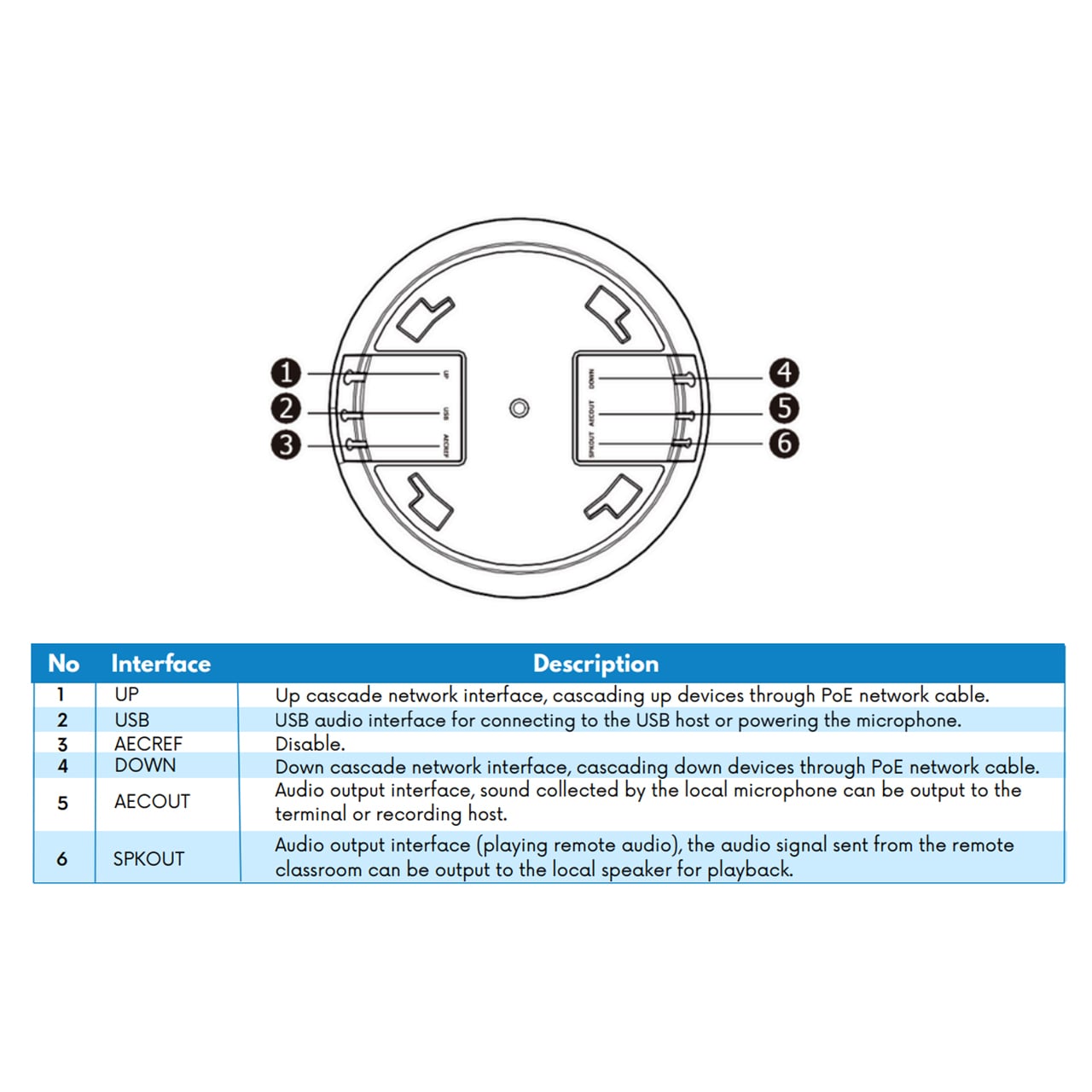

    Hardware Interfaces
  • Network Interface: 2x RJ45 uplink and downlink cascade ports
  • USB Interface: 1x USB-C audio interface, supports UAC 1.0

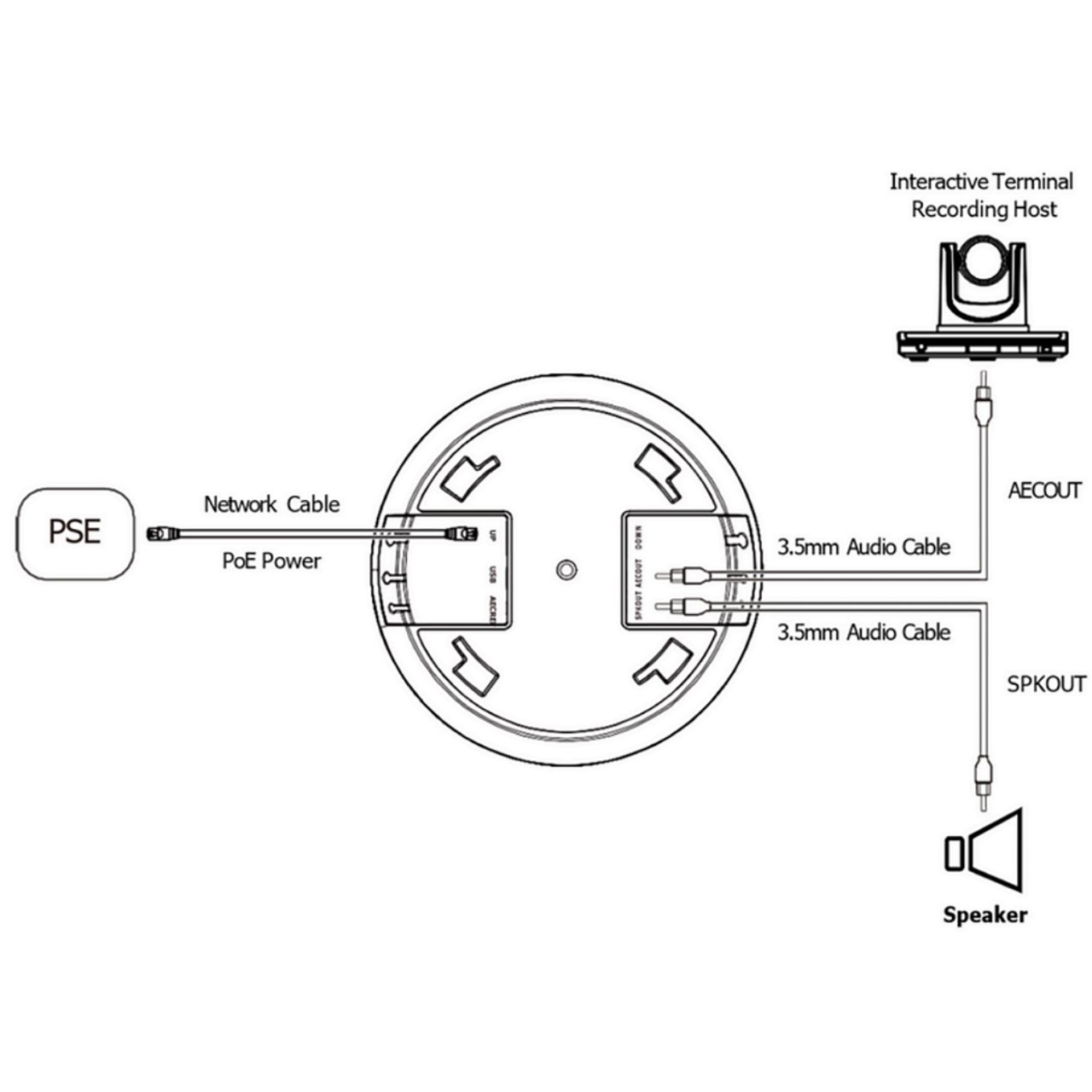

  • Audio Interface: 2x 3.5mm Analog audio input and output
  • M/S Selector: 1x Mechanical switch (Disable)
  • Installation Mode: Suspension mounting

    General
  • Cascade Mode: PoE network interface
  • Number of Cascade: 6
  • Power Supply: Single microphone USB 5V 500mA, cascade microphone PoE IEEE 802.3at
  • Power Consumption: 3.0W Maximum
  • Dimensions: 6.7" x 1.6" (170mm x 40mm)
  • Weight: 0.9lbs (0.4kg)
  • Compliance: Regulatory: FCC, CE, RoHS
  • Order Information: 500797 Muxmeet Omnidirectional Ceiling Microphone (UPC: 627699007976)


• Item Includes:

  • 1x MuxMeet Omnidirectional Ceiling Microphone
  • 1x Remote Control
  • 1x Mounting Bracket
  • 1x USB Cable
  • 1x Audio Cable
  • 1x User Manual (available via download)


• Warranty:

  • 2 Year Limited Warranty
